16-Group 1×4 (4×1) SM, 1310/1550nm, MPO16/APC, 1U Chassis

FW2600-16OS14-MP rack-mount optical switching equipment consists of 16 units of 1×4 optical switches. It enables controllable optical path switching for selecting one MPO16 optical interface out of four MPO16 optical interfaces (4-to-1 selection or 1-to-4 switching). The unit supports flexible network management: switching can be configured via a graphical web-management GUI over the RJ45 Ethernet port, or controlled by upper-level hosts through program commands.



An optical switch routes, switches and selects optical signals directly in the optical domain without any-to-electrical-to-optical conversion. It supports optical-path protection switching, dynamic scheduling and multi-channel selection. It is widely deployed in optical communications, AI computing, test & simulation, optical sensing and other applications.

Inquire now Download
  • Product Detail

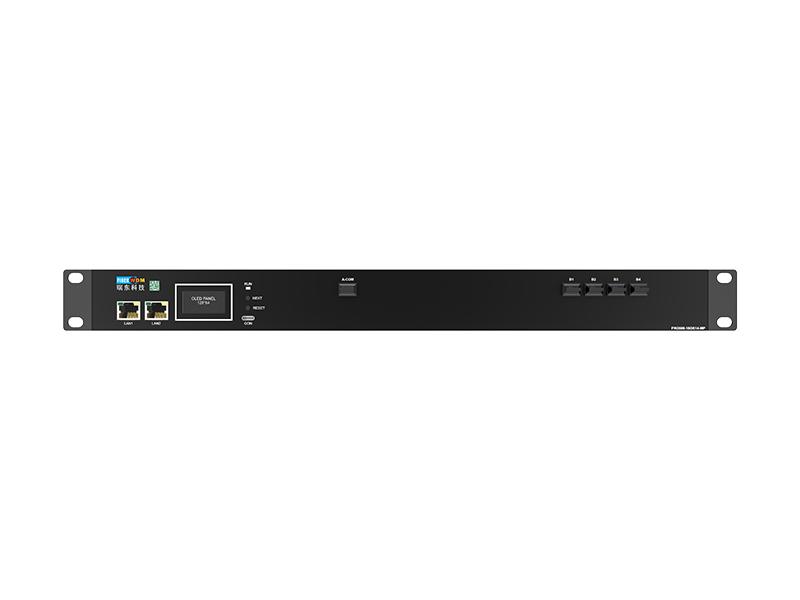

Optical Switching Equipment： FW2600-16OS14-MP

16-Group 1×4 (4×1) SM, 1310/1550nm, MPO16/APC, 1U Chassis



Product Features



  • Low insertion loss and fast switching speed.
  • Controlled via Ethernet interface with networking capability. Multiple units can be centrally managed through a graphical interface for simple and convenient operation.
  • LCD display for intuitive viewing of user name and IP address.
  • Transparent transmission of compliant incoming optical signals.
  • Compatible with single-mode fiber types: G.652, G.653, G.655, G.657.
  • Power-off memory (latching) function.



Performance Specifications



Item Parameter
Model FW2600-16OS14-MP
Operating Wavelength SM: 1260-1620nm
Test Wavelength 1310nm / 1550nm
Insertion Loss ≤ 1.5 dB
Repeatability ≤ ±0.02 dB
Return Loss ≥ 50 dB
Crosstalk ≥ 55 dB
Wavelength-Dependent Loss (WDL) ≤ 0.25 dB
Polarization-Dependent Loss (PDL) ≤ 0.05 dB
Temperature-Dependent Loss (TDL) ≤ 0.2 dB
Switching Time ≤ 12 ms
Service Lifetime ≥ 10⁷ cycles
Fiber Type Single-Mode (9/125μm)
Optical Connectors COM-A: MPO16/APC (Female); B1-B4: MPO16/APC (Male)
Management Interface RJ45
Fault Protection Power-off memory (latching)
Power Supply AC: 110-260 V
Operating Temperature −10 ℃ ~ +60 ℃
Storage Temperature −40 ℃ ~ +85 ℃
Chassis 19-inch standard 1U rack-mount (482 × 390 × 44 mm)

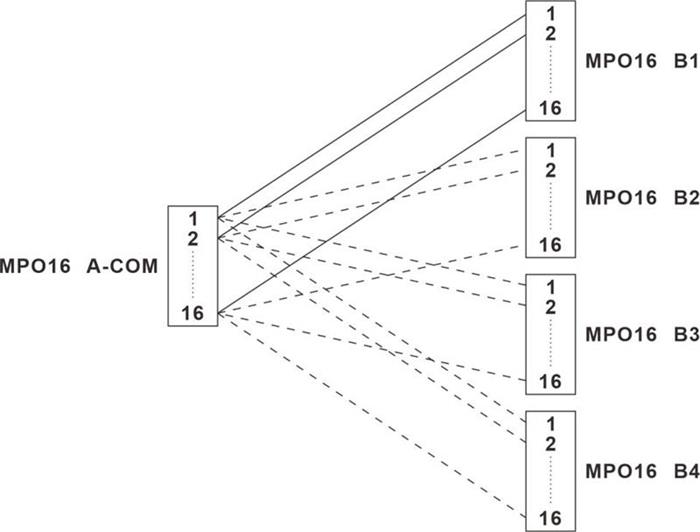

Optical Path Diagram



16 units of 1×4 optical switches

Switching Logic



Port A can connect to any one of ports B1, B2, B3 and B4. Only one path is active at any time.

· State 1: MPO16 A ↔ MPO16 B1

· State 2: MPO16 A ↔ MPO16 B2

· State 3: MPO16 A ↔ MPO16 B3

· State 4: MPO16 A ↔ MPO16 B4



Notes:



1. Port A is MPO16/APC female, and must mate with MPO16/APC male cables. Ports B1-B4 are MPO16/APC male, and must mate with MPO16/APC female cables. Use single-mode 16-fiber patch cords.

2. This device is not compatible with MPO8 / MPO12 optical interfaces.



Device Description

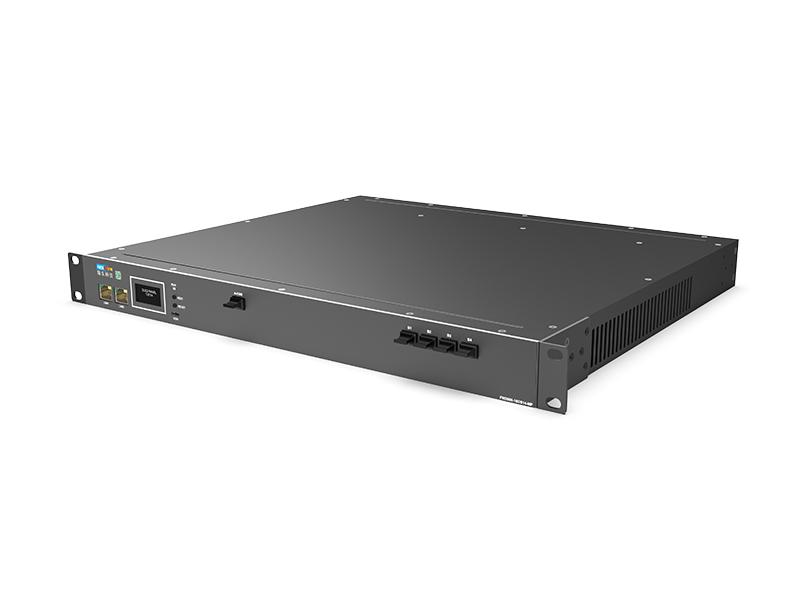

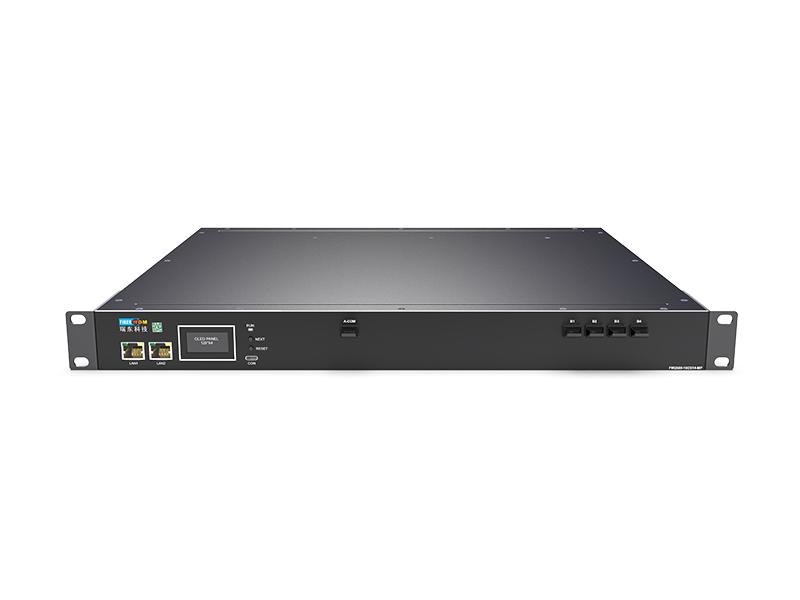

Front-Panel Layout



16 units of 1×4 optical switches



  • LAN1 / LAN2: RJ45 Ethernet ports for device management communication
  • LCD display: Shows device address and status information
  • Next: Scroll-down navigation button
  • Reset: Reset button
  • RUN indicator: Device operation status LED
  • Con: Console debug port
  • User optical interfaces: Five MPO16-APC optical ports

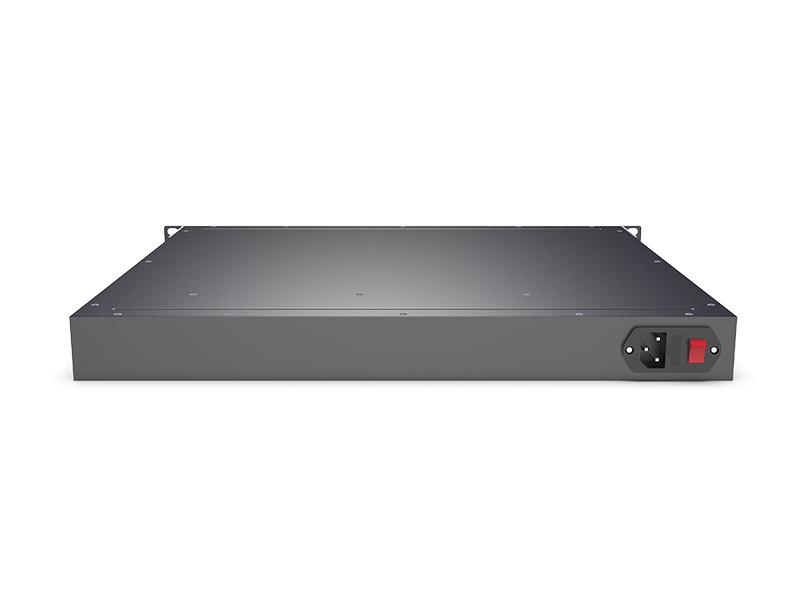

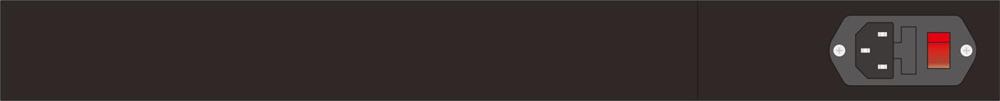

Rear-Panel Layout



16 units of 1×4 optical switches

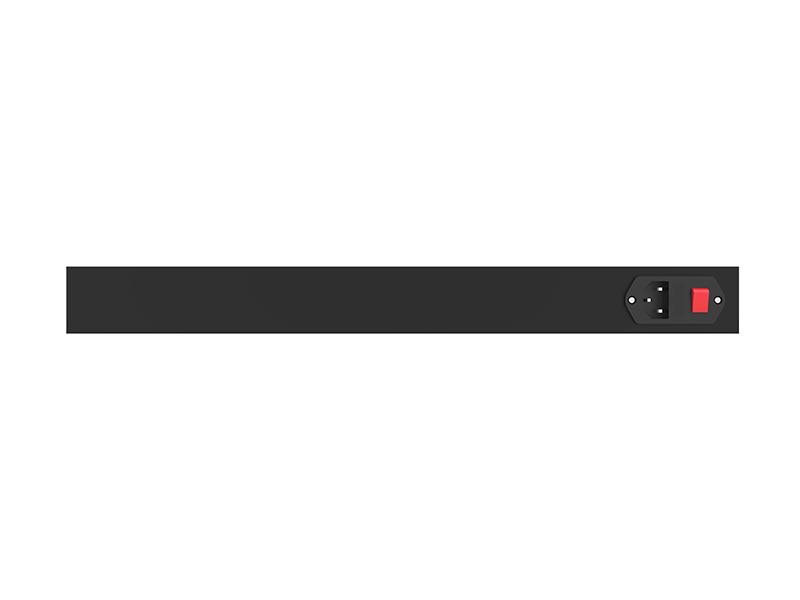

  • AC power inlet: AC power input connector

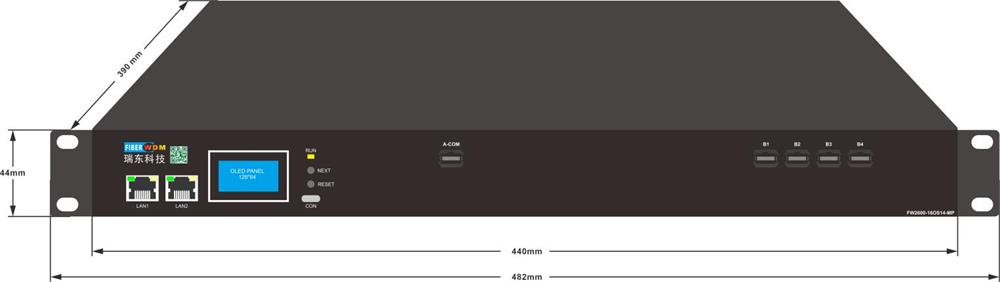

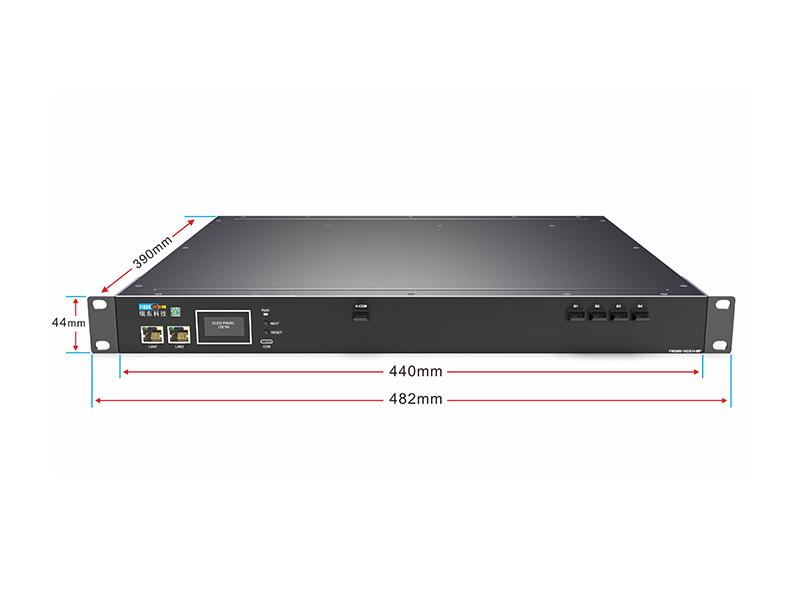

Device Dimension Drawing



16 units of 1×4 optical switches
