240824 How to achieve 100G/40G single-fiber transmission at a low cost?

(Fiberwdm All rights Reserved)

Keywords: Single fiber bidirectional transmission, 40G single fiber transmission, 100G single fiber transmission, passive double fiber to single fiber converter, single wave single fiber bidirectional transmission.

current situation：

Currently, the 40G optical transceiver does not have a single-fiber optical module.

Although there are currently single-fiber bidirectional optical modules launched, the cost is still relatively high.

In the case of more and more 100G applications and more and more tight optical fiber resources, if it is more cost-effective to solve the problem of 40G/100G single-fiber transmission?

Solution：

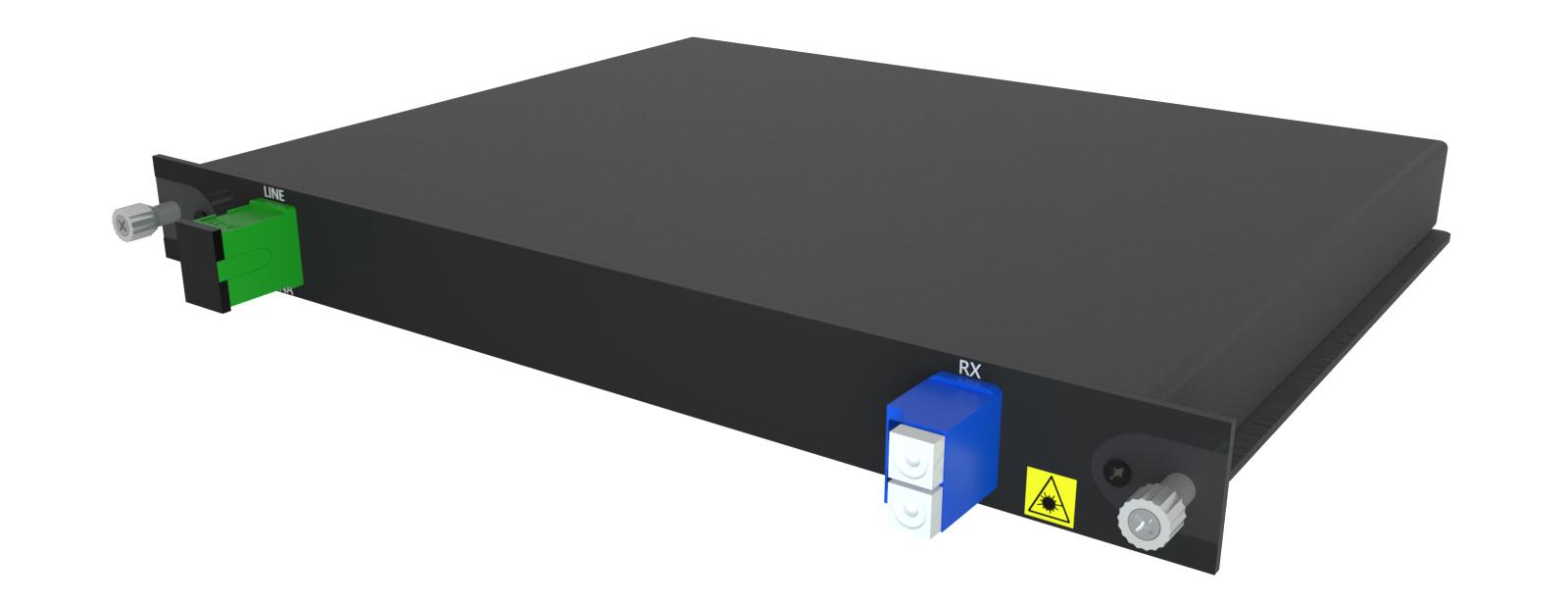

Fiberwdm takes advantage of its many years of experience in the field of optical transmission to launch passive dual-fiber to single-fiber converter products, which can help customers make full use of existing fiber resources to quickly solve the problem of 40G/100G single-fiber

transmission at a low cost.

Product features:

(1) Low cost

(2) Passive products, passive power supply, no power consumption, green energy saving

(3) Shelf ready

(4) The product form is optional: rack type, cartridge type, small module type, etc., to meet a variety of application scenarios

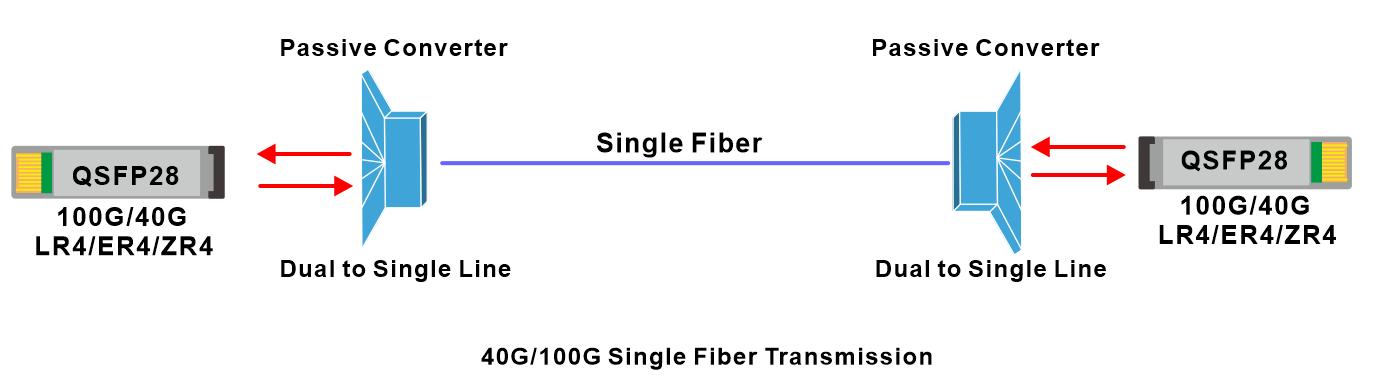

Product Application:
