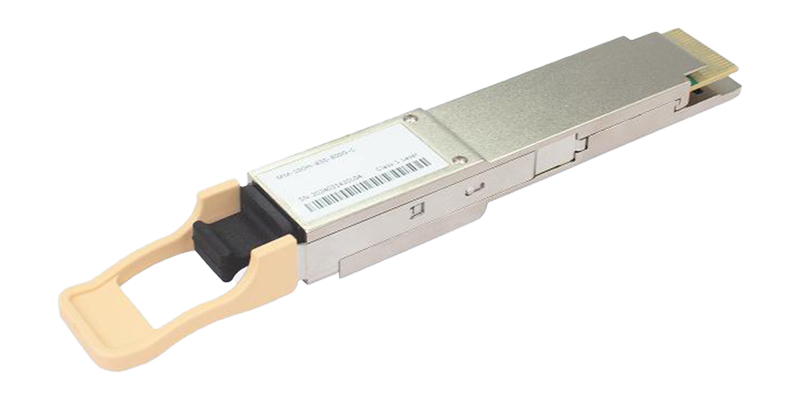

240907  QSFP-DD 800G SR8 optical module

(Fiberwdm All rights Reserved)

Key words: QSFP-DD, 800G , SR8

800G SR8 optical modules play an important role in data center networks, they are mainly used to provide high-speed connections to meet the needs of large-scale data transmission within and between data centers.

Data center internal connection: The 800G SR8 optical module can be used for high-speed interconnection inside the data center and supports high-speed data transmission between servers, storage devices, and network switches inside the data center. This optical module is typically used for short-distance connections in leaf-spine architectures, where the connection distance between a "leaf" switch and a "ridge" switch is usually within 100 meters.

Data Center Interconnection (DCI) : In the data center interconnection scenario, the 800G SR8 optical module can be used to connect different data centers to achieve high-speed data transmission and backup. This application typically involves direct connectivity between data centers to support disaster recovery, load balancing, and data synchronization.

High Performance Computing (HPC) : In the field of high performance computing, 800G SR8 optical modules can be used to connect nodes in a high performance computing cluster to support large-scale scientific computing and data analysis tasks.

Cloud service providers: Cloud service providers use 800G SR8 optical modules to build and scale their data center networks to support the high-speed data transfer and processing needs of cloud services.

5G and communication networks: With the promotion of 5G technology, 800G SR8 optical modules can also be used to support the infrastructure of 5G networks, providing the necessary high-speed connections and data transmission capabilities.

The QSFP-DD 800G SR8 optical module uses 100G PAM4 and VCSEL lasers, and there are two optical interfaces, MPO-16(APC) interfaces. Transmission distance 60m@OM3 or 100m@OM4. Low power consumption less than 14W.

Fiberwdm can provide QSFP-DD 800G SR8 optical module with stable quality and reasonable price, welcome customers to contact and consult.

Model: RQD-800GSR8

Specifications: QSFP-DD 800G PAM4 SR8 MPO(APC)-16
