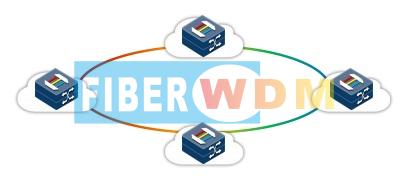

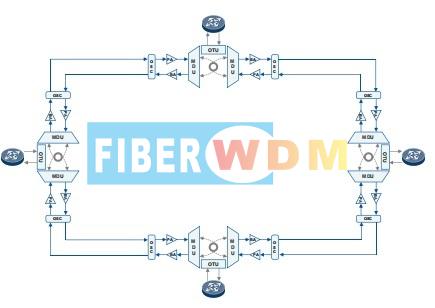

Schematic diagram of networking

• Multiple stations use 2-core ring optical fiber to build a ring transmission network, and the ring can support the maximum 25.6T transmission capacity (400G * 64 waves), which greatly saves optical fiber resources

• Provide a comprehensive business protection solution, with a fault switching time of <50ms

• Any node on the ring service communication, the light layer is direct, the network flattening, improve the service delay and jitter performance

• OSC can realize the signal communication of each station, and the whole network can be managed by single station access
