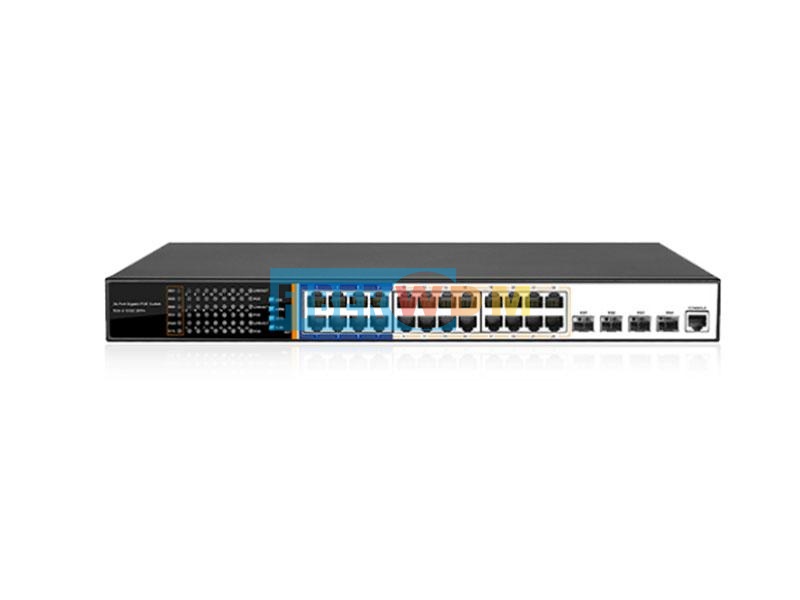

10 Gigabit Uplink Gigabit Managed POE Switch FW5700-24GP-4TF

10 Gigabit Uplink Gigabit Managed POE Switch

FW5700-24GP-4TF

Product Features

24 * 10/100/1000Mbps RJ45 ports+4 * 10 Gigabit SFP+ports

FW5700-24GP-4TF is a 24 port network managed intelligent switch. 24 10/100/1000M adaptive ports and 4 10 Gigabit SFP+ports are provided to provide sufficient bandwidth for convergence and core data exchange. Users can select appropriate 10 Gigabit ports to flexibly meet network requirements. The product adopts a new generation of high-performance hardware and software platform, supports three-layer routing protocols, complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, is easy to manage and maintain, meets users' networking requirements for network equipment that is easy to manage, high security, and low-cost, and is suitable for campus, hotels, and enterprise campus network access, convergence, and core multiple application scenarios.

• 6kv port lightning protection: the full port supports 6KV lightning protection, PSE short circuit protection, PoE overload, power over temperature protection, overvoltage protection, surge current protection and other protection features.

• Business processing capability: support 802.1Q VLAN, MAC VLAN, IP VLAN, and users can flexibly divide VLANs as required; Support RIP dynamic routing protocol, solve the routing problem of small and medium-sized networks after dividing subnets, and simplify network configuration.

• Security mechanism: It supports IEEE 802.1x, Radius, Tacacs+, etc., and can provide users with a complete security authentication mechanism.

• Reliability protection: support STP, RSTP and MSTP protocols, eliminate the two-layer loop and realize link backup.

• POE power supply function: support 802.3af/at standard, built-in high-power power supply, meet the requirements of security monitoring, wireless coverage, IP phone and other POE scenarios.

• Management and maintenance: Support Console, Telnet, SSH and other management methods.

Product Details

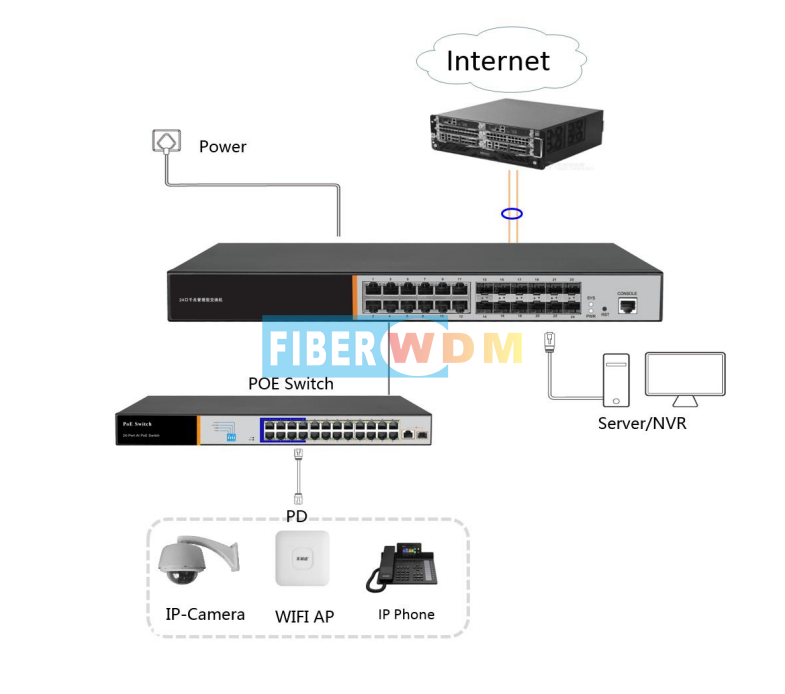

Application Collocation
