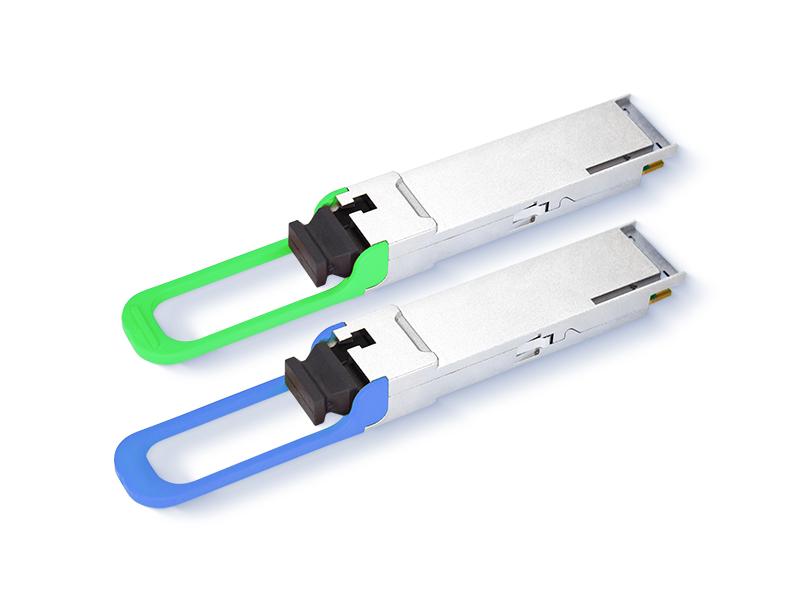

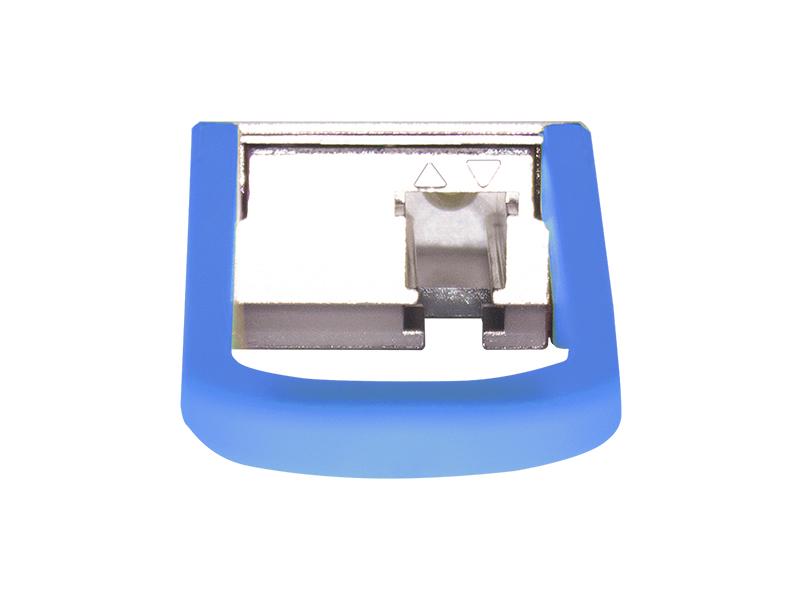

100G QSFP28 BIDI
100G QSFP28 BIDI 100G QSFP28 BIDI 100G QSFP28 BIDI 100G QSFP28 BIDI 100G QSFP28 BIDI

100G QSFP28 BIDI 1304nm/1309nm 40km Transceiver

Features

  • Supports 100GBASE-ER1-40 BIDI
  • Lane signaling rate 106.25Gb/s with PAM4
  • Up to 40km transmission on SMF
  • EML laser and APD receiver
  • 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
  • High speed I/O electrical interface
  • I2C interface with integrated Digital Diagnostic monitoring
  • QSFP28 MSA package with simplex LC connector
  • Single +3.3V power supply
  • Maximum power consumption 4.5 W
  • Operating case temperature: 0 to +70 °C
  • Compliant to 802.3cu, SFF-8636&SFF-8679 standard
  • Complies with EU Directive 2015/863/EU

Application
  • 100GBASE-ER1-40 BIDI


Transceiver Types:


Inquire now Download
  • Product Detail

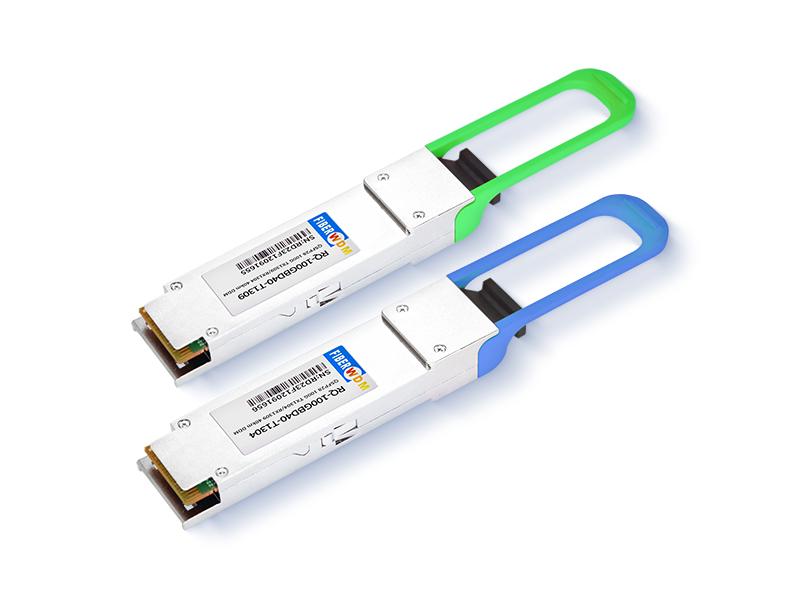

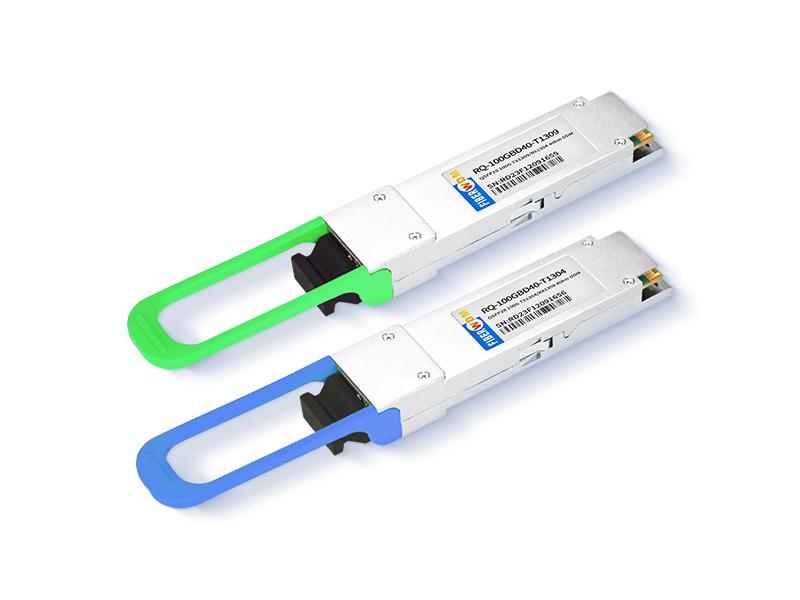

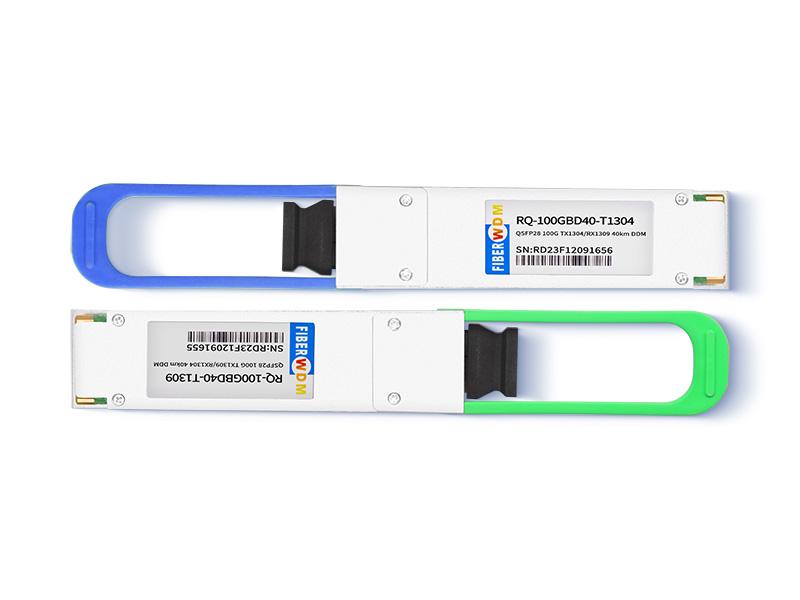

RQ-100GBD40-T1304/ RQ-100GBD40-T1309

100Gbps QSFP28 BIDI Single Lambda Transceiver, 1304nm/1309nm Single Mode, 40km Reach


100G QSFP28 BIDI


Absolute Maximum Ratings

Parameter

Symbol

Min

Typical

Max

Units

Notes

Storage Temperature

TS

-40


+85

degC


Supply Voltage

VCC

-0.5

-

+4.0

V


Operating Relative Humidity

RH

-

-

+85

%



Recommended Operating Environment

Parameter

Symbol

Min

Typical

Max

Units

Notes

Operating Case Temperature

Tc

0


70

°C


Power Supply Voltage

VCC

3.13

3.3

3.47

V


Power Supply Current

ICC

-

-

1.3

A


Maximum Power Dissipation

PD

-

-

4.5

W


Data Rate(optical)

DRo

-

106.25

-

Gb/s


Transmission Distance

TD

-

-

40

km

Over SMF


Optical Characteristics

Transmitter

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Center Wavelength

RQ-100GBD40-T1304

CW

1303.54

1304.58

1305.63

nm


RQ-100GBD40-T1309

CW

1308.09

1309.14

1310.19



Average Launch Power

PTX

1.7

-

7.1

dBm

1

Outer Optical Modulation Amplitude

OMA

4.5

-

7.9

dBm

TEDCQ<1.4

3.3+TDECQ

-

dBm

TEDCQ>1.4

Transmitter and dispersion eye closure for PAM4 (TDECQ) (max)

TDECQ

-

-

3.9

dBm


|TDECQ-TECQ| (max)

-

-

-

2.7

dB


Average Output Power (Laser Turn off)

P0UT-OFF

-

-

-15

dBm


Side Mode Suppression Ratio

SMSR

30

-

-

dB


Extinction Ratio

ER

6

-

-

dB


Receiver

Center Wavelength

RQ-100GBD40-T1304

CW

1308.09

1309.14

1310.19

nm


RQ-100GBD40-T1309

1303.54

1304.58

1305.63



Damage threshold

Pdamage

-2.4

-

-

dBm

2

Average Rx Power

PRX

-16.0

-

-3.4

dBm

3

Receive power_OMAouter

POMA

-

-

-2.6

dBm


Receiver sensitivity _OMAouter

SEN _OMA

-

-

-13.8

dBm

4

Los Assert

LosA

-26

-

-

dBm


Los De-Assert

LosDA

-

-

-15

dBm


Los Hysteresis

LosH

0.5

-

-

dB


Notes:

1. The optical power is launched into SMF.

2. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level. The receiver does not have to operate correctly at this input power.

3. Average receive power, each lane (min) is informative and not the principal indicator of signal strength.

4. Measured with conformance test signal at TP3 using the test pattern PRBS31Q or scrambled idle for stressed receiver sensitivity for the BER= 2.4x10-4.


Electrical Characteristics

Transmitter (Module Input)

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Input Differential Impedance

Rin

-

100

-

Ohm


Differential Data Input Amplitude

VIN,P-P

80

-

900

mVpp


Differential termination mismatch(max)

D-mismatch

-

-

10

%


DC common-mode input voltage


-0.3

-

2.8

V


Transition time (20%~80%)

TrTf

10

-

-

ps


LPMode, Reset and ModSelL/Txdis

VIL

-0.3

-

0.8

V


LPMode, Reset and ModSelL/Txdis

VIH

2.0

-

VCC+0.3

V


Receiver (Module Output)

Output Differential Impedance

Rout

-

100

-

Ohm


Differential Data Output Amplitude

VOUT.P-P

-

-

900

mVpp


Differential termination mismatch(max)

D-mismatch

-

-

10

%


Transition time, 20%to80%

TrTf

12

-


ps


ModPrsL and IntL/ Rx los

VOL

0

-

0.4

V


ModPrsL and IntL/ Rx los

VOH

VCC-0.5

-

VCC+0.3

V



Digital Diagnostics

Parameter

Range

Accuracy

Unit

Calibration

Temperature

0 to 70

±3

ºC

Internal

Voltage

0 to VCC

0.1

V

Internal

Tx Bias Current

0 to 100

10%

mA

Internal

Tx Output Power

1.7 to 7.1

±3

dBm

Internal

Rx Power

-16.0 to -3.4

±3

dBm

Internal


Pin Assignment

100G QSFP28 BIDI


Mechanical Dimension

100G QSFP28 BIDI

Ordering information

Part Number

Product Description

RQ-100GBD40-T1304

100G QSFP28 BIDI Transceiver, TX1304nm/RX1309nm, Simplex LC, 40km, 0~+70°C, with DDM

RQ-100GBD40-T1309

100G QSFP28 BIDI Transceiver, TX1309nm/RX1304nm, Simplex LC, 40km, 0~+70°C, with DDM
