100G SFP-DD DAC Transceiver

Pad

Logic

Symbol

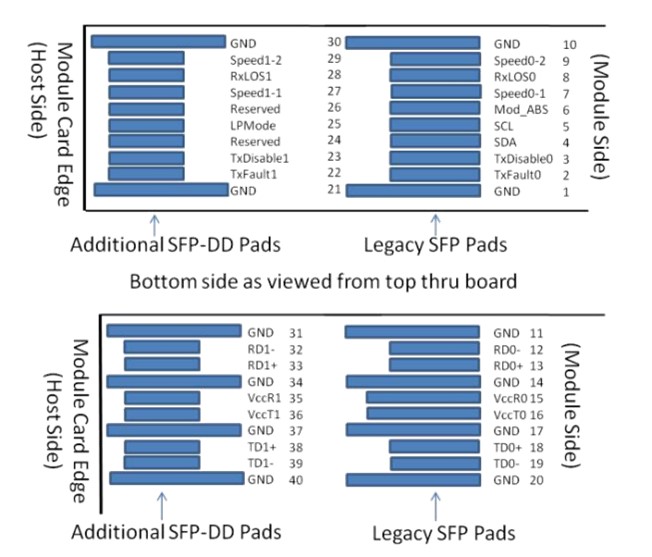

Module pad Descriptions

Plug

sequence

Notes

1

GND

Ground

1A

1

2

LVTTL-O

Tx Fault0

Transmitter Fault Indication for channel 0

3A

3

LVTTL-I

Tx Disable0

Transmitter Disable for channel 0

3A

4

LVCMOS-I/O

SDA

Management I/F data line

3A

5

LVCMOS-I/O

SCL

Management I/F clock

3A

6

LVTTL-O

ModABS

Module Absent

3A

7

LVTTL-I

Speed0-1

Rx Rate Select for channel 0

3A

8

LVTTL-O

Rx LOS0

Rx Loos of Signal for channel 0

3A

9

LVTTL-I

Speed0-2

Tx Rate Select for channel 0

3A

10

GND

Ground

1A

1

11

GND

Ground

1A

1

12

CML-O

RDO-

Inverse Received Data Out for channel 0

3A

13

CML-O

RD0+

Received Data Out for channel 0

3A

14

GND

Ground

1A

1

15

Vcc R0

Receiver power

2A

2

16

Vcc TO

Transmitter power

2A

2

17

GND

Ground

1A

18

CML-I

TDD+

Transmit Data li for channel 0

3A

19

CML-I

TDD-

Inverse Transmit Data In for channel 0

3A

20

GND

Ground

1A

1

21

GND

Ground

1B

1

22

LVTTL-O

Tx Fault1

Transmitter Fault Indication/Interrupt for channel 1

3B

23

LVTTL-O

TxDisable1

Transmitter Disable for channel 1

3B

24

Reserved

Reserved for future Use

3B

25

LVTTL-I

LP Mode

Low Power Mode Control

3B

26

Reserved

Reserved for future Use

3B

3

27

LVTTL-I

Speed1-1

Rx Rate Select for channel 1

3B

28

LVTTL-O

Rx LOS1

Loss of signal for channel 1

3B

29

LVTTL-I

Speed1-2

Tx Rate Select for channel 1

3B

30

GND

Ground

1B

1

31

GND

Ground

1B

1

32

CML-O

RD1

Inverse Received Data Out for channel 1

3B

33

CML-O

RD1+

Received Data Out for channel 1

3B

34

GND

Ground

1B

1

35

VccR1

Received Power for channel 1

2B

2

36

VccT1

Transmitter Power for channel 1

2B

2

37

GND

Ground

1B

1

38

CML-I

TD1+

Transmitter Data in for channel 1

3B

39

CML-I

TD1-

Inverse Transmit Data Out for channel 1

3B

40

GND

Ground

1B

1

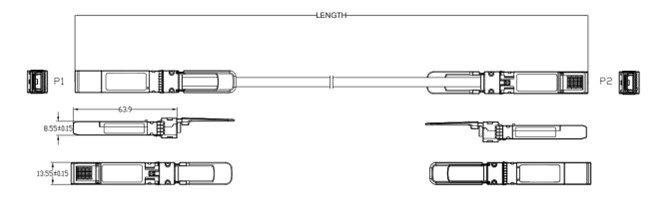

Part No.

Description

SFPDD-100G-005

100GSFP-DDtoSFP-DDDAC,30AWG, 0.5m,PVC,BLACK.

SFPDD-100G-010

100GSFP-DDtoSFP-DDDAC,30AWG, 1.0m,PVC,BLACK.

SFPDD-100G-015

100GSFP-DDtoSFP-DDDAC,30AWG, 1.5m,PVC,BLACK.

SFPDD-100G-020

100GSFP-DDtoSFP-DDDAC,30AWG, 2.0m,PVC,BLACK.

SFPDD-100G-025

100GSFP-DDtoSFP-DDDAC,26AWG,2.5m,PVC,BLACK.

SFPDD-100G-030

100GSFP-DDtoSFP-DDDAC,26AWG, 3.0m,PVC,BLACK.
