240919  LPO optical module

(Fiberwdm All rights Reserved)

Keywords: LPO optical module, QSFP-DD 400G optical module, 800G optical module

LPO optical module, Linear drive Pluggable Optics, linear drive pluggable optical module

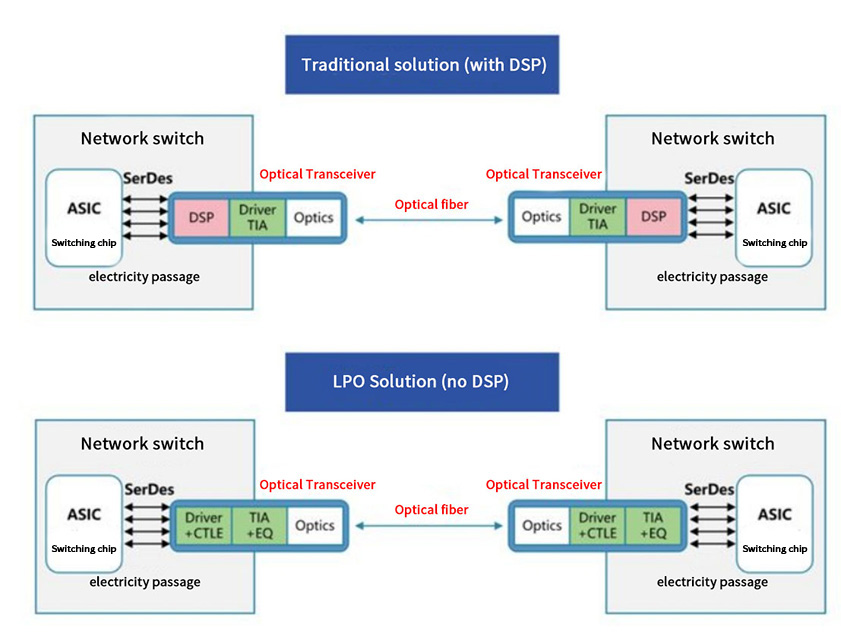

The key difference between LPO and traditional optical modules is Linear drive; The so-called "linear drive" means that the LPO adopts linear direct drive technology, and the DSP (digital signal processing) /CDR (clock data recovery) chip is cancelled in the optical module. The high-speed optical module has high signal requirements, and basically needs DSP chip to do various compensation and algorithms. The function of DSP is very powerful. But its power consumption and cost are also high. For example, in a 400G optical module, the DSP power consumption is about 4W, accounting for about 50% of the entire module power consumption. From a cost point of view, in 400G optical modules, DSP costs account for about 20-40% of the total cost of optical modules.

The LPO solution is that no DSP/CDR chip is used in the optical module

LPO optical module has the advantages of low power consumption, low cost, low delay and easy maintenance

LPO will be the most potential technical route in the 800G era

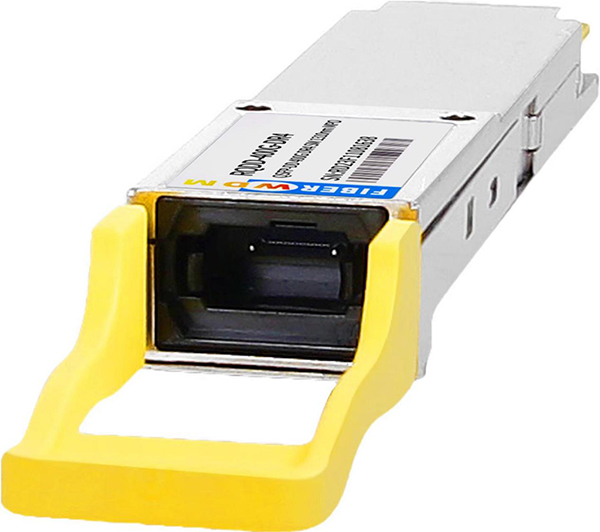

As a leading manufacturer of optical devices and optical network equipment, Guangzhou Ruidong Technology (Fiberwdm) has been committed to the application of new technologies, and together with partners, to provide 200G/400G/800G optical modules based on LPO technology for AI computing power and DCI high-speed interconnection.
