241008 OLP optical line protection

(Fiberwdm All rights Reserved)

Keywords: OLP optical line protection, optical protection, optical fiber active/standby route switching protection, optical fiber second route protection,

automatic fiber switching protection, OPS fiber line protection

A bout OLP

OLP(Optical Line Protection)- Optical fiber line protection. Optical fiber Automatic switching protection system (OLP) is an automatic monitoring and protection system based on the physical link of optical cable, independent of the communication transmission system.

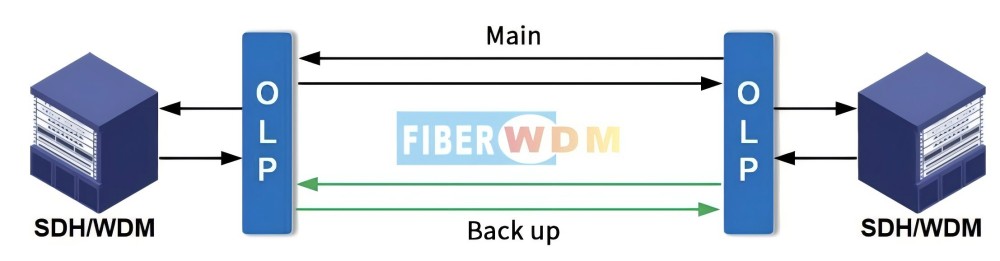

OLP is an automatic switching protection device for optical fiber lines, which is used to construct non-blocking and highly reliable optical communication network. There are two common protection modes :1 +1 and 1:1

OLP application

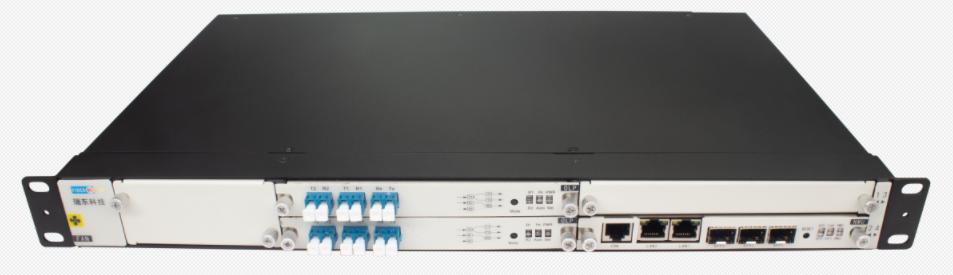

Fiberwdm developed and produced OLP equipment can be widely used in military, power, operators, data centers and other industries and fields, can help users improve the reliability and security of optical fiber network system, reduce the failure rate; For more important lines, by adding OLP equipment and standby lines, OLP equipment can play a role in automatic detection of optical fiber lines. When the performance of the working channel line is detected or blocked, the OLP system can automatically switch the transmission signal to the optical fiber of the protection line in real time. Thus, an optical communication network with high reliability, safety and flexibility, and strong anti-disaster capability is established.
