241026 DCI 100G Long distance transmission optical module -QSFP28 100G ZR4eZR4

(Fiberwdm All rights Reserved)

Keywords: QSFP28 100G 80KM optical module, QSFP28 100G 100KM optical module,

QSFP28 100G ZR4 optical module, QSFP28 eZR4 optical module, data center 100G long distance transmission

100G QSFP28 ZR4/eZR4

The 100G QSFP28 ZR4(80KM)/eZR4(100KM) optical module is used for connections between switches, routers, transmission devices, etc., in data centers, and transmits distances up to 80km/100KM on single-mode fibers.

The 100G QSFP28 ZR4/eZR4 optical module is fully compliant with the SFF-8665/8636 QSFP28 industry standard and related MSA, and can use the digital diagnostic function via the I2C interface. Comply with IEEE 802.3100GBASE-ZR4 specifications. The module supports the standard KR4 FEC (Forward error correction) baud rate, which will help the receiving side detect and correct errors and improve the overall quality of the link.

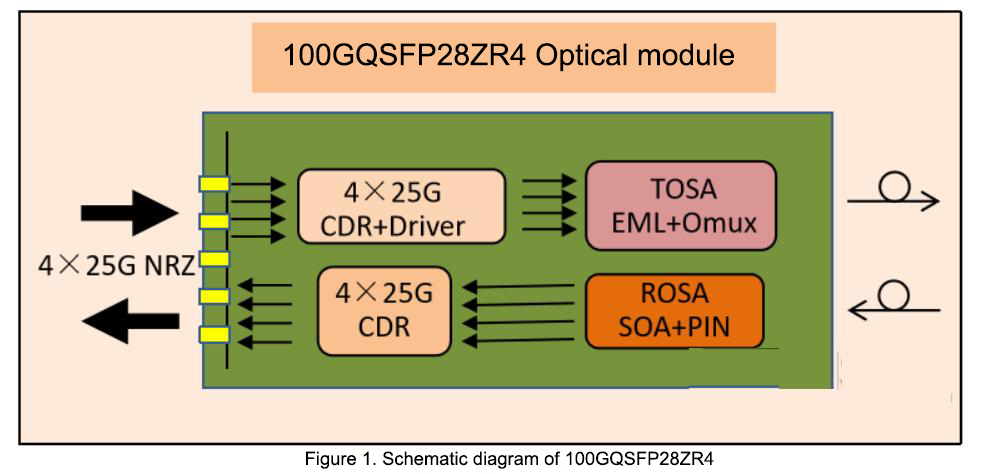

100G QSFP28 ZR4/eZR4 structure

100G QSFP28 ZR4/eZR4 on the launch side, 4X25G NRZ plus CDR. On the receiving end, SOA+PIN; Multiplexing/demultiplexing via LWDM(center wavelength 1296nm, 1300nm, 1305nm and 1309nm, respectively), standard LC optical interface; Dual-core single-mode fiber transmission.

Fiberwdm

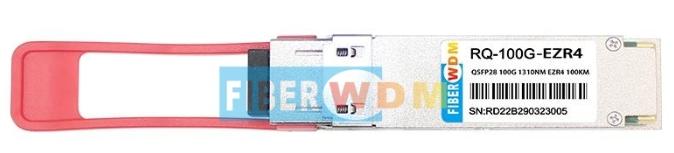

QSFP28 100G ZR4/eZR+ Product Model:

RQ-100GZR4(QSFP28 100G 80KM LWDM4 1310nm)

RQ-100GeZR4(QSFP28 100G 100KM LWDM4 1310nm)

Fiberwdm QSFP28 100G ZR4/eZR4 optical module helps DCI 100G interconnection and data center customers solve the problem of 100G long-distance transmission.
