241102 Optical fiber numerical aperture NA

(Fiberwdm All rights Reserved)

Key words: Core NA, fiber numerical aperture NA

For optical communication, part of the optical incident on the optical fiber end face cannot enter the optical fiber, and the optical entering the optical fiber end face may not be transmitted in the optical fiber, only the optical that meets a certain specific condition can be fully reflected in the optical fiber to be transmitted.

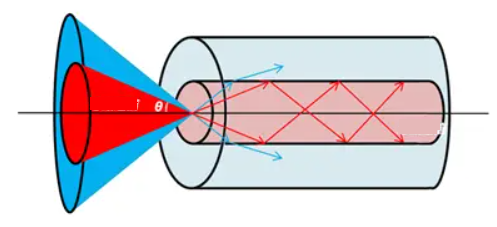

As shown in the figure above, a beam of optical, regardless of the range of angles, can only enter the fiber along a specific optical cone Angle (the red part)

For normal transmission, the sine value of this Angle θ is called the fiber numerical aperture NA.

NA：Numerical Apeture

One of the important optical parameters of optical fiber

No dimensions, no units                   NA=n*Sinθ

(n: refractive index of medium; θ : Angle between the optical and the fiber axis, usually called half Angle)

According to the formula, only optical with numerical aperture NA≦nsinθ can be coupled into the optical fiber for transmission. The numerical aperture NA represents the optical fiber's ability to receive optical.

How to correctly select numerical aperture NA?

Physically, the numerical aperture of an optical fiber represents the fiber's ability to receive incoming optical.

The larger the NA, the stronger the ability of the fiber to receive optical, from the point of view of increasing the optical power into the fiber, the larger the NA, the better, because the larger the numerical aperture of the fiber is favorable for the docking of the fiber.

However, when NA is too large, the mode distortion of the fiber increases, which affects the bandwidth of the fiber. Therefore, in the optical fiber communication system, there are certain requirements for the numerical aperture of optical fiber. Generally, in order to most effectively beam optical into the fiber, a lens whose numerical aperture is the same as that of the fiber should be used for optical collection.
