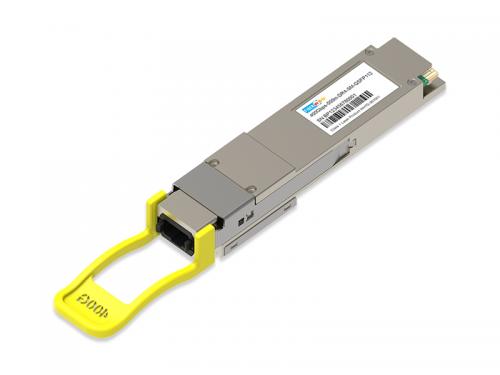

Features Form Factor: Hot-pluggable OSFP form factor  Data Rate: Aggregate data rate of 425 Gb/s and Breakout data rate of 106.25 Gb/s  Optical Interface: Compliant to 400GBASE-DR4 and 4x100GBASE-DR Transmitter: EML 1310nm transmitter  Electrical Interface: Compliant to 400GAUI-4 and 4x100GAUI-1 Receiver: PIN and TIA array on the receiver side Management Interface: I2C management interface Reach: Up to 500m over MPO-12/APC single mode fiber  Power consumption: 9 W max  Operating case temperature: 0 ~ 70 ℃ Power Supply: Single 3.3V power supply Compliance Form Factor: OSFP MSA Optical: IEEE802.3bs Electrical: IEEE802.3ck Firmware: CMIS Environment: RoHS Stability: GR-468-CORE Applications 400Gb/s Ethernet Data Center  InfiniBand

Features QSFP-DD Serial Optical Interface 8x50G PAM4 retimed 400GAUI-8 electrical interface MPO-12 connector with 8° angled end-face Up to 500m on SMF with FEC QSFP-DD MSA Compliant Hot Pluggable QSFP-DD form factor Compliant with CMIS5.2 Support Protocol IEE802.3.bs 400GBASE-DR4 Specification compliant Low Power Consumption Less than 10.5W in temperature range of 0 to 70℃ Applications 400Gb/s Ethernet Data Center InfiniBand interconnects

Features IEEE 802.3bs Specification compliant QSFP-DD MSA compliant 4x106.25 Gbps PAM4 optical interface 8x53.125 Gbps PAM4 electrical interface I2C interface with integrated DDM Up to 2km transmission distance on single mode fiber (SMF) with FEC up ply voltage: 3.3 V Maximum power consumption: 12 W MTP/MPO-12 connector Operating case temperature: 0 to 70 °C RoHS compliant Applications 400G Ethernet Datacenter enterprise networking
