FWDM Filter TX 1550nm RX 1310/1490nm

  • Single channel 3 port FWDM filter, works in FTTH/FTTx optical network
  • Low insertion loss
  • High channel isolation
  • Low polarization dependent loss
  • Exceptional reliability and stability
Inquire now
  • Product Detail

HTTH HTTx FWDM Filter TX 1550nm RX 1310/1490nm




FIBERWDM Provide FWDM TX 1550nm RX 1310/1490nm is low loss and reliable performances.


It works in FTTH/FTTX optical network, in PON system works on 1310/1490,and CATV signal is delivered over same fiber using 1550nm.



Product

 FWDM filter

STEEL FWDM


Features


  • Wide bandwidth
  • Low insertion loss
  • High channel isolation
  • Exceptional reliability and stability


Applications


  • Optical amplifiers
  • CATV



 Specifications


Wavelength

TX1550 RX1310/1490nm

Technology

TFF (Thin Film Filter)

Passband

1540~1565nm

Reflection

1260~1500&1590~1650

Passband ripple

≤0.30dB

IL @ Passband

≤0.60dB

Reflection band ripple

≤0.20dB

IL @Reflection

≤0.40dB

Transmission isolation (adj channel)

≥30dB

Transmission isolation (non-adj channel)

≥50dB

Reflection isolation

≥15dB

Polarization dependent loss

≤0.1dB

Polarization mode dispersion

≤0.2ps

Thermal Stability

≤0.005N

Directivity

≥50dB

Return loss

≥45dB

Optical power handling

≤500mW

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Fiber type

SMF-28e

Package dimension

Stee l∮5.5 xL34mm

ABS  90*20*10nm

Note.

1) All the specifications are based on the devices without connectors, and guaranteed over wavelength, polarization and temperature.

2)PMD and chromatic dispersion values are guaranteed by design.

3) Specifications are subject to change without notice



Dimensions drawing（mm）



FWDM filter

FWDM Filter Steel Package

FWDM filter

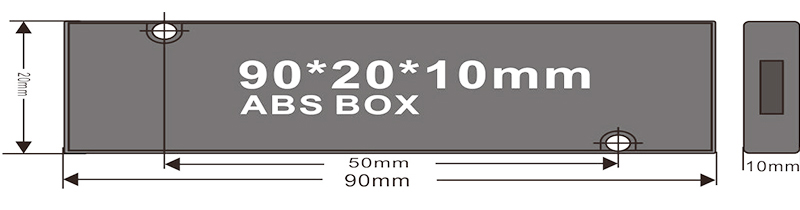

 FWDM Filter ABS BOX Package

Note:

1) Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

2) Support customized package, just contact us by email.



Ordering information



RD-FW

- Package

-Connector Type

U/A

-55

-Fiber Type

-Fiber Length



S: Steel

0: No connector

U: UPC

55: 1550nm

9: 0.9mm Fiber

005: 0.5+/-0.1m



B: ABS BOX

1: LC

A: APC



20:2.0mm

01: 1.0+/-0.1m



Others

2: SC





30:2.0mm

others





3: FC





Others







4: Others
