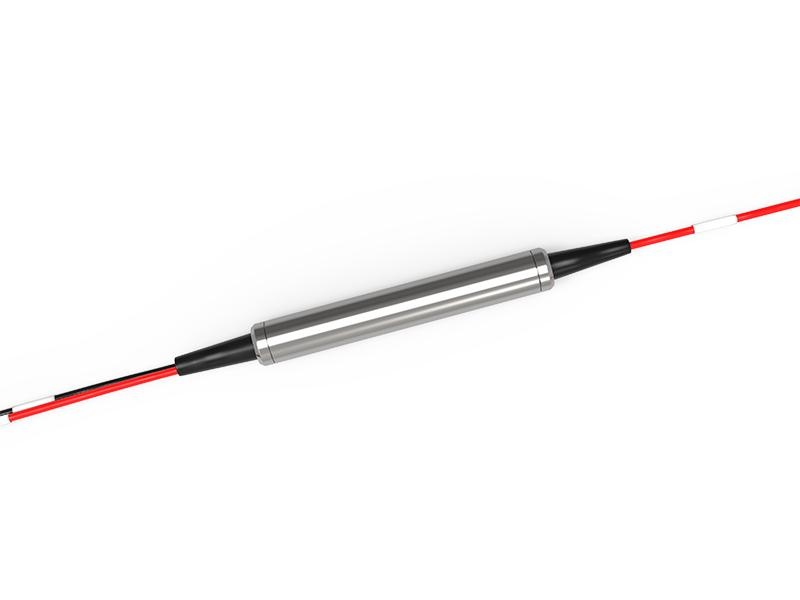

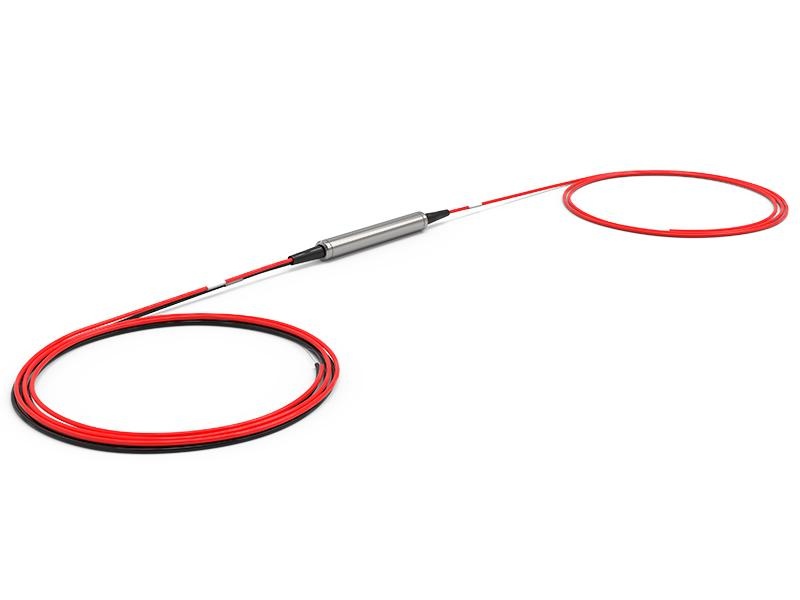

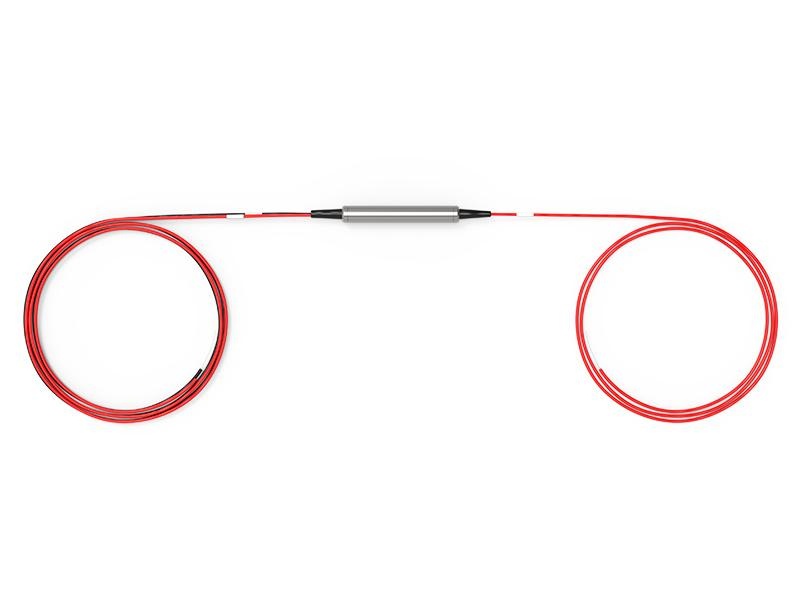

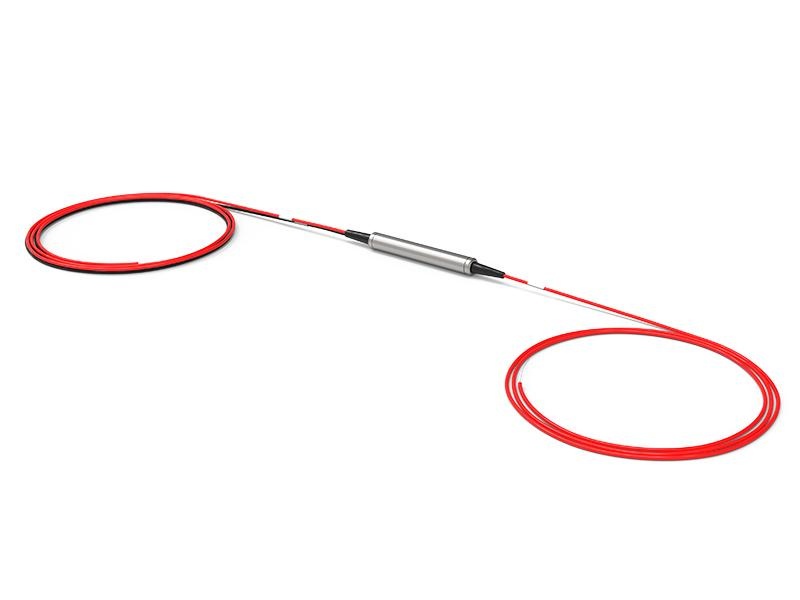

Polarization Maintaining CWDM Components



FIBERWDM can support there port Polarization Maintaining CWDM (PM CWDM) Components, wavelength is 1270nm to 1610nm, channel spacing is 20nm. The PM CWDM Components are characterized with low IL, high return loss, high extinction ratio and excellent environmental stability and reliability, so great used in CWDM network, and high speed communication system and instrumentation .


Specifications



Parameter

Unit

CWDM

Operating Wavelength

nm

1270~1610nm

Center Wavelength Accuracy

nm

± 0.5

Channel Spacing

GHz

20nm

Channel Pass band (@-0.5dB bandwidth) Min.)

nm

>13

Pass Channel Insertion Loss

dB

≤0.9

Reflection Channel Insertion Loss

dB

≤0.6

Channel Ripple

dB

< 0.3

Pass Channel Isolation

dB

>30

Reflection Channel Isolation (Non-adjacent)

dB

>15

Extinction Ratio @ 23℃

dB

> 20

Directivity

dB

>55

Return Loss

dB

>45

Maximum Power Handling

mW

300

Fiber Type

-

PM Panda Fiber

Operating Temperature

°C

0 ~+65

Storage Temperature

°C

-40 ~+85

Package Dimension

mm

Φ5.5 x L35

1. Above specifications are for device without connector, and the PM WDM device is both axis working. All parameters are tested at room temperature.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. Power transmits through the connector less than 2W. The default connector key is aligned to slow axis.

3. For >10W high power applications, we will use heat sink package, contact FIBERWDM for details.

4. If there is pulse application, please be sure to inform us of pulse energy and peak power.

5. 1XN PM CWDM module is also available, please contact FIBERWDM.

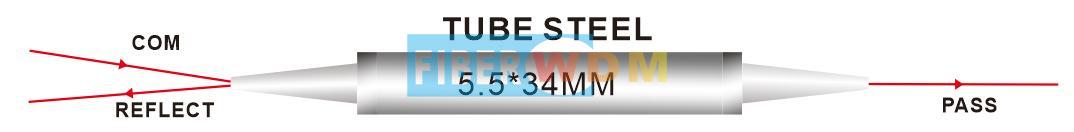

Package Information


PM CWDM Component

PM CWDM Component



Order Information



PMC-

-Channel-

-Package

Connector-

Pigtails Diameter

Fiber Length

Working Axis



27:1270nm

S: steel tube

01U/A: LC/UPC or LC/APC

25:250μm bare fiber

05:0.5m

B：Both axis working



29:1290nm

X: others

02U/A: SC/UPC or SC/APC

90:900μm Loose Tube

10:1.0m





....



03U/A: FC/UPC or FC/APC

XX: Others

15:1.5m





61:1610nm



04U/A: others



XX: Others



When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.



Part Number Example: PMC-27-S-01A-90-10-B

Description: Polarization Maintaining CWDM, 1270nm, LC/APC all ports, 0.9mm 1.0m fiber, Steel tube,Both axis working.
