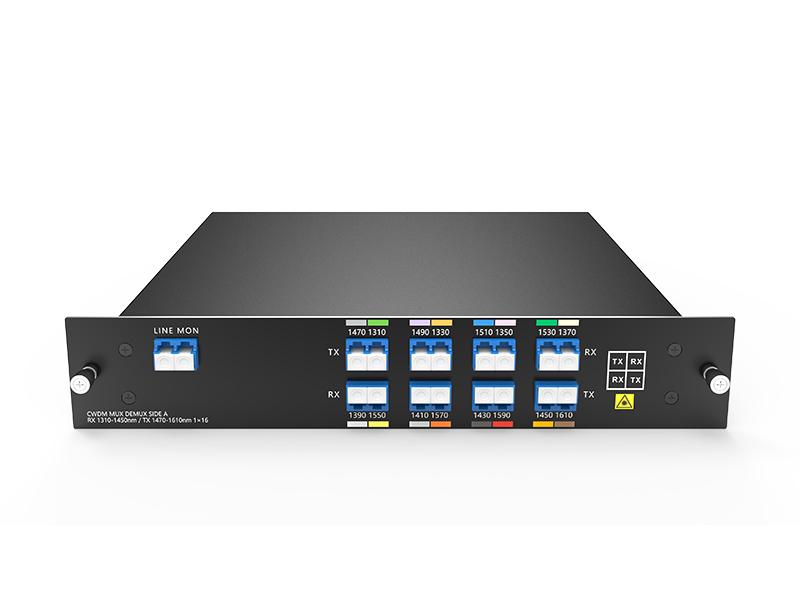

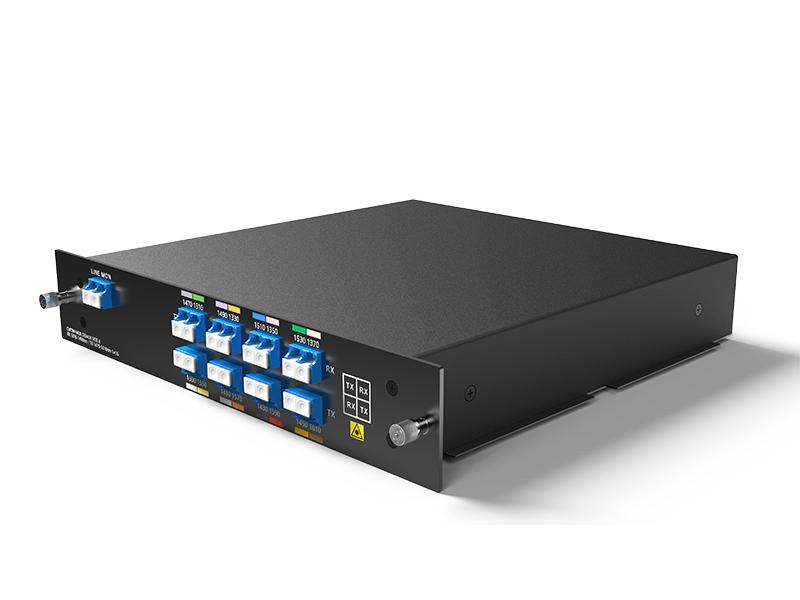

Single Fiber 8CH（16 Waves) CWDM MUX DEMUX With Monitor Port

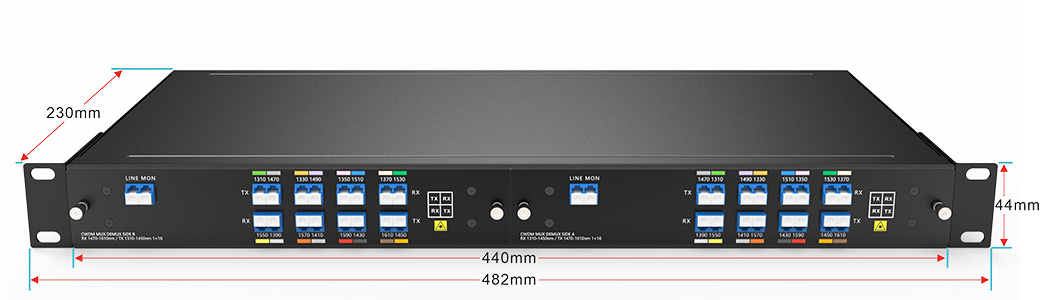

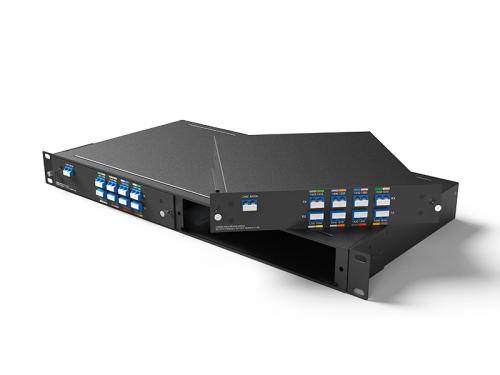

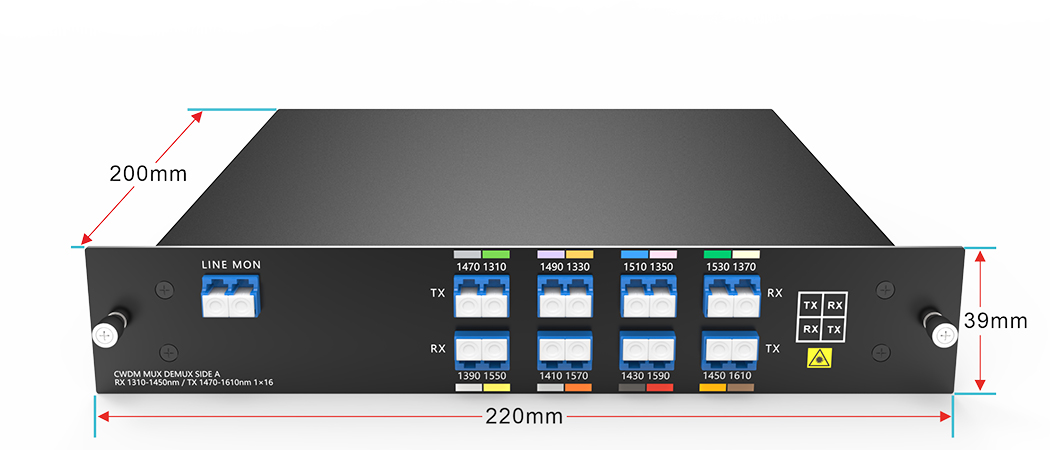

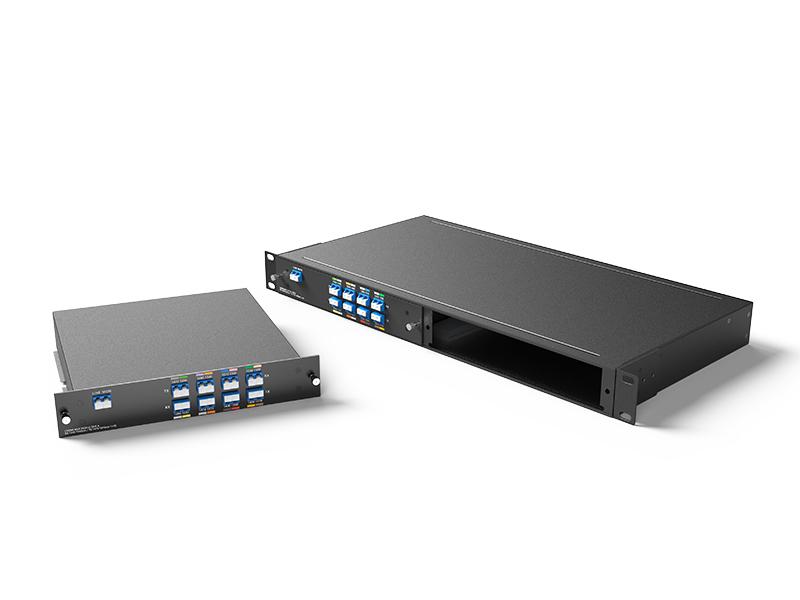

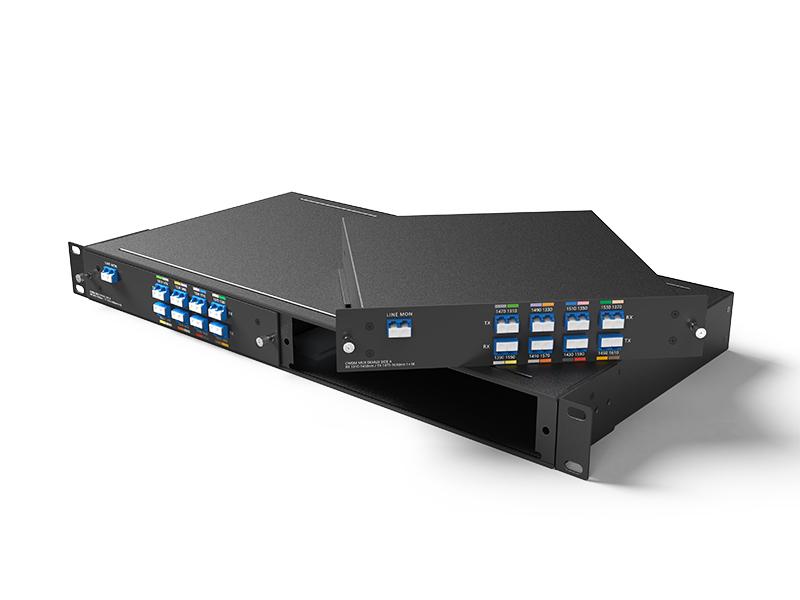

Single Fiber 8 Channels (16waves) 1310-1610nm CWDM MUX DEMUX With Monitor Port, LC/UPC, Plug-in LGX Box and 2slot 1U Rack

The single fiber 8 channels(16 waves) CWDM MUX DEMUX is designed by FIBERWDM, A side’s waves are : RX 1310nm to 1450nm/ TX 1470nm to 1610nm, and B side’s waves are:RX 1470nm to 1610nm/ TX 1310nm to 1450nm; it ispassive CWDM device and plug-in LGX box, can plug in 2slot 1u rack, support 8 channels difference business inone optical fiber for bi-direction point-to-point transmission.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries, where the optical fiber resource are rare.

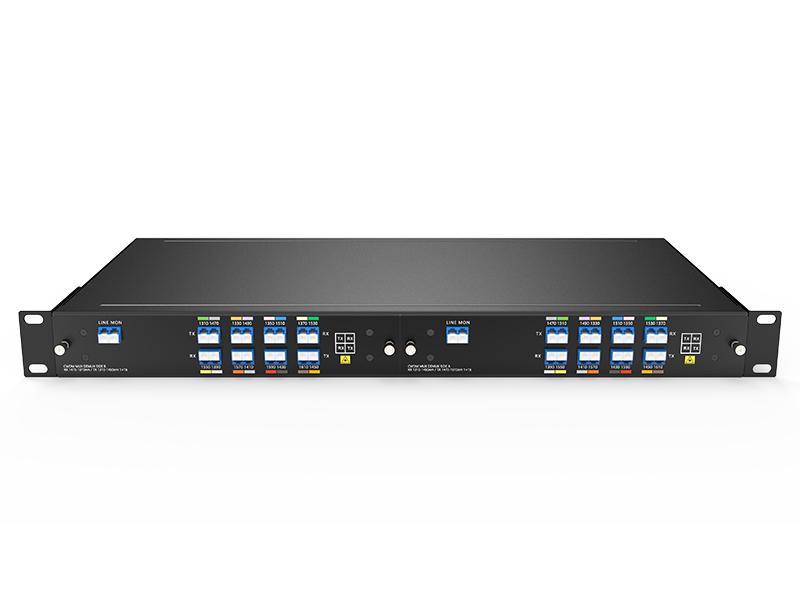

Product Panel

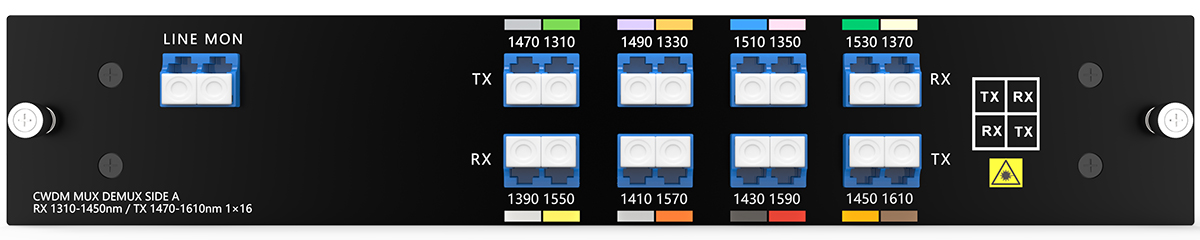

 Side A  Single Fiber 8CH CWDM MUX DEMUX

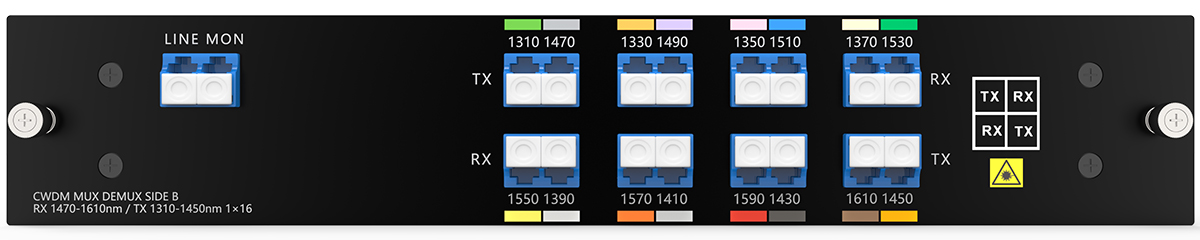

Side B  Single Fiber 8CH CWDM MUX/ DEMUX

Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.

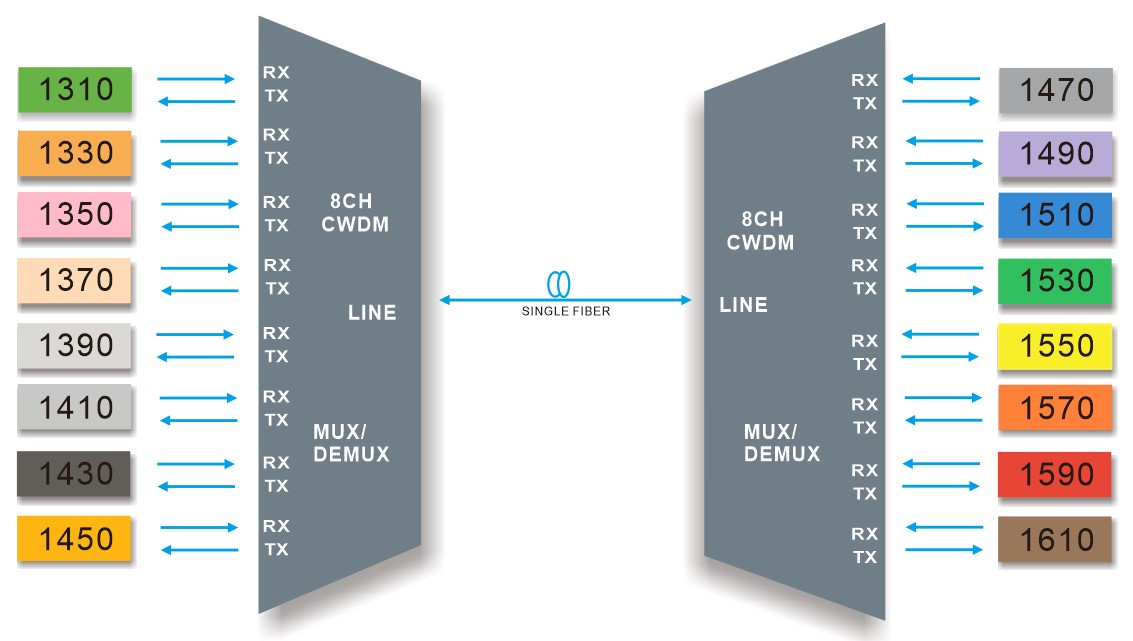

Line Link

 8CH CWDM MUX/ DEMUX Single fiber transmission

8Channels (16 waves) CWDM MUX DEMUX,should be used in pairs, which transmits and receives different wavelengths, support 8channels difference business,such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G, in two optical fiber for point-to-point transmission.

Product Specification

Note: Specified with connectors.

Package Information

Order Information

Note:We Support Customized Design, please contact us by email.
