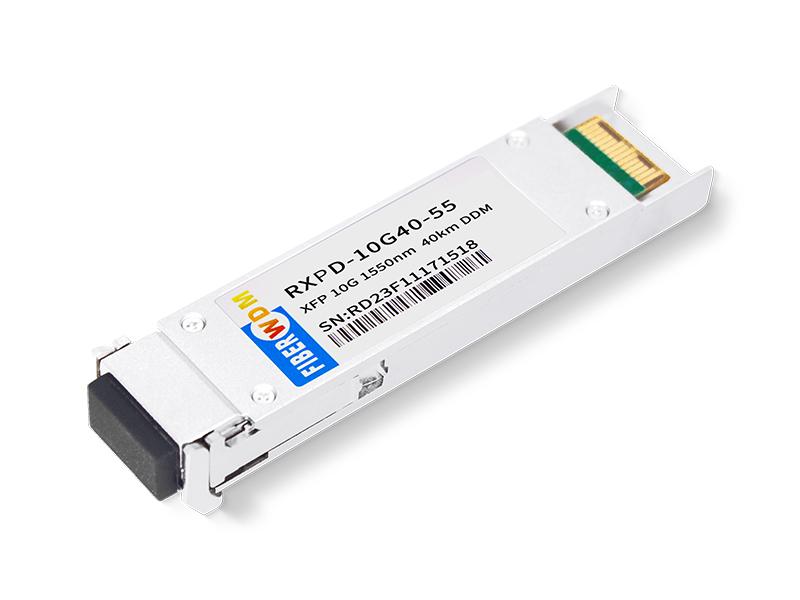

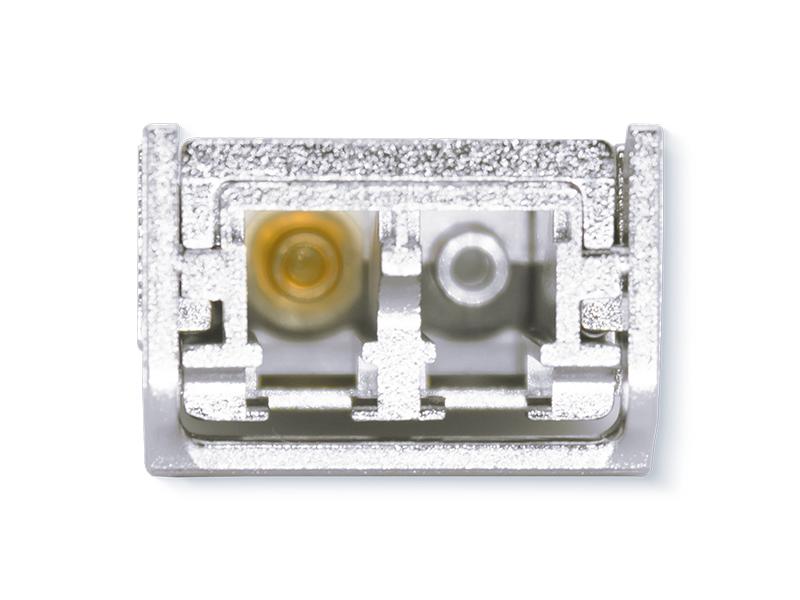

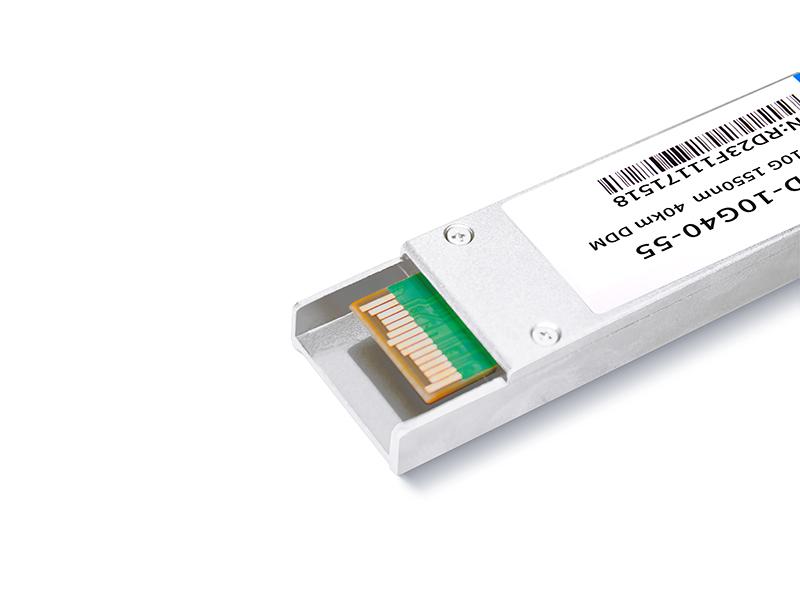

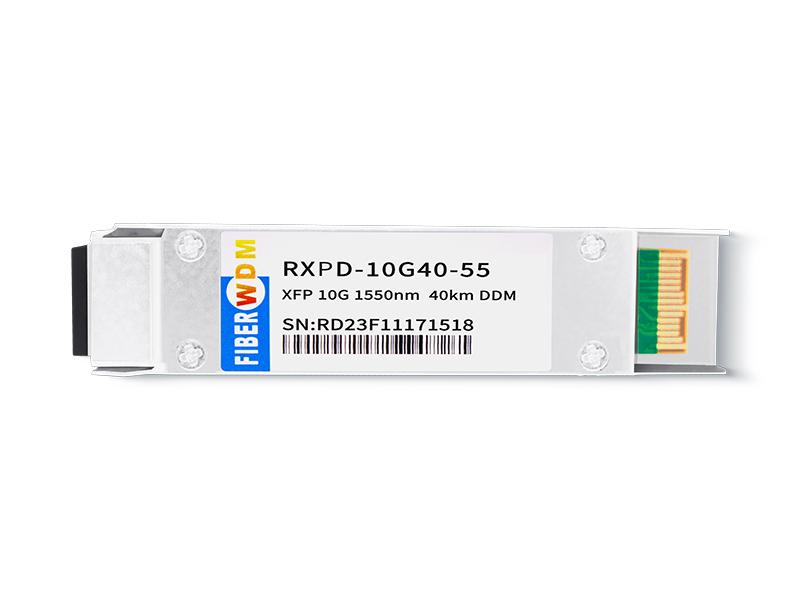

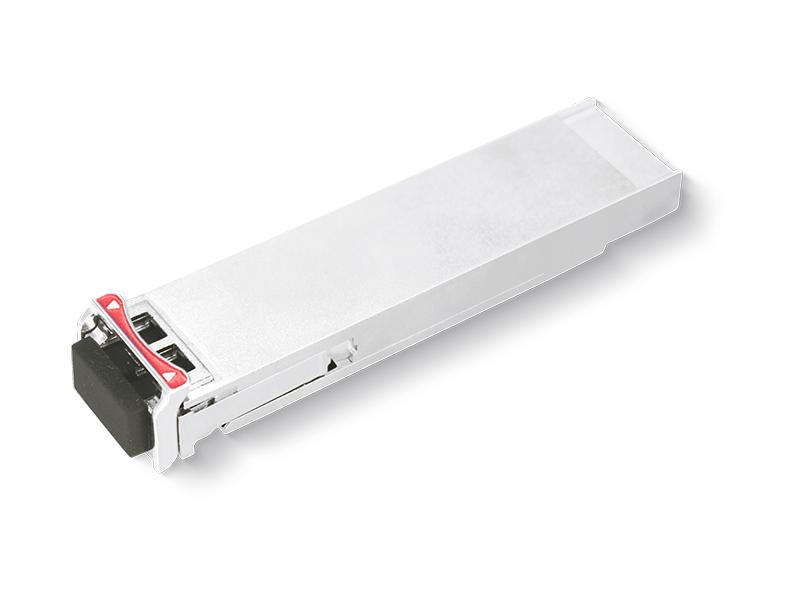

XFP 10G 1550nm 40km Transceiver
Hot Pluggable, Duplex LC, 1550nm, DFB LD, Single mode
RXPD-10G40-55
Description:
FIBERWDM’s RXPD-10G40-55 Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled EML transmitter and high sensitivity PIN receiver provides superior performance for SONET/SDH and Ethernet applications up to 40km optical links.
Absolute Maximum Ratings
Parameter |
Symbol |
Min |
Max |
Unit |
Storage Temperature |
TST |
-40 |
+85 |
℃ |
Case Operating Temperature |
TIP |
0 |
+70 |
℃ |
Supply Voltage 1 |
VCC3 |
-0.5 |
+4.0 |
V |
Supply Voltage 2 |
VCC5 |
-0.5 |
+6.0 |
V |
Electrical Characteristics (TOP= 0 to70 °C)
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Note |
Supply Voltage 1 |
Vcc5 |
4.75 |
|
5.25 |
V |
|
Supply Voltage 2 |
Vcc3 |
3.13 |
|
3.45 |
V |
|
Supply Current – Vcc5 supply |
Icc5 |
|
|
350 |
mA |
|
Supply Current – Vcc3 supply |
Icc3 |
|
|
600 |
mA |
|
Module total power |
P |
|
|
3 |
W |
|
Transmitter |
||||||
Input differential impedance |
Rin |
|
100 |
|
Ω |
1 |
Differential data input swing |
Vin,pp |
120 |
|
820 |
mV |
|
Transmit Disable Voltage |
VD |
2.0 |
|
Vcc |
V |
|
Transmit Enable Voltage |
VEN |
GND |
|
GND+ 0.8 |
V |
|
Transmit Disable Assert Time |
T_off |
|
|
100 |
ms |
|
Tx Enable Assert Time |
T_on |
|
|
100 |
ms |
|
Receiver |
||||||
Differential data output swing |
Vout,pp |
340 |
500 |
850 |
mV |
|
Data output rise time |
tr |
|
|
35 |
ps |
2 |
Data output fall time |
tf |
|
|
35 |
ps |
2 |
LOS Fault |
VLOS fault |
Vcc – 0.5 |
|
VccHOST |
V |
3 |
LOS Normal |
VLOS norm |
GND |
|
GND+0.5 |
V |
3 |
Power Supply Rejection |
PSR |
See Note 4 below |
4 |
Notes
1. After internal AC coupling.
2. 20 – 80 %
3.Loss of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
4. Per Section 2.7.1. in the XFP MSA Specification.
Optical Parameters (TOP= 0 to70°C)
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
Transmitter |
||||||
Operating Date Rate |
BR |
9.95 |
|
11.3 |
Gb/s |
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
Maximum Launch Power |
PMAX |
-1 |
|
+4 |
dBm |
1 |
Optical Wavelength |
λ |
1530 |
1550 |
1565 |
nm |
|
Optical Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
Spectral Width |
Δλ |
|
|
1 |
nm |
|
Sidemode Supression ratio |
SSRmin |
30 |
|
|
dB |
|
Rise/Fall Time (20%~80%) |
Tr/Tf |
|
|
35 |
ps |
|
Average Launch power of OFF Transmitter |
POFF |
|
|
-30 |
dBm |
|
Tx Jitter |
Txj |
Compliant with each standard requirement |
|
|||
Optical Eye Mask |
|
IEEE802.3ae |
2 |
|||
Receiver |
||||||
Operating Date Rate |
BR |
9.95 |
|
11.3 |
Gb/s |
|
Receiver Sensitivity |
Sen |
|
|
-16 |
dBm |
2 |
Maximum Input Power |
PMAX |
0 |
|
|
dBm |
2 |
Optical Center Wavelength |
λC |
1260 |
|
1600 |
nm |
|
Receiver Reflectance |
Rrx |
|
|
-27 |
dB |
|
LOS De-Assert |
LOSD |
|
|
-17 |
dBm |
|
LOS Assert |
LOSA |
-27 |
|
|
dBm |
|
LOS Hysteresis |
LOSH |
0.5 |
|
5 |
dB |
|
Notes:
1. The optical power is launched into SMF.
2. Measured with a PRBS 231-1 test pattern @10.3125Gbps BER<10-12.

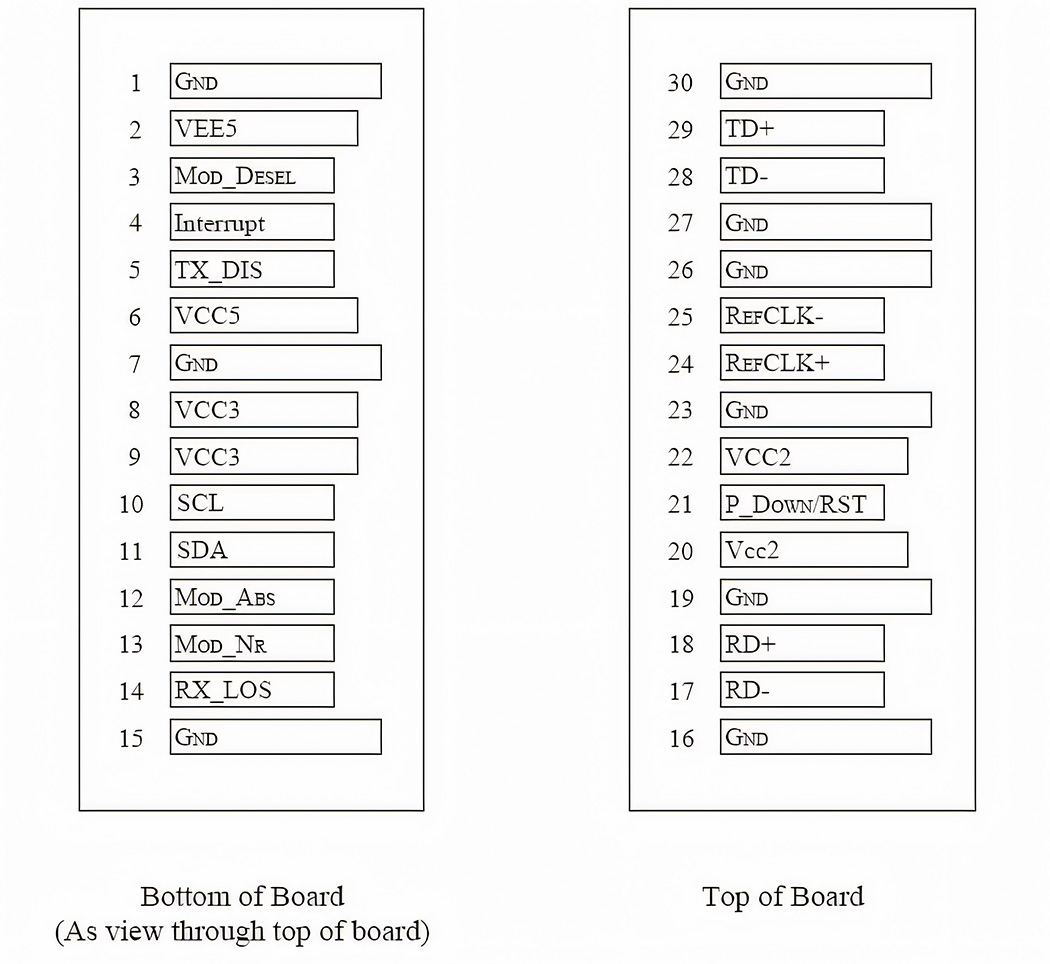

Pin Assignment
Diagram of Host Board Connector Block Pin Numbers and Name

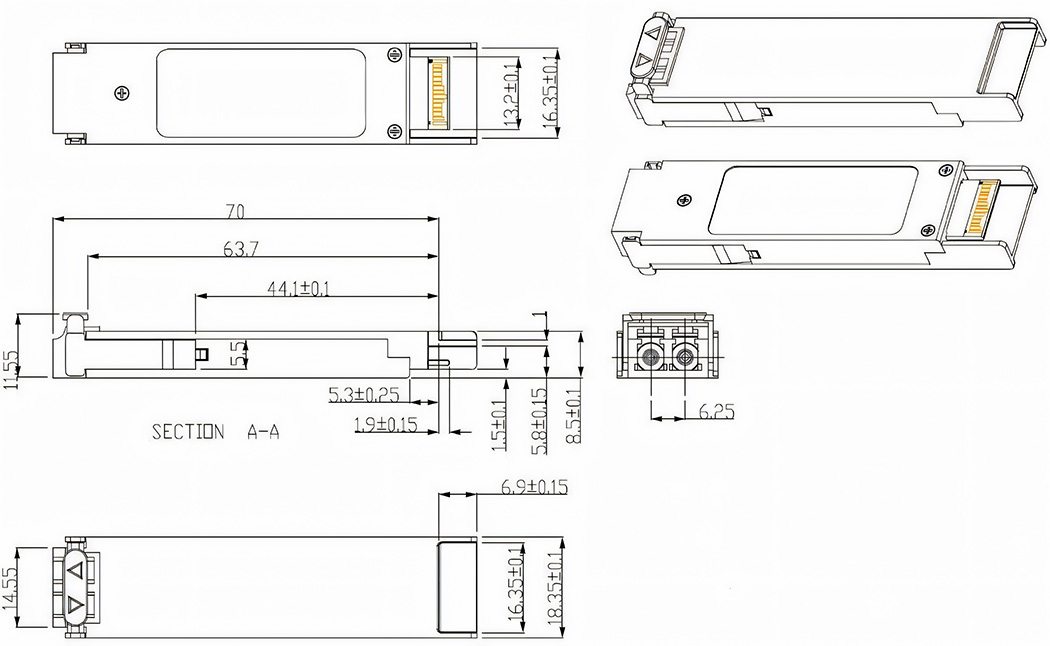

Mechanical Dimensions
