100G CFP to QSFP28 Adaptor Module with FEC

Features

  • CAUI -10 Electrical Interface:10 Lanes @10Gbit/s for CFP port
  • CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port
  • Hot Pluggable
  • Low latency FEC
  • MDIO, I2C Support
  • Compliant to CFP MSA
  • Case operating temperature: 0 to 70 °C
  • The RQ-CFP-QSFP28-F Adaptor Module converts a 100 Gigabit CFP port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP interface port of a switch with CFP modules or QSFP28 modules. For 100G Ethernet, reference clock can switch 161.133mhz or 644.531mhz; For OUT 4, reference clock can switch 174.703mhz or 698.812mhz; Users can control whether FEC function is enabled or not through register configuration.
Inquire now Download
  • Product Detail

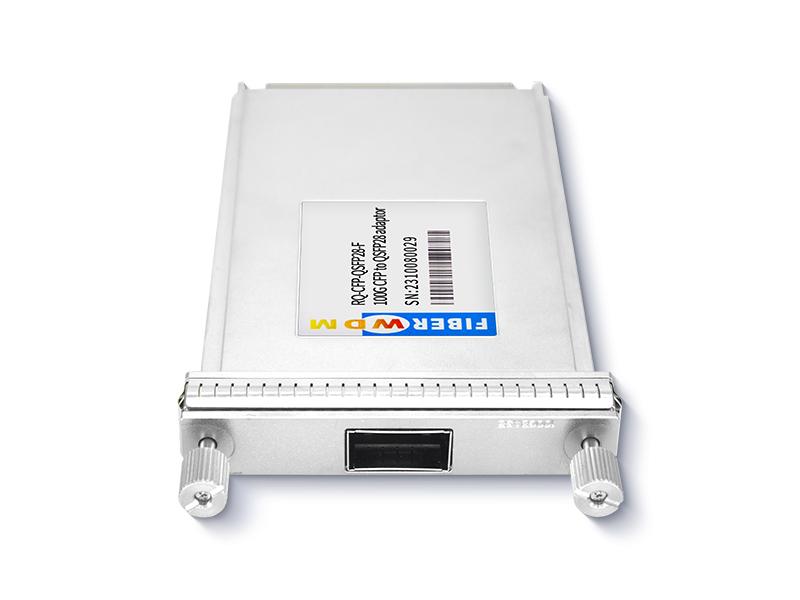

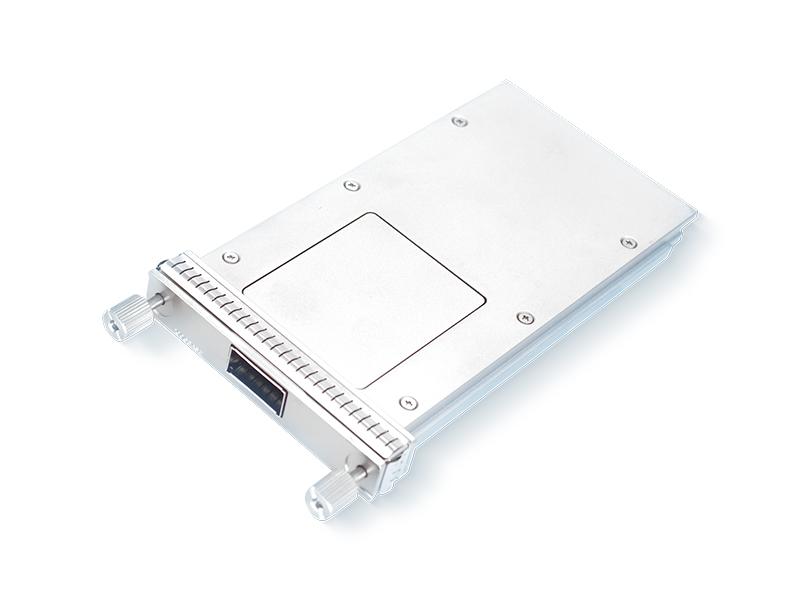

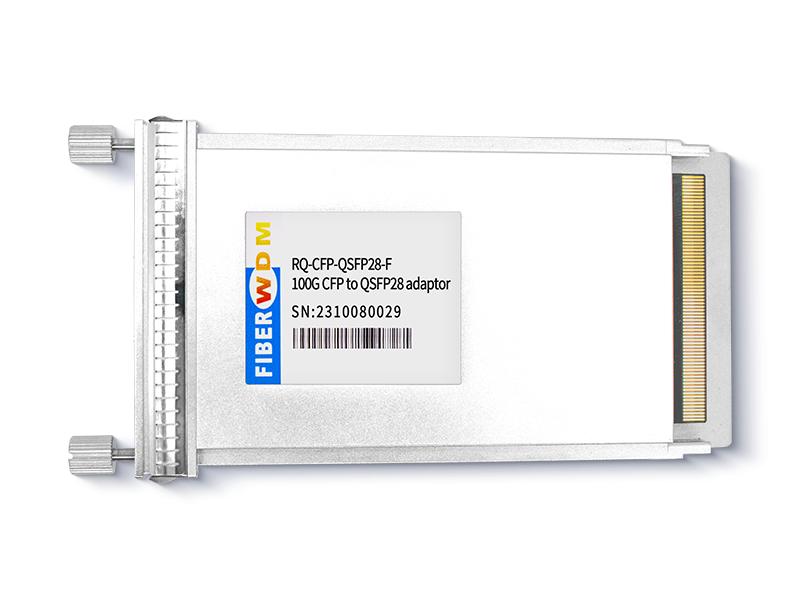

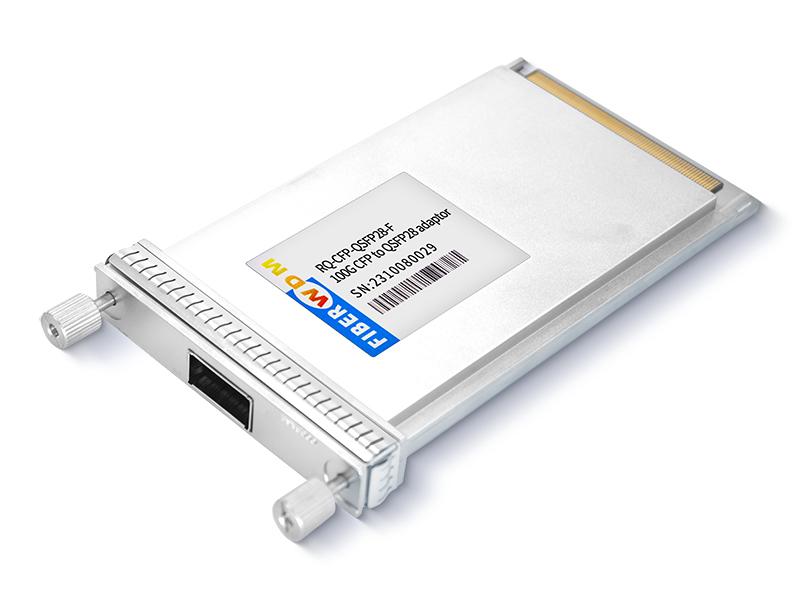

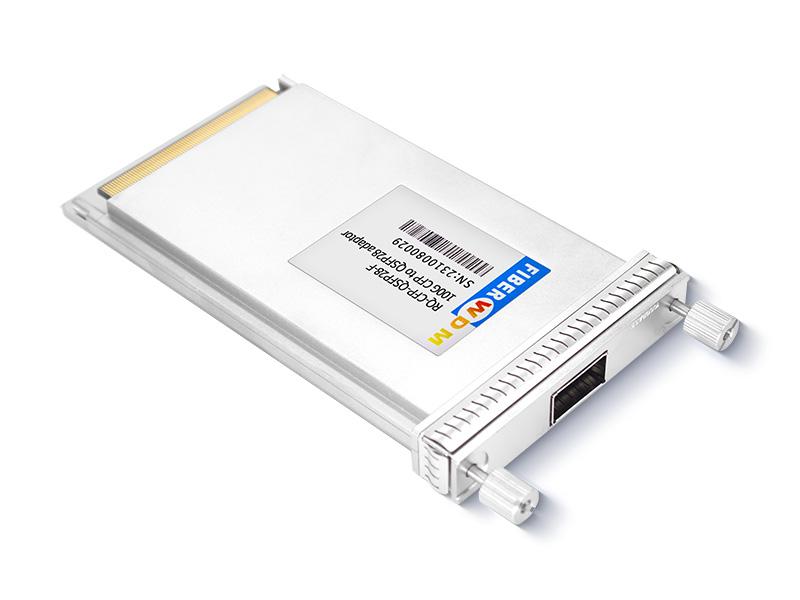

100G CFP TO QSFP28 Adaptor Module with FEC


100G CFP to QSFP28 Adapror Module


GENERAL DESCRIPTION

General Information

Manufacturer Part Number

RQ-CFP-QSFP28-F

Product Name

RQCFP-QSFP28-F Adaptor Module

Product Type

Adaptor Module

Power consumption

Max: 5W (3.3V voltage ，max current 1.5A)

I/O Expansions

CFP port

MDIO

QSFP28 port

I2C

Physical Characteristics

Dimensions

13.6mmHeight x 82mmWidth x 144.75mm Depth


Block Diagram

CFP to QSFP28 Adaptor Module


CAUI-10 Interface (CFP port)

CAUI Receiver Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Signal Rate Per Lane



10.3125


Gb/s


Differential data output swing per lane

Vout, pp

CAUI-10 as defined by IEEE P802.3bm


mV


Data output rise time

tr

ps


Data output fall time

tf

ps


CAUI Transmitter Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Signal Rate Per Lane



10.3125


Gb/s


Frequency offset


-100


100

ppm

100G Ethernet

-20


20

ppm

OTU4

Input differential impedance

Rin

CAUI-10 as defined by IEEE P802.3bm


Ω


Differential data input swing per lane

Vin,pp

mV


Data input rise time tolerance

tr

ps


Data input fall time tolerance

tf

ps



CAUI-4 Interface (QSFP28 port)

CAUI Receiver Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Signal Rate Per Lane



25.78


Gb/s


Differential data output swing per lane

Vout,pp

CAUI-4 as defined by IEEE P802.3bm


mV


Data output rise time

tr

ps


Data output fall time

tf

ps


CAUI Transmitter Parameters

Symbol

Min.

Typ.

Max.

Unit

Note

Signal Rate Per Lane



25.78


Gb/s


Input differential impedance

Rin

CAUI-4 as defined by IEEE P802.3bm


Ω


Differential data input swing per lane

Vin, pp

mV


Data input rise time tolerance

tr

ps


Data input fall time tolerance

tf

ps



Ethernet Mode FEC Configuration Management

CFP Address

Detail

Bit

Description

Detail

Hex

A011


Network Lane TX
Control


1:3

Ethernet and FEC

1111b

0x000F

OTU4

0111b

0x0007

Ethernet

0000b

0x0001

0:0

1/64

0001b

0x0001

1/16

0000b

0x0000


PIN Assignment of QSFP28 port
