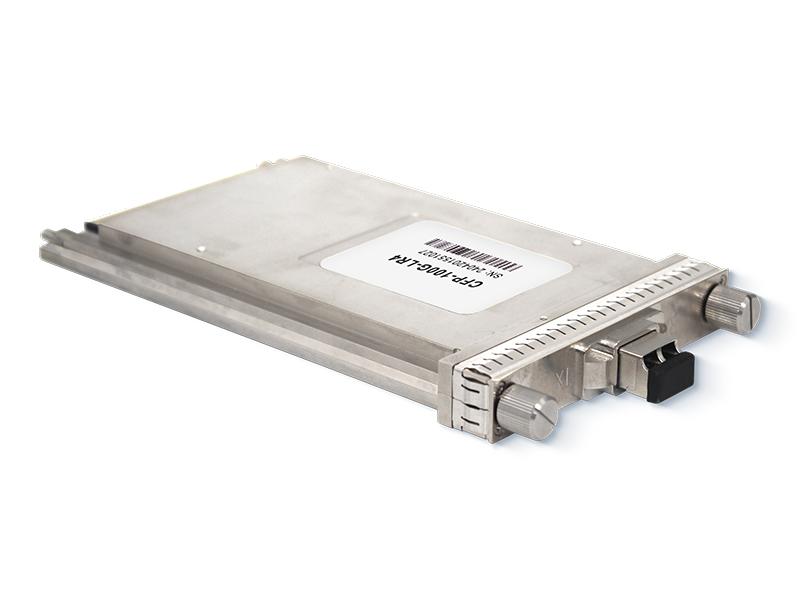

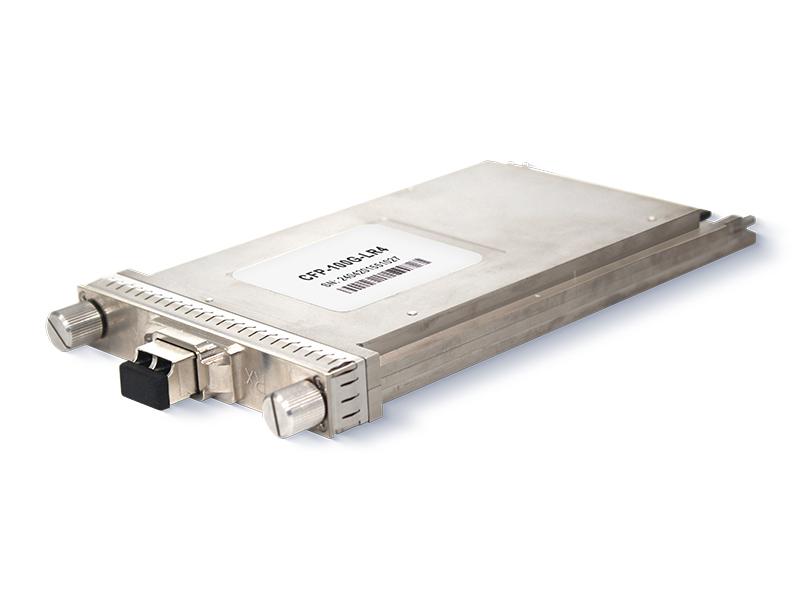

CFP-100G-LR4
100G CFP LR4 Dual Rate 10km Module
Order Information
Part No. |
Data Rate |
Laser |
Fiber Type |
Distance |
Optical Interface |
Temp |
DDMI |
CFP-100G-LR4 |
103.1~111.8Gbps |
LWDM |
SMF |
10km |
LC |
0~70C |
Y |
Absolute Maximum Ratings
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Storage Temperature |
TS |
-40 |
- |
+85 |
°C |
|
Supply Voltage |
VCC |
-0.5 |
- |
+4.0 |
V |
|
Operating Relative Humidity |
RH |
- |
- |
+85 |
% |
|
Recommended Operating Conditions
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Operating Case Temperature |
TC |
0 |
- |
+70 |
°C |
|
Power Supply Voltage |
VCC |
3.135 |
3.3 |
3.465 |
V |
|
Maximum Power Dissipation |
PD |
- |
- |
12 |
W |
|
Aggregate Bit Rate |
BRAVE |
- |
103.125 |
111.8 |
Gb/s |
|
Lane Bit Rate |
BRLANE |
- |
25.78 |
27.95 |
Gb/s |
|
Transmission Distance |
TD |
|
- |
10 |
km |
Over SMF |
Optical Characteristics
Transmitter |
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Center Wavelength Lane 0 |
λ0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
Center Wavelength Lane 1 |
λ1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
Center Wavelength Lane 2 |
λ2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
Center Wavelength Lane 3 |
λ3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
Total Launch Power, 100GE |
PALL |
- |
- |
10.5 |
dBm |
1 |
Total Launch Power, OTU4 |
PALL |
- |
- |
8.9 |
|
1 |
Average Launch Power per Lane, 100GE |
PTX_LANE |
-4.3 |
- |
4.5 |
dBm |
1 |
Average Launch Power per Lane, OTU4 |
PTX_LANE |
-2.5 |
- |
2.9 |
dBm |
1 |
OMA per Lane, 100GE |
OMA |
-1.3 |
- |
4.5 |
dBm |
1 |
OMA–TDP per Lane, 100GE |
OMA_TDP |
-2.3 |
- |
- |
dBm |
|
Extinction Ratio, 100GE |
ER |
4 |
- |
- |
dB |
|
Extinction Ratio, OTU4 |
ER |
7 |
- |
- |
dB |
|
Difference in launch power between lanes |
PTX_DELTA_LANE |
- |
- |
5 |
dB |
|
Average Output Power (Laser Turn off) |
POUT-OFF |
- |
- |
-30 |
dBm |
|
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
|
Optical Eye Mask, 100GE |
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} Compliant with IEEE 802.3ba |
2 |
||||
Optical Eye Mask, OTU4 |
{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} Compliant with ITU-T G.959.1 |
2 |
||||
Receiver |
||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
Center Wavelength Lane 0 |
λ0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
Center Wavelength Lane 1 |
λ1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
Center Wavelength Lane 2 |
λ2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
Center Wavelength Lane 3 |
λ3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
Average Rx Power per Lane, 100GE |
PRX _LANE |
-10.6 |
|
4.5 |
dBm |
|
OMA Sensitivity per Lane, 100GE |
POMA_LANE |
- |
- |
-8.6 |
dBm |
3 |
Average Rx Power per Lane, OTU4 |
PRX_AVE_LANE |
-8.8 |
|
2.9 |
dBm |
|
Sensitivity per Lane, OTU4 |
PRX_AVE_LANE |
- |
- |
-10.3 |
dBm |
4 |
Damage Threshold |
Pdamage |
5.5 |
- |
- |
dBm |
|
Receiver Reflectance |
RL |
- |
- |
-26 |
dB |
|
Notes:
1.The optical power is launched into SMF.
2.Measured with a PRBS 231-1 test pattern @25.78125/27.952 Gb/s, Hit ratio≤5E-5.
3.Measured with a PRBS 231-1 test pattern @25.78125 Gb/s, BER≤1E-12.
4.Measured with a PRBS 231-1 test pattern @27.952 Gb/s, BER≤5E-5 pre FEC.
Electrical Characteristics
High-Speed Signal: Compliant to CAUI-10 (IEEE 802.3ba)
Low-Speed Signal: Compliant to CFP MSA Hardware Specification Table 5-Electrical Characteristics
Transmitter (Module Input) |
|||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Differential Data Input Amplitude |
VIN,P-P |
85 |
- |
850 |
mVpp |
|
|
Differential Termination Mismatch |
|
- |
- |
5 |
% |
|
|
Tx_Disable |
Normal Operation |
VIL |
-0.3 |
- |
0.8 |
V |
|
Laser Disable |
VIH |
2.0 |
- |
VCC+0.3 |
V |
|
|
Receiver (Module Output) |
|||||||
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Differential Data Output Amplitude |
VOUT,P-P |
200 |
- |
760 |
mVpp |
|
|
Differential Termination Mismatch(1MHZ) |
|
- |
- |
5 |
% |
|
|
Output Rise/Fall Time, 20%~80% |
TR |
12 |
- |
- |
ps |
|
|
Rx_LOS |
Normal Operation |
VOL |
- |
- |
0.2 |
V |
|
Lose Signal |
VOH |
VCC-0.2 |
- |
- |
V |
|
Digital Diagnostics
Parameter |
Range |
Accuracy |
Unit |
Calibration |
Temperature |
0 to 70 |
±3 |
ºC |
Internal |
Voltage |
0 to VCC |
±3 |
V |
Internal |
Tx Bias Current Per Lane |
0 to 100 |
±10% |
mA |
Internal |
Tx Output Power Per Lane |
-4.3 to 4.5 |
±3 |
dB |
Internal |
Rx Power (Each Lane) |
-10.6 to 4.5 |
±3 |
dB |
Internal |

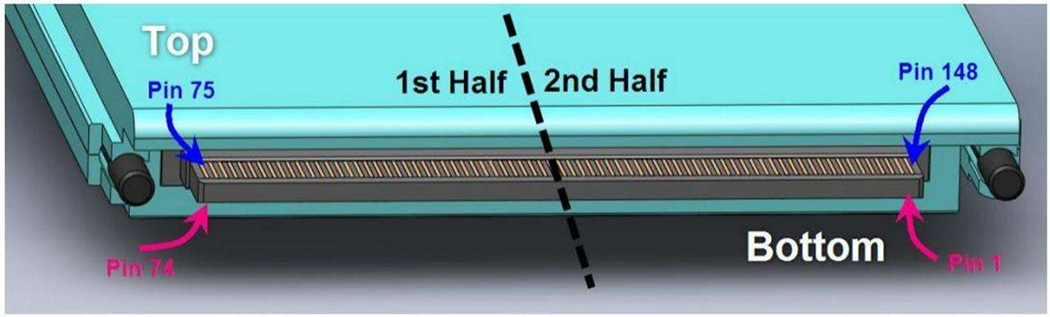

Pin Definitions

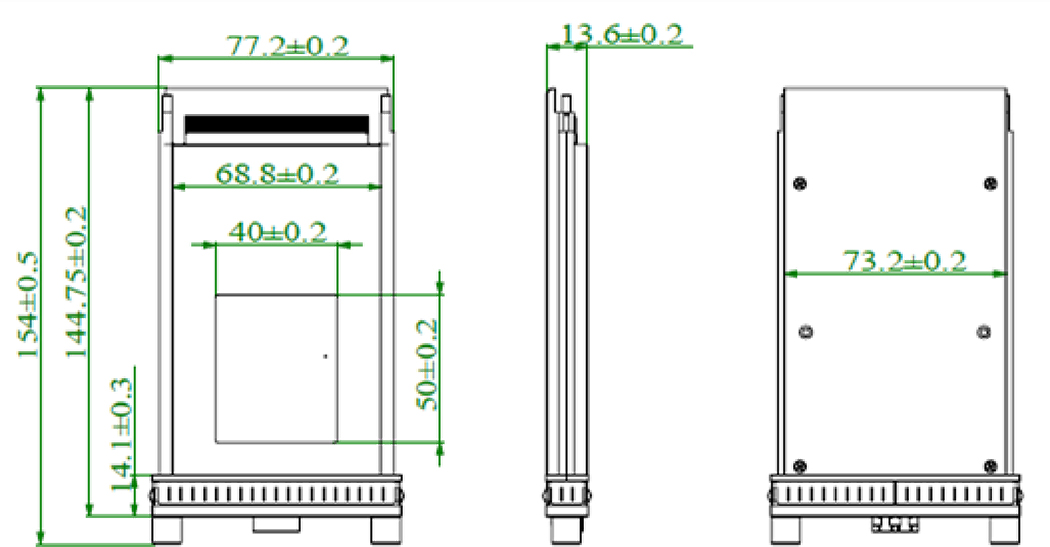

Mechanical Dimension
