RQ-100G-DR1

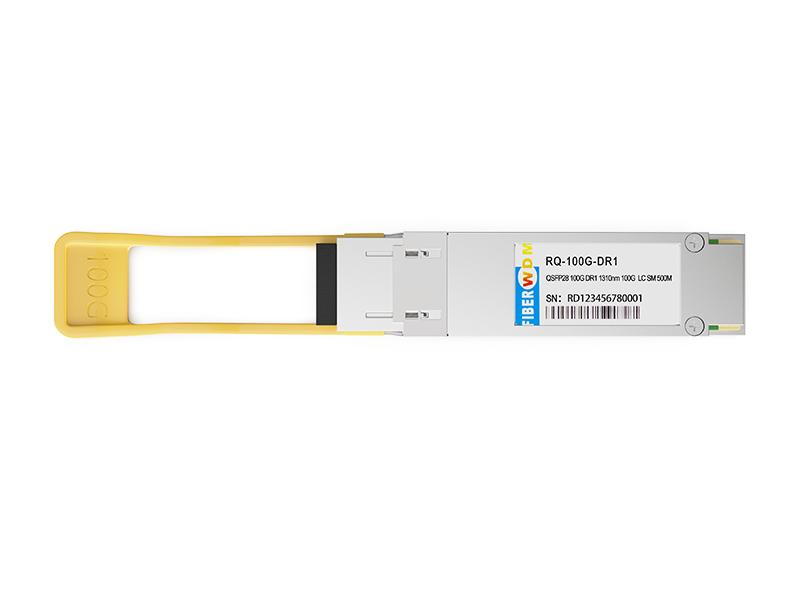

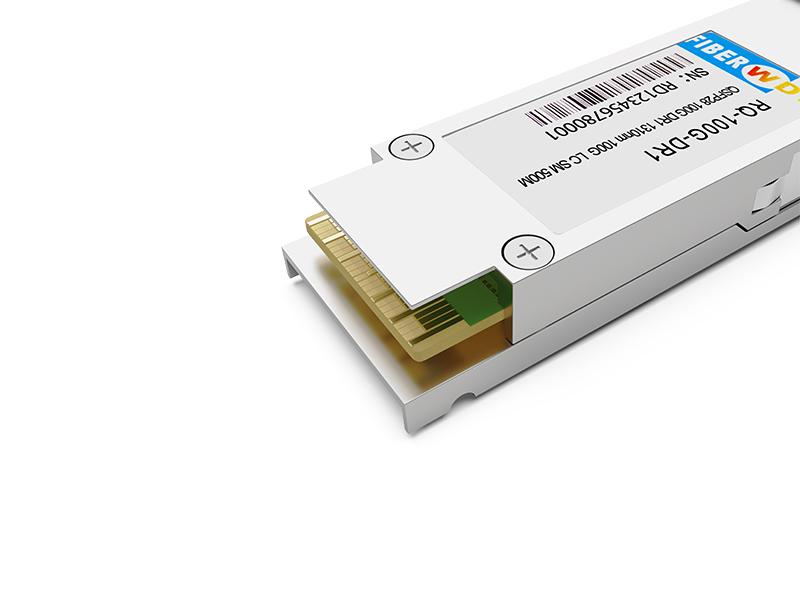

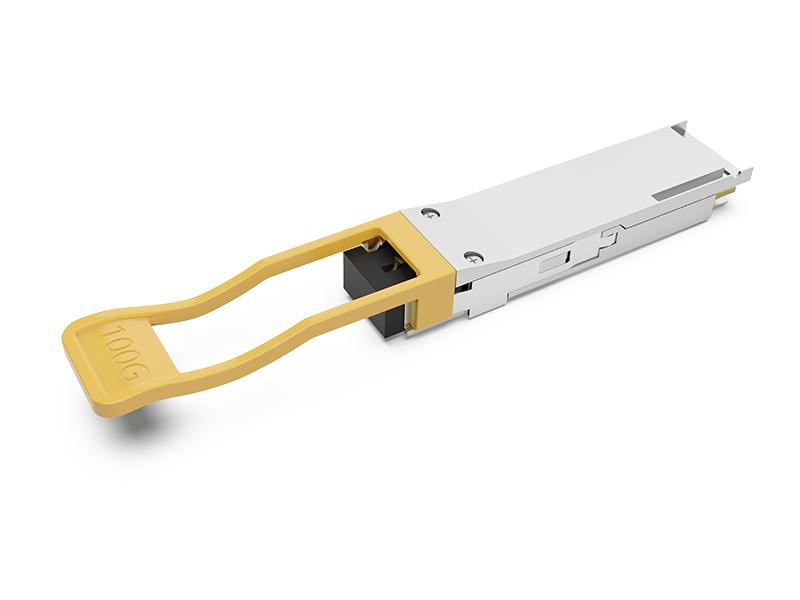

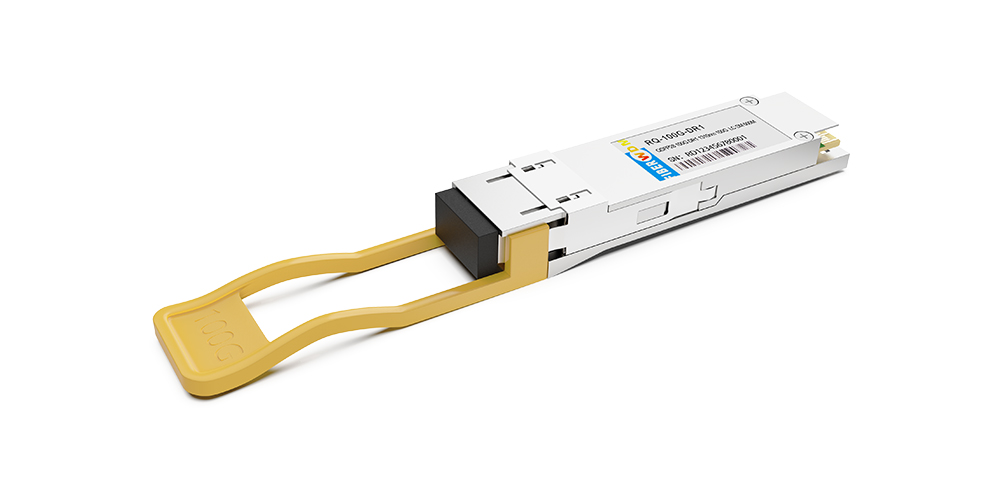

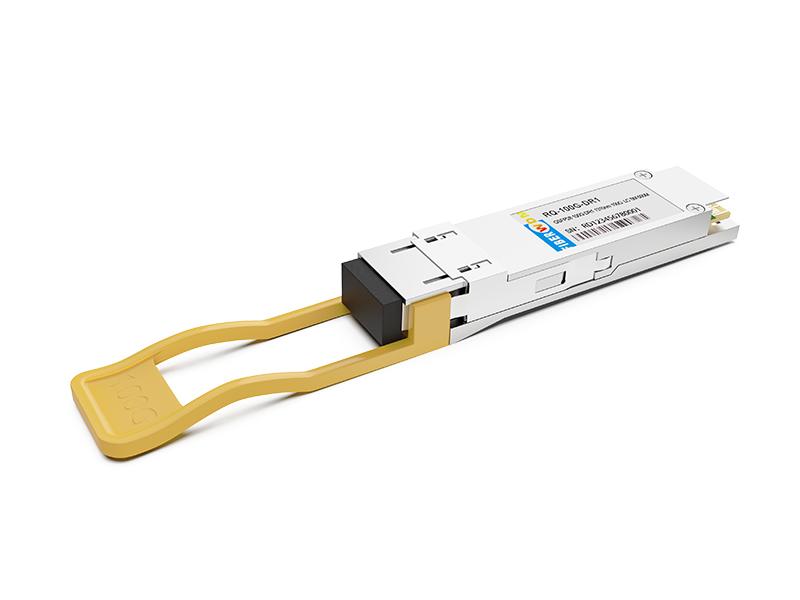

100G QSFP28 DR1 1310nm LC SM 500M
The 100G QSFP28 DR1 Transceiver is designed to transmit and receive serial optical data links up to 106.25Gb/s data rate by PAM4 modulation format over single-mode fiber. It is a small-form-factor hot pluggable transceiver module integrated with the EML laser. It is compliant with100G Lambda MSA;QSFP MSA.
Document History
VER. & STATUS |
DATE |
DESCRIPTION OF CHANGE |
Modifier |
1.0 |
2021-12-10 |
Draft |
XY |
Specifications
(Tested under recommended operating conditions, unless otherwise noted)
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Notes |
||
Transmitter (per Lane) |
||||||||
Signaling Speed per Lane |
|
GBd |
|
53. 125± 100pm |
|
|
||
Modulation format |
|
|
|
PAM4 |
|
|
||
Center wavelength |
|
nm |
1304.5 |
1311 |
1317.5 |
|
||
Side-mode suppression Ratio |
SMSR |
dB |
30 |
|
|
|
||
Optical output power |
PAVG |
dBm |
-2.9 |
|
4 |
|
||
Outer Optical Modulation Amplitude |
OMAouter |
dBm |
-0.8 |
|
4.2 |
|
||
Launch power in OMAouter minus TDECQ, each lane (min): for extinction ratio≥5 dB |
|
dBm |
-2.2 |
|
|
|
||
Launch power in OMAouter minus TDECQ, each lane (min): for extinction ratio < 5 dB |
|
dBm |
-1.9 |
|
|
|
||
Transmitter and dispersion penalty eye closure for PAM4 |
TDECQ |
dB |
|
|
3.4 |
|
||
Average Launch Power of Off Transmitter |
|
dBm |
|
|
-15 |
|
||
Optical Extinction Ratio |
ER |
dB |
3.5 |
|
|
|
||
RIN17.1OMA |
|
dB/Hz |
|
|
-136 |
|
||
Optical Return Loss Tolerance |
ORL |
dB |
|
|
15.5 |
|
||
Transmitter transition time (max) |
|
ps |
|
|
17 |
|
||
Transmitter reflectance |
|
dB |
|
|
-26 |
|
||
Receiver(per Lane) |
||||||||
Signaling Speed per Lane |
|
GBd |
|
53. 125± 100pm |
|
|
||
Modulation format |
|
|
|
PAM4 |
|
|
||
Input Operating Wavelength |
|
nm |
1304.5 |
1311 |
1317.5 |
|
||
Damage threshold |
|
dBm |
5 |
|
|
|
||
Average receive Power per Lane |
|
dBm |
-5.9 |
|
4 |
|
||
Receive Power (OMAouter) |
|
dBm |
|
|
4.2 |
|
||
Receiver reflectance (max) |
|
dBm |
|
|
-26 |
|
||
Stressed Receiver Sensitivity (OMAouter) |
|
dBm |
|
|
-1.9 |
|
Ordering Information
Part No. |
Specifications |
Application |
||||||||
Package |
Data rate |
Laser |
Optical Power |
Detector |
Sensitivity |
Temp |
Reach |
Others |
||
RQ-100G-DR1 |
QSFP28 |
100G |
EML |
-2.9~4dBm |
PD |
Max(-3.9,SEC Q-5.3)dBm |
0~70 oC |
500m |
RoHS |
100G Base Ethernet |
Absolute Maximum Ratings
Parameter |
Symbol |
Unit |
Min |
Max |
Storage Temperature Range |
Ts |
℃ |
-40 |
+85 |
Relative Humidity |
RH |
% |
0 |
85 |
Power Supply Voltage |
Vcc |
V |
-0.3 |
+3.6 |
Recommended Operating Conditions
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Operating Case Temperature Range |
Tc |
oC |
0 |
/ |
70 |
Power Supply Voltage |
Vcc |
V |
3.135 |
3.3 |
3.465 |
Bit Rate(Per channel) |
BR |
Gbps |
|
53.125 |
|
Optical Interface
Figure 1. Optical Interface
Note:Optical interface is duplex LC.
Principle diagram

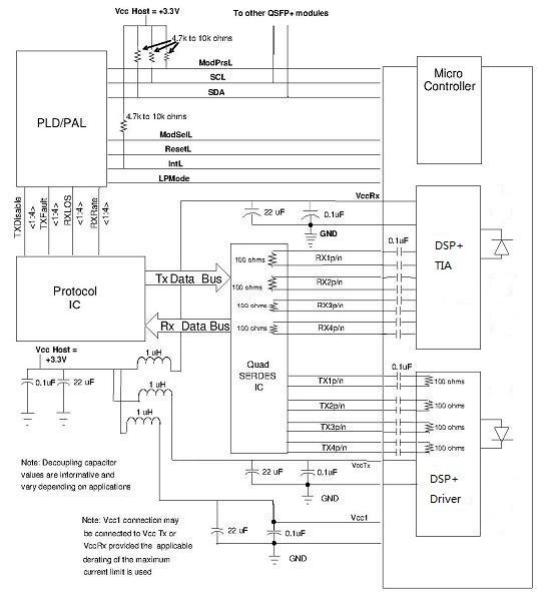

Figure 2. Module Principle Diagram
Electric Ports Definition
Parameter |
Symbol |
Unit |
Min |
Typ |
Max |
Notes |
||
Supply Voltage |
VCC |
V |
3.14 |
|
3.47 |
|
||
Supply Current |
ICC |
mA |
|
|
1100 |
|
||
Transmitter |
||||||||
Data Rate |
BR |
GBd |
|
25.78125 |
|
NRZ |
||
TX_DISABLE High |
VDH |
V |
2 |
|
3.5 |
Input Voltage High |
||
TX_DISABLE Low |
VDL |
V |
-0.3 |
|
0.8 |
Input Voltage Low |
||
TX_FAULT High [assert] |
VFH |
V |
2 |
|
3.5 |
Output Voltage High |
||
TX_FAULT Low [negated] |
VFL |
V |
-0.3 |
|
0.8 |
Output Voltage Low |
||
Receiver |
||||||||
Data Rate |
BR |
GBd |
|
25.78125 |
|
NRZ |
||
Differential Output Swing |
VRXDIFF |
mV |
400 |
|
800 |
At TP4 |
||
Differential Eye Height |
VEH |
mV |
228 |
|
|
|||
Los-Output Voltage High |
VOH |
V |
2 |
|
3.5 |
Output Voltage High |
||
Loss-Output Voltage Low |
VOL |
V |
-0.3 |
|
0.8 |
Output Voltage Low |
Pin Description
No |
Pin |
Definition |
Description |
Note |
1 |
1 |
GND |
Ground |
1 |
2 |
2 |
Tx2n |
Transmitter Inverted Data Input |
|
3 |
3 |
Tx2p |
Transmitter Non-Inverted Data Input |
|
4 |
4 |
GND |
Ground |
1 |
5 |
5 |
Tx4n |
Transmitter Inverted Data Input |
|
6 |
6 |
Tx4p |
Transmitter Non-Inverted Data Input |
|
7 |
7 |
GND |
Ground |
1 |
8 |
8 |
ModSelL |
Module Select |
|
9 |
9 |
ResetL |
Module Reset |
|
10 |
10 |
VccRx |
+3.3V Power Supply Receiver |
2 |
11 |
11 |
SCL |
2-wire serial interface clock |
|
12 |
12 |
SDA |
2-wire serial interface data |
|
13 |
13 |
GND |
Ground |
1 |
14 |
14 |
Rx3p |
Receiver Non-Inverted Data Output |
|
15 |
15 |
Rx3n |
Receiver Inverted Data Output |
|
16 |
16 |
Ground |
Ground |
1 |
17 |
17 |
Rx1p |
Receiver Non-Inverted Data Output |
|
18 |
18 |
Rx1n |
Receiver Inverted Data Output |
|
19 |
19 |
GND |
Ground |
1 |
20 |
20 |
GND |
Ground |
1 |
21 |
21 |
Rx2n |
Receiver Non-Inverted Data Output |
|
22 |
22 |
Rx2p |
Receiver Inverted Data Output |
|
23 |
23 |
Ground |
Ground |
1 |
24 |
24 |
Rx4n |
Receiver Non-Inverted Data Output |
|
25 |
25 |
Rx4p |
Receiver Inverted Data Output |
|
26 |
26 |
Ground |
Ground |
1 |
27 |
27 |
ModPrsL |
Module Present |
|
28 |
28 |
IntL |
Interrupt |
|
29 |
29 |
VccTx |
+3.3V Power supply transmitter |
2 |
30 |
30 |
Vcc1 |
+3.3v Power supply |
2 |
31 |
31 |
LPMode |
Low Power Mode |
|
32 |
32 |
GND |
Ground |
1 |
33 |
33 |
Tx3p |
Transmitter Non-Inverted Data Input |
|
34 |
34 |
Tx3n |
Transmitter Inverted Data Input |
|
35 |
35 |
GND |
Ground |
1 |
36 |
36 |
Tx1p |
Transmitter Non-Inverted Data Input |
|
37 |
37 |
Tx1n |
Transmitter Inverted Data Input |
|
38 |
38 |
GND |
Ground |
1 |
Notes:
1. GND is the symbol for signal and supply (power) common for the QSFP28 module. All are common within the module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal common ground plane.
2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown in Figure 3 below. VccRx, Vcc1 and VccTx may be internally
connected within the module in any combination. The connector pins are each rated for a maximum current of 1000mA.

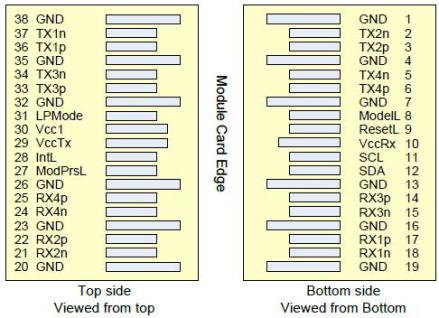

Figure 3. Electrical Pin-out Details
Module Memory Map

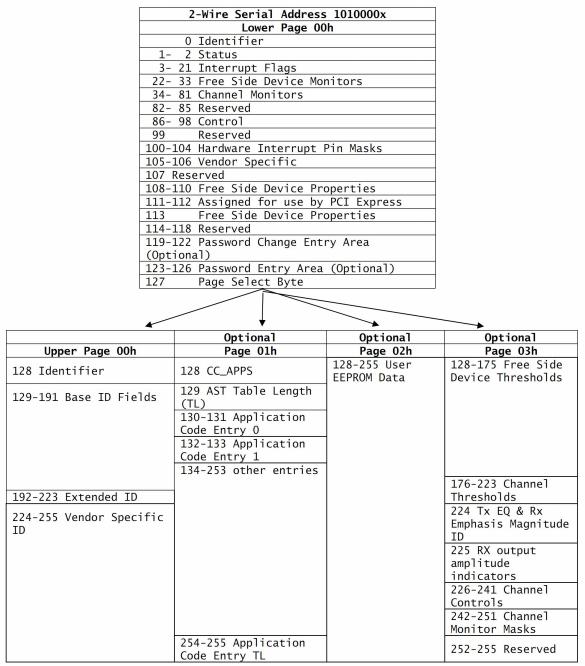

Figure 4 Digital Diagnostic Memory Map
Host Board Power Supply Filtering
Any voltage drop across a filter network on the host is counted against the host DC set
point accuracy specification. Inductors with DC Resistance of less than 0.1 Ohm should be used in order to maintain the required voltage at the Host Edge Card Connector. Figure is the suggested transceiver/host interface.

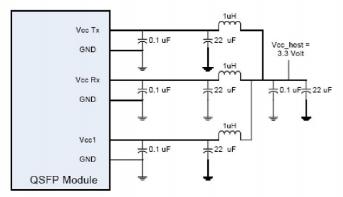

Figure 5 Recommended Host Board Power Supply Filtering
Package Outline

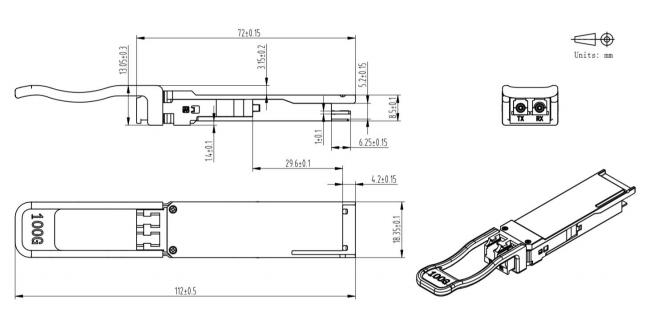

Figure 6 Package Outline
PCB layout recommendation

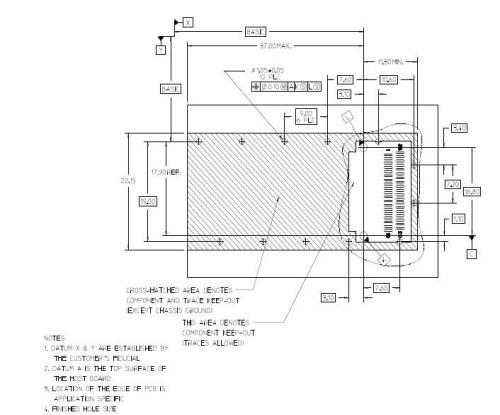

Figure 7 PCB Layout Recommendation
