150GHz 32CH DWDM MUX DEMUX DUAL FIBER LC/UPC 1U Rack

Specification of 150GHz C-band Flat top 32-Channel A thermal AWG, DWDM MUX DEMUX

Inquire now Download
  • Product Detail


150GHz C-band Flat top 32-Channel Athermal AWG, DWDM MUX DEMUX LC/UPC 1U RACK




1.Introduction

 The 150GHz 32ch DWDM MUX DEMUX operate in C-band. And it meet the following specification over the operating temperature.


2.Definition Note:


  •  All specifications should be guaranteed at the worst-case polarization state and over the entire operating environmental condition and end of life.

  • The Insertion Loss of a device is defined as the maximum loss at a defined wavelength, taking into account the worst-case polarization state over the full operating temperature range.

  • The Insertion Loss Uniformity of a device is the difference between the insertion loss of the best-case and worst-case channels. The Polarization Dependent Loss of a device is the maximum insertion loss difference between all polarization states at the defined wavelength.

  • The Reference Passband is defined as a band of wavelengths around each center wavelength. It is used in the definition of crosstalk.

  • The Adjacent Isolation of channel is the maximum insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of two adjacent channels.

  • The Non-adjacent Isolation of channel is the maximum insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of the non-adjacent channels.

  • The Total Crosstalk of channel is the total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power over the all polarization and the ITU band of all other channels including adjacent and non-adjacent channels.

  • The Wavelength Accuracy is defined as the maximum difference between the defined wavelength and the center of measured 3dB passband.

3.Product Penal

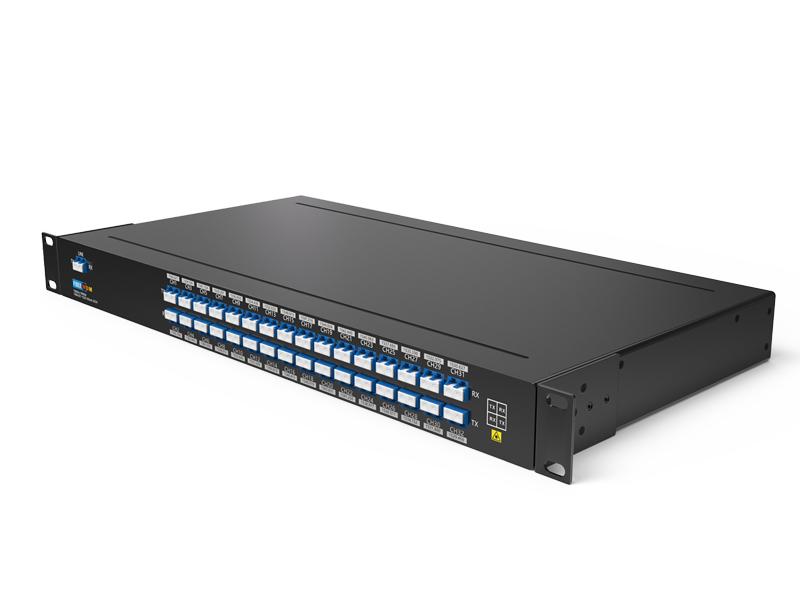

                        150GHz DWDM MUX DEMUX 32CH 1U Rack

4.Technical Parameter



Parameter

Specification

Units

Notes

Min

Type

Max

Channel Spacing

150

GHz


Nos of Channel

32

Ch


Channel Frequencies

ITU Grid

THz


Available Channel Frequency Range

191.2


196.7

THz


Channel Passband

-60


+60

GHz


-0.48


+0.48

nm


Center Wavelength Accuracy

-0.05


+0.05

nm


-6.25


+6.25

GHz


Insertion Loss



5.5

dB

@Center Wavelength



6.0

dB

Full Bandwidth

Passband Ripple



0.6

nm

Full Bandwidth

Bandwidth @1.5dB

135



GHz


Bandwidth @3.0dB

160



GHz


Bandwidth @20dB



310

GHz


Insertion Loss Uniformity at ITU



1.50

dB


Polarization Dependent Loss



0.5

dB


Adjacent Channel Isolation

13

15


dB


Non-Adjacent Channel Isolation

30

35


dB


Total Cross Talk

11

13


dB


Directivity

50



dB


Return Loss with connectors

40

45


dB


Chromatic Dispersion

-20


+20

ps/nm


PMD



0.5

ps


Optical Power Handling of Common Port



24

dBm



5.Operating Conditions


Parameter


Min


Max

Units

Temperature


-5


70

℃

Humidity

Non-condensing

0


90

% R.H.


6.Storage Conditions


Parameter


Min


Max

Units

Temperature


-40


85

℃

Humidity

Non-condensing

0


90

% R.H.


7.Channel Plan 32Port AWG - On grid


     The AWG operate in C-band. The channels are as follows

 Table 1

Channel

ITU

Frequency

Wavelength

Channel

ITU

Frequency

Wavelength

No.

Channel

THz

nm

No.

Channel

THz

nm

1


191.4000

1566.314

17


193.8000

1546.917

2


191.5500

1565.087

18


193.9500

1545.720

3


191.7000

1563.863

19


194.1000

1544.526

4


191.8500

1562.640

20


194.2500

1543.333

5


192.0000

1561.419

21


194.4000

1542.142

6


192.1500

1560.200

22


194.5500

1540.953

7


192.3000

1558.983

23


194.7000

1539.766

8


192.4500

1557.768

24


194.8500

1538.581

9


192.6000

1556.555

25


195.0000

1537.397

10


192.7500

1555.343

26


195.1500

1536.216

11


192.9000

1554.134

27


195.3000

1535.036

12


193.0500

1552.926

28


195.4500

1533.858

13


193.2000

1551.721

29


195.6000

1532.681

14


193.3500

1550.517

30


195.7500

1531.507

15


193.5000

1549.315

31


195.9000

1530.334

16


193.6500

1548.115

32


196.0500

1529.163


Table 2

Channel

ITU

Frequency

Wavelength

Channel

ITU

Frequency

Wavelength

No.

Channel

THz

nm

No.

Channel

THz

nm

1


191.3625

1566.621

17


193.7625

1547.216

2


191.5125

1565.394

18


193.9125

1546.019

3


191.6625

1564.169

19


194.0625

1544.824

4


191.8125

1562.945

20


194.2125

1543.631

5


191.9625

1561.724

21


194.3625

1542.440

6


192.1125

1560.505

22


194.5125

1541.250

7


192.2625

1559.287

23


194.6625

1540.063

8


192.4125

1558.072

24


194.8125

1538.877

9


192.5625

1556.858

25


194.9625

1537.693

10


192.7125

1555.646

26


195.1125

1536.511

11


192.8625

1554.436

27


195.2625

1535.330

12


193.0125

1553.228

28


195.4125

1534.152

13


193.1625

1552.022

29


195.5625

1532.975

14


193.3125

1550.818

30


195.7125

1531.800

15


193.4625

1549.615

31


195.8625

1530.627

16


193.6125

1548.415

32


196.0125

1529.456


Table 3

Channel

ITU

Frequency

Wavelength

Channel

ITU

Frequency

Wavelength

No.

Channel

THz

nm

No.

Channel

THz

nm

1


191.4375

1566.007

17


193.8000

1546.917

2


191.5875

1564.781

18


193.9500

1545.720

3


191.7375

1563.557

19


194.1000

1544.526

4


191.8875

1562.334

20


194.2500

1543.333

5


192.0375

1561.114

21


194.4000

1542.142

6


192.1875

1559.896

22


194.5500

1540.953

7


192.3375

1558.679

23


194.7000

1539.766

8


192.4875

1557.465

24


194.8500

1538.581

9


192.6375

1556.252

25


195.0000

1537.397

10


192.7875

1555.041

26


195.1500

1536.216

11


192.9375

1553.832

27


195.3000

1535.036

12


193.0875

1552.625

28


195.4500

1533.858

13


193.2375

1551.420

29


195.6000

1532.681

14


193.3875

1550.216

30


195.7500

1531.507

15


193.5375

1549.015

31


195.9000

1530.334

16


193.6875

1547.815

32


196.0500

1529.163



8.Package Drawing




9.Ordering information

Product No.

Product description

DMD32-1U01-150G-A

150GHz DWDM MUX DEMUX 32CH (1566.314~1529.163nm)，Dual fiber, LC/UPC , 1U Rack

DMD32-1U01-150G-B

150GHz DWDM MUX DEMUX 32CH (1566.621~1529.456nm)，Dual fiber, LC/UPC , 1U Rack

DMD32-1U01-150G-C

150GHz DWDM MUX DEMUX 32CH (1566.007~1529.163nm)，Dual fiber, LC/UPC , 1U Rack
