/Single Fiber 96CH C13-H60 DWDM MUX/ DEMUX

50GHZ DWDM AWG
50GHZ DWDM AWG 50GHZ DWDM AWG 50GHZ DWDM AWG

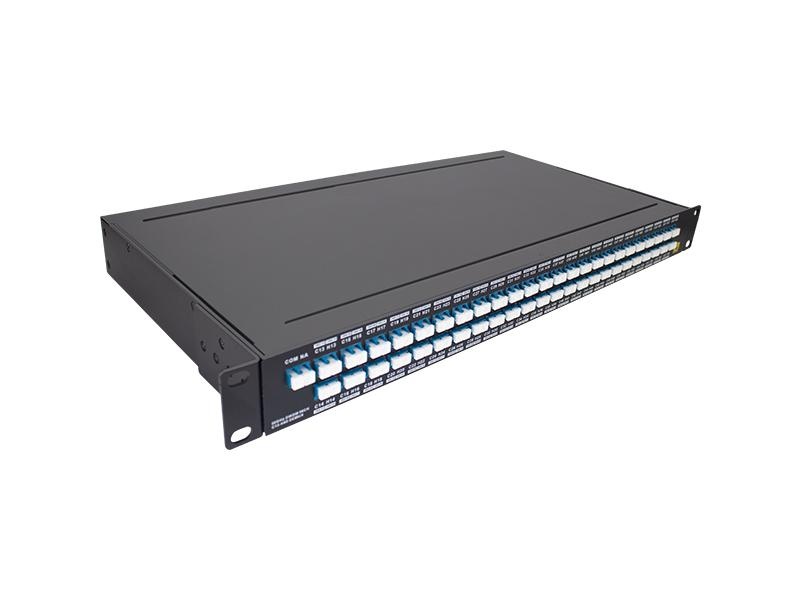

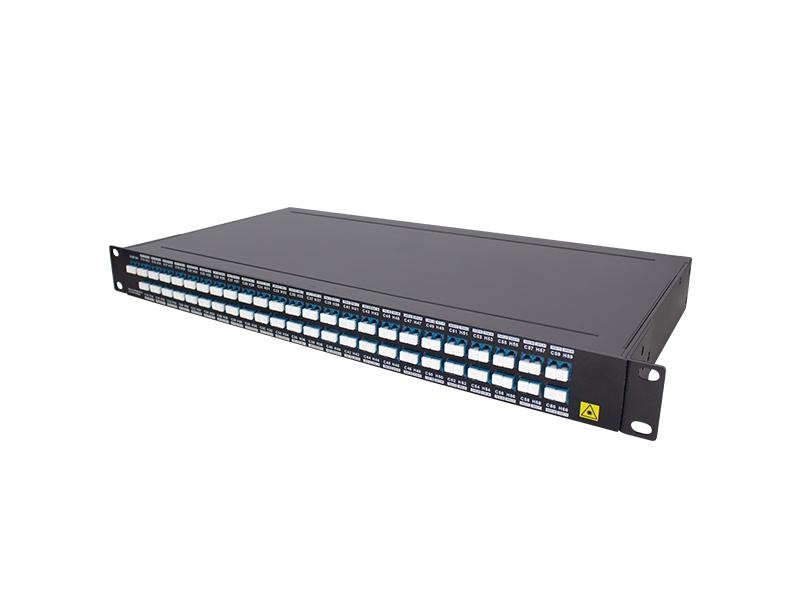

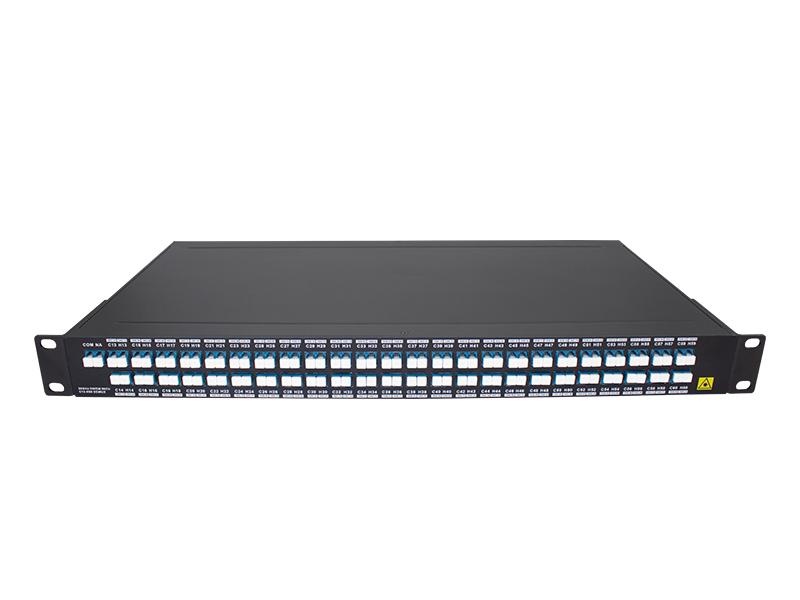

Single Fiber 96CH C13-H60 DWDM MUX/ DEMUX

  • IL<5.0dB , 50GHZ DWDM AAWG Technology
  • Multiplexing of 96 Channels, C13/H13~C60/H60
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
Inquire now Download
  • Product Detail

Single fiber 96CH C13-H60 DWDM MUX/DEMUX, 50GHZ AAWG, LC/UPC 1U Rack



The DWDM AAWG 96CH MUX/DEMUX is designed by FIBERWDM, wavelength fromC13 to H60(1567.13nm~1529.16nnm), in accordance with the ITU-T G.694.150GHZ grid, it maximizes the capacity of the C-band range. It’s totally passive DWDM device, and support low insertion loss( wavelength ports＜5.0dB).

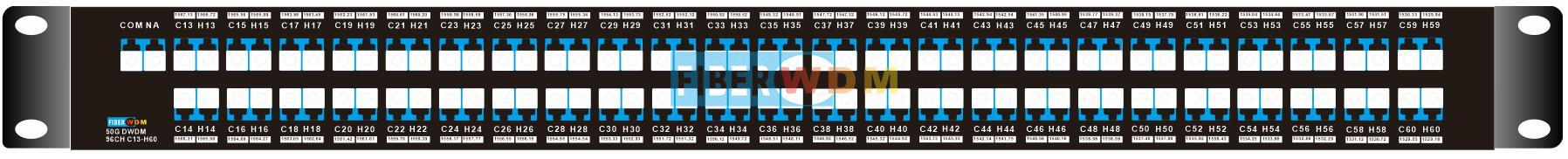

Product Panel


50GHZ DWDM

 It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.



Product Specification


Wavelength

96channels C13/H13-C60/H60

Channel Spacing

50GHz (0.4nm)

Center Wavelength Accuracy

±0.05nm

Technology

AAWG (Gaussian)

Insertion Loss

≤5.0dB

Link Loss

≤10dB

Total Crosstalk

≥25dB

Ripple in Passband

≤ 0.75dB

-1dB passband

≥0.18dB

-3dB passband

≥0.28dB

Return Loss

≥ 40dB

Directivity

≥ 40dB

Polarization Mode Dispersion

≤ 0.5ps

Polarization Dependent Loss

≤ 0.5dB

Channel Isolation

Adjacent ≥ 25dB
Non-adjacent ≥30dB

Temperature

Operating -5 to 65°C

Storage -40 to 85°C

Net Weight

1.7KG

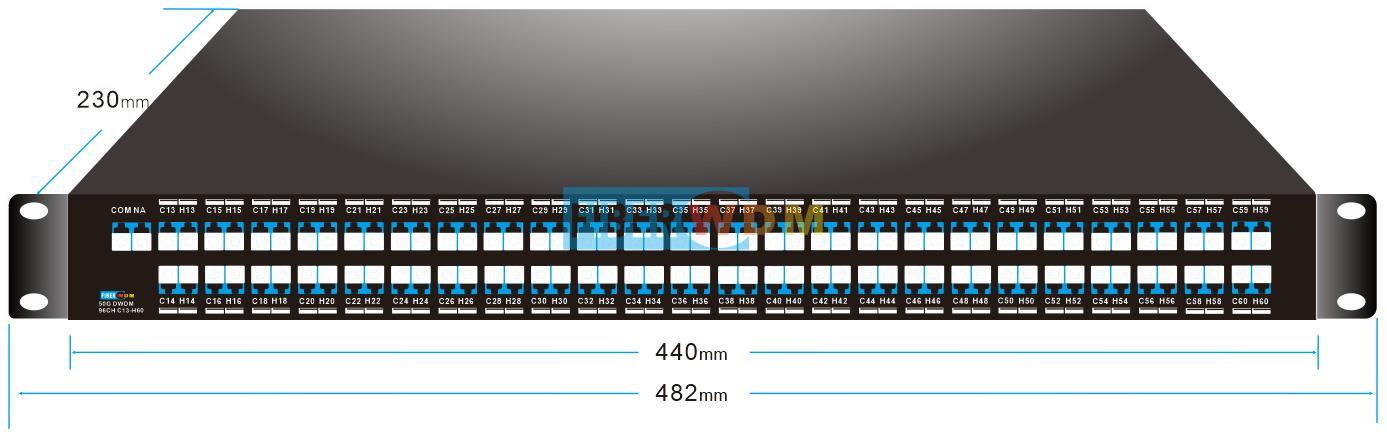

Dimensions (HxWxD)

44*440*230mm



Package Information


 50GHZ DWDM

  96CH DWDM 1U RACK





Order Information



Product No.

Product description

DA96-1U01-C13H60

50Ghz DWDM AAWG MUX/ DEMUX 96CH (C13/H13-C60/H60) Single fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.
