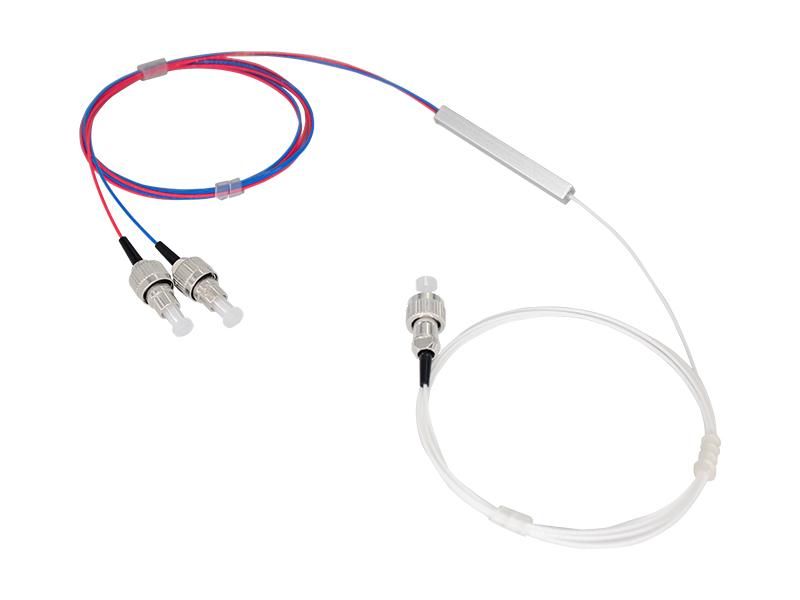

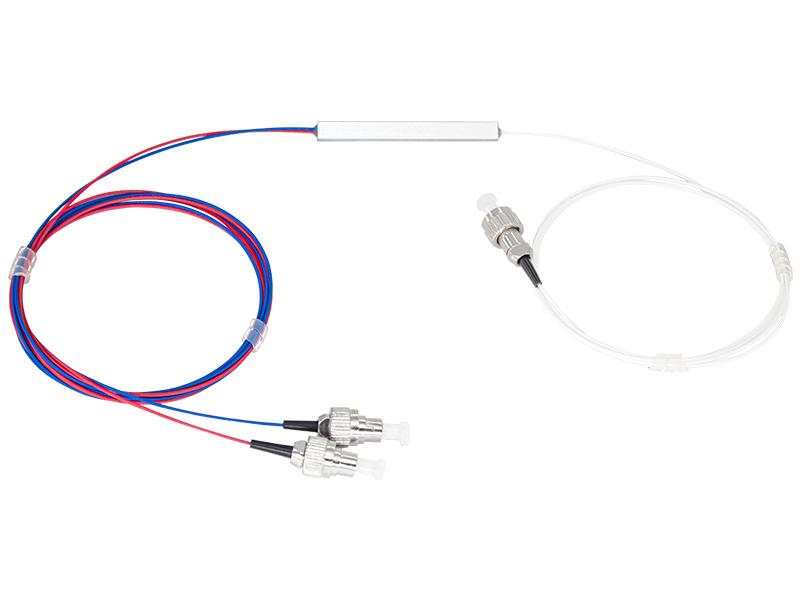

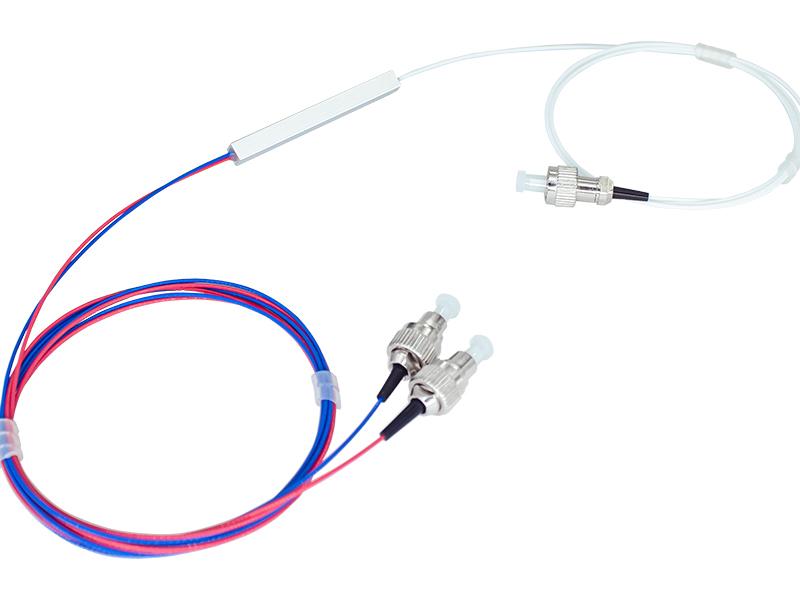

FBW-296S11 3-01
1976/1660nm Fused WDM Coupler, Package dimension: L50×W5×H5,0.9mm loose tube, length 1m, FC/UPC Connector
Performance Specifications
|
Parameters |
Specifications |
Unit |
|
|
Operating Wavelength |
1976 |
1976+/-5 |
nm |
|
1660 |
1660+/-5 |
nm |
|
|
Insertion Loss |
1976 |
≤1.0 |
dB |
|
1660 |
≤1.0 |
dB |
|
|
1976 |
≥13 |
dB |
|
|
1660 |
≥17 |
dB |
|
|
Thermal Stability |
≤0.005 (over -5℃ to +70℃) |
dB/℃ |
|
|
Directivity |
≥50 |
dB |
|
|
Return Loss |
≥50 |
dB |
|
|
Polarization Dependent Loss |
≤0.15 |
dB |
|
|
Maximum Power Handing |
20 |
W |
|
|
Fiber Type |
SMF-28 |
- |
|
|
Pigtail Type |
0.9mm loose tube |
- |
|
|
Cable Color |
Input |
White |
- |
|
1976 |
Blue |
- |
|
|
1660 |
Red |
- |
|
|
Fiber Length |
1±0.1 |
mm |
|
|
Connector Type |
FC/UPC |
- |
|
|
Operating Temperature |
-5 ~ 70 |
℃ |
|
|
Storage Temperature |
-40 ~ 85 |
℃ |
|
|
Package size |
L50×W5×H5 |
mm |
|
Notes: 1. Insertion Loss tested with connector.

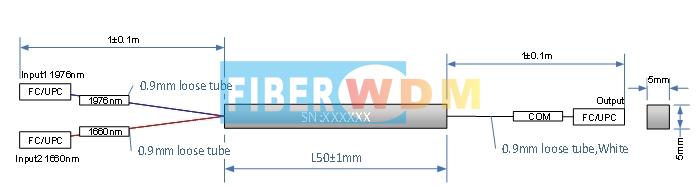

Dimension
Test Report
The test report should be provided when the products are delivered. Following characteristic test data should be included：
Packaging
Following items should be indicated on the outer packaging surface：
Reliability Specifications
Revision History
|
Revision |
Notes |
Authors |
Checked |
Approval |
Date |
|
Rev A0 |
New release |
Virgil |
|
|
2023-07-04 |
