40GBASE-SR Bi-Directional QSFP+ 850/900nm 100m DOM LC MMF Optical Transceiver Module

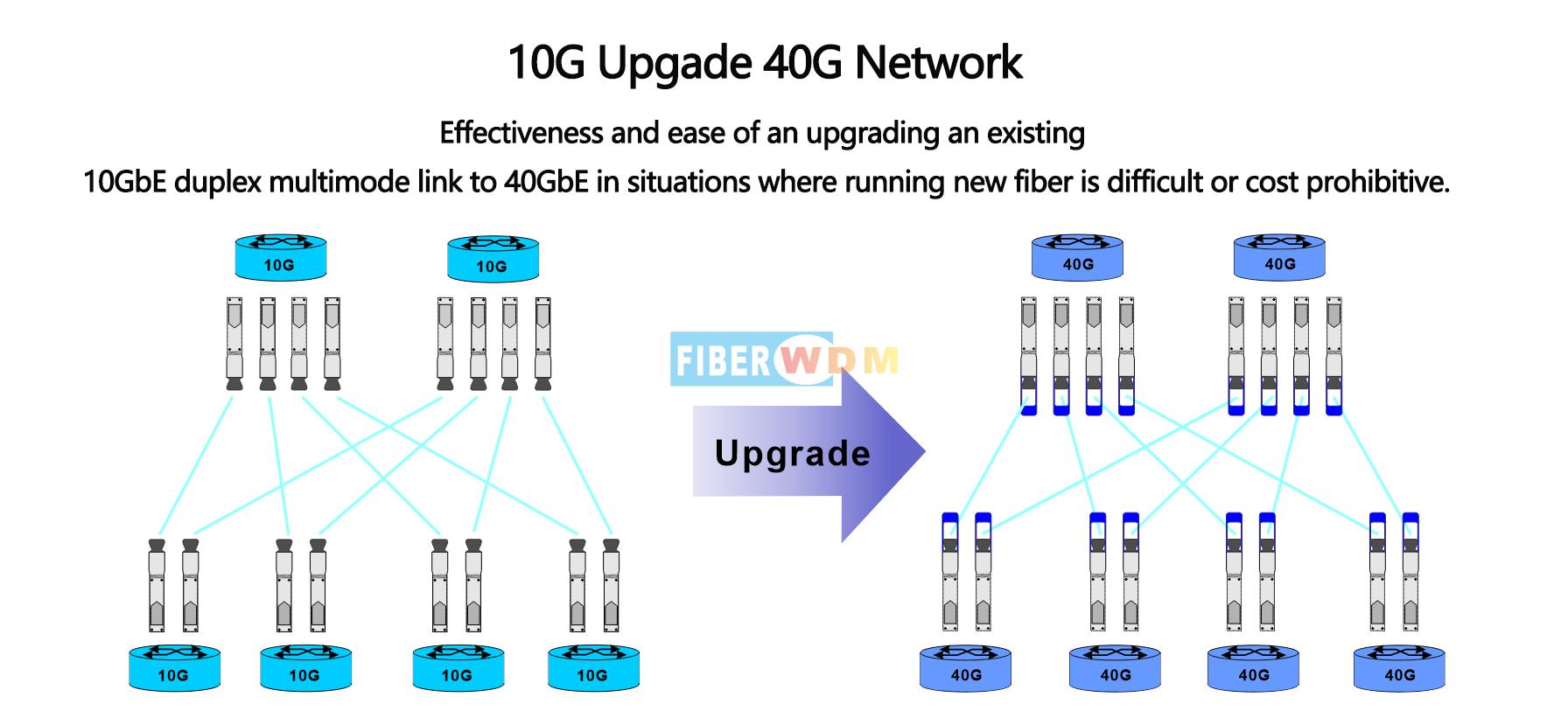

40G QSFP+ BIDI optical transceiver module is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multi-Mode Fiber (MMF). It offers customers a compelling solution that enables reuse of their existing 10 Gb duplex MMF infrastructure for migration to 40 Gigabit Ethernet connectivity.
  • Product Detail

40GBASE-SR Bi-Directional QSFP28 850/900nm 100m DDM LC MMF Optical Transceiver Module

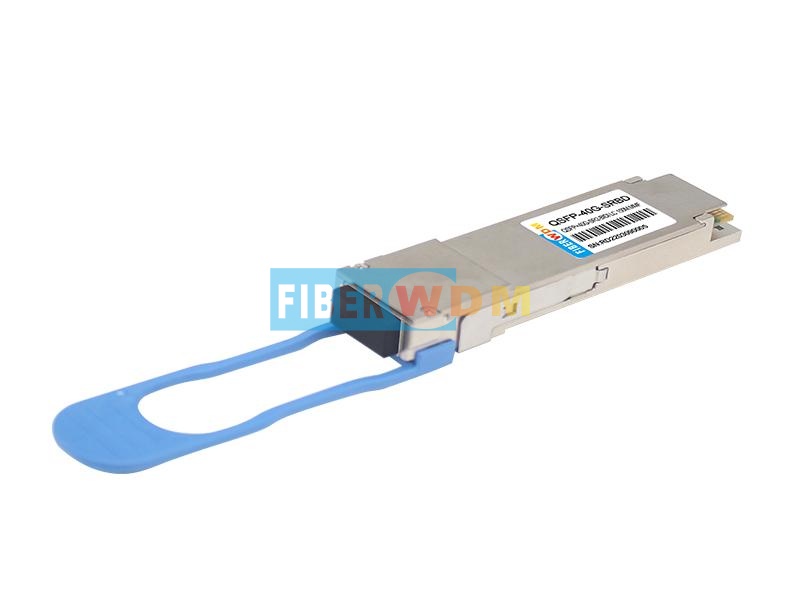

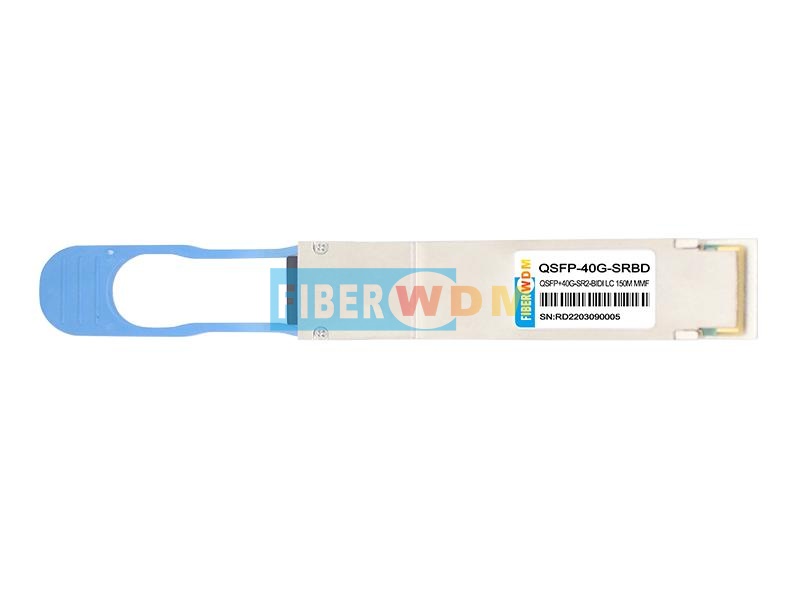

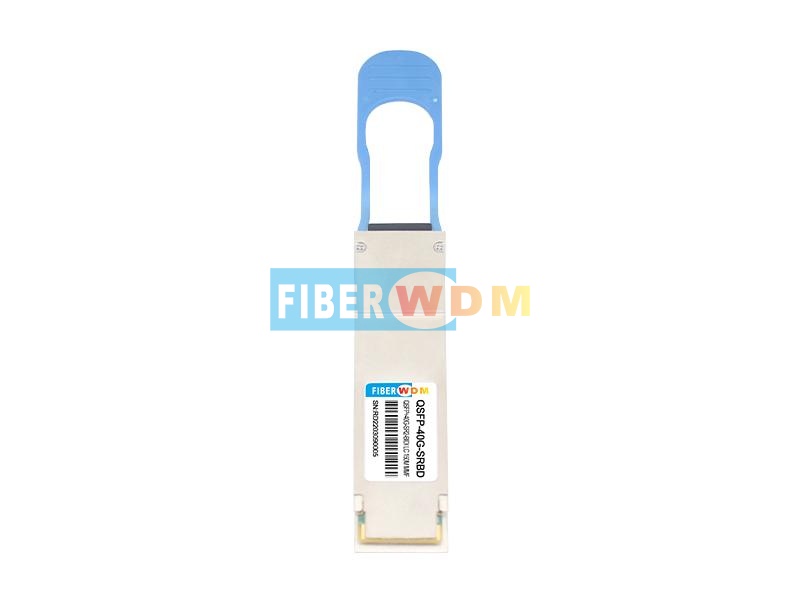

The QSFP-40G-SRBD is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver for 40 Gigabit Ethernet Applications. This transceiver is a high-performance module for short-range duplex data communication and interconnect applications. It integrates four electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable. Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.



The QSFP-40G-SRBD transceiver internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional optics. This results in an aggregate bandwidth of 40Gbps into a duplex LC cable. This allows reuse of the installed LC duplex cabling infrastructure for 40GbE application.

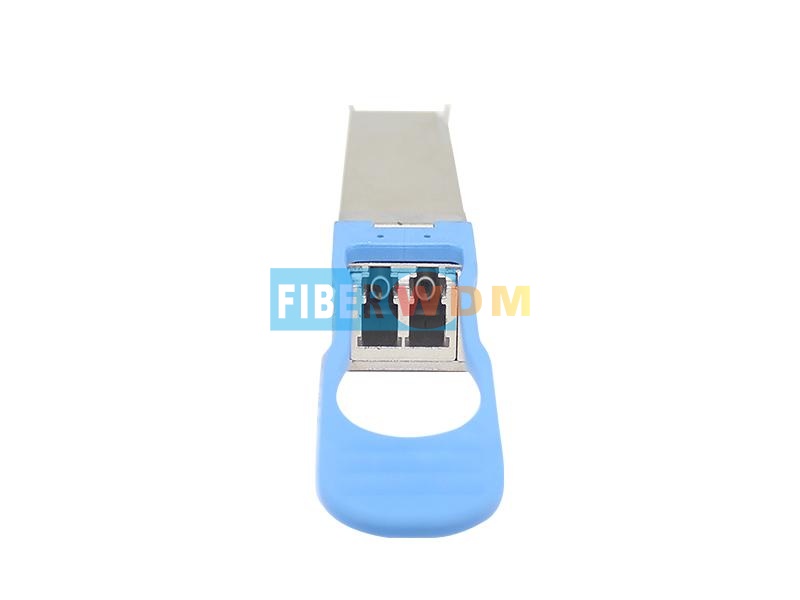

Link distances up to 100 m using OM3 and 150m using OM4 optical fiber are supported. These modules are de- signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one end and 900nm on the other end. The electrical interface uses a 38 contact QSFP+ type edge connector. The optical interface uses a conventional LC duplex connector. This module incorporates proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.



Features



  • Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
  • Compliant to QSFP+ SFF-8436 Specification
  • Power Level 4: Max Power 3.5W
  • Class 1M Eye Safety
  • High port density: 21mm horizontal port pitch
  • Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
  • Links up to 100m using OM3 and 150m using OM4 optical fiber
  • +10 to +70ºC case temperature operating range
  • Hot pluggable transceiver for ease of installation and servicing
  • Two wire Serial (TWS) Management Interface with maskable interrupts for expanded functionality
  • Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure



Order information



Product Number

Data Rate (Gb/s)

Wavelength (nm)

Reach (m)

LD

Tx Power (dBm)

PD

Rx Sens (dBm)

Temperature (℃)

QSFP-40G-SRBD

40

850/900nm

100M for OM3

150m for OM4

VCSEL

-4~ 5dBm

PIN

<-7.5dBm

10~70
