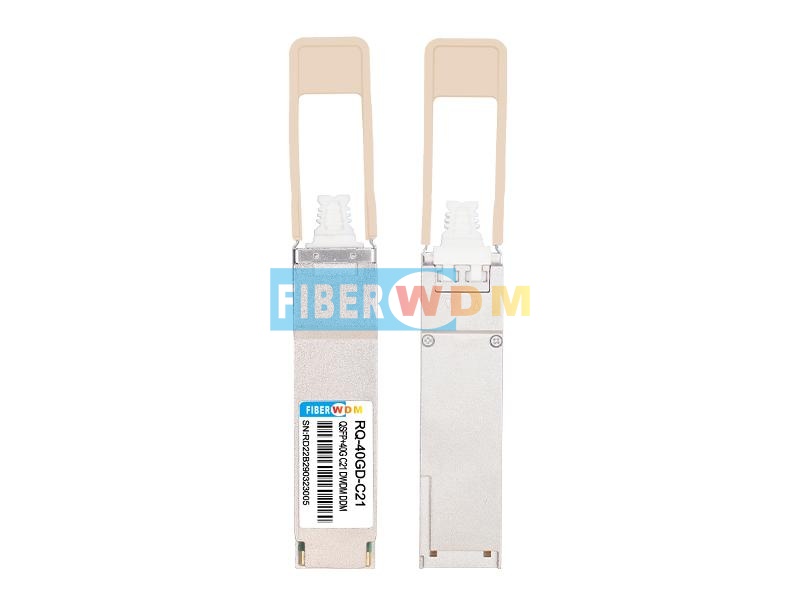

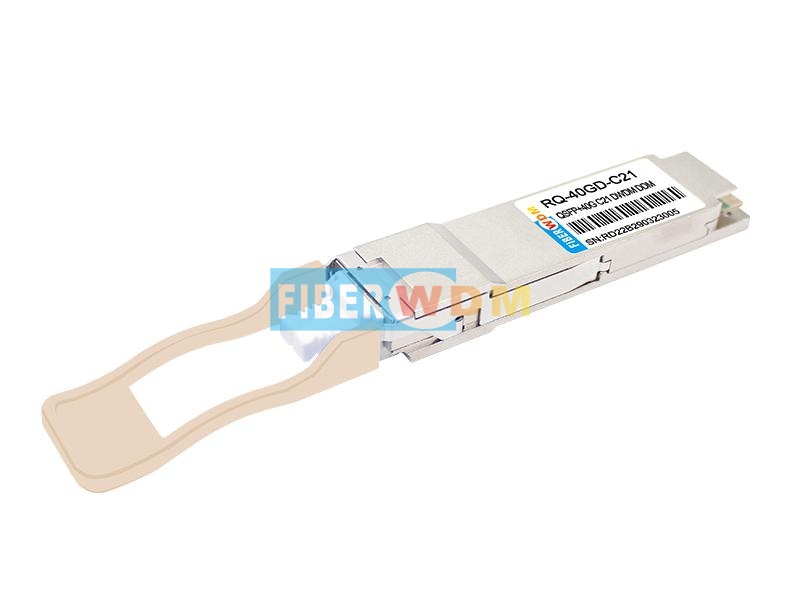

Single Wave 40G DWDM QSFP+ PAM4 Dual LC Transceiver

40G DWDM QSFP+ DWDM optical transceiver module, support 48*40Gb/s DWDM System and up to 80 km( with DCM and EDFA) transmission on SM fiber, it works in high-speed IDC connection solutions.

Inquire now Download

Categories

Hot Products

Product Detail

40G DWDM QSFP+ Transceiver , C2 1 ~C60 , 80KM( with DCM and EDFA) Duplex LC ,DDM

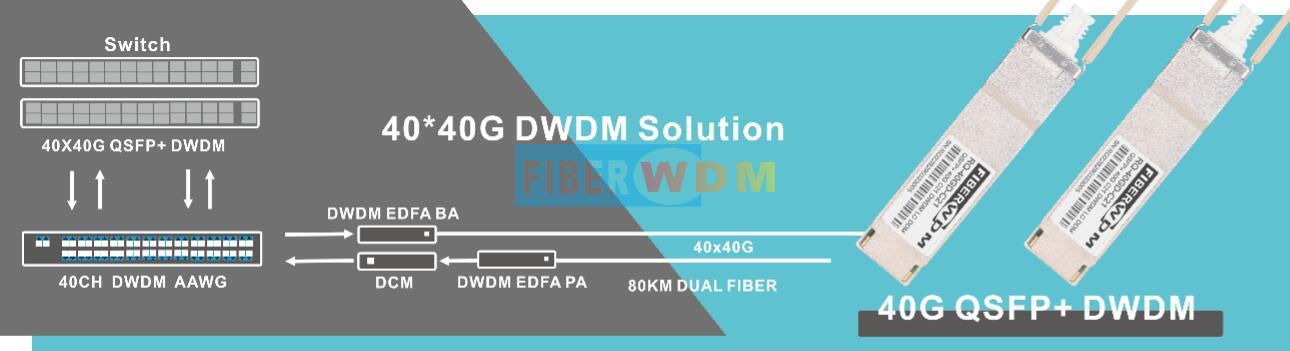

Fiberwdm’s 40G DWDM QSFP+ optical transceiver modules are designed for multiple 40GE links up to 80km distance over standard G.652 single mode optical fibers (SMF). For short distances, e.g. several kilometers, no EDFA and dispersion compensation modules (DCM) are required. But for relative longer distances, EDFA and DCM are required to compensate the fiber link loss and fiber dispersion.

The module’s DWDM transmitter is on the ITU-T defined 100GHz spacing DWDM grid, and is Laser Class 1 compliant according to International Safety Standard IEC-60825. The receiver section uses a wideband PIN-PD detector and is DWDM channel independent. Digital diagnostics functions are available via the I2C interface as specified by QSFP+ MSA specification SFF-8636.

40G DWDM QSFP+ Transceiver

Features

Single wavelength 40Gbps transmission
Fixed wavelengths on DWDM 100GHz Grid
Up to 80km over SMF (with DCM and EDFA)
Duplex LC connector
Power dissipation 3.5W (Max) u
4 x 10G Electrical interface at host side
Compliant with QSFP+ MSA SFF-8679
Compliant with QSFP+ MSA SFF-8636
QSFP+ MSA digital monitoring functions

Order information

Part No	Data Rate	Package	Center Wavelength (nm)	Tx	Rx	Distance	Interface	Temp.

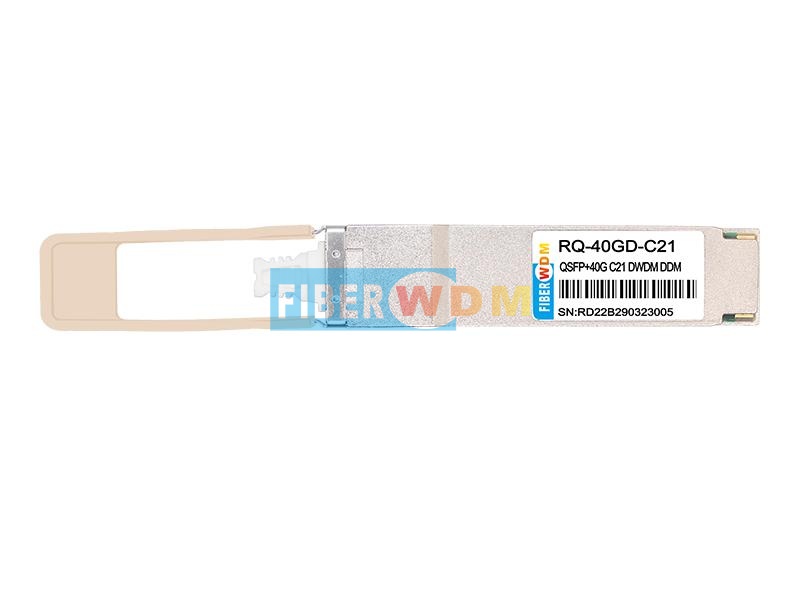

RQ-40GD-C21	40G	QSFP+	1560.61	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C22	40G	QSFP+	1559.79	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C23	40G	QSFP+	1558.98	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C24	40G	QSFP+	1558.17	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C25	40G	QSFP+	1557.36	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C26	40G	QSFP+	1556.55	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C27	40G	QSFP+	1555.75	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C28	40G	QSFP+	1554.94	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C29	40G	QSFP+	1554.13	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C30	40G	QSFP+	1553.33	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C31	40G	QSFP+	1552.52	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C32	40G	QSFP+	1551.72	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C33	40G	QSFP+	1550.92	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C34	40G	QSFP+	1550.12	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C35	40G	QSFP+	1549.32	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-40GD-C36	40G	QSFP+	1548.51	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-40GD-C37	40G	QSFP+	1547.72	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-40GD-C38	40G	QSFP+	1546.92	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA	LC	0°C to 70°C
RQ-40GD-C39	40G	QSFP+	1546.12	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C40	40G	QSFP+	1545.32	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C41	40G	QSFP+	1544.53	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C42	40G	QSFP+	1543.73	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C43	40G	QSFP+	1542.94	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C44	40G	QSFP+	1542.14	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C45	40G	QSFP+	1541.35	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C46	40G	QSFP+	1540.56	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C47	40G	QSFP+	1539.77	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C48	40G	QSFP+	1538.98	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C49	40G	QSFP+	1538.19	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C50	40G	QSFP+	1537.40	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C51	40G	QSFP+	1536.61	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C52	40G	QSFP+	1535.82	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C53	40G	QSFP+	1535.04	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C54	40G	QSFP+	1534.25	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C55	40G	QSFP+	1533.47	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C56	40G	QSFP+	1532.68	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C57	40G	QSFP+	1531.90	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C58	40G	QSFP+	1531.12	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C59	40G	QSFP+	1530.33	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
RQ-40GD-C60	40G	QSFP+	1529.55	-1~4dB	<-11 dBm Pre-FEC BER < 5E-5	80km (with DCM and EDFA)	LC	0°C to 70°C
