Dual Fiber 16CH C41-C56 DWDM MUX DEMUX

Dual Fiber 16CH C41-C56 DWDM MUX DEMUX and EXP Port, LC/UPC, 1U Rack

The 16ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C41 to C56(1544.53nm~1532.68nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 16ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB;).And it conjunct with The DWDM amplifiers and DCM device, the 16ch DWDM transfer system can support a long distance transmission.

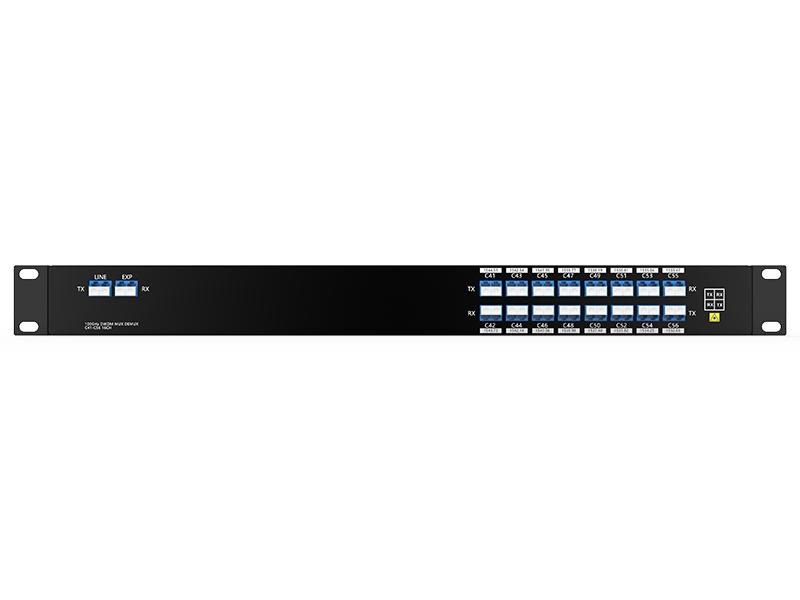

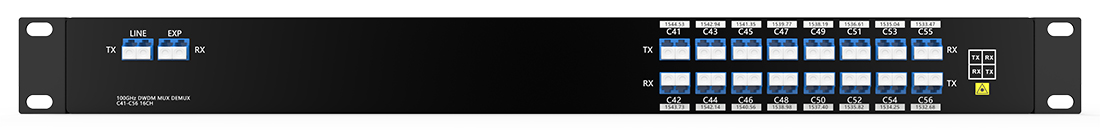

Product Panel

16CH DWDM MUX DEMUX Dual Fiber

Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

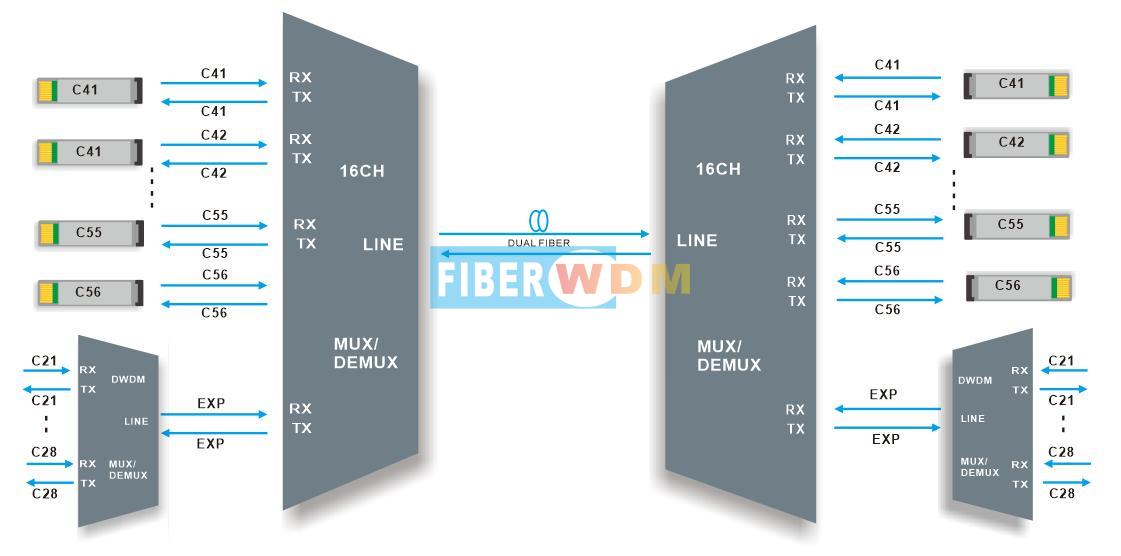

Line Link

16CH DWDM MUX DEMUX Dual fiber transmission

  16 Channels DWDM MUX DEMUX supports16 channels difference business in two optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Note: Specified with connectors.

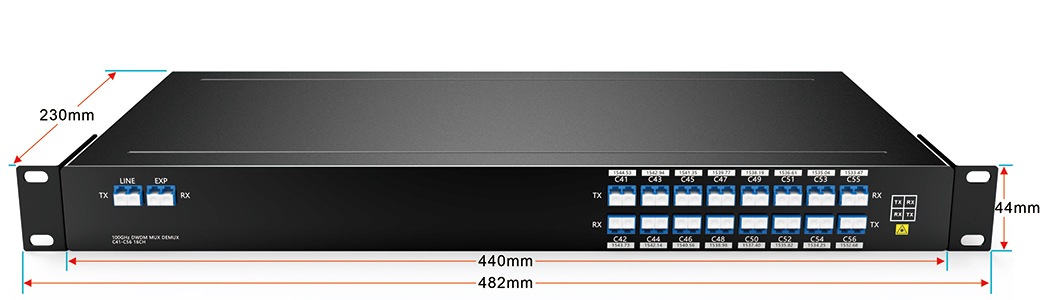

Package Information

19” Inch 1U Rack

Order Information

Note:We Support Customized Design, please contact us by email（sales@fiberwdm.com）.
