Dual Fiber 8CH C28-C35 DWDM MUX DEMUX

Dual Fiber 8CH C28-C35 DWDM MUX DEMUX, Monitor and EXP Port, LC/UPC, 1U Rack

The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C28 to C35(1554.94nm~1549.32nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 8ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜2.4dB).And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

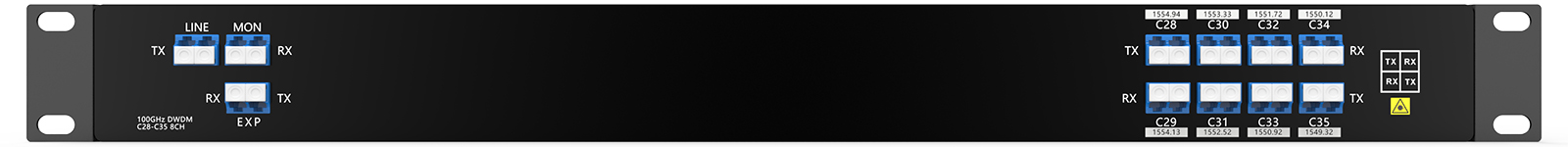

Product Panel

8CH DWDM MUX DEMUX Dual Fiber

• Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
• Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

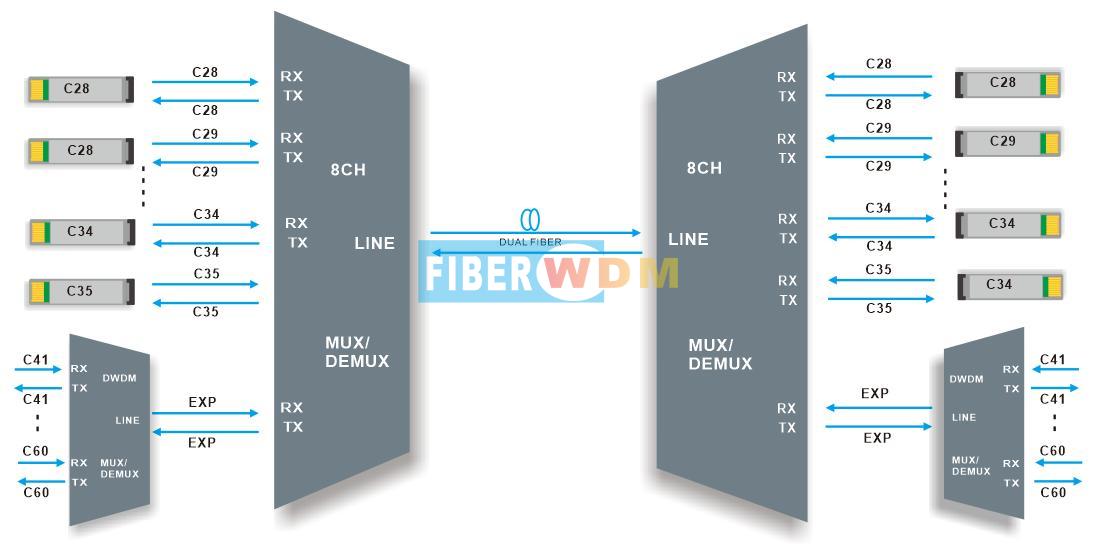

Line Link

8CH DWDM MUX DEMUX Dual fiber transmission

  8 Channels DWDM MUX DEMUX, supports8 channels difference business in two optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Note: Specified with connectors.

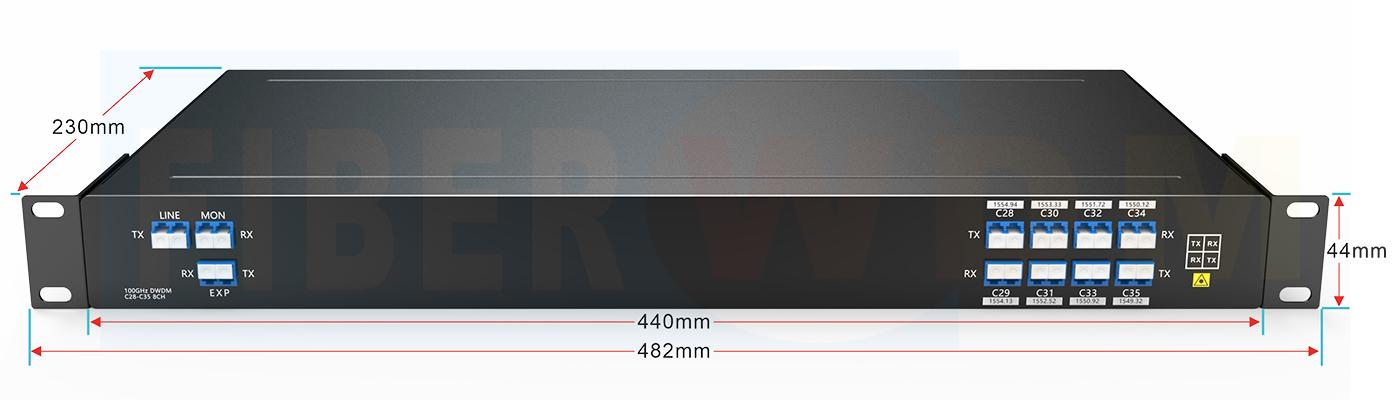

Package Information

19” Inch 1U Rack

Order Information

Note:We Support Customized Design, please contact us by email.sales@fiberwdm.com
