NO.

PARAMETER

SPECIFICATION

UNITS

NOTE

2.1

Channel Spacing

50/100

GHz

2.3

Wavelength Range

1529.16~1560.61

nm

2.4

Central Wavelength

ITU-T standard wavelength

2.6

Wavelength Accuracy

±0.05

nm

2.7

Bandwidth@0.5dB

±0.17

GHz

2.8

Bandwidth@25dB

≤0.7

GHz

2.9

Test Bandwidth

±6

GHz

2.10

Ripple

≤0.5

dB

1

2.11

Insertion Loss

≤2.4

dB

1,2

2.12

Insertion Loss Uniformity

≤1

dB

2.13

Adjacent Channel Isolation

≥24

dB

1

2.14

Return Loss

≥40

dB

2.15

Directivity

≥55

dB

2.16

Chromatic Dispersion

±75

ps/nm

1

2.17

Polarization Mode Dispersion (PMD)

≤0.2

ps

1

2.18

Polarization Dependent Loss (PDL)

≤0.5

dB

1

2.19

Temperature Dependant Loss (TDL)

≤0.003

dB/°C

1

2.20

Wavelength Temperature Stability

≤0.7

pm/°C

1

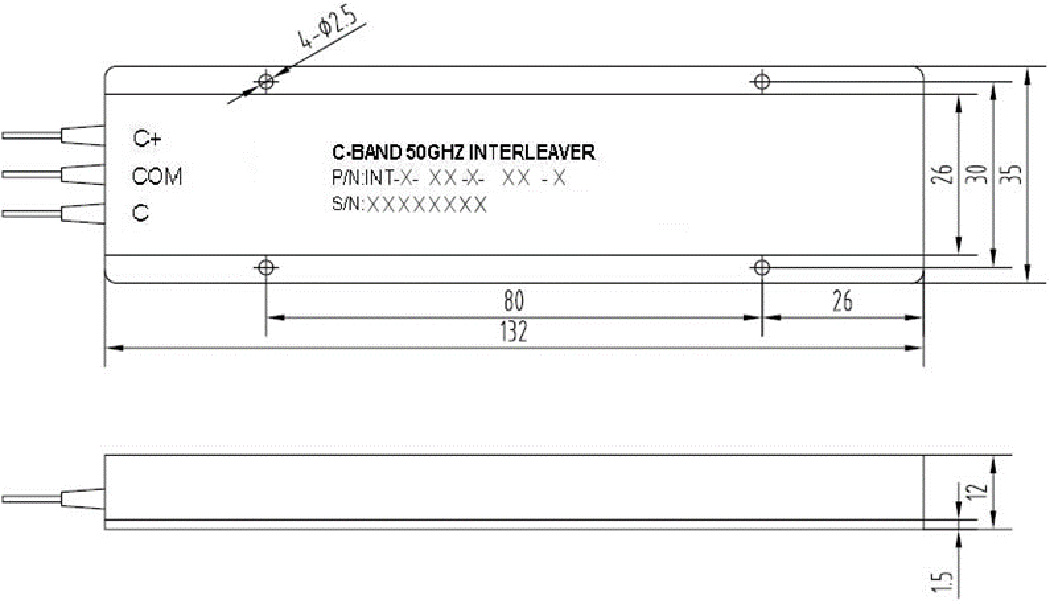

2.21

Dimension

132×35×12

mm

NO

PARAMETER

SPECIFICATION

UNITS

NOTE

3.1

Operation Temperature

-5~65

℃

3.2

Operation Humidity

5~95

%RH

3.3

Storage Temperature

-40~85

℃

3.4

Storage Humidity

5~95

%RH

3.5

Max Optical Power Handing（total）

27

dBm

PARAMETER

SPECIFICATION

UNIT

NOTE

Pigtail Type (All ports)

900um loose tube with SMF bifer

Pigtail Length (All ports)

1.0±0.1

m

Include connectors

Connector Type (All ports)

FC/UPC
