1.25G SFP optical transceiver module, support 1.25Gb/s and up to 200 km transmission
Features:
Applications:

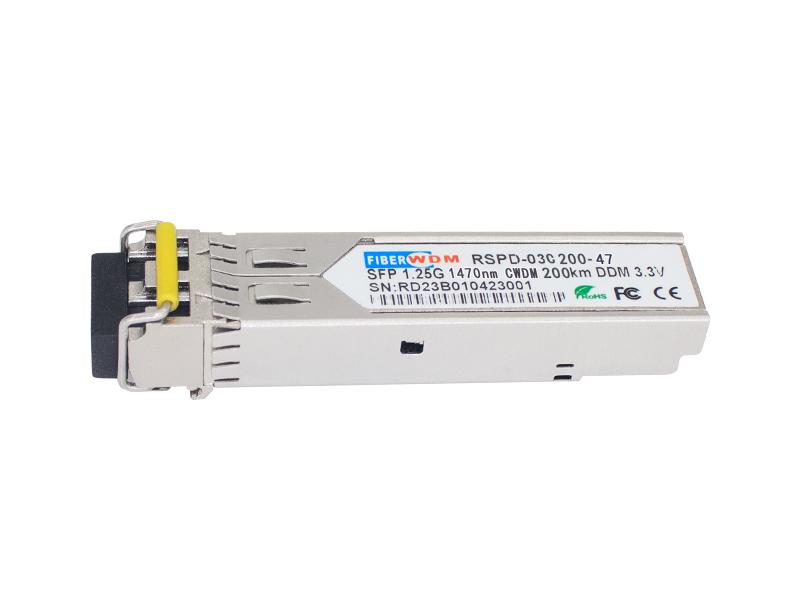

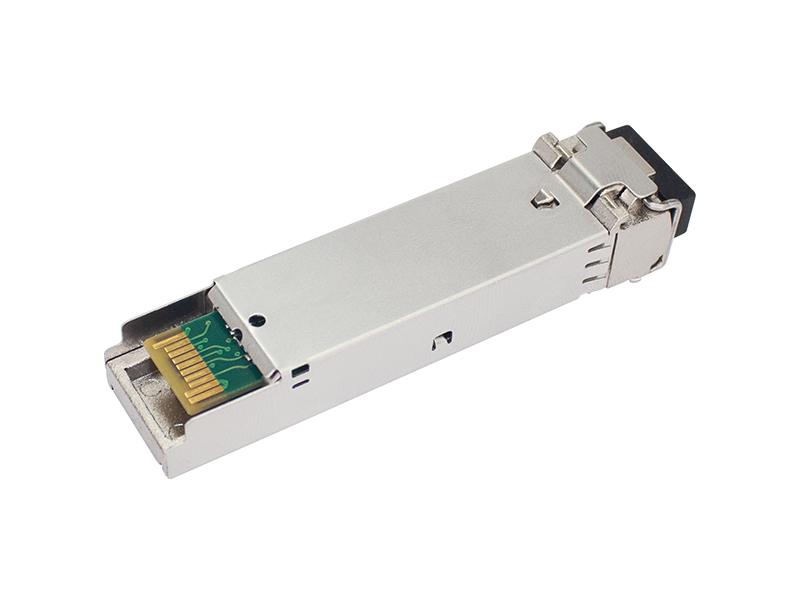

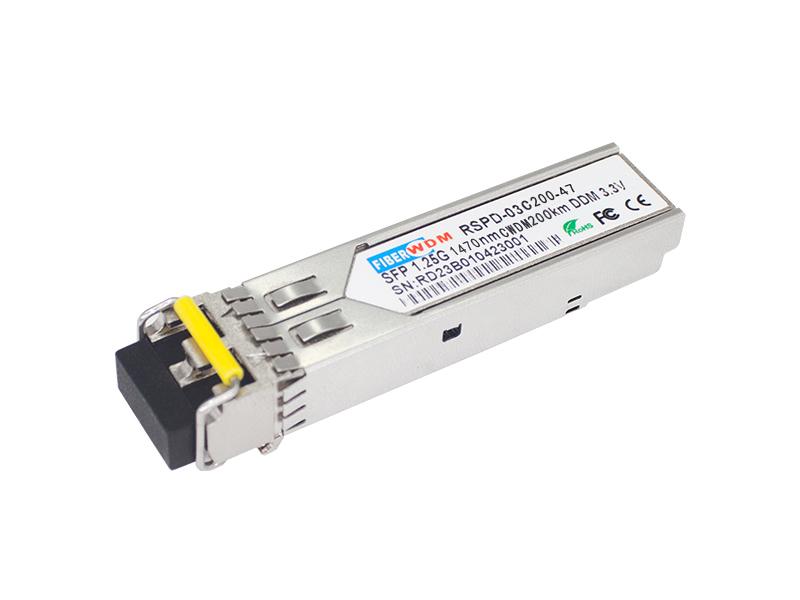

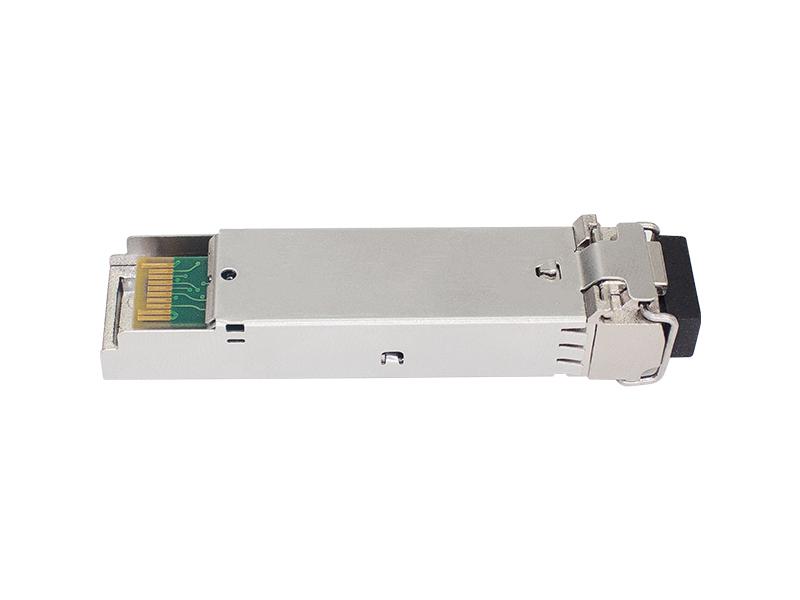

RSPD-03C200-XX
1.25Gb/s 200km SFP Transceiver Hot Pluggable, Duplex LC, +3.3V, 1270~1610nm, CWDM LD&APD, Single-mode, DDM
FIBERWDM’s RSPD-03C200-XX Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses an APD receiver and the transmitter uses a CWDM DFB laser, up to 41dB link budge ensure this module 1000Base Ethernet 200km application.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
Storage Temperature |
TS |
-40 |
|
+85 |
°C |
|
Supply Voltage |
VCC |
-0.5 |
|
4 |
V |
|
Relative Humidity |
RH |
0 |
|
85 |
% |
Recommended Operating Environment
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
|
Case operating Temperature |
Industrial |
TC |
-40 |
|
85 |
°C |
|
Extended |
-5 |
|
85 |
°C |
||
|
Commercial |
0 |
|
+70 |
°C |
||
|
Supply Voltage |
VCC |
3.135 |
|
3.465 |
V |
|
|
Supply Current |
Icc |
|
|
300 |
mA |
|
|
Inrush Current |
Isurge |
|
|
Icc+30 |
mA |
|
|
Maximum Power |
Pmax |
|
|
1 |
W |
|
Electrical Characteristics(TOP= -40 to 85°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
|
|||||
|
Input differential impedance |
Rin |
90 |
100 |
110 |
|
|
|
Single ended data input swing |
Vin PP |
250 |
|
1200 |
mVp-p |
|
|
Transmit Disable Voltage |
VD |
Vcc – 1.3 |
|
Vcc |
V |
2 |
|
Transmit Enable Voltage |
VEN |
Vee |
|
Vee+ 0.8 |
V |
|
|
Transmit Disable Assert Time |
Tdessert |
|
|
10 |
us |
|
|
Receiver Section: |
|
|||||
|
Single ended data output swing |
Vout,pp |
250 |
|
800 |
mv |
3 |
|
LOS Fault |
Vlosfault |
Vcc – 0.5 |
|
VCC_host |
V |
5 |
|
LOS Normal |
Vlos norm |
Vee |
|
Vee+0.5 |
V |
5 |
|
Power Supply Rejection |
PSR |
100 |
|
|
mVpp |
6 |
Note:
1. AC coupled.
2. Or open circuit.
3. Into 100 ohm differential termination.
4. 20 – 80 %
5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA), September 14, 2000.
Optical Parameters(TOP= -40 to 85°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
λ-3 |
λ |
λ+3 |
nm |
|
|
Spectral Width |
σ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
+4 |
|
+7 |
dBm |
1 |
|
Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Rise/Fall Time |
tr/ tf |
|
|
260 |
ps |
2 |
|
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
|
Output Eye Mask |
Compliant with IEEE802.3 z (class 1 laser safety) |
|
||||
|
Receiver Section: |
|
|||||
|
Optical Input Wavelength |
λc |
1270 |
|
1610 |
nm |
|
|
ReceiverOverload |
Pol |
-7 |
|
|
dBm |
4 |
|
RXSensitivity |
Sen |
|
|
-38 |
dBm |
4 |
|
RX_LOS Assert |
LOSA |
-46 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOSD |
|
|
-39 |
dBm |
|
|
RX_LOS Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
General Specifications: |
||||||
|
Data Rate |
BR |
|
1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s |
LMAX |
|
|
160 |
km |
|
|
Total System Budget |
LB |
34 |
|
|
dB |
|
Note
1. The optical power is launched into SMF.
2. 20-80%.
3. Jitter measurements taken using Agilent OMNIBERT 718 in accordance with GR-253.
4. Measured with PRBS 27-1at 10-12BER

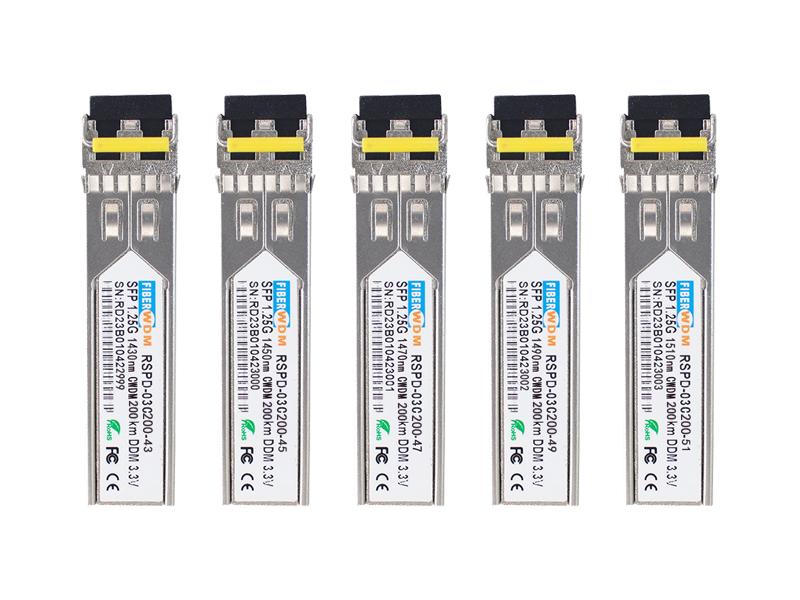

Order Information:
|
Part Number |
Product Description |
|
RSPD-03C200-27 |
SFP, 1270nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-29 |
SFP, 1290nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-31 |
SFP, 1310nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-33 |
SFP, 1330nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-35 |
SFP, 1350nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-37 |
SFP, 1370nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-39 |
SFP, 1390nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-41 |
SFP, 1410nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-43 |
SFP, 1430nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-45 |
SFP, 1450nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-47 |
SFP, 1470nm CWDM, 1.25Gbps, LC, 2000km, 0°C~+70°C, with DDM |
|
RSPD-03C200-49 |
SFP, 1490nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-51 |
SFP, 1510nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-53 |
SFP, 1530nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-55 |
SFP, 1550nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-57 |
SFP, 1570nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-59 |
SFP, 1590nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
|
RSPD-03C200-61 |
SFP, 1610nm CWDM, 1.25Gbps, LC, 200km, 0°C~+70°C, with DDM |
