1.25G SFP optical transceiver module, support 1.25Gb/s and up to 180 km transmission
Features:
Applications:

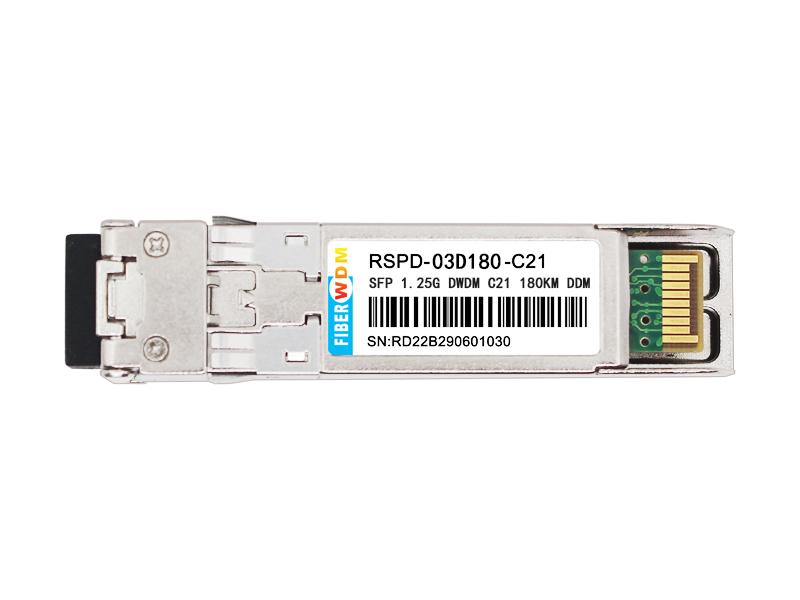

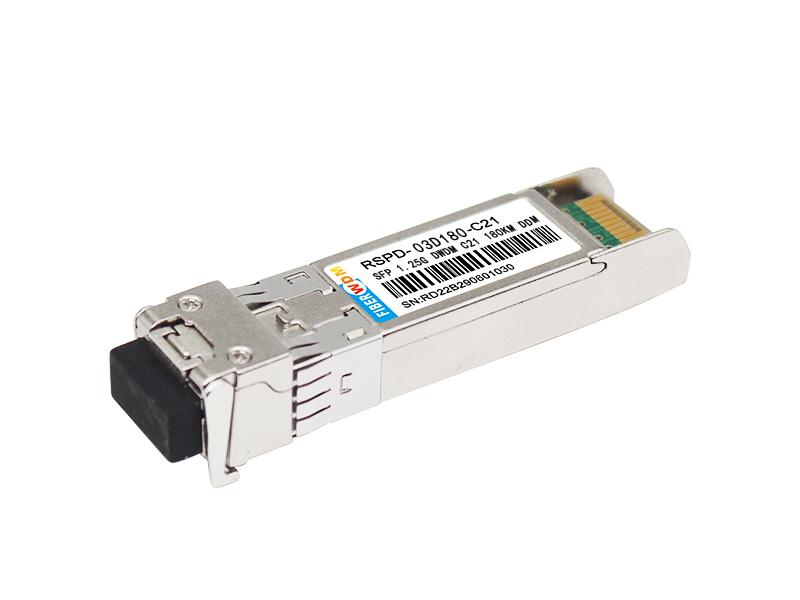

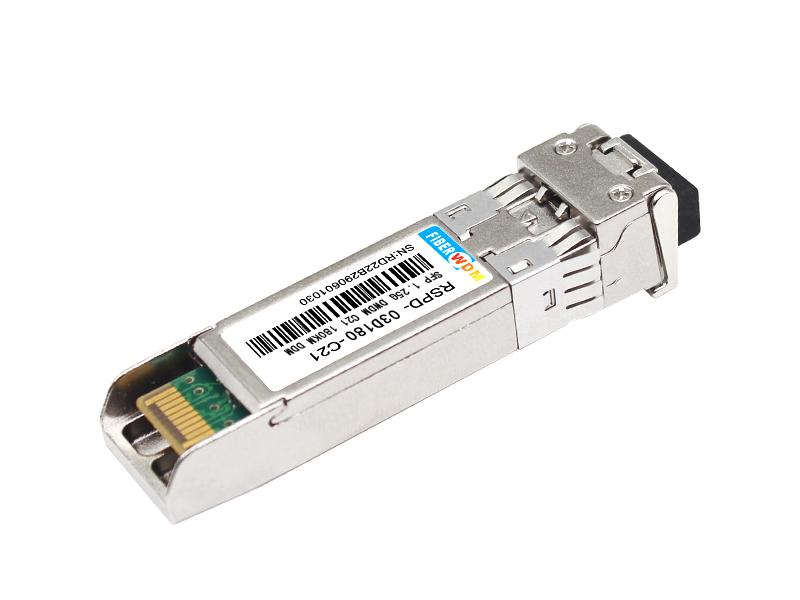

RSPD-03D180-CXX

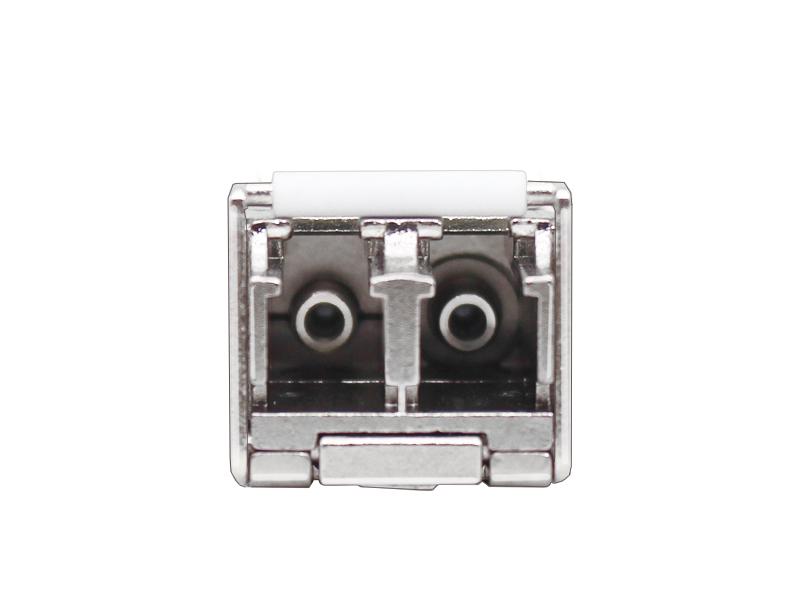

1.25Gb/s 180km DWDM SFP Transceiver Hot Pluggable, Duplex LC, +3.3V, 100GHz, DWDM COOLED DFB&APD, Single mode
FIBERWDM's RSPD-03D180-Cxx is a very compact 1.25Gb/s optical transceiver module for serial optical communication applications at 1.25Gb/s. The RSPD-03D180-Cxx converts a 1.25Gb/s serial electrical data stream to 2.67Gb/s optical output signal and a 1.25Gb/s optical input signal to 1.25Gb/s serial electrical data streams. The high speed 2.67Gb/s electrical interface is fully compliant with SFI specification.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
StorageTemperature |
TS |
-40 |
|
+85 |
°C |
|
Case Operating Temperature |
TA |
0 |
|
70 |
°C |
|
Maximum Supply Voltage |
Vcc |
-0.5 |
|
4 |
V |
|
Relative Humidity |
RH |
0 |
|
85 |
% |
Electrical Characteristics (TOP= 0 to 70 °C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Supply Voltage |
Vcc |
3.135 |
|
3.465 |
V |
|
|
Supply Current |
Icc |
|
|
450 |
mA |
|
|
Power Consumption |
P |
|
|
1.5 |
W |
|
|
Transmitter Section: |
||||||
|
Input differential impedance |
Rin |
|
100 |
|
Ω |
1 |
|
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT) |
V |
-0.3 |
|
4 |
V |
|
|
Differential input voltage swing |
Vin,pp |
180 |
|
700 |
mV |
2 |
|
Transmit Disable Voltage |
VD |
2 |
|
Vcc |
V |
3 |
|
Transmit Enable Voltage |
VEN |
Vee |
|
Vee+0.8 |
V |
|
|
Receiver Section: |
||||||
|
Single Ended Output Voltage Tolerance |
V |
-0.3 |
|
4 |
V |
|
|
Rx Output Diff Voltage |
Vo |
300 |
|
850 |
mV |
|
|
Rx Output Rise and Fall Time |
Tr/Tf |
30 |
|
|
ps |
4 |
|
LOS Fault |
VLOS fault |
2 |
|
VccHOST |
V |
5 |
|
LOS Normal |
VLOS norm |
Vee |
|
Vee+0.8 |
V |
5 |
Note:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Per SFF-8431 Rev 3.0
3. Into 100 ohms differential termination.
4. 20%～80%
5. LOS is an open collector output. Should be pulled up with 4.7k – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.
Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Optical Wavelength-End Of Life |
λ |
X-100 |
X |
X+100 |
pm |
|
|
Optical Wavelength-Beginning Of Life |
λ |
X-25 |
X |
X+25 |
pm |
|
|
Average Optical Power |
Pavg |
+3 |
|
+7 |
dBm |
1 |
|
Laser Off Power |
Poff |
|
|
-30 |
dBm |
|
|
Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Transmitter Dispersion Penalty |
TDP |
|
|
3.0 |
dB |
|
|
Relative Intensity Noise |
Rin |
|
|
-128 |
dB/Hz |
2 |
|
Optical Return Loss Tolerance |
|
20 |
|
|
dB |
|
|
Receiver Section: |
||||||
|
Center Wavelength |
λr |
1480 |
|
1580 |
nm |
|
|
Receiver Sensitivity (OMA) |
Sen |
|
|
-37 |
dBm |
2 |
|
Los Assert |
LOSA |
-46 |
|
- |
dBm |
|
|
Los Dessert |
LOSD |
|
|
-38 |
dBm |
|
|
Los Hysteresis |
LOSH |
0.5 |
|
|
dB |
|
|
Overload |
Sat |
-8 |
|
|
dBm |
3 |
|
Receiver Reflectance |
Rrx |
|
|
-12 |
dB |
|
Note:
1. Average power figures are informative only Fibre channel
2. 12dB reflection.
3. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
Timing Characteristics
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
|
TX_Disable Assert Time |
t_off |
|
|
10 |
us |
|
TX_Disable Negate Time |
t_on |
|
|
1 |
ms |
|
Time to Initialize Include Reset of TX_FAULT |
t_int |
|
|
300 |
ms |
|
TX_FAULT from Fault to Assertion |
t_fault |
|
|
100 |
us |
|
TX_Disable Time to Start Reset |
t_reset |
10 |
|
|
us |
|
Receiver Loss of Signal Assert Time |
TA,RX_LOS |
|
|
100 |
us |
|
Receiver Loss of Signal Deassert Time |
Td,RX_LOS |
|
|
100 |
us |
|
Rate-Select Chage Time |
t_ratesel |
|
|
10 |
us |
|
Serial ID Clock Time |
t_serial-clock |
|
|
100 |
kHz |
Order Information:

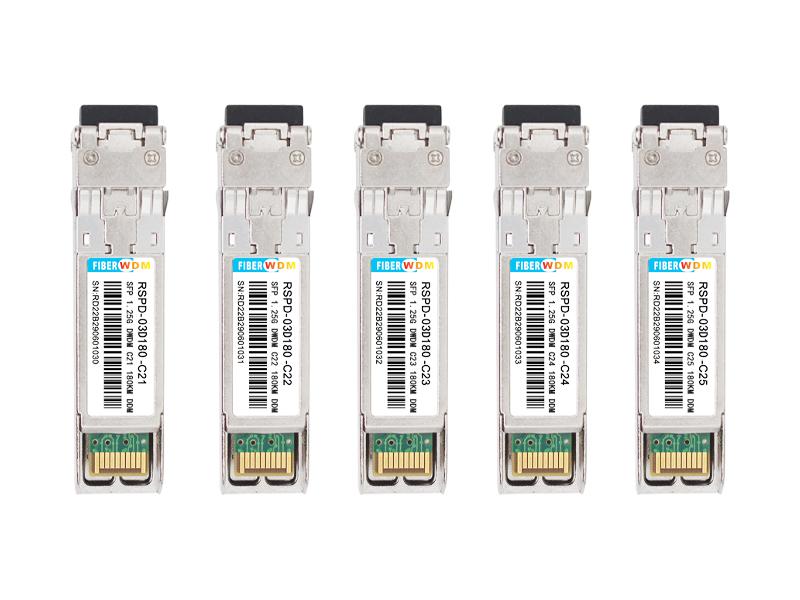

RSPD-03D180-Cxx XX: 100GHZ ITU Grid Wavelength
|
Part No. |
Central Wavelength(nm) |
Frequency (THZ) |
|
RSPD-03D180-C61 |
1528.77 |
196.1 |
|
RSPD-03D180-C60 |
1529.55 |
196.0 |
|
RSPD-03D180-C59 |
1530.33 |
195.9 |
|
RSPD-03D180-C58 |
1531.12 |
195.8 |
|
RSPD-03D180-C57 |
1531.90 |
195.7 |
|
RSPD-03D180-C56 |
1532.68 |
195.6 |
|
RSPD-03D180-C55 |
1533.47 |
195.5 |
|
RSPD-03D180-C54 |
1534.25 |
195.4 |
|
RSPD-03D180-C53 |
1535.04 |
195.3 |
|
RSPD-03D180-C52 |
1535.82 |
195.2 |
|
RSPD-03D180-C51 |
1536.61 |
195.1 |
|
RSPD-03D180-C50 |
1537.40 |
195.0 |
|
RSPD-03D180-C49 |
1538.19 |
194.9 |
|
RSPD-03D180-C48 |
1538.98 |
194.8 |
|
RSPD-03D180-C47 |
1539.77 |
194.7 |
|
RSPD-03D180-C46 |
1540.56 |
194.6 |
|
RSPD-03D180-C45 |
1541.35 |
194.5 |
|
RSPD-03D180-C44 |
1542.14 |
194.4 |
|
RSPD-03D180-C43 |
1542.94 |
194.3 |
|
RSPD-03D180-C42 |
1543.73 |
194.2 |
|
RSPD-03D180-C41 |
1544.53 |
194.1 |
|
RSPD-03D180-C40 |
1545.32 |
194.0 |
|
RSPD-03D180-C39 |
1546.12 |
193.9 |
|
RSPD-03D180-C38 |
1546.92 |
193.8 |
|
RSPD-03D180-C37 |
1547.72 |
193.7 |
|
RSPD-03D180-C36 |
1548.51 |
193.6 |
|
RSPD-03D180-C35 |
1549.32 |
193.5 |
|
RSPD-03D180-C34 |
1550.12 |
193.4 |
|
RSPD-03D180-C33 |
1550.92 |
193.3 |
|
RSPD-03D180-C32 |
1551.72 |
193.2 |
|
RSPD-03D180-C31 |
1552.52 |
193.1 |
|
RSPD-03D180-C30 |
1553.33 |
193.0 |
|
RSPD-03D180-C29 |
1554.13 |
192.9 |
|
RSPD-03D180-C28 |
1554.94 |
192.8 |
|
RSPD-03D180-C27 |
1555.75 |
192.7 |
|
RSPD-03D180-C26 |
1556.55 |
192.6 |
|
RSPD-03D180-C25 |
1557.36 |
192.5 |
|
RSPD-03D180-C24 |
1558.17 |
192.4 |
|
RSPD-03D180-C23 |
1558.98 |
192.3 |
|
RSPD-03D180-C22 |
1559.79 |
192.2 |
|
RSPD-03D180-C21 |
1560.61 |
192.1 |
|
RSPD-03D180-C20 |
1561.42 |
192.0 |
|
RSPD-03D180-C19 |
1562.23 |
191.9 |
|
RSPD-03D180-C18 |
1563.05 |
191.8 |
|
RSPD-03D180-C17 |
1563.86 |
191.7 |
