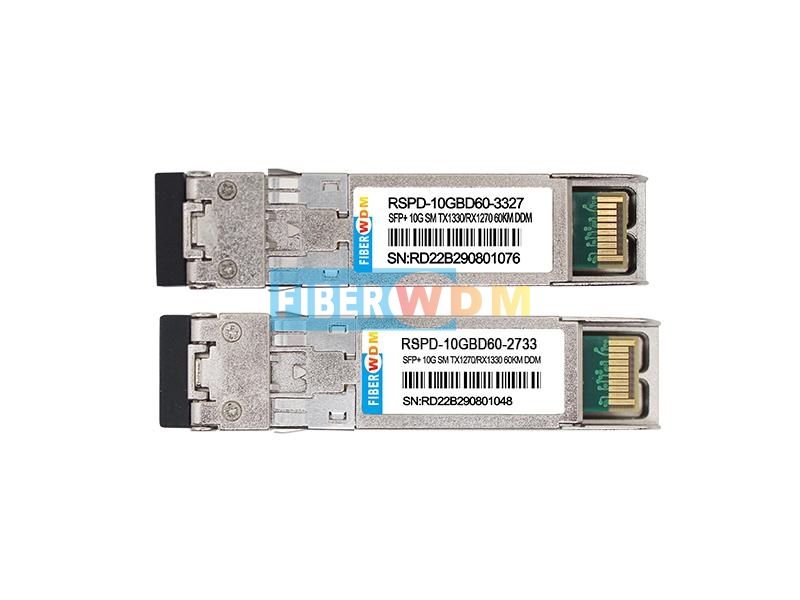

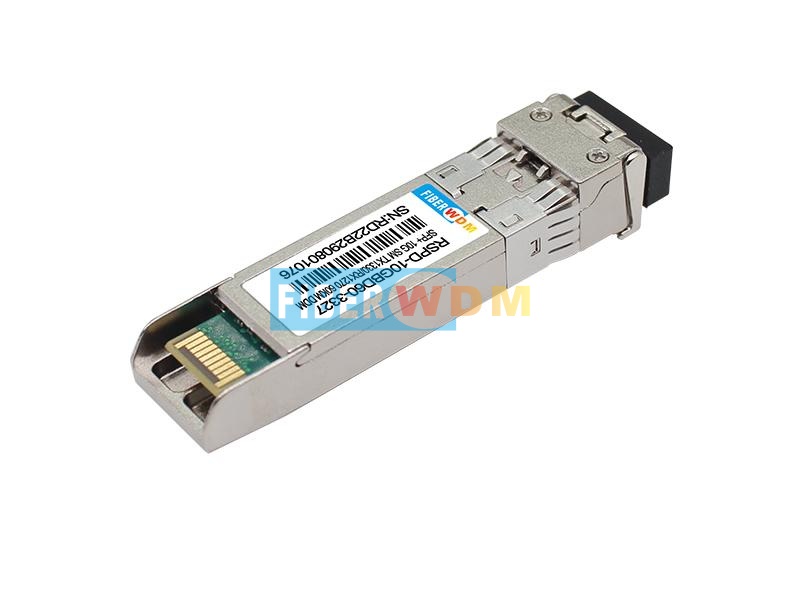

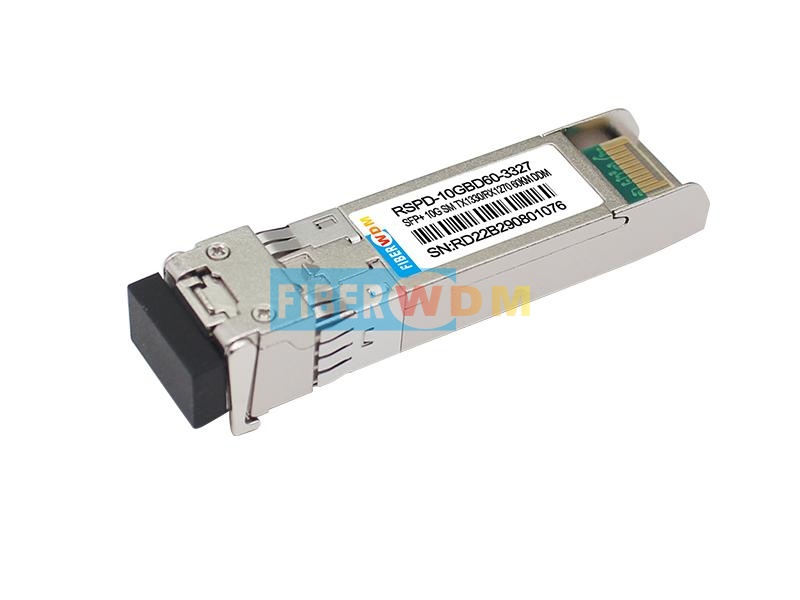

SFP+ 10G BIDI 60KM 1270/1330nm Optical Transceiver

SFP+ 10G BIDI 60KM optical transceiver module, support 10Gb/s and up to 60 km transmission on one core fiber. It works in high-speed IDC connection solutions, 5G network front-haul solution, network switch, PTN, OTN and so on.


Features:


  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • Hot-pluggable SFP+ footprint
  • Single LC for Bi-directional Transmission
  • Maximum link length of 60km
  • Built-in 1270/1330 WDM Filter
  • Uncooled 1270nm or 1330nm CWDM DFB Laser.
  • Power dissipation <1.5W
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Temperature range 0°C to70°C
  • Very low EMI and excellent ESD protection
  • RoHS Compliant Part


Inquire now Download
  • Product Detail

10G 60km BiDi SFP+ Transceiver Hot Pluggable, Single LC, +3.3V, 1270nm/1330nm CWDM DFB&APD, DDM



FIBERWDM’ RSPD-10GBD60-2733 & RSPD-10GBD60-3327 10G BIDI 60KM SFP+ transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+MSA.


Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Storage Temperature

TS

-40



+85

°C

Supply Voltage

VCCT, R

-0.5



4

V

Relative Humidity

RH

0



85

%


Recommended Operating Environment:

Parameter

Symbol

Min.

Typical

Max.

Unit

Case operating Temperature

TC

-5



+70

°C

Supply Voltage

VCCT, R

+3.135



+3.465

V

Supply Current

ICC





450

mA

Power Dissipation

PD





1.5

W



Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Unit

Note

Transmitter:

Differential input voltage swing



180



700

mVpp

1

Transmit Disable Input

H

VIH

2.0



Vcc+0.3

V



L

VIL

0



0.8

V



Transmit Enable Output

H

VOH

2.4



Vcc+0.3

V



L

VOL

0



0.4

V

2

Input Differential Impedance

Zin

80

100

120

Ω



Receiver

Differential output voltage swing



300



850

mVpp

3

LOS Output

H

VOH

2.4



Vcc+0.3

V

2

L

VOL

0



0.4

V



Output Differential Impedance

Zon

80

100

120

Ω



Notes:

Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.

Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.

Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES.



Optical Parameters(TOP = 0 to 70°C, VCC = 3.135 to 3.465 Volts)

Parameter

Symbol

Min

Typ

Max

Unit

Ref.

Transmitter

Bit Rate

BR

9.9



11.3

Gb/s



Optical Wavelength

RSPD-10GBD60-2733

λ

1260

1270

1280

nm



RSPD-10GBD60-3327



1320

1330

1340



Average output power

Po

0



+5

dBm



Optical Extinction Ratio

ER

3.5





dB



Spectral width

Δλ





1

nm



Side Mode Suppression Ratio

SMSR

30





dB



Optical Eye Mask



Compliant withIEEE802.3ae



Receiver

Bit Rate

BR

9.9



11.3

Gb/s



Optical Wavelength

RSPD-10GBD60-3327

λ

1320

1330

1340

nm



RSPD-10GBD60-2733



1260

1270

1280





Receiver Sensitivity

Sen





-22

dBm

1

Maximum Input Power

PMAX

-7





dBm



LOS De-Assert

LOSD





-23

dBm



LOS Assert

LOSA

-33





dBm



LOS Hysteresis

LOSH

0.5



4

dB



Notes:

Note 1) Measured with a PRBS of 231-1 at 1 x 10-12 BER and 3.5 dB extinction ratio.



Order information


Product Number

Data Rate(Gb/s)

Wavelength(nm)

Reach(km)

LD

Tx Power(dBm)

PD

Rx Sens(dBm)

Temperature(℃)

RSPD-10GBD60-2733

10

TX1270/RX1330

60

DFB

0~5

APD

<-22

0~70

RSPD-10GBD60-3327

10

TX1330/RX1270

60

DFB

0~5

APD

<-22

0~70
