Single Fiber 8CH 16 Waves DWDM MUX/ DEMUX, With EXP Port, and R/B Filter LC/UPC, Plug-in LGX Box, and 2 Slots 1U Rack
The 8ch (16waves) DWDM MUX/ DEMUX with Blue and Red（R/B）filter, is used in pairs,designed by FIBERWDM , in side A, the waves are: RX C21 to C28 (1560.61nm~1554.94nm), TX C45 to C52(1541.35nm~1535.82nm); And in side B, the waves are: RX C45 to C52(1541.35nm~1535.82nm), TX C21 to C28(1560.61nm~1554.94nm). it conjunct with the DWDM amplifiers and DCM device, the8 ch DWDM transfer system can support a long distance transmission in one fiber.

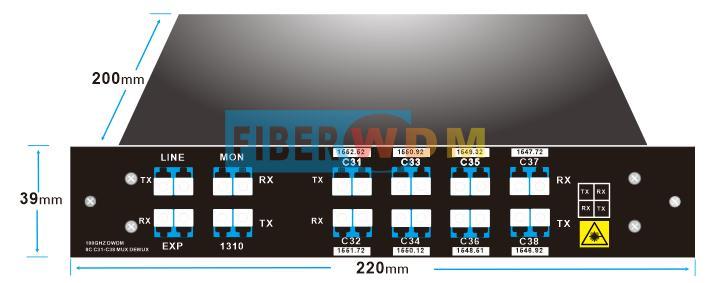

And it is LGX box Plug-in designed, so it can plug in the 2-Slot 1U rack, Max capacity support 2*8 channels in the system.
Product Panel

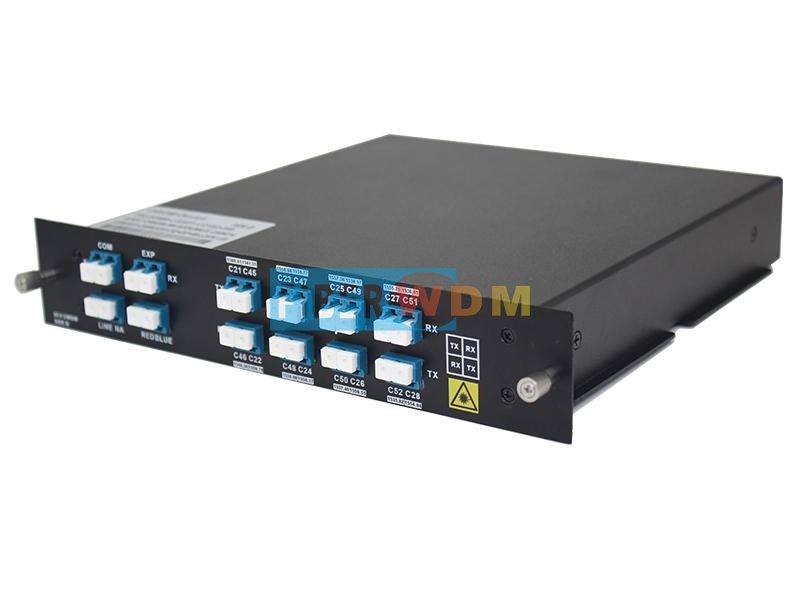

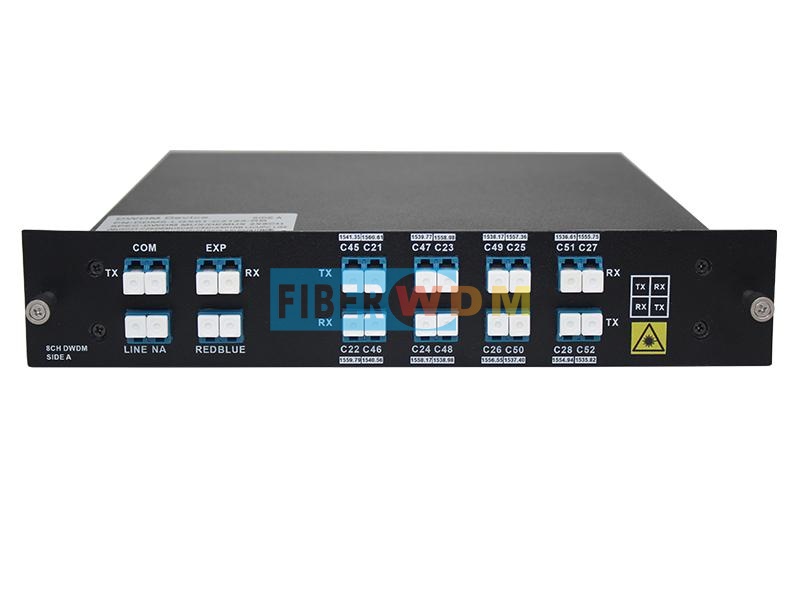

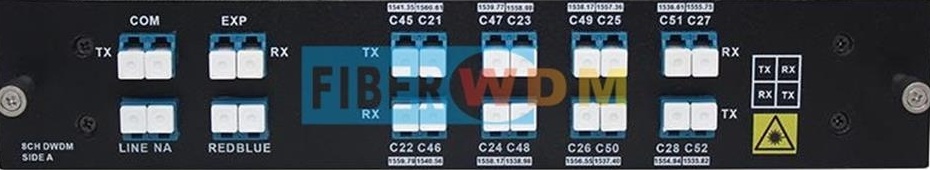

8CH DWDM MUX/ DEMUX Single Fiber Side A

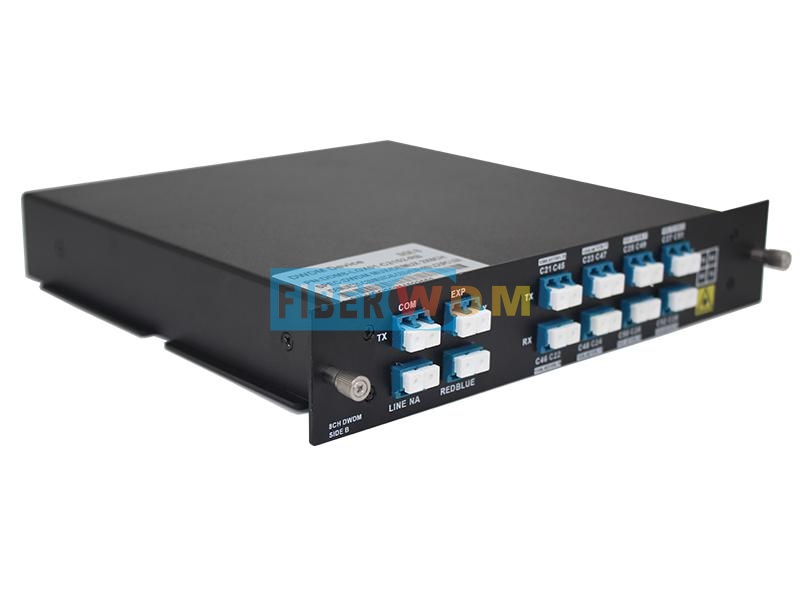

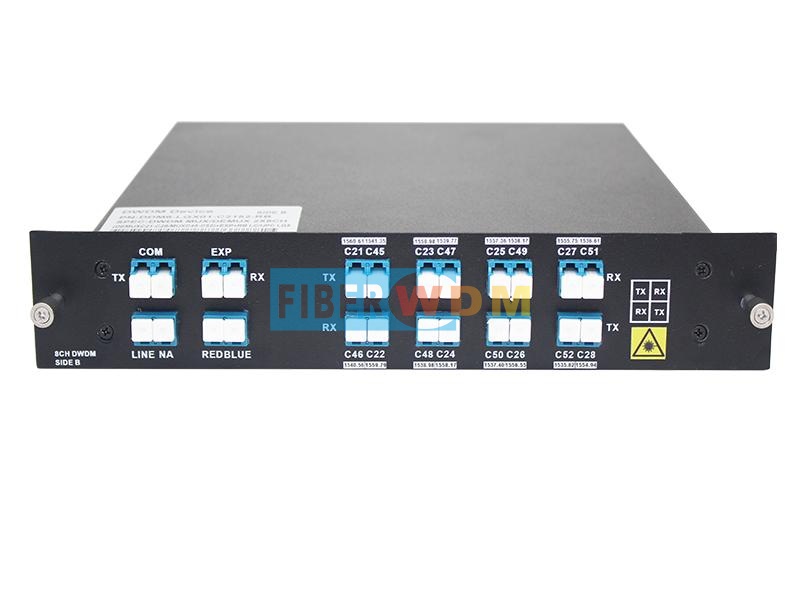

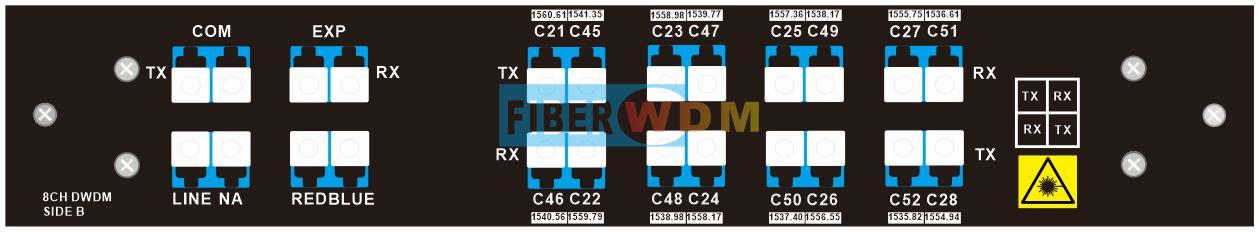

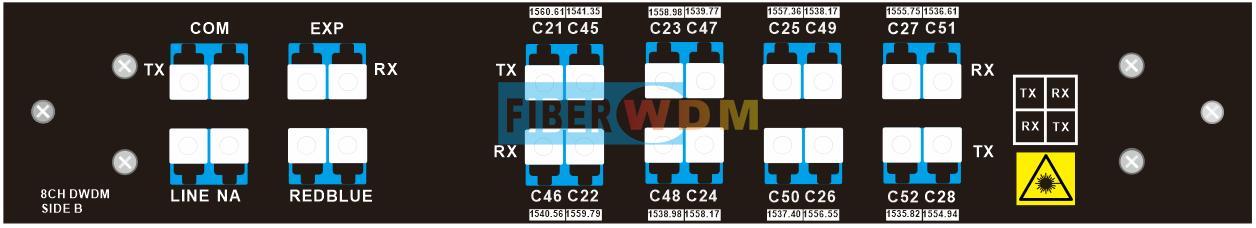

8CH DWDM MUX/ DEMUX Single Fiber Side B
 |

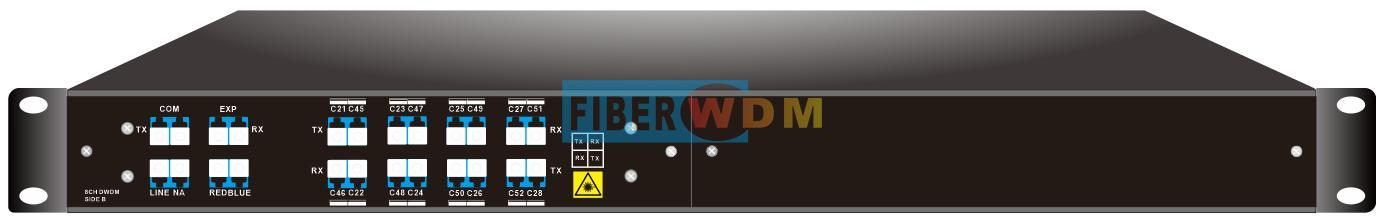

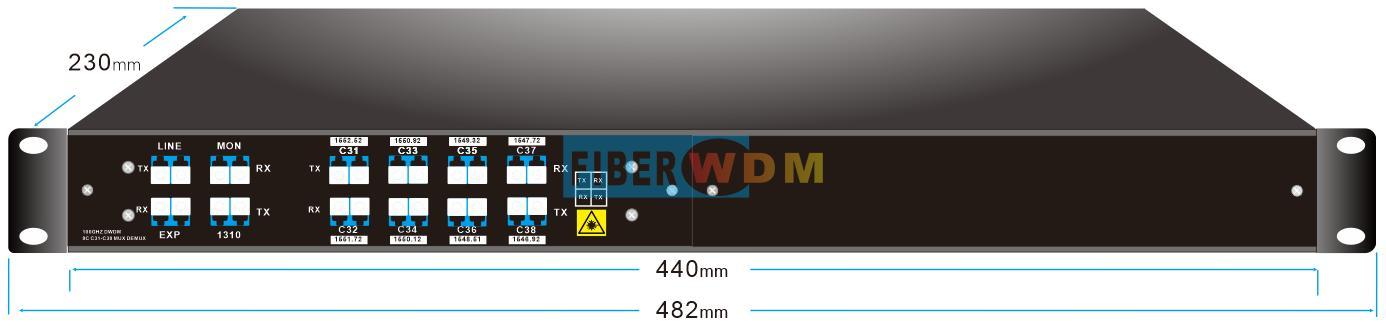

2-Slot 1U rack
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

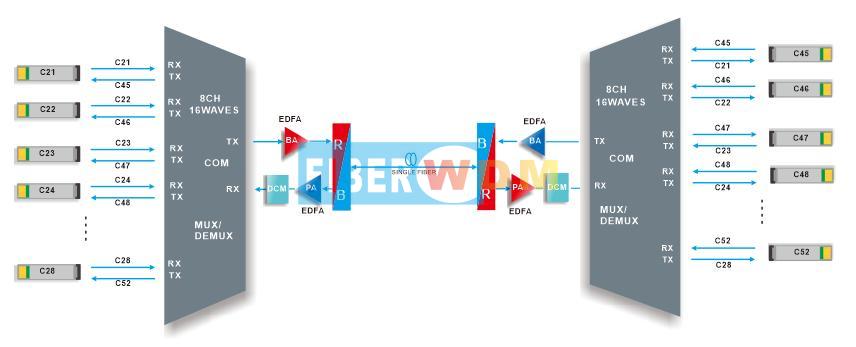

Line Link
8CH DWDM MUX/ DEMUX Single fiber transmission
8 Channels DWDM MUX/ DEMUX supports8 channels difference business inone optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
|
Wavelength |
8ch 16 wavesC21-C28/C45-C52 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
|
Insertion Loss |
≤3.5dB |
Link Loss |
≤4.5dB |
|
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
|
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
|
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
|
Insertion Loss@R/B |
PASS:≤0.6dB Reflect:≤0.8dB |
Isolation@R/B |
PASS:≥30dB Reflect:≥15dB |
|
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 3KG |
Dimensions (HxWxD) |
LGX Box:220*200*39mm 1U Rack : 44*440*230mm |
Note: Specified with connectors.
Package Information
|

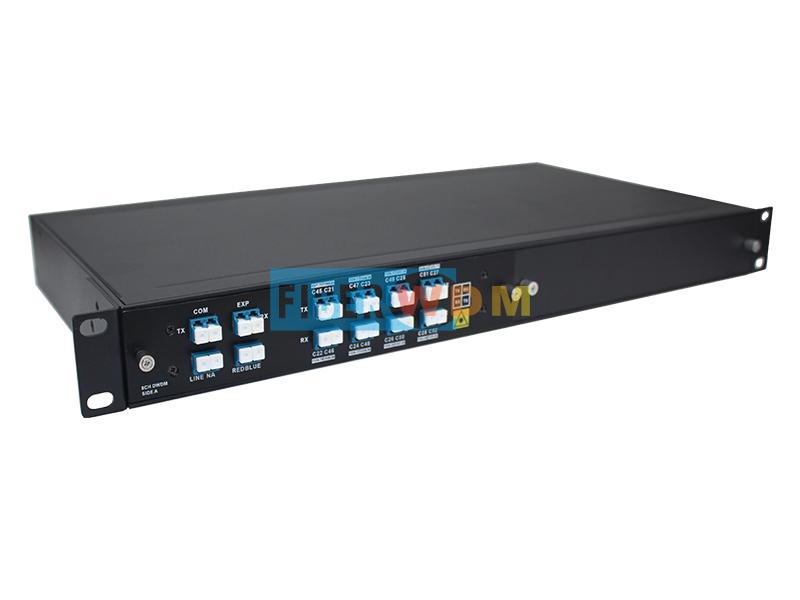

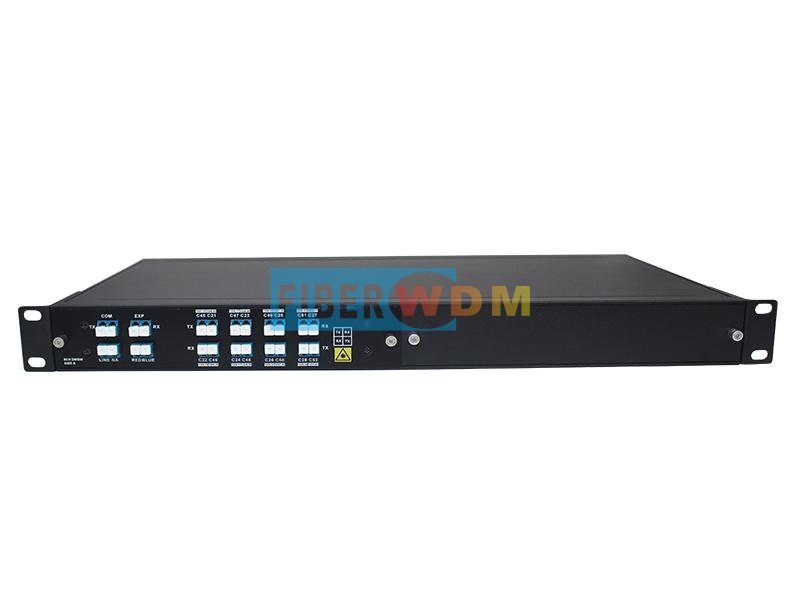

LGX BOX Plug in 2-Slot 1U Rack |
2-Slot 1U Rack for LGX BOX |
Order Information
|
Product No. |
Product description |
|
DM16-1U01-C2152 |
DWDM MUX//DEMUX 8CH 16Waves (RX C21-C28/TX C45-C52) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box, Side A |
|
DD16-1U01-C21526 |
DWDM MUX/ DEMUX 8CH 16Waves (RX C45-C52/TX C21-C28) With EXP Port and RB filter, Single fiber, LC/UPC , Plug-in LGX Box, Side B |
|
1U02-2LGX |
19” inch 1U rack with 2 slot for Plug-in LGX box, 440*230*44mm |
Note:We Support Customized Design, please contact us by email.sales@fiberwdm.com
