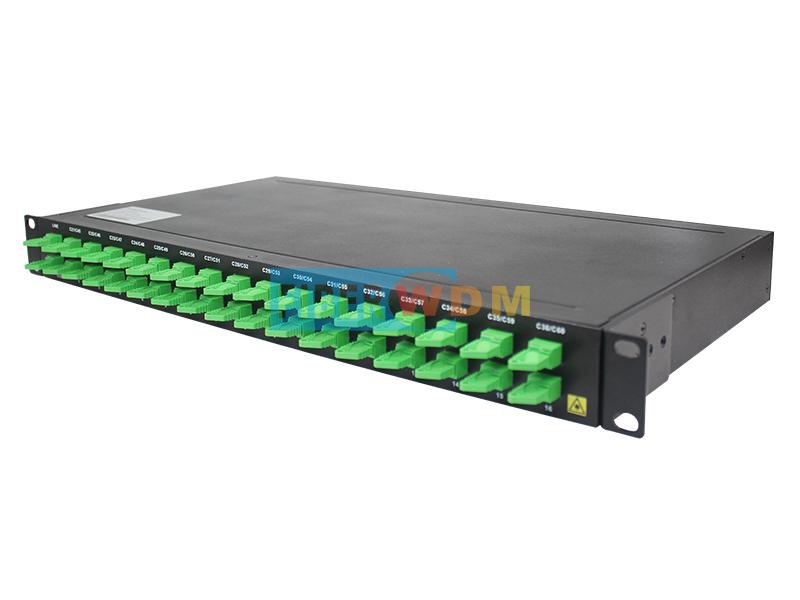

Single FiberBi-direction16CH DWDM MUX and 1X16 PLC Splitter, E2000/APC, 1U Rack
The Single fiber Bi-direction 16 channles DWDM MUX and is designed by FIBERWDM, the waves are: C21 to C36 and C45 to C60; And every port supports two waves, like as C21/C45, for one bi-direction business transmission on a single fiber.

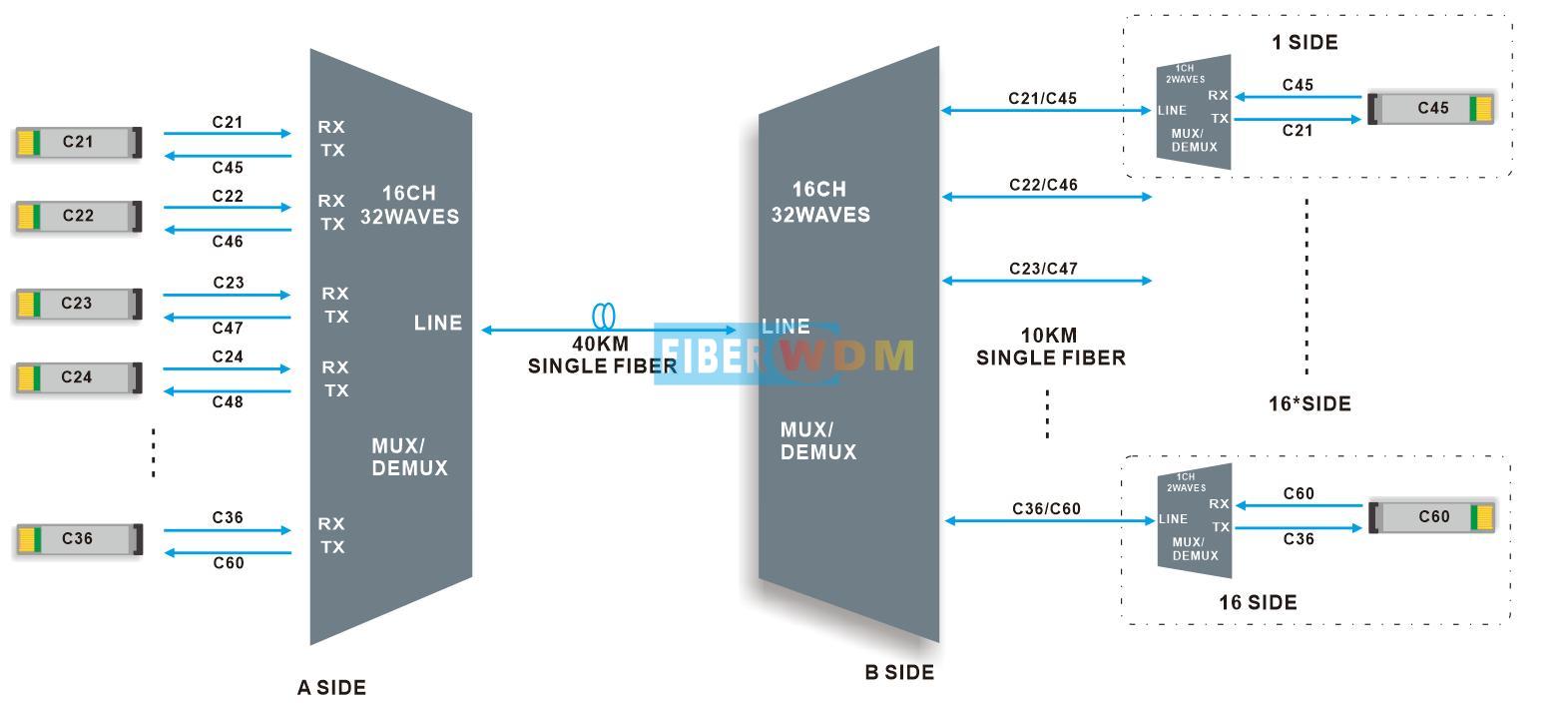

Application for 16CH DWDMBi-direction
|
|
16CHDWDM MUX/ DEMUX Single fiber BIDI transmission
16 Channels DWDM MUX/DEMUX, supports16 channels difference business inone optical fiber bi-direction point-to-point transmission.
it is greatly used in which rare optical fiber resource, likein Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Panel

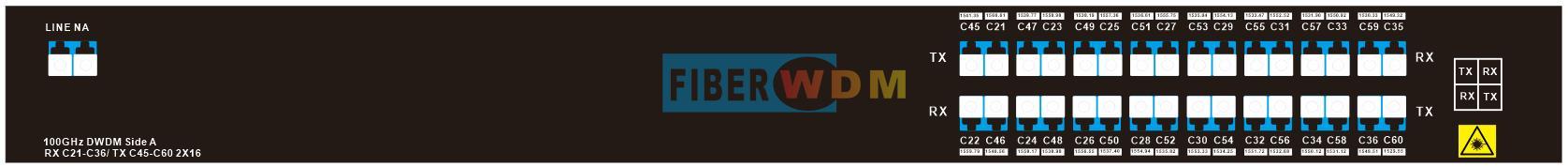

16 Channels DWDM MUX DEMUX Single fiber LC/UPC A Side

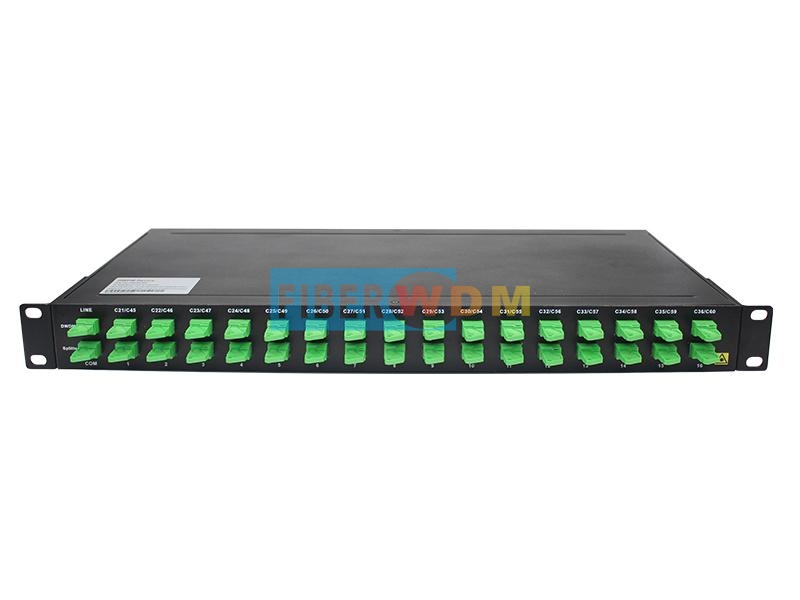

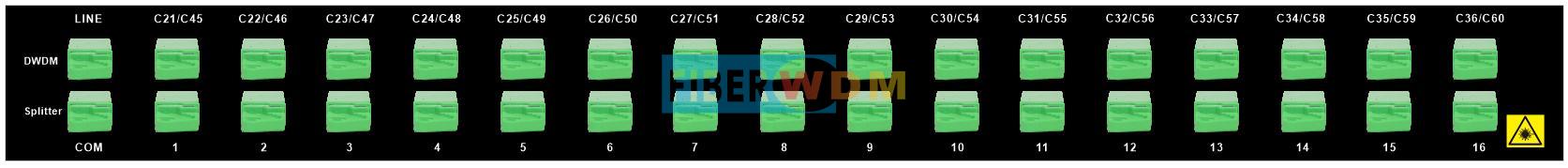

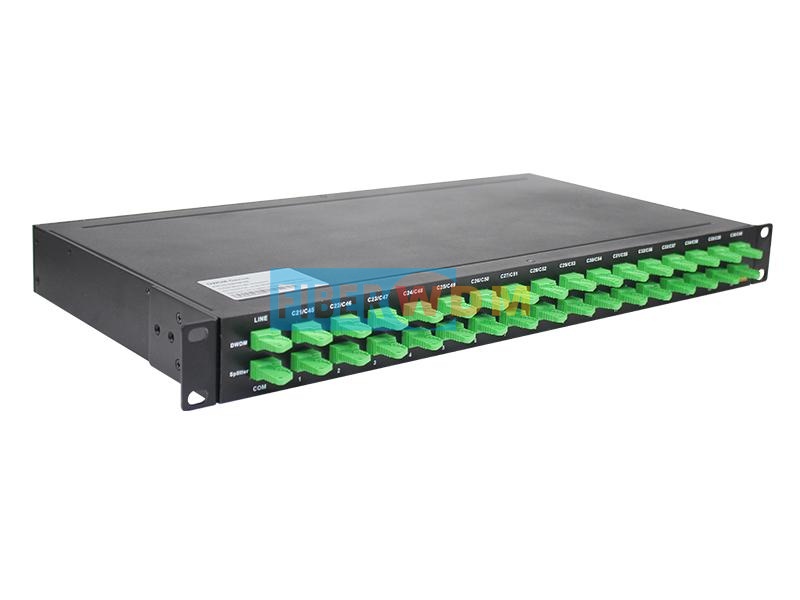

Single FiberBiDi 16CH DWDM MUX and 1X16 PLC Splitter E2000/APC B Side

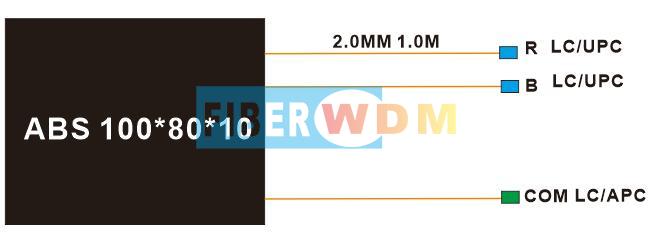

1 Channel DWDM Single fiber 2.0MM 1.0M ABS100*80*10mm Box: 1-16 Side
Product Specification
|
16CH DWDM BIDI |
|||
|
Wavelength |
32 waves C21-C36/C45-C60 |
Channel Spacing |
100GHz (0.8nm) |
|
Channel Passband |
±0.11nm |
Technology |
AAWG (Gaussian) |
|
Insertion Loss |
≤4.0dB |
Passband Ripple |
≤ 0.5dB |
|
Center Wavelength Accuracy |
±0.05nm |
Return Loss |
≥ 40dB |
|
Directivity |
≥ 40dB |
Polarization Mode Dispersion |
≤ 0.1ps |
|
Polarization Dependent Loss |
≤ 0.3dB |
Channel Isolation |
Adjacent ≥ 25dB
Non-adjacent ≥30dB
|
|
PLC Splitter |
|||
|
PLC Splitter |
1X16 |
Insertion Loss |
≤13.5dB |
|
Return Loss (dB) |
≥50dB |
Polarization Dependent Loss(dB) |
≤0.2dB |
|
Directivity (dB) |
≥55dB |
Wavelength Dependent Loss(dB) |
≤0.5dB |
|
1U Rack |
|||
|
Connector |
E2000/APC and LC/UPC |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
3.5KG |

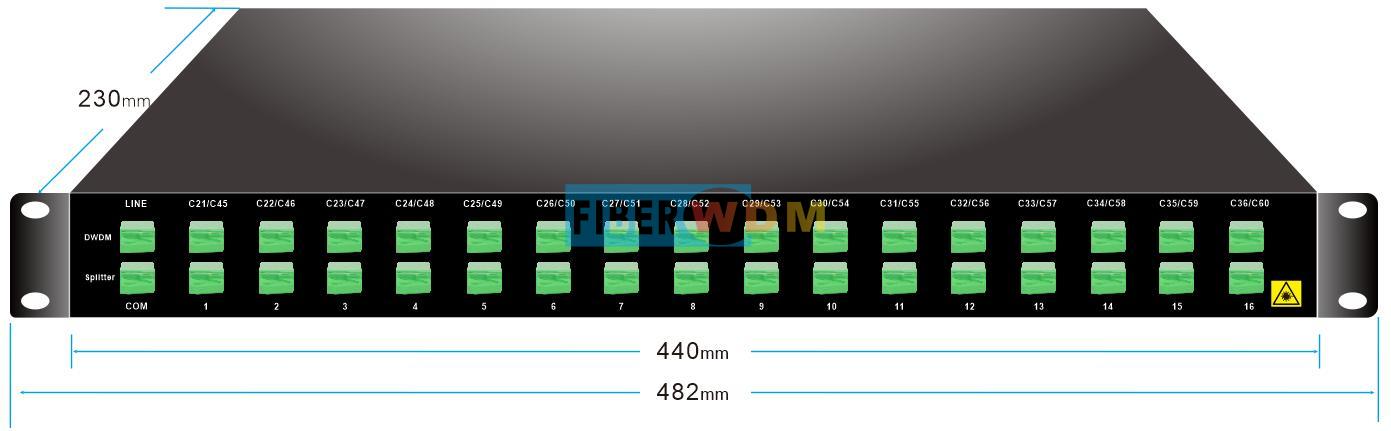

Dimensions (HxWxD) |
44*440*230mm |
|
1Channel DWDM (R/B Type) |
|||
|
Operation waves |
RED 1562.23~1546.92nm BLUE 1543.73~1528.77nm |
Technology |
TFF (Thin Film Filter) |
|
IL@ Pass Band |
≤0.6dB |
IL@Reflect Band |
≤0.8dB |
|
Isolation @ Pass Band |
≥30dB |
Isolation @ Reflect Band |
≥15dB |
|
Directivity |
≥50 |
Return Loss |
≥50 |
|
Polarization dependent loss |
≤0.1dB |
Polarization mode dispersion |
≤0.1ps |
|
Directivity |
≥50dB |
Return loss |
≥45dB |
|
Optical power handling |
≥500 |
Temperature |
Operating:-40 to +85℃ Storage:-40 to +85℃ |
|
Fiber type |
2.0mm 1.0MSMF-28e Fiber |
Package dimension |
100*80*10mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack

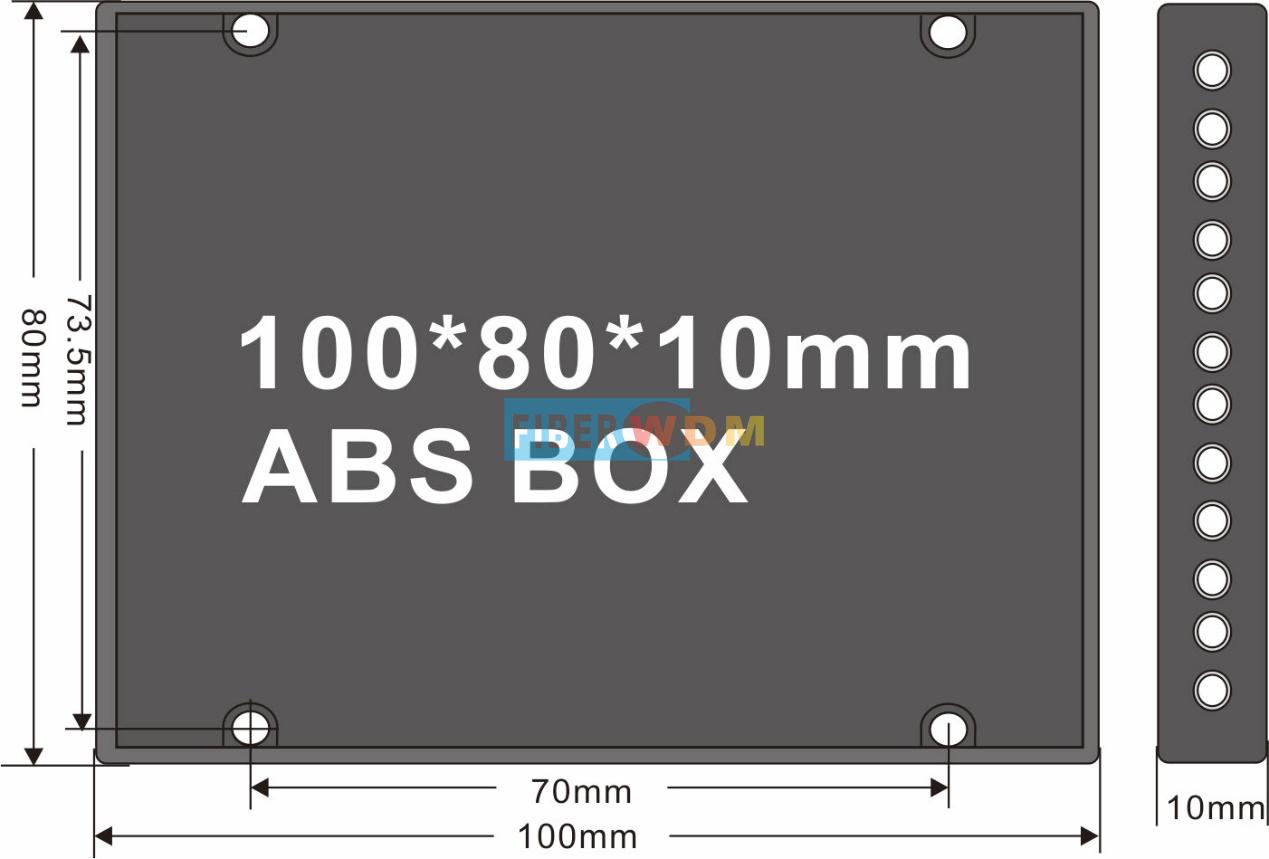

ABS BOX 100*80*10mm
Order Information
|
Product No. |
Product description |
|
DA32-1U01-C2160 |
DWDM MUX/ DEMUX 16CH 32 Waves (RX C21-C36/ TX C45-C60) Single fiber, LC/UPC , 1U Rack Side A |
|
DBD32-1U04-C2160-1P16 |
DWDM MUX 16CH 32 Waves (21/45, C22/46, C23/C47, C24/C48, C25/C49, C26/C50, C27/C51, C28/C52, C29/C53, C30/C54, C31/C55, C32/C56, C33/C57, C34/C58, C35/C59, C36/C60) Single fiber, 1X16 PLC, LC/UPC , 1U Rack Side B |
|
D-RB-B01-T4560 |
DWDM R/B Filter TX C45-C60 RX C21-C36, COM LC/APC，Others LC/UPC 2.0MM 1.0M ABS100*80*10 Box (1 to 16 Side) |
Note:We Support Customized Design, please contact us by email.
