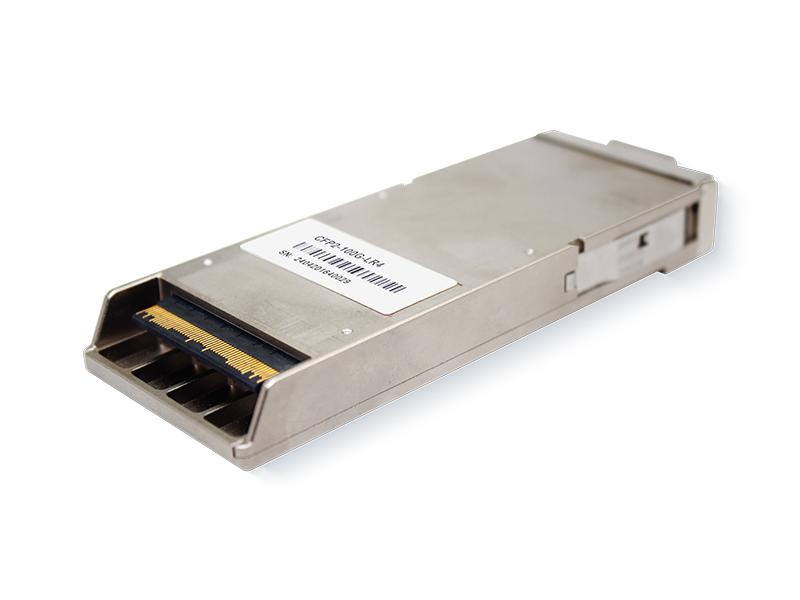

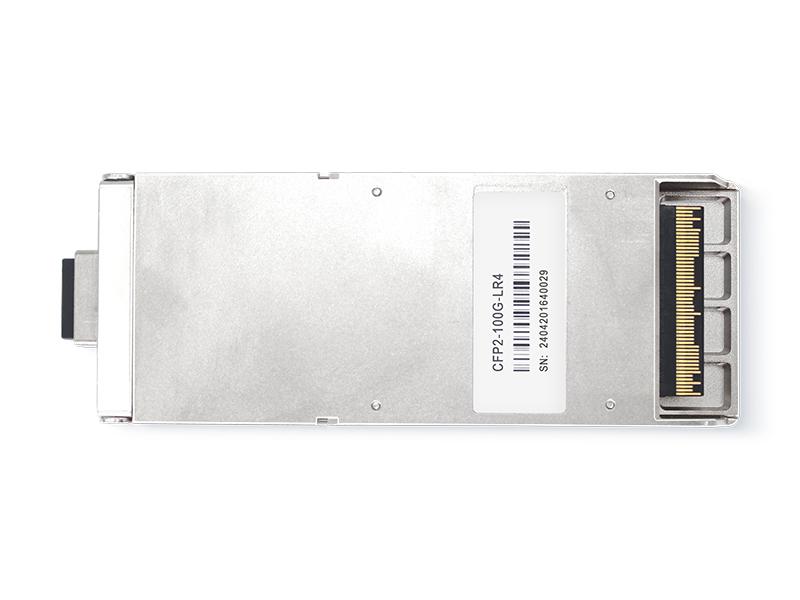

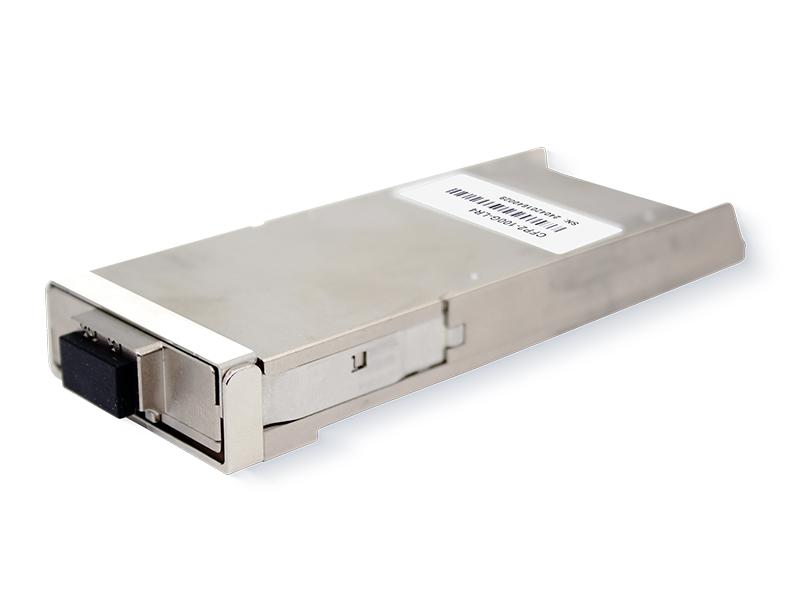

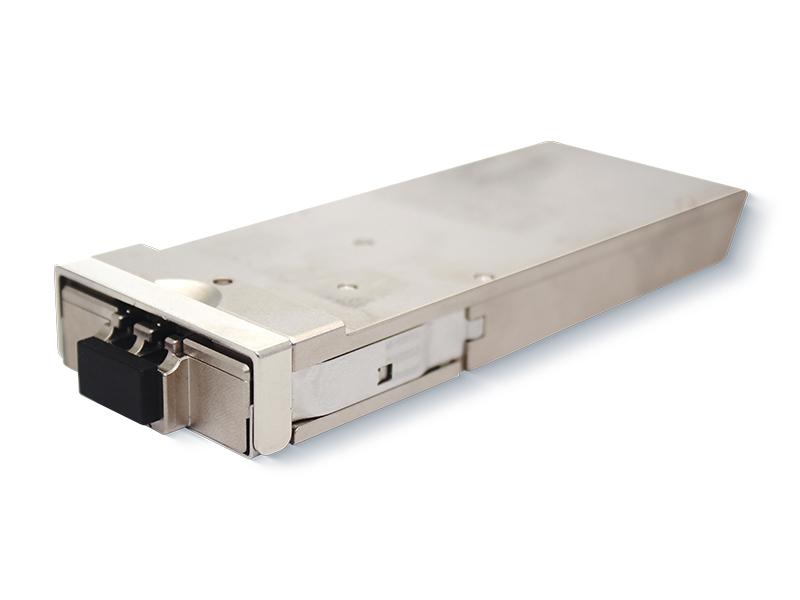

100G CFP2 LR4 Dual Rate 10km Module

Features

Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate;
Up to 10km transmission on SMF;
LANWDM laser and PIN receiver with SOA;
High speed I/O electrical interface (CAUI-4);
MDIO interface with integrated Digital Diagnostic
CFP2 MSA package with duplex LC connector;
Single +3.3V power supply;
Maximum power consumption 12W;
Operating case temperature: 0 to +70 °C;
Complies with IEEE802.3ba and ITU-T G.959.1;
Complies with EU Directive 2015/863/EU;

Application

100GBASE-LR4

Inquire now Download

Categories

Hot Products

Product Detail

CFP2-100G-LR4

100G CFP2 LR4 dual rate 10km Module

Order Information

Part No.	Data Rate	Laser	Fiber Type	Distance	Optical Interface	Temp	DDMI
CFP2-100G-LR4	103.1~111.8Gbps	LWDM	SMF	10km	LC	0~70C	Y

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Storage Temperature	TS	-40	-	+85	°C
Supply Voltage	VCC	-0.5	-	+4.0	V
Operating Relative Humidity	RH	-	-	+85	%

Recommended Operating Conditions

Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Operating Case Temperature	TC	0	-	+70	°C
Power Supply Voltage	VCC	3.13	3.3	3.47	V
Maximum Power Dissipation	PD	-	-	12	W
Aggregate Bit Rate	BRAVE	-	103.125	111.8	Gb/s
Lane Bit Rate	BRLANE	-	25.78	27.95	Gb/s
Transmission Distance	TD		-	10	km	Over SMF

Optical Characteristics

Transmitter
Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Center Wavelength Lane 0	λ0	1294.53	1295.56	1296.59	nm
Center Wavelength Lane 1	λ1	1299.02	1300.05	1301.09	nm
Center Wavelength Lane 2	λ2	1303.54	1304.58	1305.63	nm
Center Wavelength Lane 3	λ3	1308.09	1309.14	1310.19	nm
Total Launch Power, 100GE	PALL	-	-	10.5	dBm	1
Total Launch Power, OTU4	PALL	-	-	8.9		1
Average Launch Power per Lane, 100GE	PTX_LANE	-4.3	-	4.5	dBm	1
Average Launch Power per Lane, OTU4	PTX_LANE	-2.5	-	2.9	dBm	1
OMA per Lane, 100GE	OMA	-1.3	-	4.5	dBm	1
OMA–TDP per Lane, 100GE	OMA_TDP	-2.3	-	-	dBm
Extinction Ratio, 100GE	ER	4	-	-	dB
Extinction Ratio, OTU4	ER	7	-	-	dB
Difference in launch power between lanes	PTX_DELTA_LANE	-	-	5	dB
Average Output Power (Laser Turn off)	POUT-OFF	-	-	-30	dBm
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Optical Eye Mask, 100GE	{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} Compliant with IEEE 802.3ba					2
Optical Eye Mask, OTU4	{0.25, 0.4, 0.45, 0.25, 0.28, 0.4} Compliant with ITU-T G.959.1					2
Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit	Notes
Center Wavelength Lane 0	λ0	1294.53	1295.56	1296.59	nm
Center Wavelength Lane 1	λ1	1299.02	1300.05	1301.09	nm
Center Wavelength Lane 2	λ2	1303.54	1304.58	1305.63	nm
Center Wavelength Lane 3	λ3	1308.09	1309.14	1310.19	nm
Average Rx Power per Lane, 100GE	PRX _LANE	-10.6		4.5	dBm
OMA Sensitivity per Lane, 100GE	POMA_LANE	-	-	-8.6	dBm	3
Average Rx Power per Lane, OTU4	PRX_AVE_LANE	-8.8		2.9	dBm
Sensitivity per Lane, OTU4	PRX_AVE_LANE	-	-	-10.3	dBm	4
Damage Threshold	Pdamage	5.5	-	-	dBm
Receiver Reflectance	RL	-	-	-26	dB

Notes:

1. The optical power is launched into SMF.

2. Measured with a PRBS 231-1 test pattern @25.78125/27.952 Gb/s, Hit ratio≤5E-5.

3. Measured with a PRBS 231-1 test pattern @25.78125 Gb/s, BER≤1E-12.

4. Measured with a PRBS 231-1 test pattern @27.952 Gb/s, BER≤5E-5 pre FEC.

Electrical Characteristics

High-Speed Signal: Compliant to CAUI-4 (IEEE 802.3bm)

Low-Speed Signal: Compliant to CFP2 MSA Hardware Specification

Transmitter (Module Input)
Parameter		Symbol	Min.	Typical	Max.	Unit	Notes
Differential Data Input Amplitude		VIN,P-P	85	-	900	mVpp
Differential Termination Mismatch			-	-	10	%
Tx_Disable	Normal Operation	VIL	-0.3	-	0.8	V
Tx_Disable	Laser Disable	VIH	2.0	-	VCC+0.3	V
Receiver (Module Output)
Parameter		Symbol	Min.	Typical	Max.	Unit	Notes
Differential Data Output Amplitude		VOUT,P-P	200	-	900	mVpp
Differential Termination Mismatch（1MHZ）			-	-	10	%
Output Rise/Fall Time, 20%~80%		TR	12	-	-	ps
Rx_LOS	Normal Operation	VOL	-	-	0.2	V
Rx_LOS	Lose Signal	VOH	VCC-0.2	-	-	V

Digital Diagnostics

Parameter	Range	Accuracy	Unit	Calibration
Temperature	0 to 70	±3	ºC	Internal
Voltage	0 to VCC	±3%	V	Internal
Tx Bias Current Per Lane	0 to 100	±10%	mA	Internal
Tx Output Power Per Lane	-4.3 to 4.5	±3	dBm	Internal
Rx Power (Each Lane)	-10.6to 4.5	±3	dBm	Internal

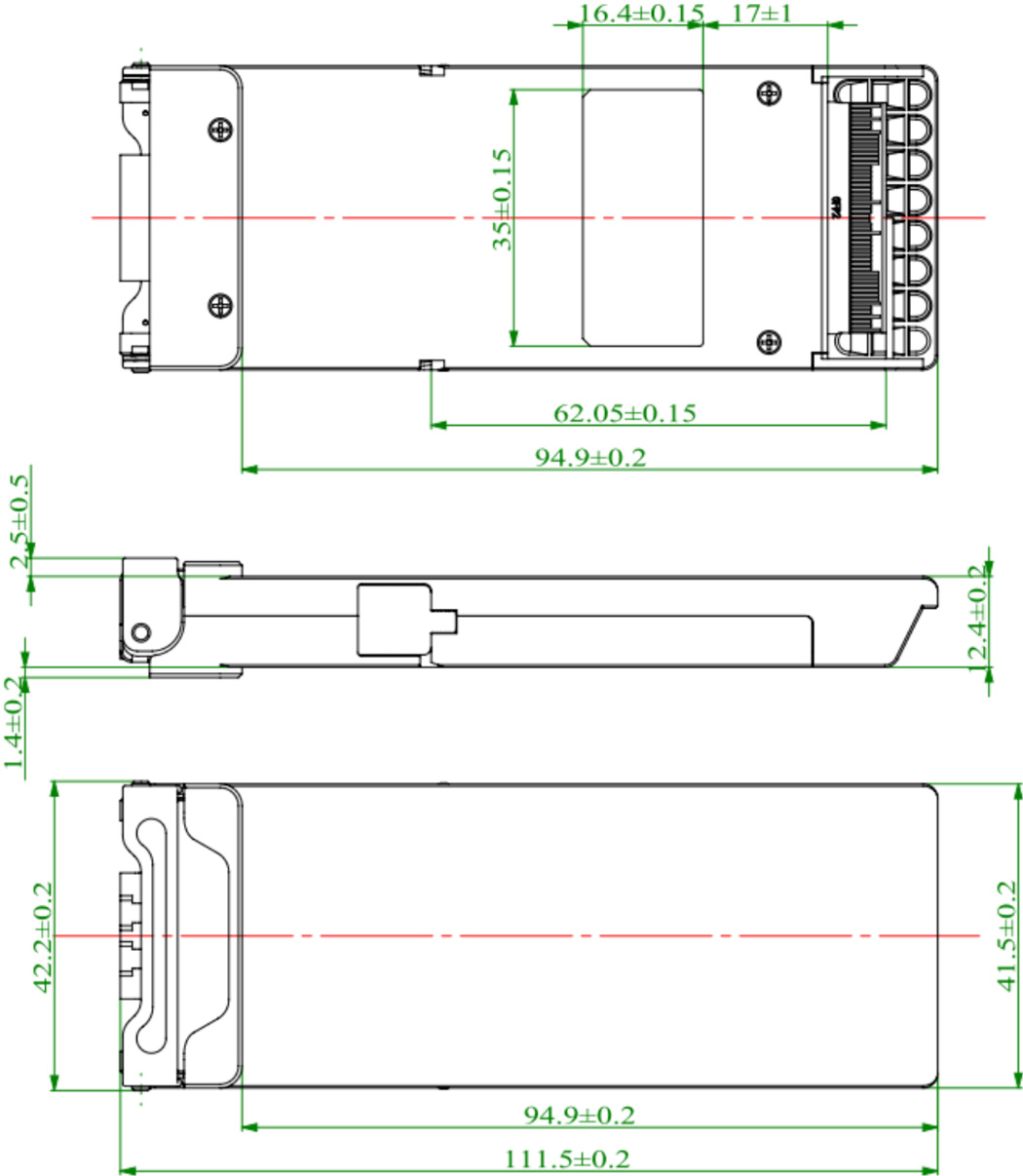

Mechanical Dimension
