100G QSFP28 To 4x25G SFP28 Transponder Service Board

Product Features



  • Supports DWDM transmission and wavelength conversion.
  • Single board supports 1 channel of bidirectional business access ranging from 103.125Gbit/s to 111.81Gbit/s.
  • Supports multiple client-side business access types: 100GBASE-SR4/CWDN4/LR4/PSM4.
  • Supports automatic shut-off of transmission function.
  • Transparent transmission of business data.
  • Hot-swappable support.
  • Supports FEC functionality, optimizing output and enabling DDM signal monitoring, as well as link detection (no transmission when no receiving light).
  • Supports SNMP-based unified network management platform with management interfaces including CLI (telnet and console), Web, and NetView (graphical interface).
  • Product Detail

100G QSFP28 To 4x25G SFP28 Transponder Service Board FW6100G25

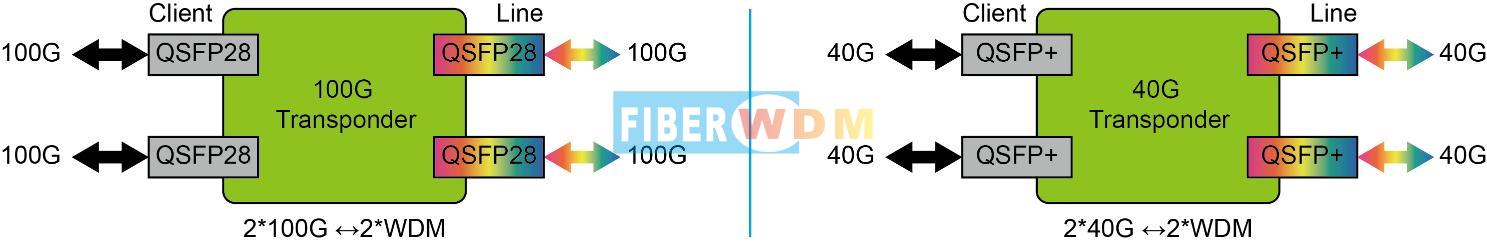

100G QSFP28 To 4x25G SFP28 Transponder service board is a product developed by FIBERWDM for 103.125Gbit/s to 111.81Gbit/s optical fiber links, which can be converted into 4x25G DWDM standard wavelength optical signals on the 4-route-side roadside, and can be used with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission and realize 1 pair of optical fiber multiplexing 100G transmission solution.

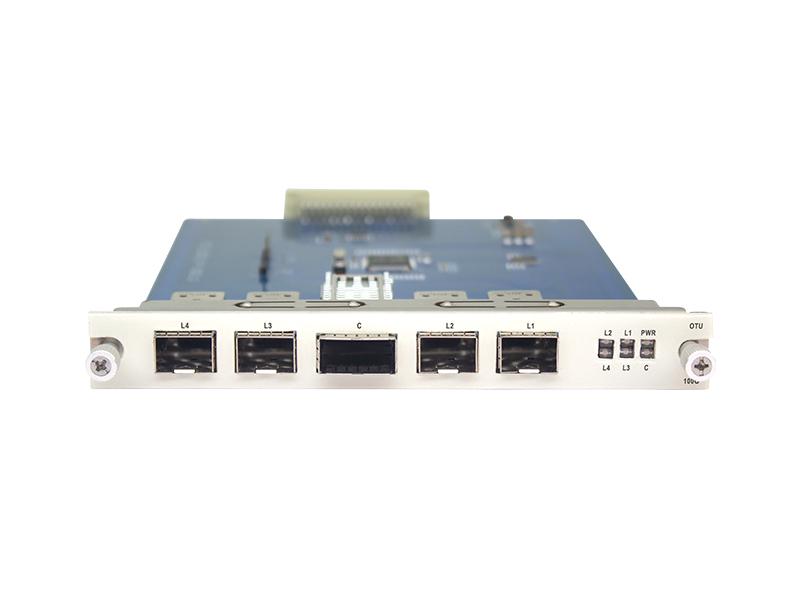

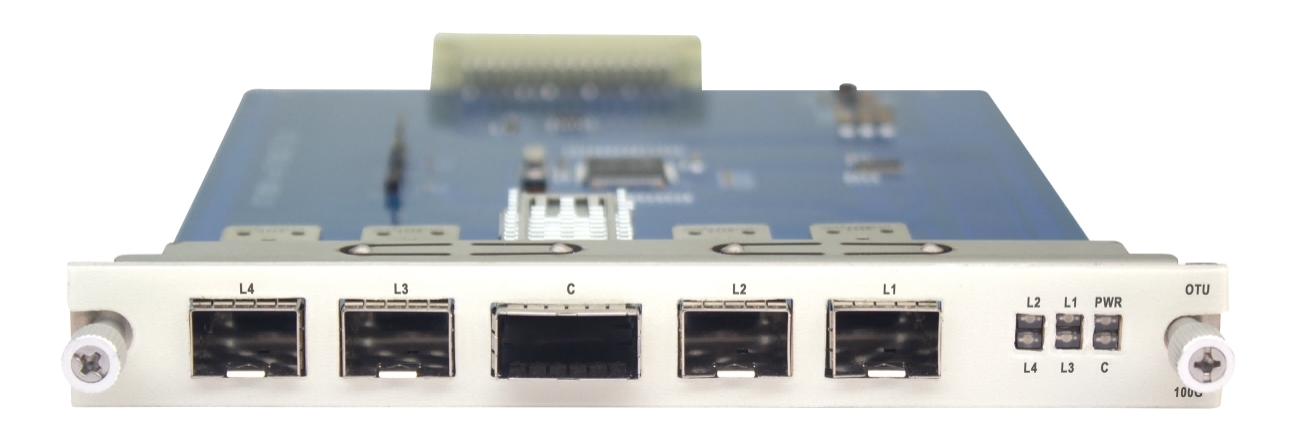

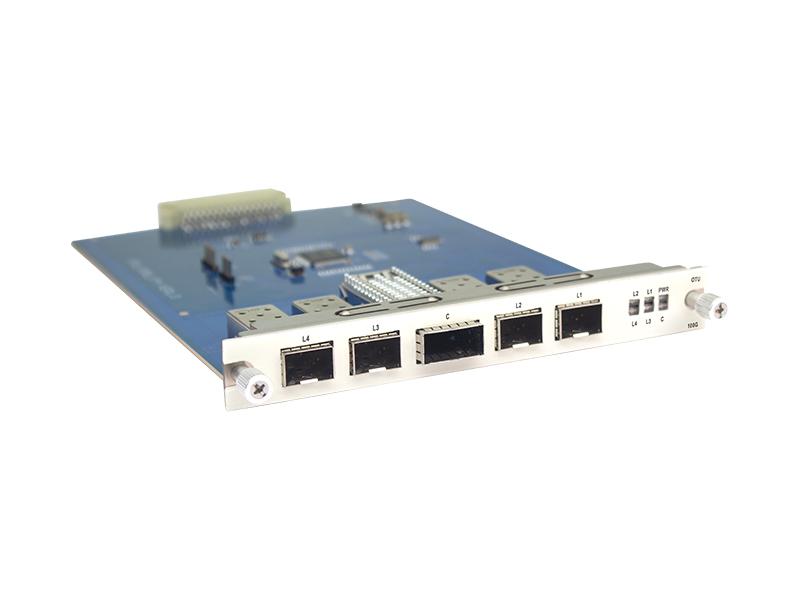

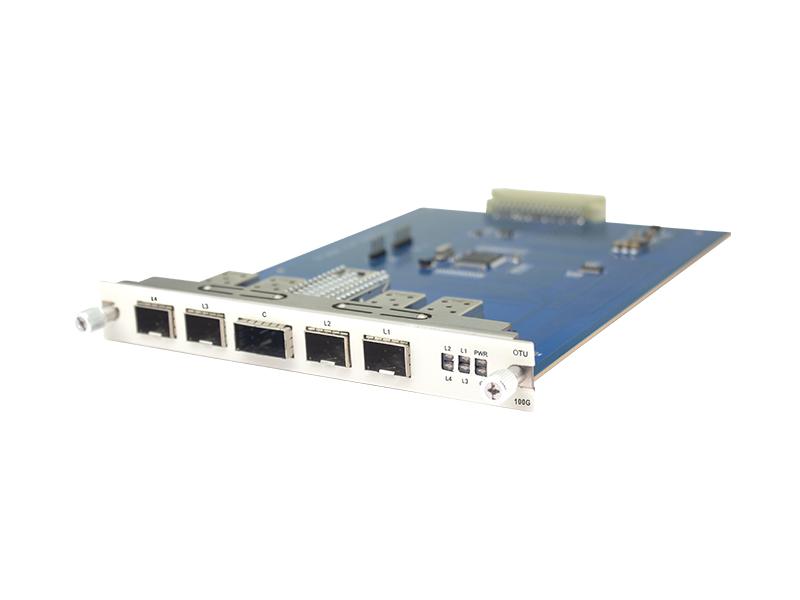

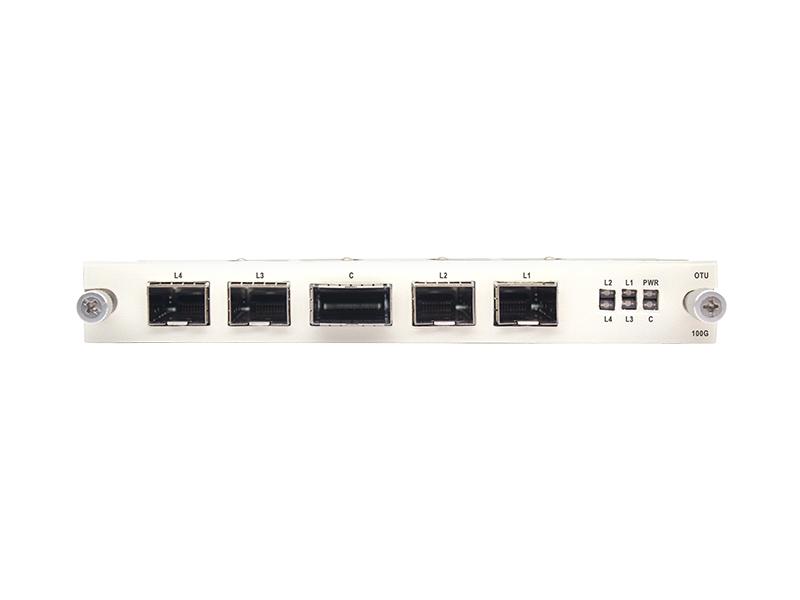

Figure 1: 100G Transponder Service Board



Product Specifications

System Parameters

Technical Specifications

Maximum Capacity

100G<=> 4X25G DWDM

Wavelength Range

DWDM:1529.16nm ~ 1567.14nm

Business Access Type

100GE、OTU4

Interface

Client: 1xQSFP28

Line side: 4xSFP28

Board Dimensions

156(W)× 20(H)× 225(D)(mm)

Environmental Requirements

Operating Temperature

-10℃ ~ 50℃

Storage Temperature

-40℃ ~ 80℃

Relative Humidity

5% ~ 95% non-condensing

Safety and EMC

Compliance with FCC, UL, CE, TUV, CSA standards

Power Consumption

<13W





Ordering Information

Part No.

Specifications

FW6100G25

100G Muxponder Card

4*25Gbit/s TO 100Gbit/s  Transponder(OEO) Card,,4*SFP28 TO 1*QSFP28 used in FW6600 series take one slot
