EDFA Optical Amplification Card

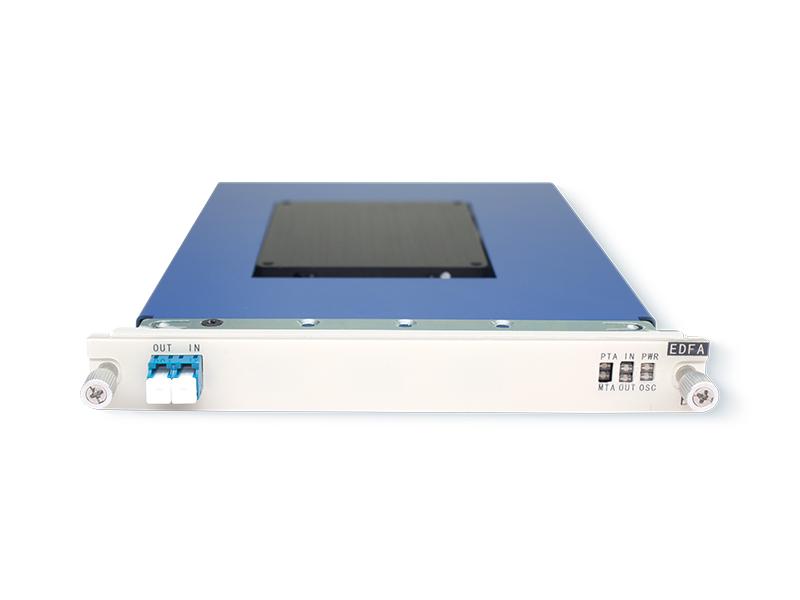

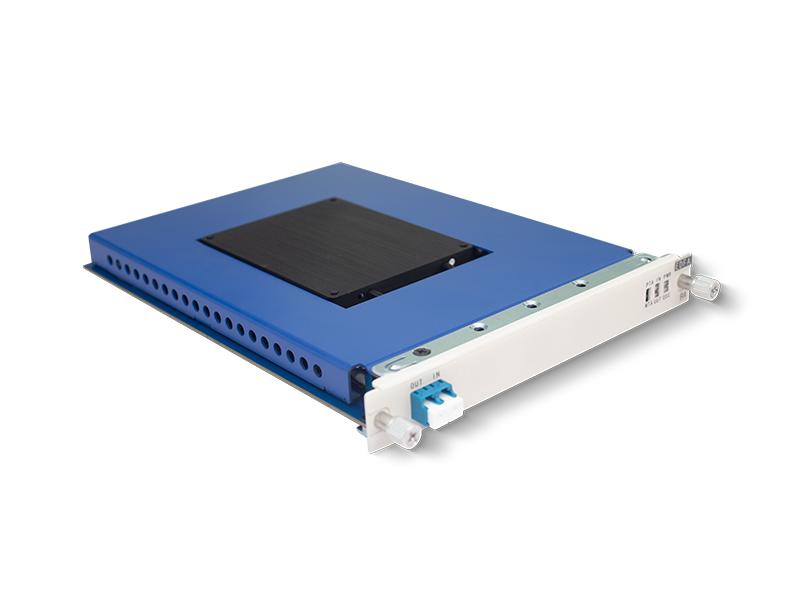

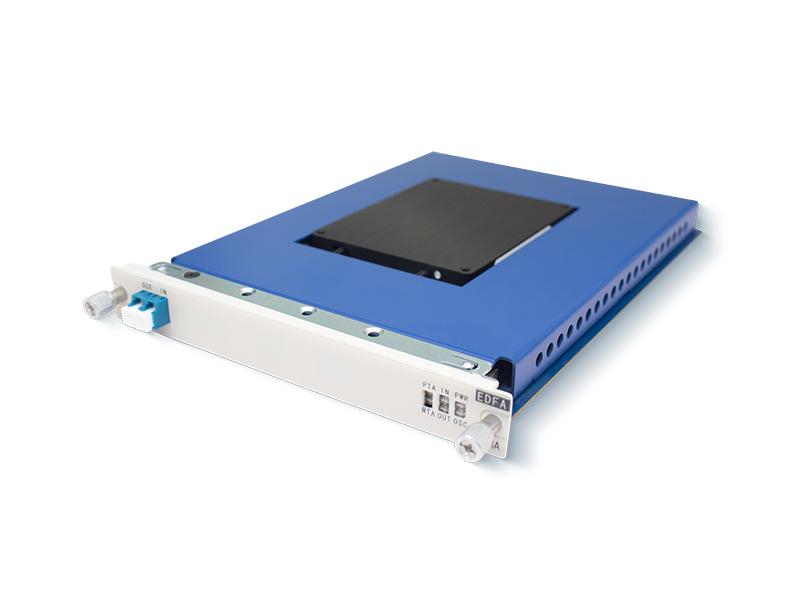

EDFA Optical Amplification Card EDFA Optical Amplification Card EDFA Optical Amplification Card

EDFA Optical Amplification Card

Product Features



  • Supports optical amplification for C-band DWDM systems.
  • Supports amplification with OSC signal input.
  • Supports maximum saturated output power of +23dB and minimum input power of -35dB.
  • Supports power amplification, line amplification (two-stage optical amplification), and pre-amplification.
  • Monitoring capabilities include: pump drive current, pump output power, pump switch status, pump temperature, input optical power, output optical power, and module temperature.
  • Supports configuration of pump switch, AGC mode, and APC mode (adjustable input/output optical power).
  • Supports SNMP-based unified network management platform with management options including CLI (telnet and console), Web, and NetView (graphical interface).
  • Includes optical monitoring port (MON).
Inquire now Download
  • Product Detail

EDFA Optical Amplification Card FW6600-EDFA



The EDFA (Erbium-Doped Fiber Amplifier) optical amplification Card is a module developed by FIBERWDM for long-distance transmission in digital optical fiber communications. The core component of this board utilizes highly encapsulated Pump lasers. It incorporates unique ATC (Automatic Temperature Control) circuitry and ACC (Constant Pump Current Control) circuitry, ensuring high stability and reliability of the output power. With a professionally designed GFF (Gain Flattening Filter) and an excellent optical path design, it achieves optimal performance in terms of flatness and noise reduction. The board also features APC (Automatic Power Control) and AGC (Automatic Gain Control) functions.

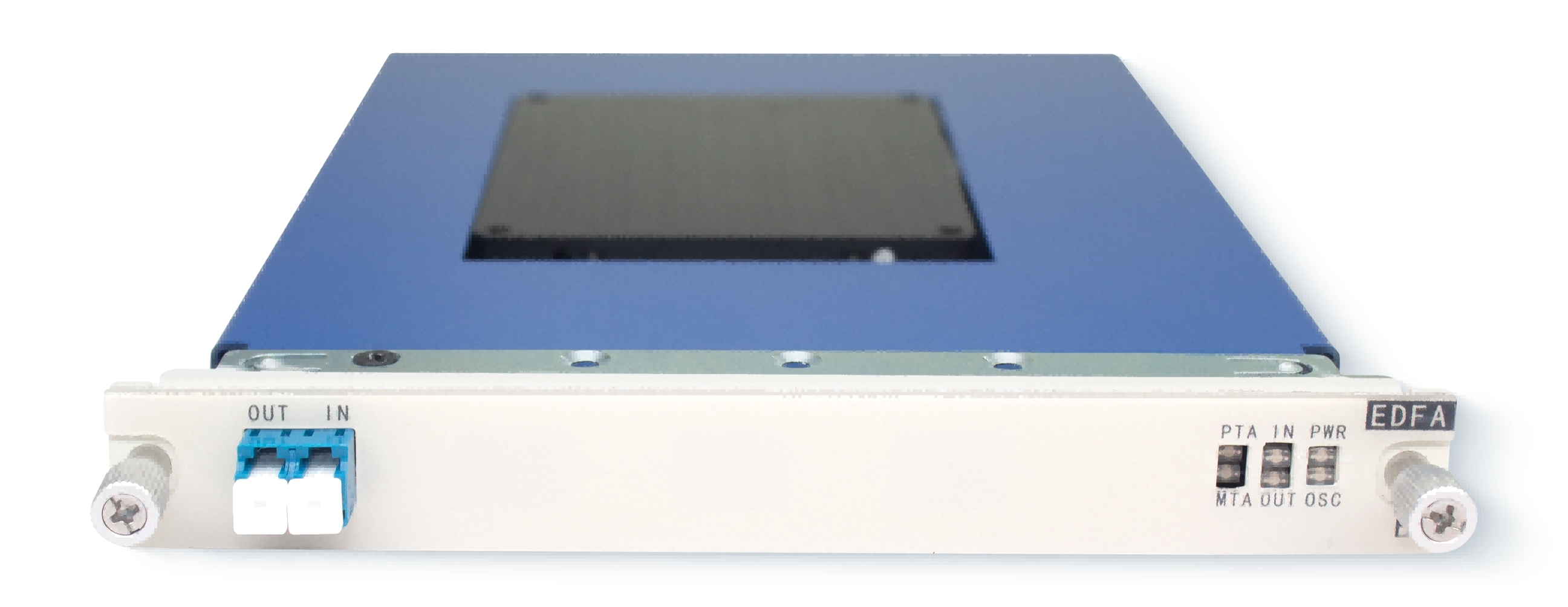

 Figure 1: EDFA Optical Amplification Module





Product Specifications

System Parameters

Technical Specifications

Wavelength Range

Standard type: 1529nm~1561nm

Applicable to 40 wavelength(100GHz) or 80 wavelength(50GHz)DWDM system

Extension type: 1528nm~1568nm

Applicable to 48 wavelength(100GHz) or 96 wavelength(50GHz)DWDM system

Input Power Range

Power Amplification (BA): -15dBm~+5dBm

Line Amplification (LA): -35dBm~-7dBm

Pre-Amplification (PA): -35dBm~-7dBm

Gain Range

10dB~30dB

Noise Figure

4.5dB~6dB

Gain Flatness

1.0dB

Input/Output Isolation

30dB

Input/Output Return Loss

45dB

Output Pump Leakage

-30dBm

Polarization-Dependent Loss

0.5dB

Polarization Mode Dispersion

0.5ps

Management Functions

CDR Function (Real-time DDM Monitoring)

Adaptive Setting for Different Rates

Unidirectional or Bidirectional Business Setting

Management Methods

Web、NetView

Board Dimensions

156 （W）× 20（H）× 225（D）（mm）

Environmental Requirements

Operating Temperature

-10℃ ~ 50℃

Storage Temperature

-40℃ ~ 80℃

Relative Humidity

5% ~ 95% (non-condensing)

Safety and EMC Compliance

Complies with FCC, UL, CE, TUV, CSA standards

Power Consumption

<30W





Order Information

Part No.

Specifications

FWOP25G20

DWDM EDFA Card 1529nm~1561nm                                                          PA G25/20 Gain:25dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot

FWOB15G20

DWDM EDFA Card 1529nm~1561nm                                                          BA G15/20 Gain15dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot

FWOL25G20

DWDM EDFA Card 1529nm~1561nm                                                          LA G25/20 Gain25dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot

FWOP25G20H

DWDM EDFA Card 1528nm~1568nm                                                          PA G25/20 Gain:25dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot

FWOB15G20H

DWDM EDFA Card 1528nm~1568nm                                                          BA G15/20 Gain15dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot

FWOL25G20H

DWDM EDFA Card 1528nm~1568nm                                                          LA G25/20 Gain25dB +-3dB,Max output 20dB, LC/UPC used in FW6600 series take one slot
