Product Features



  • Supports optical line protection for both single-mode and multimode fiber
  • Supports dual-fiber bidirectional and single-fiber bidirectional protection modes.
  • Supports 1+1 (dual-transmitter dual-receiver) and 1:1 (transmitter selection receiver selection) protection modes.
  • Wide optical power monitoring range: -50dBm to +25dBm.
  • Short optical path protection switching time: <20ms.
  • Supports local and remote control.
  • Supports SNMP-based unified network management platform.Include CLI (telnet and console), Web, and NetView (graphical interface).
Inquire now Download
  • Product Detail

Optical Line Protection (OLP) FW6OLP



The OLP optical protection board is a protection system developed by FIBERWDM for fiber optic line backup. It adopts advanced optical automatic switching modules and is an optical device used for primary and backup optical path switching in the field of fiber optic communication. It can automatically identify the signal status of the primary and backup system optical paths and perform instantaneous switching of the optical path to ensure the normal operation of the primary optical cable in the event of a complete obstruction, thereby improving the service quality of the service provider. The OLP optical line protection board is widely used in primary and backup protection of various trunk lines and in networks requiring various optical path switching. Its advantages lie in the direct utilization of optical signals in the optical line, compact size, and cost-effectiveness, making it widely used in various optical transmission fields.



Product Introduction

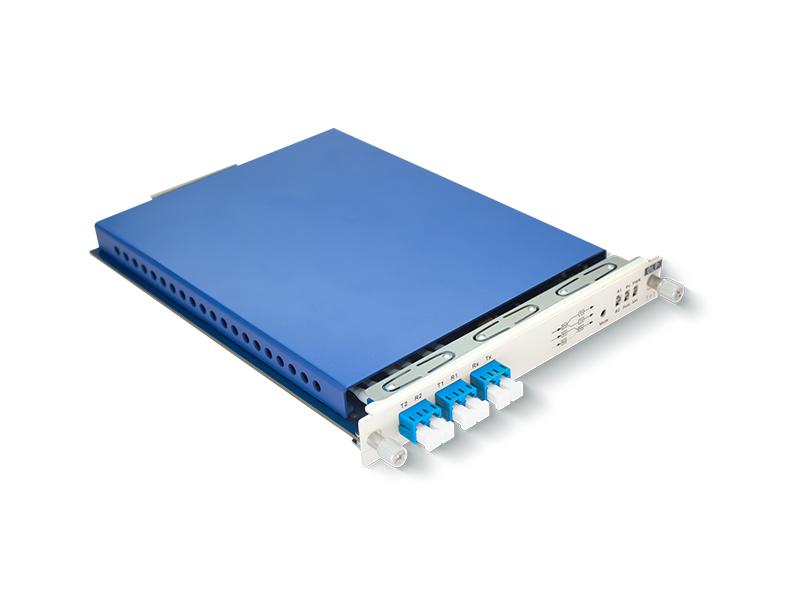

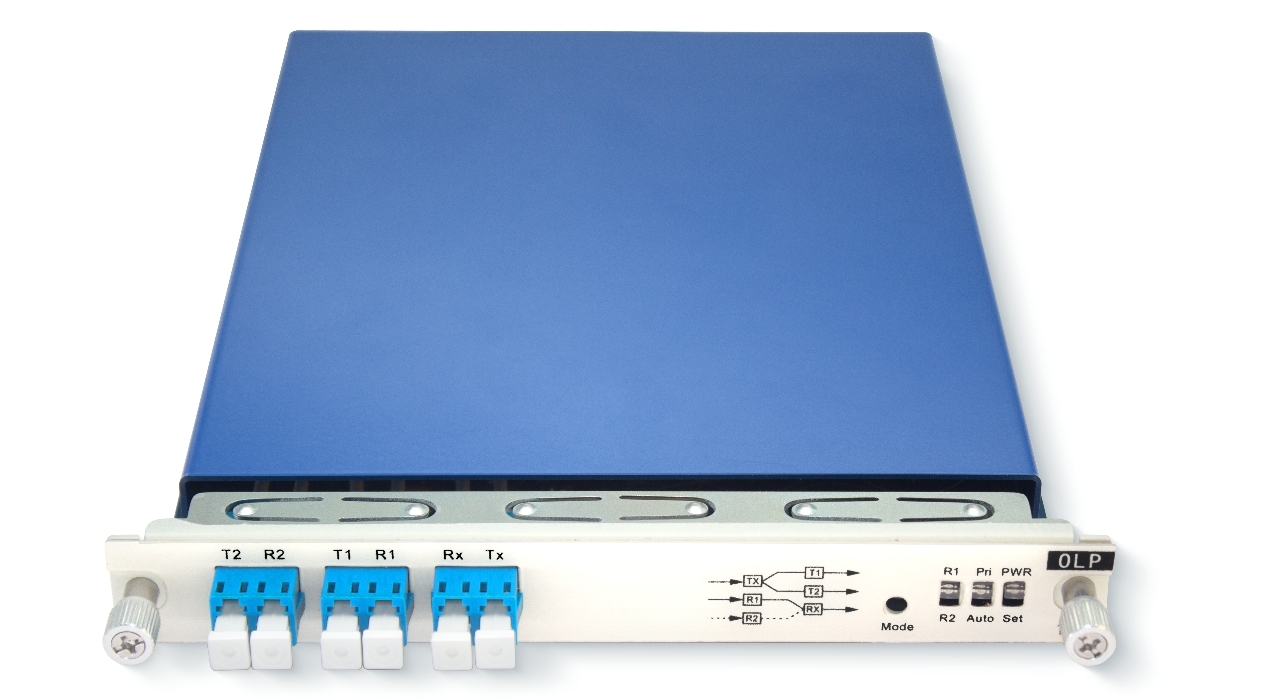

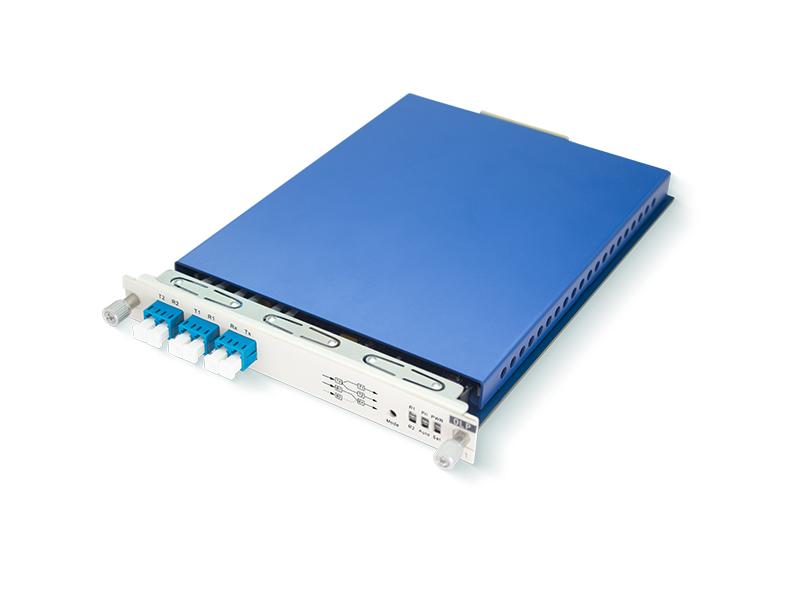

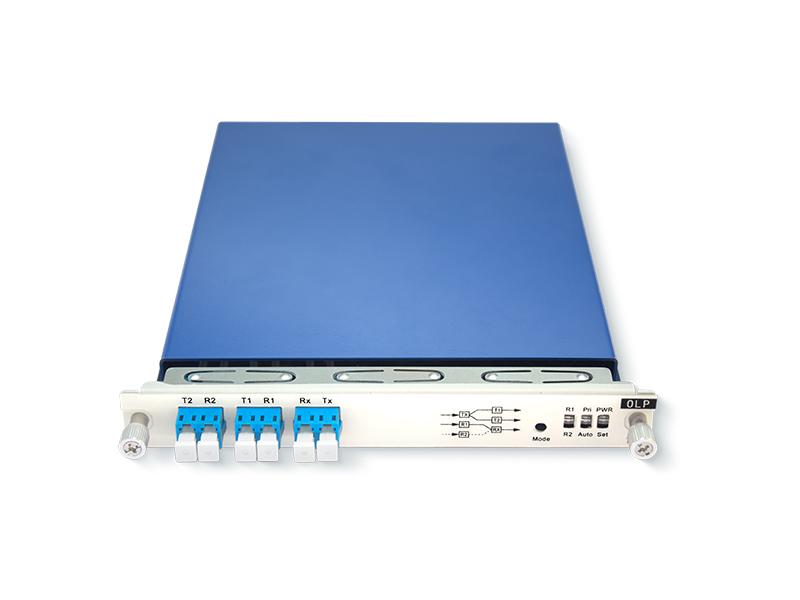

 Figure 1: OLP Optical Protection Board





Product Specifications

Parameters

Specifications

Wavelength range

1310±50nm and 1550±50nm

Detection of the optical power range

Tx

+2dBm~-50dBm

Rx

+10dBm~-50dBm

Insertion loss

1+1 Protection

Transmitter End

≤4.0dB

Receiver End

≤1.5dB

1:1 Protection

≤1.5dB

Optical power measurement accuracy

≤0.5dB（+20dBm~-50dBm）

≤1.0dB（-40dBm~-50dBm）

Optical power resolution

≤0.01dB

Wavelength-dependent losses

≤0.25dB

Polarization-dependent losses

≤0.1dB

Switching Time

≤20dB

Return Loss

≤45dB

Crosstalk

≤55dB

Network Management

NetView, Web

Board Dimensions

156 (W) ×20 (H) ×225 (D) (mm)

Environment

Requirement

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~80℃

Relative Humidity

5%~95% (non-condensing)

Safety and EMC Compliance

FCC, UL, CE, TUV, CSA standards

Power Consumption

<5W





Order Information

Part No.

Specifications

FW6OLPA

OLP Card， Optical line 1+1 protection LC/UPC,dual fiber used in used in FW6600 series take one slot

FW6OLPB

OLP Card， Optical line 1:1 protection LC/UPC,dual fiber used in used in FW6600 series take one slot

FW6OLPABD

OLP Card， Optical line 1+1 protection LC/UPC，Bi-direction used in used in FW6600 series take one slot
