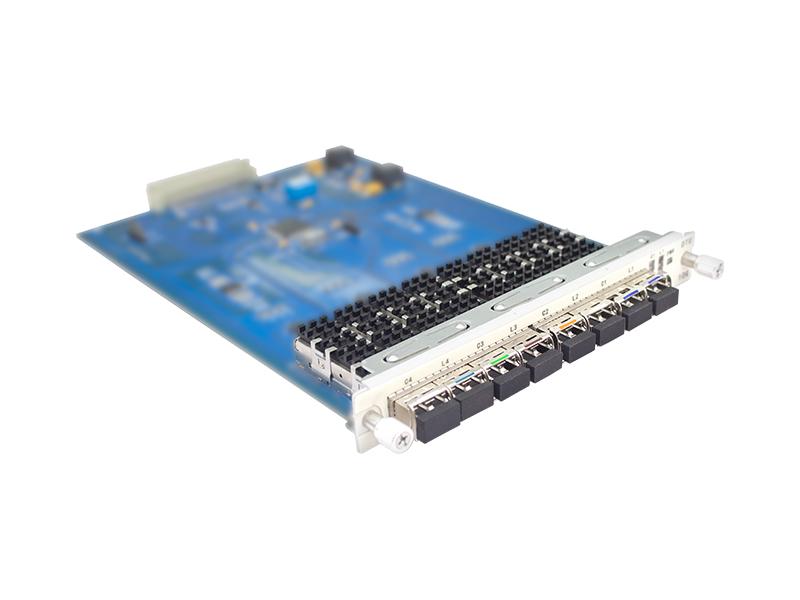

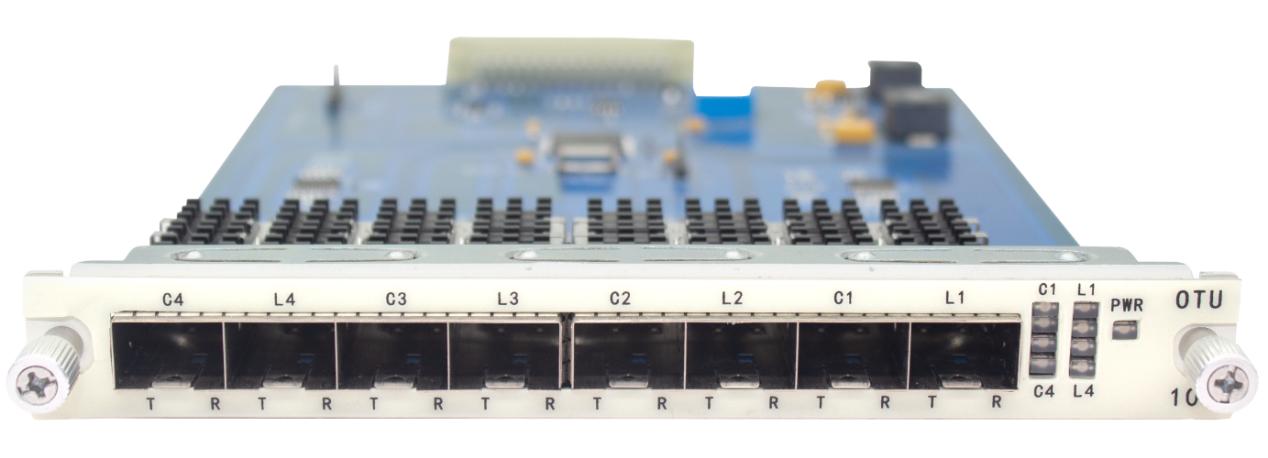

Transponder Card（10G OTU/OEO 8xSFP+/SFP）

Product Features Flexible networking with a compact footprint and strong scalability. Supports hot-swappable CWDM/DWDM/EDFA/OLPS/OTAP service cards. Supports access to various services such as SDH, SONET, Ethernet, SAN, OTN, and Video. Supports maximum single-channel rates of 100G, 200G, 400G. Supports various networking configurations, including point-to-point, point-to-multipoint, and ring topologies, with options for single-fiber or dual-fiber bidirectional transmission. Supports interoperability with client devices from different vendors, including single-mode (1310nm/1550nm), multimode (850nm/1310nm), and Ethernet ports (RJ45), enabling optical add-drop multiplexing (OADM) functionality and wavelength conversion at intermediate nodes. Supports SNMP-based unified network management platform with management options including CLI (telnet and console), web interface, and NetView(graphical interface). Supports 1+1 hot-swappable redundant power backup with options for both AC and DC power sources.

Product Features:   Supports applications such as single/multimode wavelength conversion and optical power amplification. Supports unidirectional or bidirectional relay amplification. Supports 2 channels of 100G bidirectional service access or 4 channels of 100G unidirectional service access. Supports various customer-side service access: 100GBASE-SR4/CWDM4/LR4/PSM4/OTU4. Transparent transmission of services. Supports hot-swapping. Supports FEC function, optimizing output, DDM signal monitoring, and link detection (no light transmission when no receive light is present). Supports SNMP-based unified network management platform, with management methods including CLI (telnet and console), Web, and NetView (graphical interface).

Support 2*100G service optical signals to be multiplexed into 1*200G DWDM standard wavelength optical signal

Product Features   Supports DWDM transmission and wavelength conversion. Single board supports 1 channel of bidirectional business access ranging from 103.125Gbit/s to 111.81Gbit/s. Supports multiple client-side business access types: 100GBASE-SR4/CWDN4/LR4/PSM4. Supports automatic shut-off of transmission function. Transparent transmission of business data. Hot-swappable support. Supports FEC functionality, optimizing output and enabling DDM signal monitoring, as well as link detection (no transmission when no receiving light). Supports SNMP-based unified network management platform with management interfaces including CLI (telnet and console), Web, and NetView (graphical interface).

Product Features Supports DWDM transmission and wavelength conversion. Single board supports 1 channel of 40Gbit/s bidirectional business access. Transparent transmission of business data. Hot-swappable support. Supports FEC functionality, optimizing output and enabling DDM signal monitoring, as well as link detection (no transmission when no receiving light). Supports SNMP-based unified network management platform with management interfaces including CLI (telnet and console), Web, and NetView (graphical interface).

Product Features   Supports applications such as single-mode to multi-mode conversion and optical power amplification. Supports unidirectional or bidirectional relay amplification. Supports amplification at various wavelengths, including 850nm, 1310nm, CWDM or DWDM. Supports the access of 4-channel bidirectional or 8-channel unidirectional business protocols with arbitrary rates ranging from 1.25Gbit/s to 25.78Gbit/s. Transparent transmission of business data. Hot-swappable capability. Supports FEC functionality, optimizing output, monitoring DDM signals, and enabling link detection (no light emission when no receiving signal is present). Supports SNMP-based unified network management platform with management options including CLI (telnet and console), Web, and NetView (graphical interface).

Product Features   Supports optical amplification for C-band DWDM systems. Supports amplification with OSC signal input. Supports maximum saturated output power of +23dB and minimum input power of -35dB. Supports power amplification, line amplification (two-stage optical amplification), and pre-amplification. Monitoring capabilities include: pump drive current, pump output power, pump switch status, pump temperature, input optical power, output optical power, and module temperature. Supports configuration of pump switch, AGC mode, and APC mode (adjustable input/output optical power). Supports SNMP-based unified network management platform with management options including CLI (telnet and console), Web, and NetView (graphical interface). Includes optical monitoring port (MON).

Product Features   Supports optical line protection for both single-mode and multimode fiber Supports dual-fiber bidirectional and single-fiber bidirectional protection modes. Supports 1+1 (dual-transmitter dual-receiver) and 1:1 (transmitter selection receiver selection) protection modes. Wide optical power monitoring range: -50dBm to +25dBm. Short optical path protection switching time: <20ms. Supports local and remote control. Supports SNMP-based unified network management platform.Include CLI (telnet and console), Web, and NetView (graphical interface).
