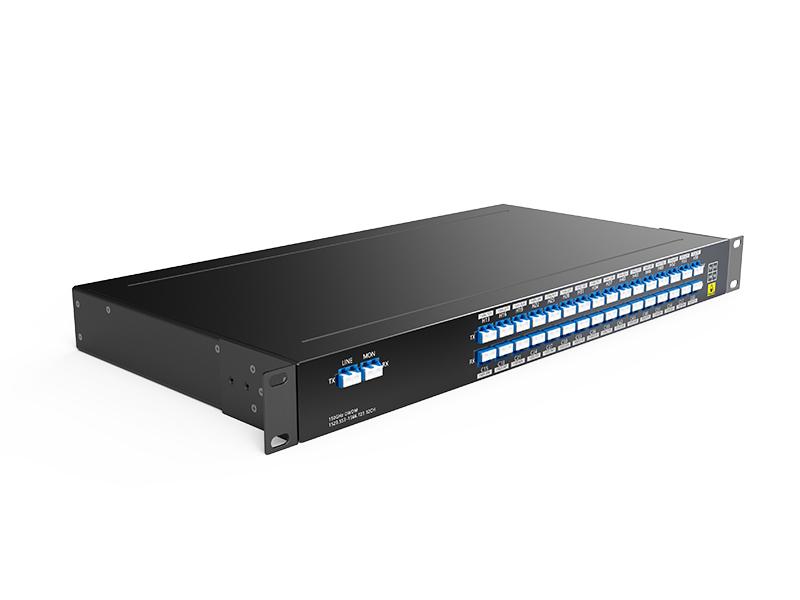

150GHz 32CH DWDM MUX DEMUX 1529.553nm-1566.723nm with Monitor Port LC/UPC 1U Rack
Product Panel

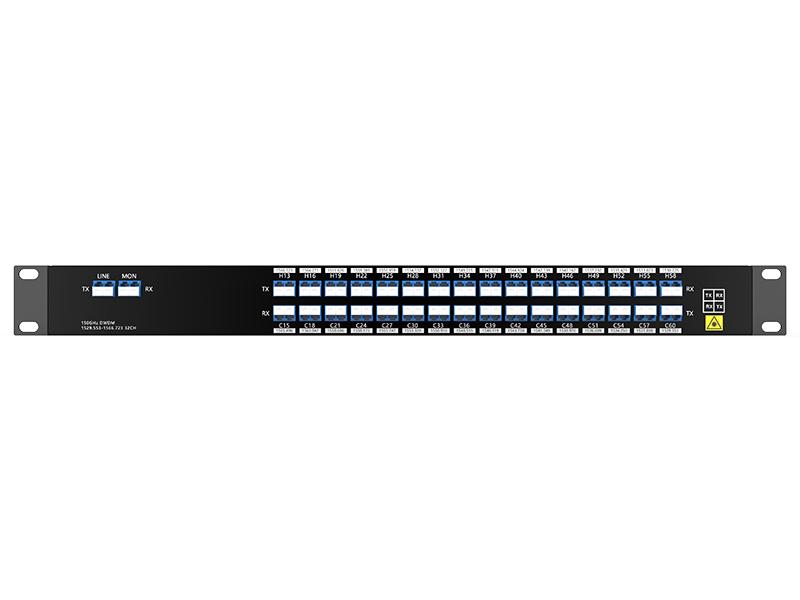

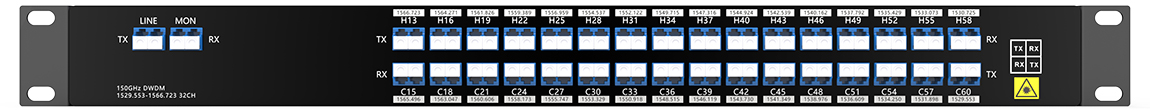

150Ghz 32CH DWDM MUX DEMUX
Mon port is for network link monitoring or power monitoring, easy trouble shooting without affecting traffic.
Line Link

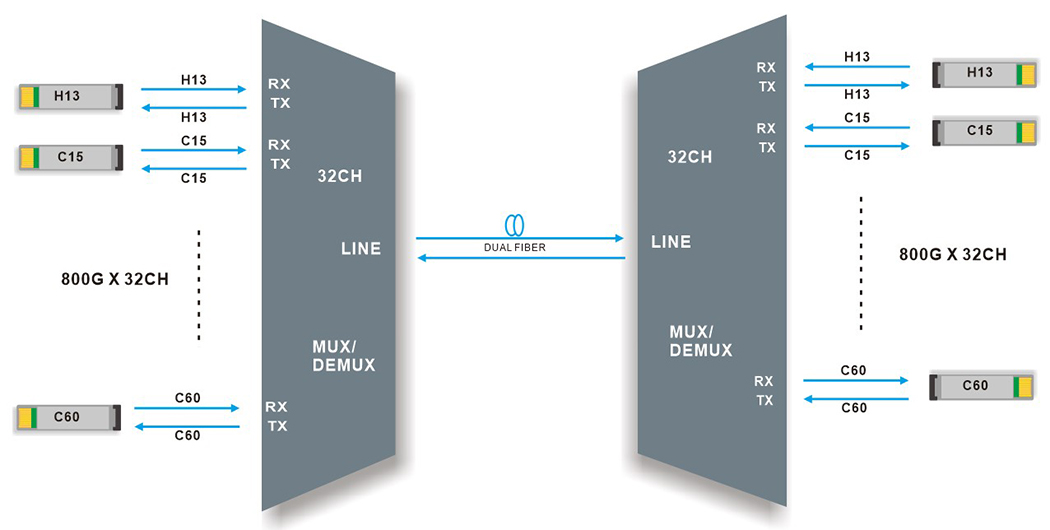

32CH DWDM MUX DEMUX Dual fiber transmission
32 Channels DWDM MUX DEMUX, supports 32 channels 800G difference business in two optical fiber for point-to-point transmission. It works in IDC transfer system.
Product Specification
|
Wavelength |
1529.553nm-1566.723nm |
Channel Spacing |
150GHz |
|
Channel Passband |
±0.5nm |
Technology |
AAWG (Flat top) |
|
Insertion Loss |
≤6.0dB |
Link Loss |
≤12dB |
|
Center Wavelength Accuracy |
±0.05nm |
Total Crosstalk |
≥5dB |
|
-0.5dB Bandwidth |
≥90GHz |
-3dB Bandwidth |
≥150GHz |
|
Return Loss |
≥ 40dB |
Directivity |
≥ 40dB |
|
Polarization Mode Dispersion |
≤ 1.0ps |
Polarization Dependent Loss |
≤ 0.7dB |
|
Channel Isolation |
Adjacent ≥ 10dB
Non-adjacent ≥ 22dB
|
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
|
Net Weight |
3.5KG |

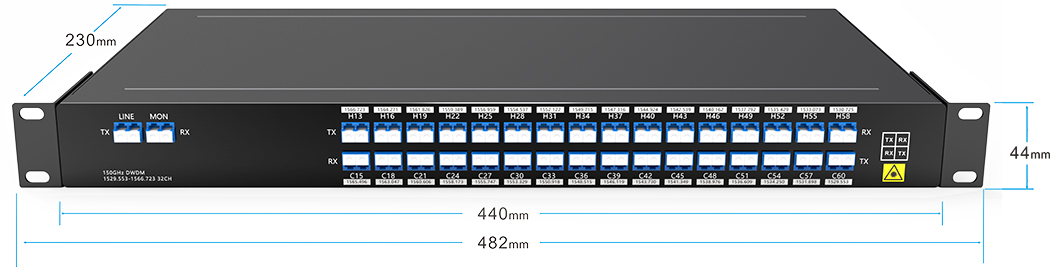

Dimensions (HxWxD) |
44*440*230mm |
Note: Specified with connectors.
Hannel Plan32Port AWG - On grid
Table1 Channels List：Pass bands for 32channel AAWG
|
Channel |
Frequency |
Wavelength |
|
Channel |
Frequency |
Wavelength |
|
# |
(THz) |
(nm) |
# |
(THz) |
(nm) |
|
|
C60 |
196.00 |
1529.553 |
C36 |
193.60 |
1548.515 |
|
|
H58 |
195.85 |
1530.725 |
H34 |
193.45 |
1549.715 |
|
|
C57 |
195.70 |
1531.898 |
C33 |
193.30 |
1550.918 |
|
|
H55 |
195.55 |
1533.073 |
H31 |
193.15 |
1552.122 |
|
|
C54 |
195.40 |
1534.250 |
C30 |
193.00 |
1553.329 |
|
|
H52 |
195.25 |
1535.429 |
H28 |
192.85 |
1554.537 |
|
|
C51 |
195.10 |
1536.609 |
C27 |
192.70 |
1555.747 |
|
|
H49 |
194.95 |
1537.792 |
H25 |
192.55 |
1556.959 |
|
|
C48 |
194.80 |
1538.976 |
C24 |
192.40 |
1558.173 |
|
|
H46 |
194.65 |
1540.162 |
H22 |
192.25 |
1559.389 |
|
|
C45 |
194.50 |
1541.349 |
C21 |
192.10 |
1560.606 |
|
|
H43 |
194.35 |
1542.539 |
H19 |
191.95 |
1561.826 |
|
|
C42 |
194.20 |
1543.730 |
C18 |
191.80 |
1563.047 |
|
|
H40 |
194.05 |
1544.924 |
H16 |
191.65 |
1564.271 |
|
|
C39 |
193.90 |
1546.119 |
C15 |
191.50 |
1565.496 |
|
|
H37 |
193.75 |
1547.316 |
H13 |
191.35 |
1566.723 |

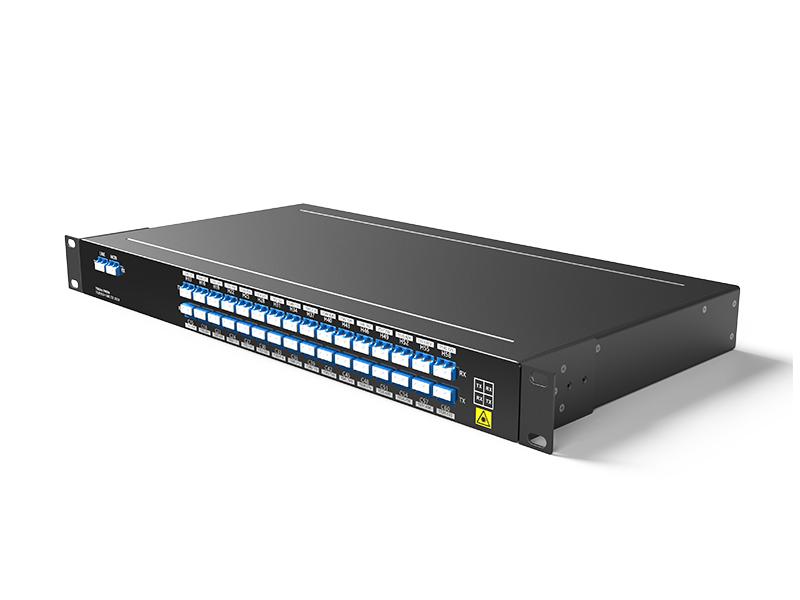

Package Information
32CH DWDM 19” 1U Rack
Order Information
|
Product No. |
Product description |
|
DMD32-1U01-150GHZ-M-H13C60 |
150GHz 32CH DWDM MUX DEMUX 1529.553nm-1566.723nm with Monitor Port LC/UPC 1U Rack |
Note: We Support Customized Design, please contact us by email.
