Dual Fiber 8CH C21-C28 DWDM MUX DEMUX, EXP Port, LC/UPC, LGX Box, and 4 Slots 1U Rack

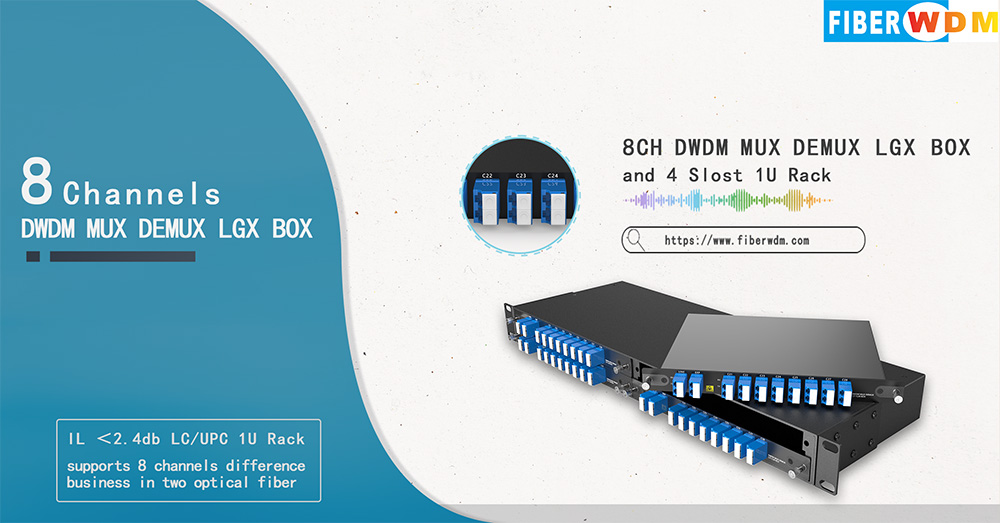

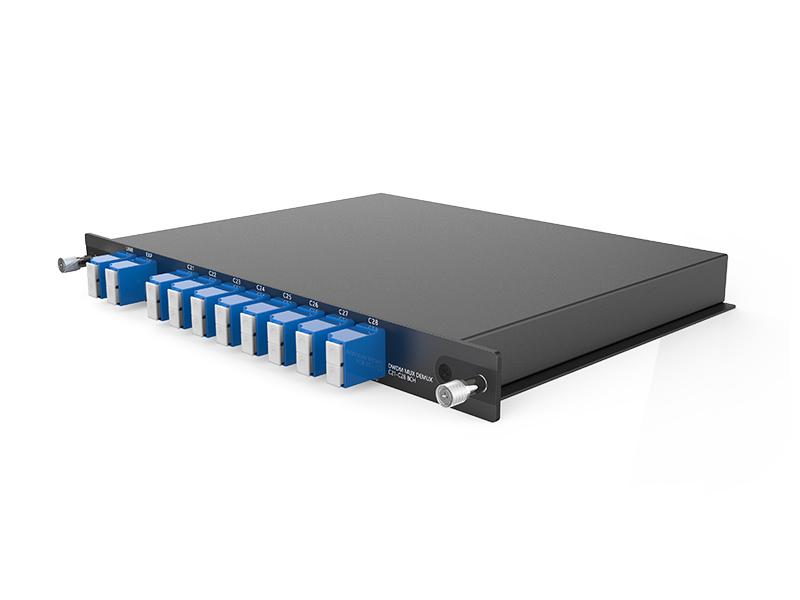

The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C28,(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The 8ch DWDM MUX DEMUX is totally passive and LGX box module device, it can plug in the 4-slot 1U rack; the product insertion loss is:( wavelength ports<2.4dB; Line loss<3.2dB). And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

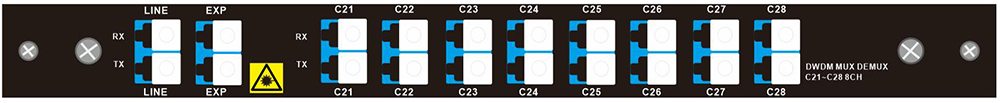

Product Panel

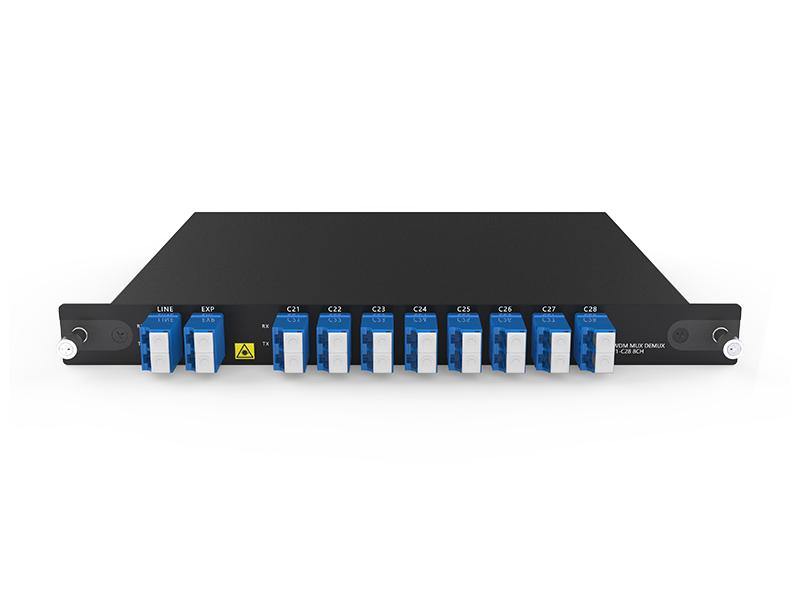

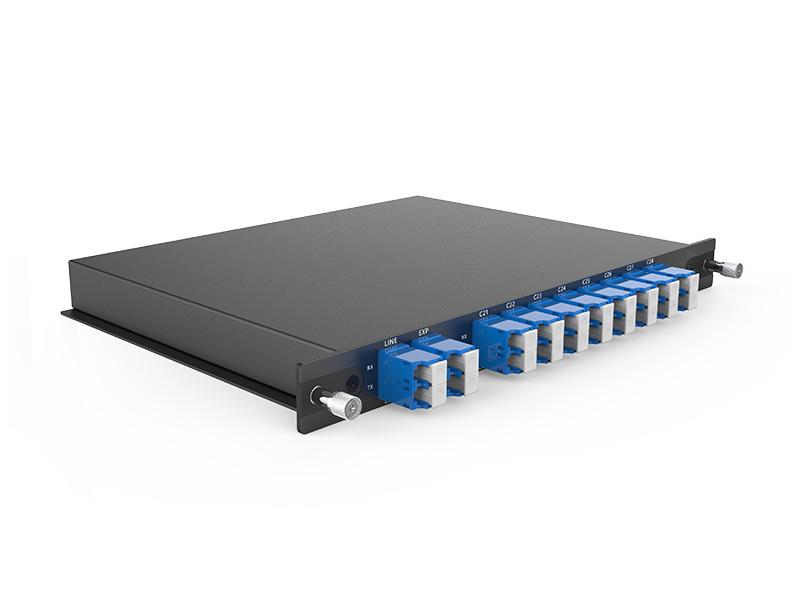

8CH DWDM MUX DEMUX Dual Fiber
Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.
Line Link

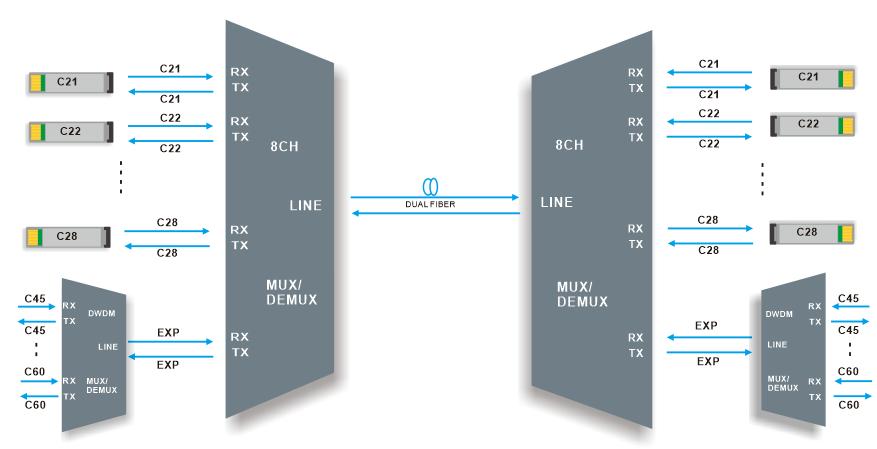

8CH DWDM MUX DEMUX Dual fiber transmission
8 Channels DWDM MUX DEMUX, supports 8 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
Wavelength |
8channels C21-C28(or other waves) |
Channel Spacing |
100GHz (0.8nm) |
Channel Passband |
±0.11nm |
Technology |
TFF (Thin Film Filter) |
Insertion Loss |
≤ 2.4dB |
Link Loss |
≤ 3.2dB |
Insertion Loss @ 1310 port |
≤ 0.8dB |
Insertion Loss @ 1% Mon |
≤ 26dB |
Return Loss |
≥ 45dB |
Directivity |
≥ 45dB |
Polarization Mode Dispersion |
≤ 0.1ps |
Polarization Dependent Loss |
≤ 0.3dB |
Channel Isolation |
Adjacent ≥30dB |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
Net Weight |
LGX Box: 0.5KG 2slot 1U Rack: 2.5KG |
Dimensions |

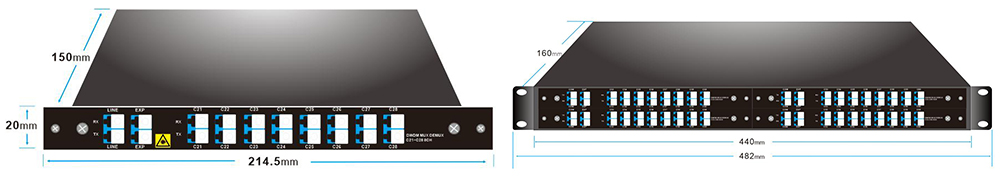

LGX Box: 214*150*20mm 1U Rack : 440*160*44mm |
Note: Specified with connectors.
Package Information

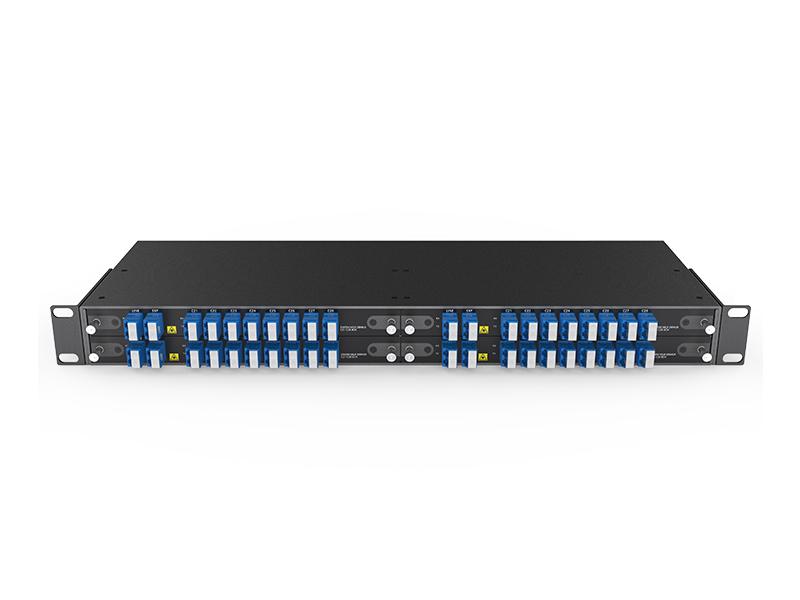

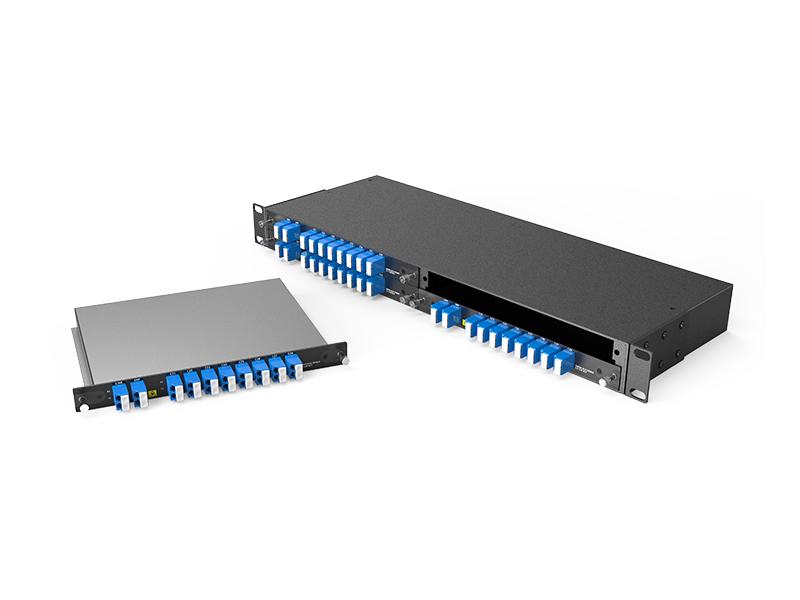

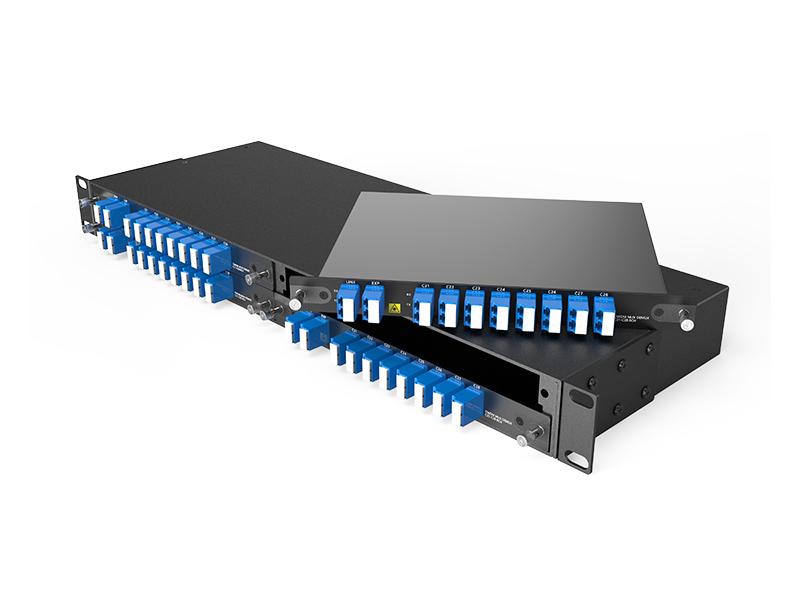

LGX BOX Plug in 4-Slot 1U Rack | 4-Slot 1U Rack for LGX BOX |
Order Information
Product No. |
Product description |
DMD8-1U01-C2128 |
DWDM MUX DEMUX 8CH (C21-C28) With EXP Dual fiber, LC/UPC , Plug-in LGX Box |
1U02-4LGX |
19” inch 1U rack with 4 slot for Plug-in LGX box, 440*160*44mm |
Note: We Support Customized Design, please contact us by email.
