Features
Low Loss and High Reliability
Serial Interface (RS-232)
Modularized Design
Epoxy-free on Optical Path
Applications
Ring Network
Remote Monitoring in Optical Network
Testing of Fiber Optical Component

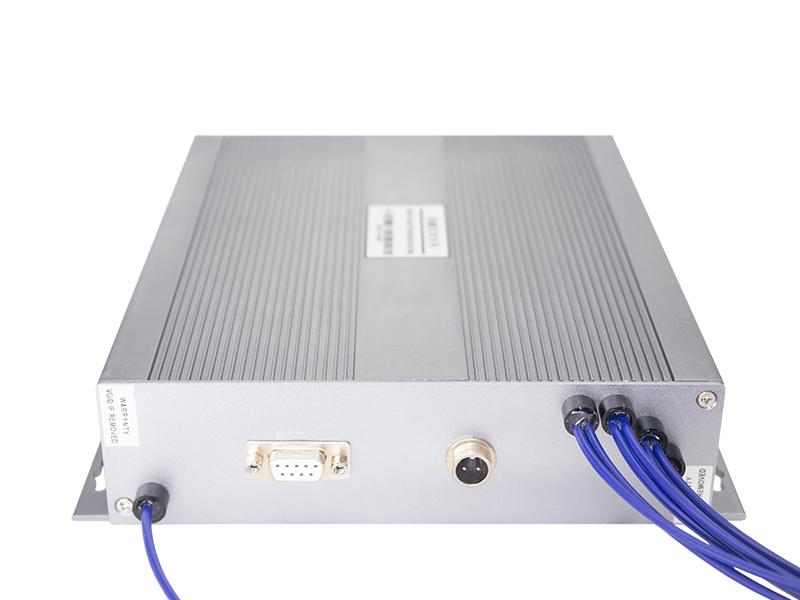

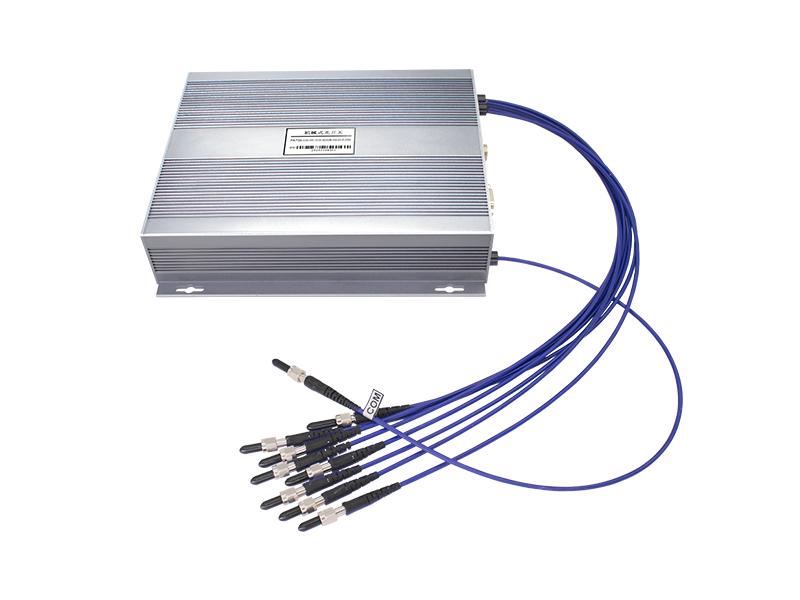

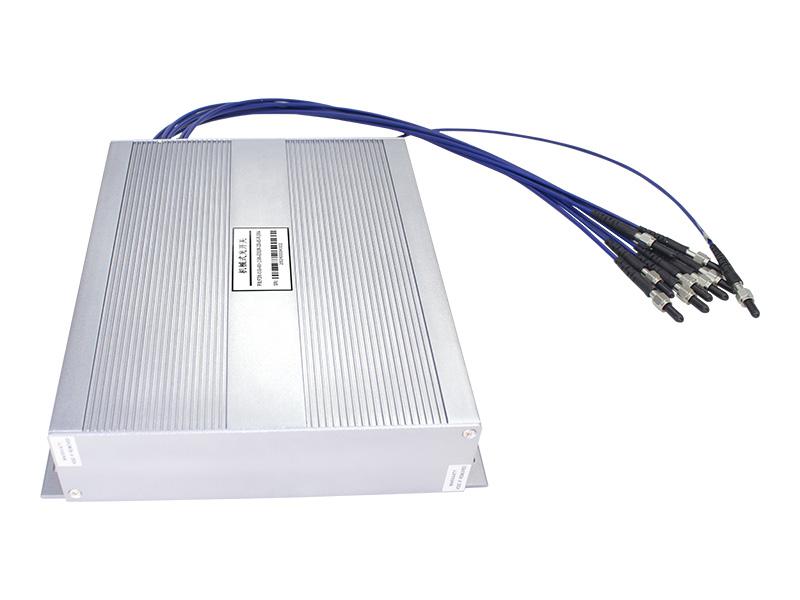

OSW-1X8-600UM
1×8 Mechanical Optical Switch, 400-2500um, 600um 0.5m fiber, SMA905 connectors
1x8 mechanical optical switch is designed and produced by FIBERWDM, it is a kind of light path control equipment, witch is used 600um fiber, and work wave is 400~2500um. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Specifications
|
Parameter |
Parameter Values |
|
Model |
OSW-1X8-600UM |
|
Insertion Loss |
≤1.5dB |
|
Wavelength Range |
400-2500nm |
|
Fiber Type |
600UM |
|
Return Loss |
≥30 dB |
|
Crosstalk |
≥ 50 dB |
|
PDL |
≤0.1dB |
|
WDL |
≤0.25 dB |
|
TDL |
≤0.25 dB |
|
Repeatability |
≤0.1dB |
|
Lifetime |
>107 |
|
Switching Time |
≤20ms（Adjacent channel） |
|
Connector |
SMA905 |
|
Control Mode |
RS232 |
|
Working Power Supply |
5V/1000 mA |
|
Product Sze |
220 x 204 x 48 |
|
Operating Temperature |
-20℃ to +70℃ |
|
Operating Temperature |
-40℃ to +85℃ |
Pin Specifications
|
DB-9 Male Connector |
|||
|
Pin No. |
I /O |
Signal |
Description |
|
2 |
Input |
RXD |
Receive Data |
|
3 |
Out |
TXD |
Send Data |
|
5,8 |
Power |
GND |
Ground |
|
9 |
Power |
VCC |
5.0±5% VDC Power Supply (max 1000mA) |
|
1,4,6,7 |
NC |
NC |
NC |

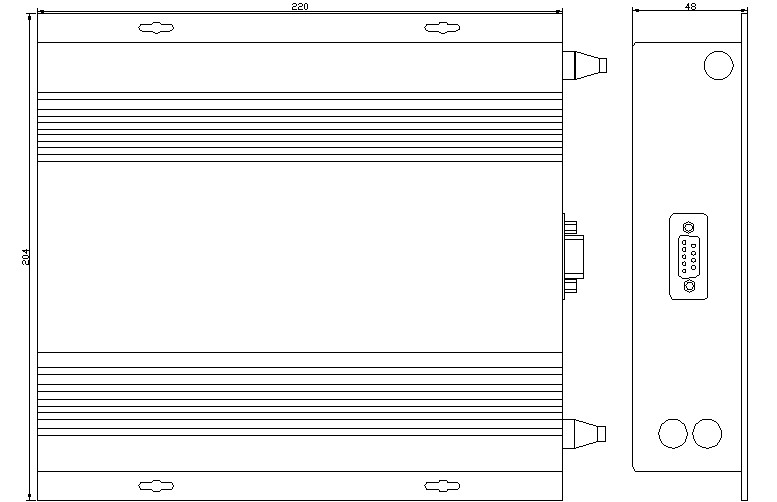

Dimension
Optical Route

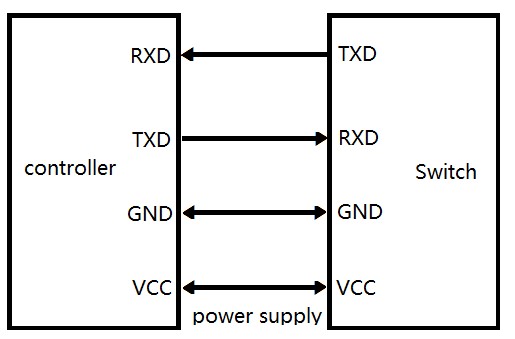

Control Chart
