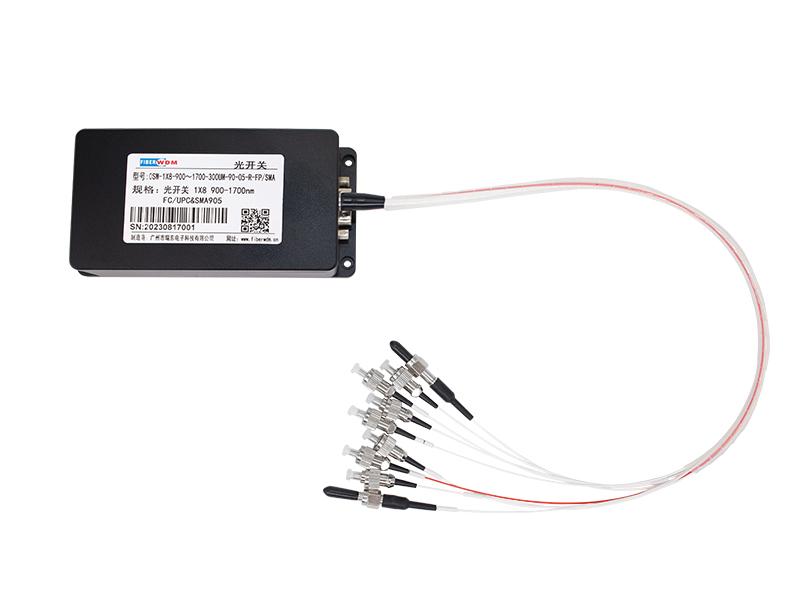

OSW-1X8-300UM

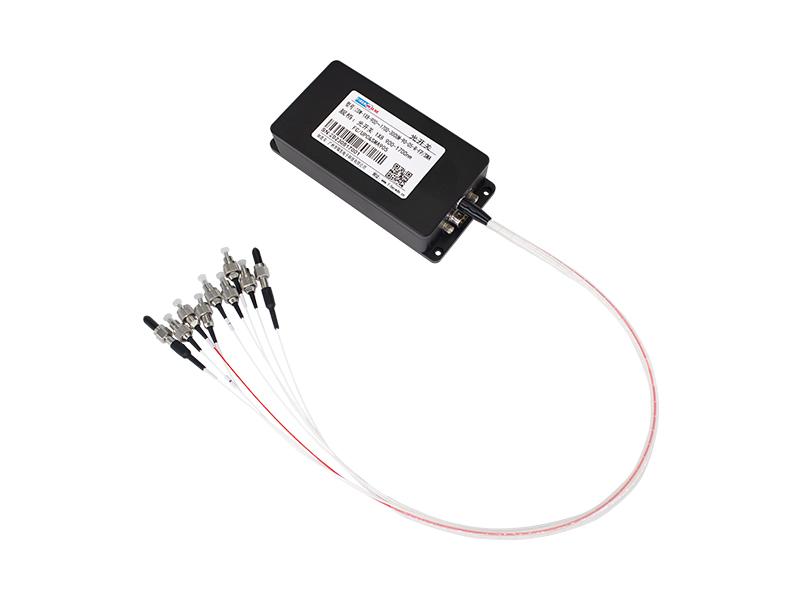

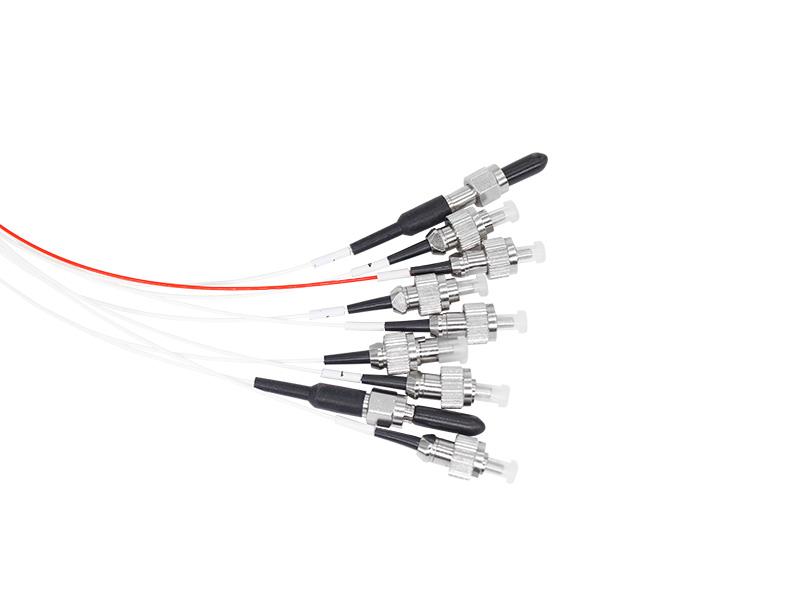

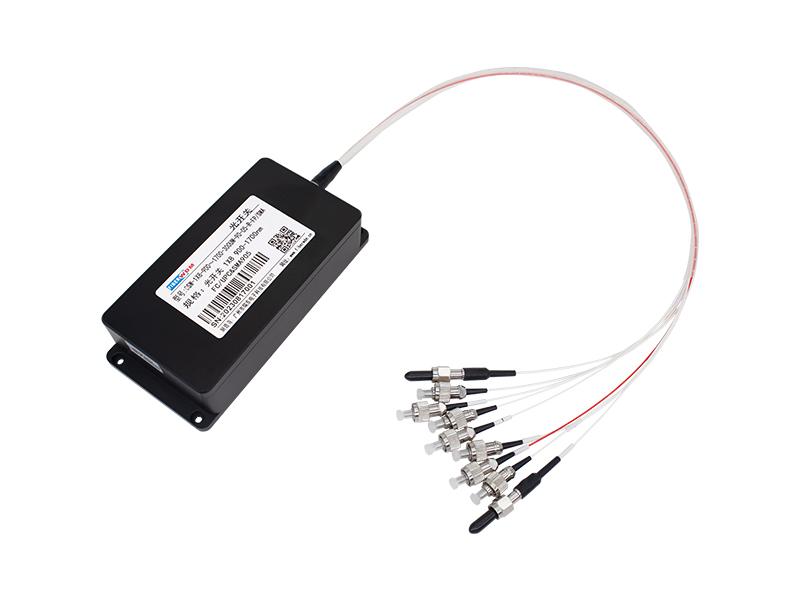

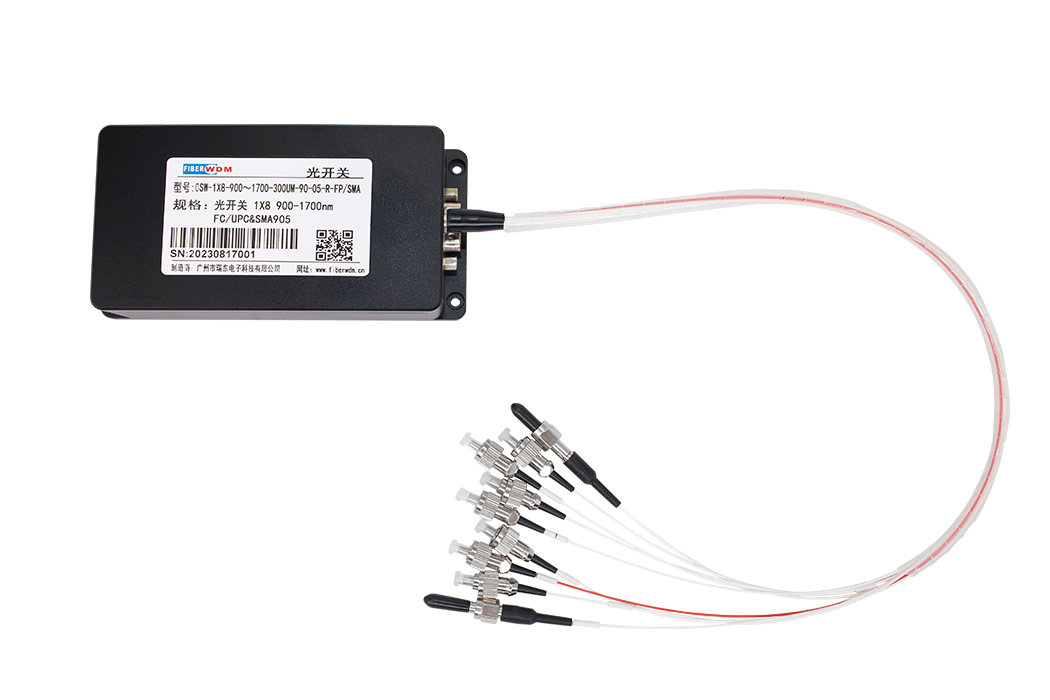

1×8Mechanical Optical Switch，900-1700nm, 300um 0.5m fiber, COM FC/UPC, 2xoutput SMA905 connectors, 6xoutput FC/UPC connectors.
1x8 mechanical optical switch is a kind of light path control equipment. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.
Specifications
|
Parameter |
Parameter Values |
|
Model |
OSW-1X3-300UM |
|
Insertion Loss |
Typ.:1.0 dB Max.:1.2 dB |
|
Wavelength Range |
900-1700 nm |
|
Test Wavelength |
850 nm |
|
Fiber Type |
300UM (NA=0.22) |
|
Return Loss |
≥30 dB |
|
Crosstalk |
≥50 dB |
|
PDL |
≤0.05 dB |
|
WDL |
≤0.25 dB |
|
TDL |
≤0.25 dB |
|
Repeatability |
≤0.03 dB |
|
Lifetime |
>107 |
|
Switching Time |
≤20 ms（Adjacent channel） |
|
Optic Power |
≤500 mW |
|
Connector |
FC、LC、SC、ST |
|
Control Mode |
RS-232 |
|
Working Power Supply |
5V/600 mA |
|
Product Sze |
130 x 64 x 32 |
|
Operating Temperature |
-20℃ to +70℃ |
|
Operating Temperature |
-40℃ to +85℃ |
Pin Specifications
|

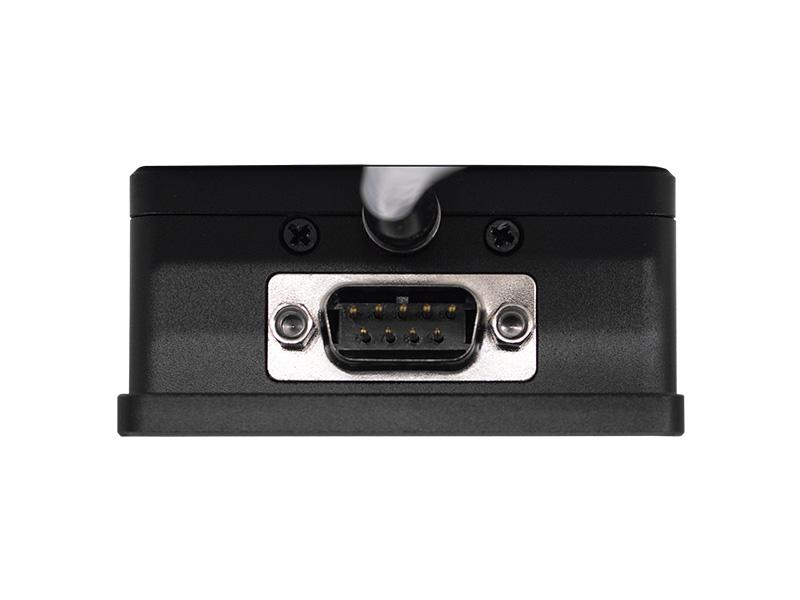

DB-9 Male Connector |
|||
|
Pin No. |
I / O |
Signal |
Description |
|
2 |
Input |
RXD |
Receive Data |
|
3 |
Out |
TXD |
Send Data |
|
5 |
Power |
GND |
Ground |
|
8 |
Power |
GND |
Ground |
|
9 |
Power |
VCC1 |
5.0±5% VDC Power Supply (600mA) |
|
1,4,6,7,10 |
NC |
NC |
Vacancy |

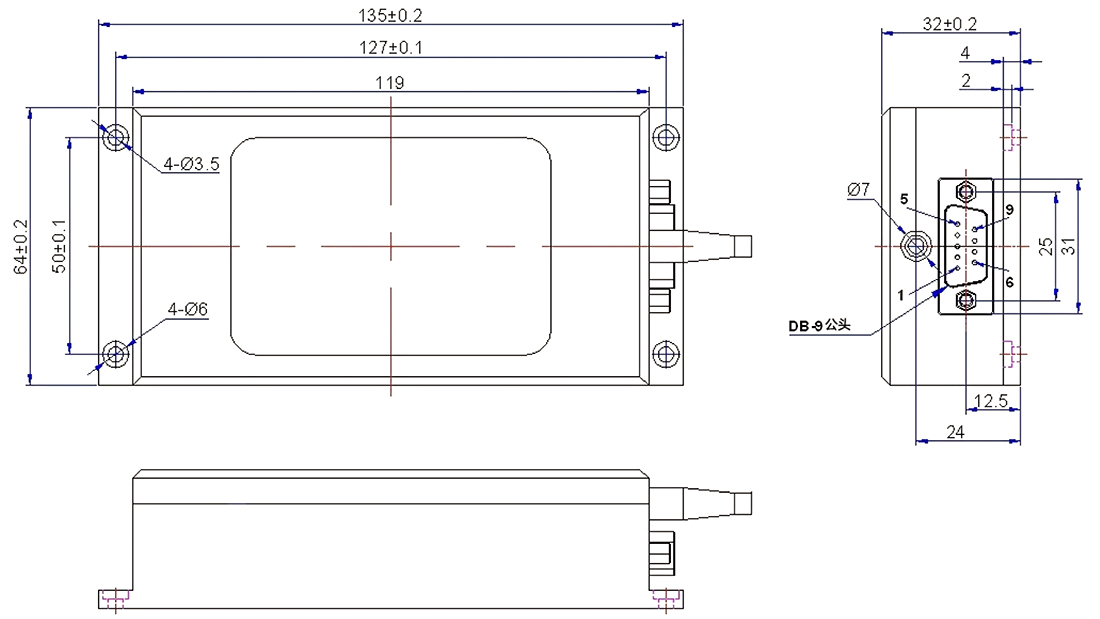

Dimension

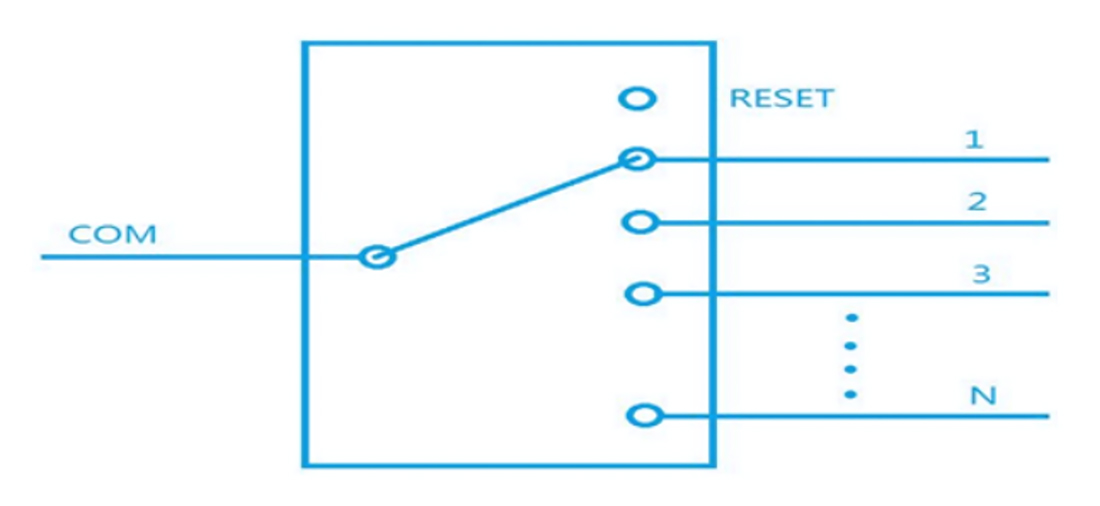

Optical Route

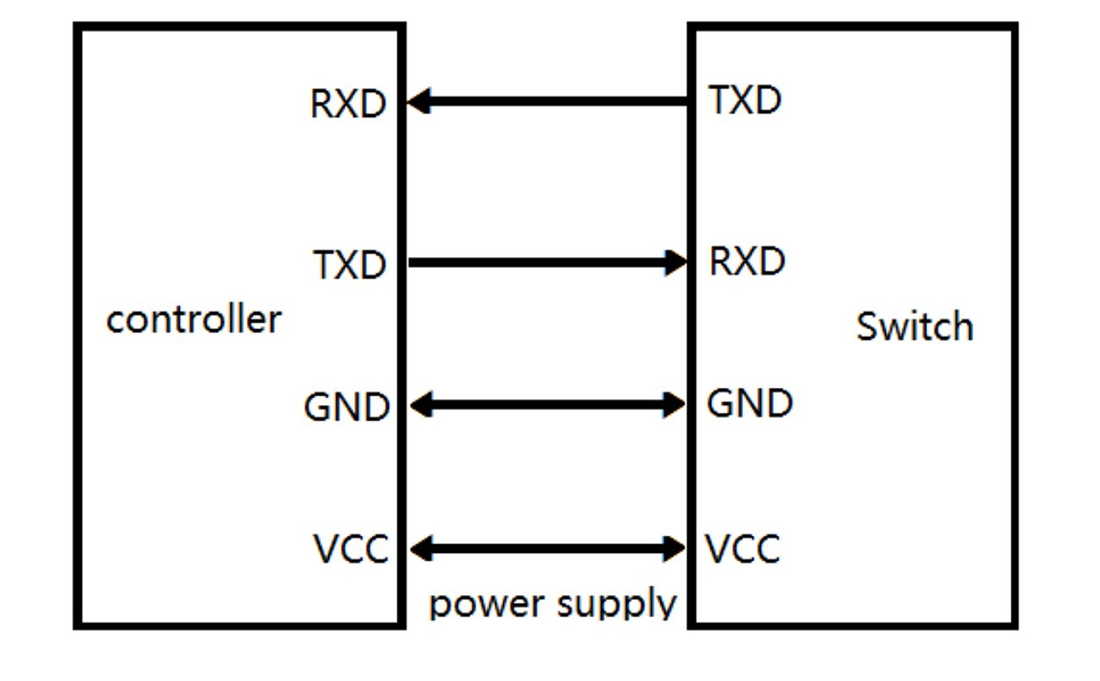

Control Chart
