1X8 900-1700nm 600um Mechanical Optical Switch 0.5m fiber, SMA905 connectors

Features
  • Low Loss and High Reliability
  • Serial Interface (RS-232)
  • Modularized Design
  • Epoxy-free on Optical Path

Applications
  • Ring Network
  • Remote Monitoring in Optical Network
  • Testing of Fiber Optical Component
  • Product Detail

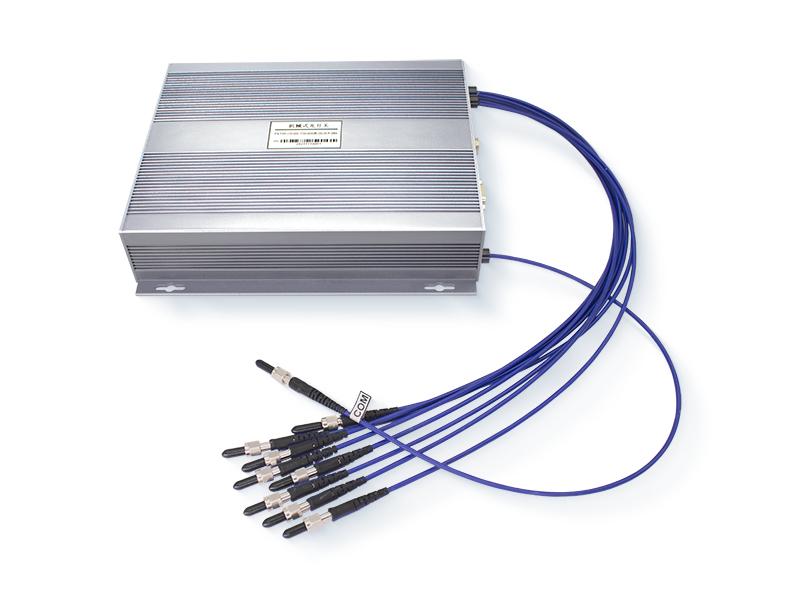

OSW-1X8-600UM

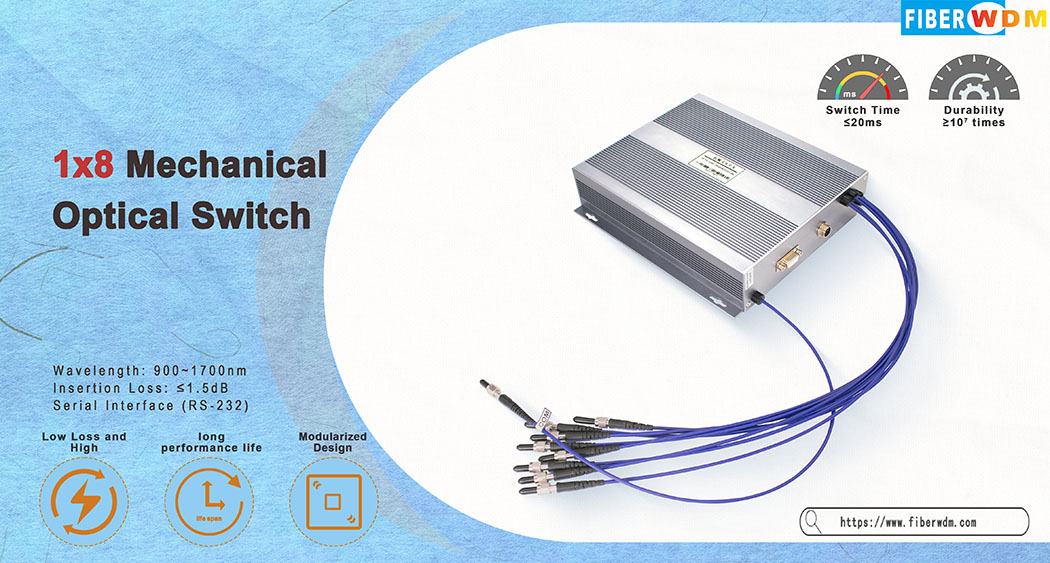

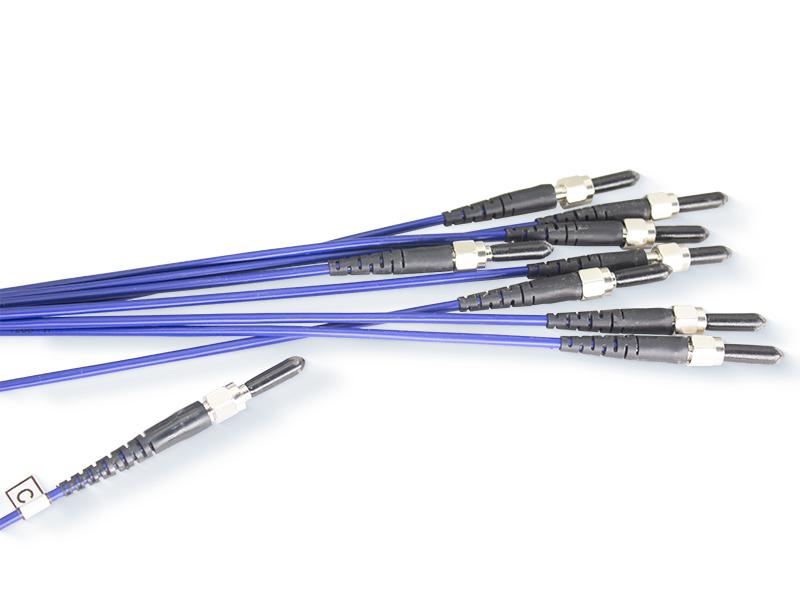

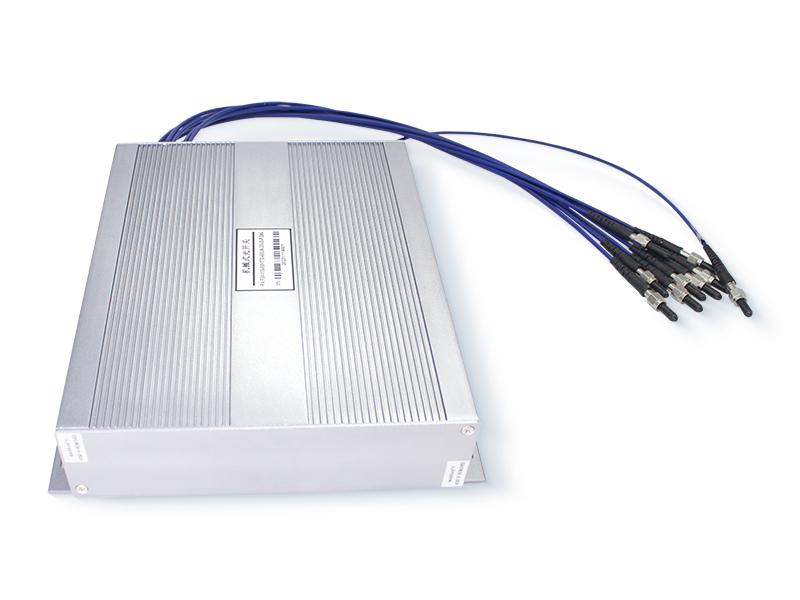

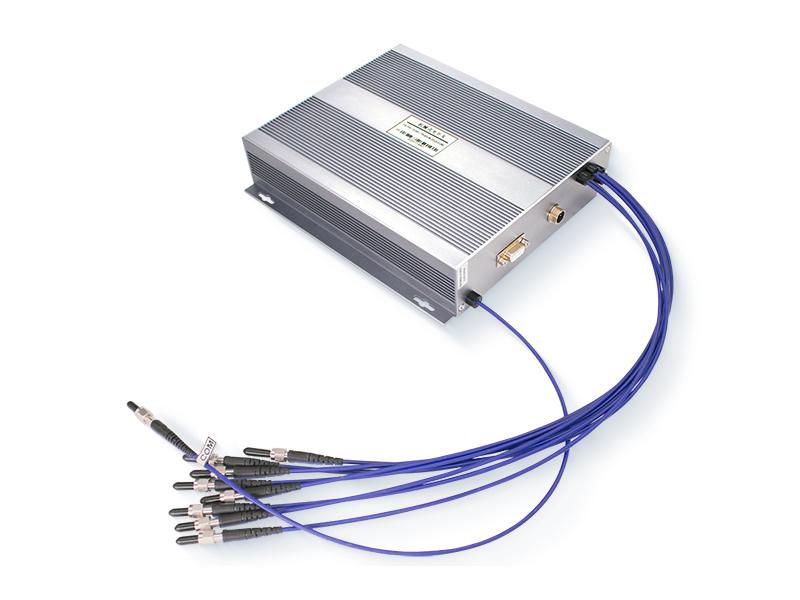

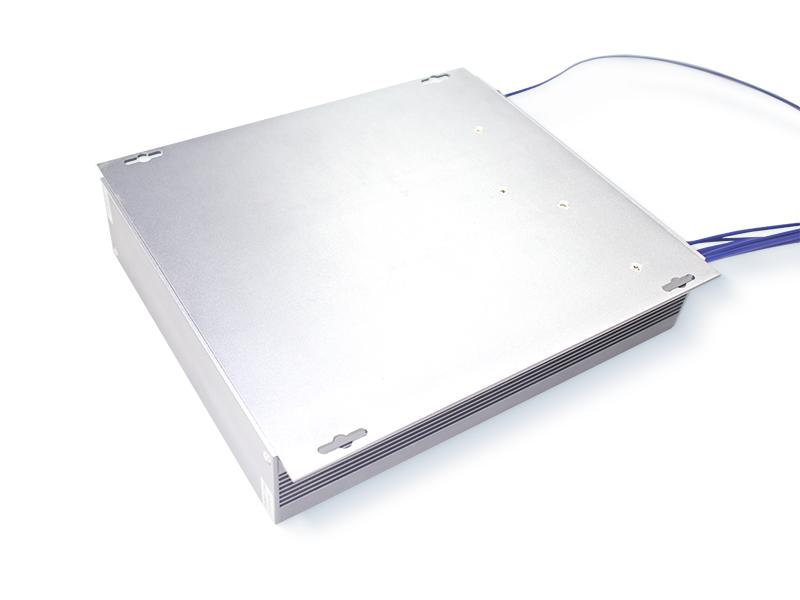

1×8 Mechanical Optical Switch, 900-1700um, 600um 0.5m fiber, SMA905 connectors


1x8 mechanical optical switch is designed and produced by FIBERWDM, it is a kind of light path control equipment, which is used 600um fiber, and work wave is 900~1700um. It can realize multi-channel fiber optic light path switching. In the optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source/detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and related component test, outdoor cable test and multi-spot optical sensors monitoring system.


1×8 Mechanical Optical Switch


Specifications

Parameter

Parameter Values

Model

OSW-1X8-600UM

Insertion Loss

≤1.5dB

Wavelength Range

900-1700nm

Fiber Type

600UM

Return Loss

 ≥30  dB

Crosstalk

 ≥ 50 dB

PDL

≤0.1dB

WDL

≤0.25 dB

TDL

≤0.25 dB

Repeatability

≤0.1dB

Lifetime

 >107

Switching Time

≤20ms(Adjacent channel)

Connector

SMA905

Control Mode

RS232

Working Power Supply

5V/1000 mA

Product Sze

220 x 204 x 48

Operating Temperature

-20℃  to  +70℃

Operating Temperature

 -40℃  to  +85℃

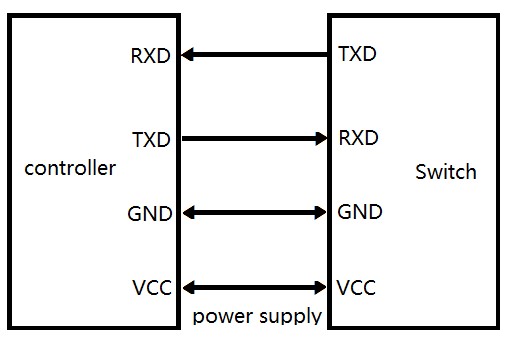

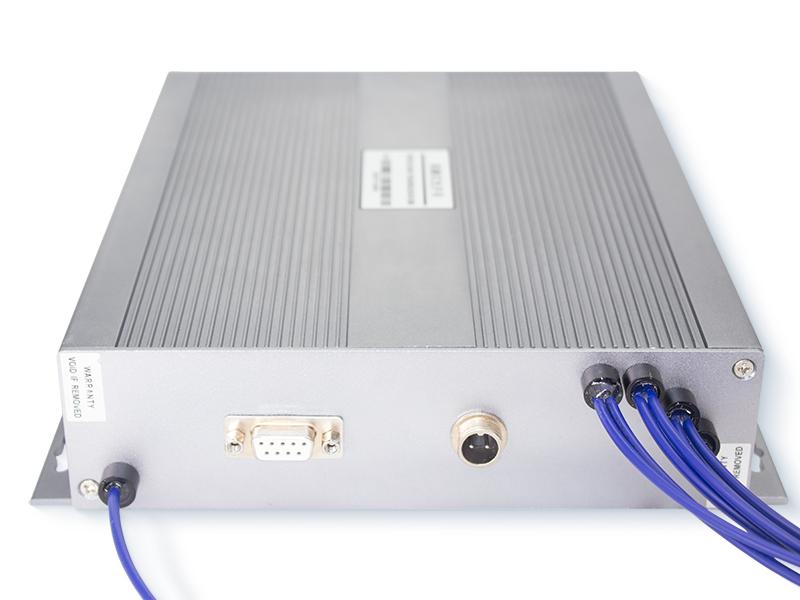

Pin Specifications

DB-9 Male Connector

Pin No.

I /O

Signal

Description

2

Input

RXD

Receive Data

3

Out

TXD

Send Data

5,8

Power

GND

Ground

9

Power

VCC

5.0±5% VDC Power Supply (max 1000mA)

1,4,6,7

NC

NC

NC

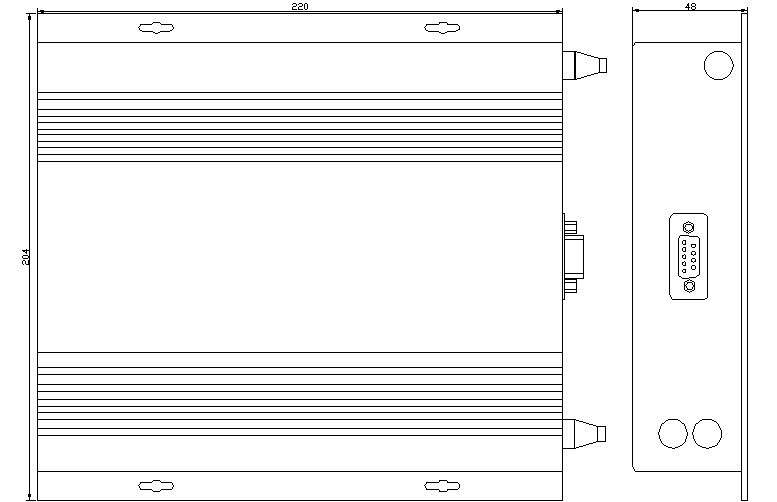

Dimension

1×8 Mechanical Optical Switch

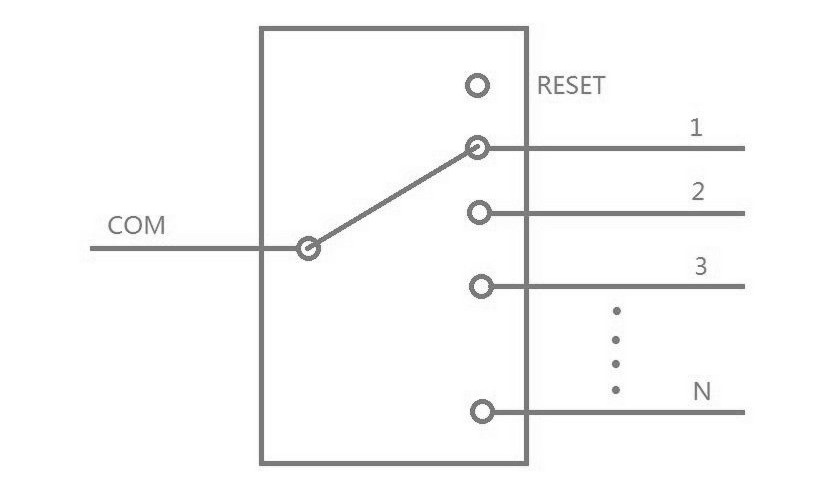

Optical Route

1×8 Mechanical Optical Switch

Control Chart

1×8 Mechanical Optical Switch
