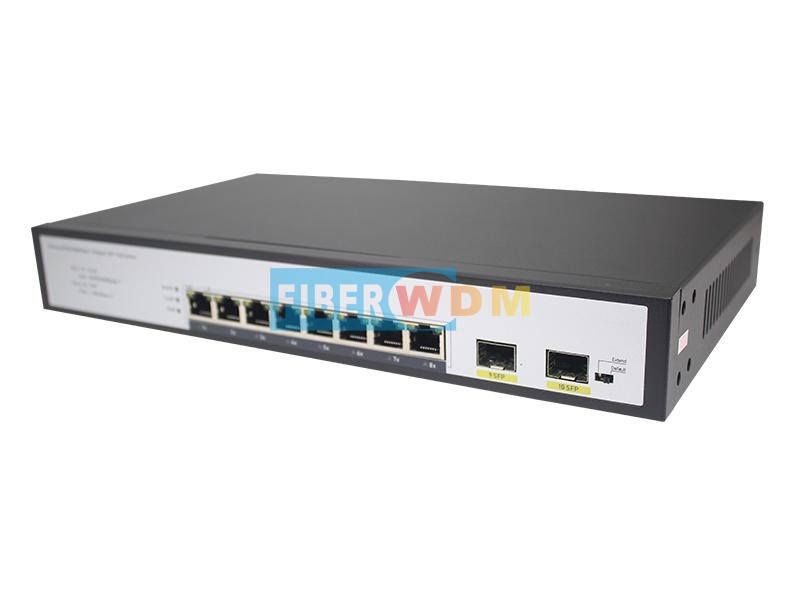

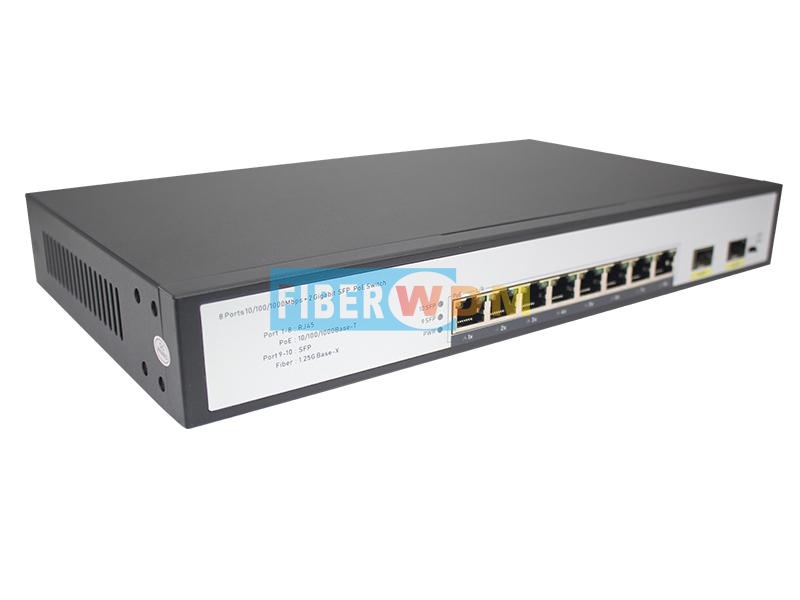

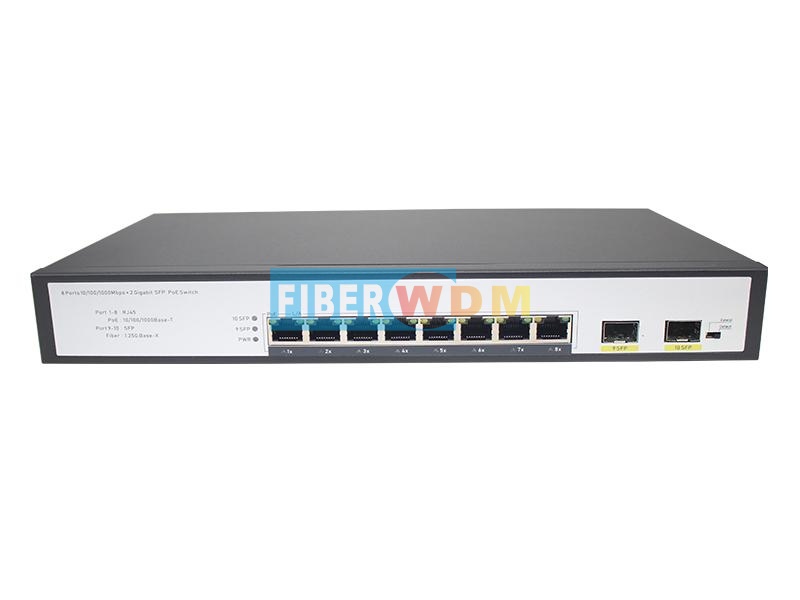

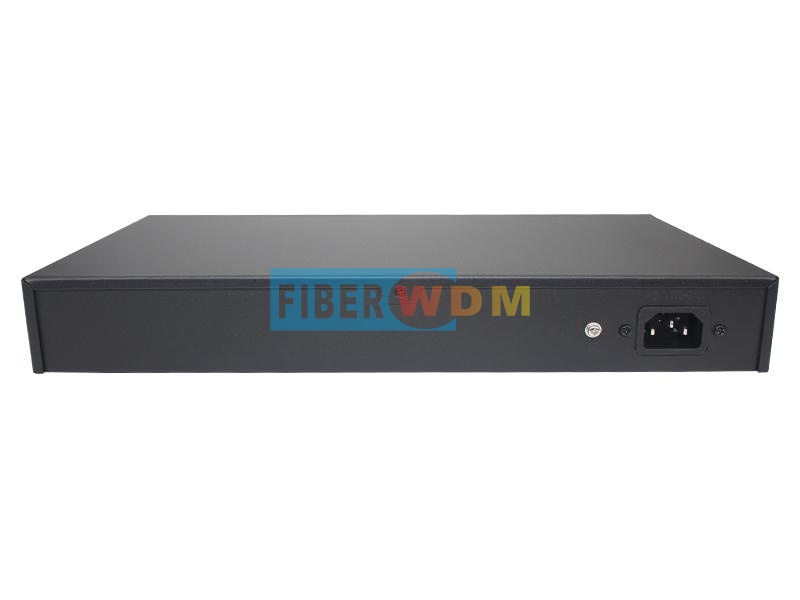

8 x Gigabit RJ45 and 2 x 1Ge SFP Uplinks PoE Switch 8 Port

  • Support 8*10/100/1000M RJ45 PoE ports, 2*1000Base SFP Uplink ports
  • Two-layer commercial PoE switch
  • Confirm to IEEE802.3i、IEEE802.3u、IEEE802.ab、IEEE802.z、and IEEE803.X Standards
  • MAC auto study and aging, MAC address list capacity is 8K
  • All the 10/100 and 10/100/1000Mbps self adaptive RJ45 PoE ports
  • Support IEEE802.3af and IEEE802.3at standards
  • Commercial Wide temperature design
  • Support 6KV ESD protection on all ports
  • All port Self adapt MDI/MDIX mode
Inquire now Download
  • Product Detail

PoE Switch with 8 x 10/100/1000M RJ45 PoE Ports and 2 x 1Ge SFP Uplinks


FIBERWDM’s 8 x ports PoE Switch provides power and data from a single point, using Power over Ethernet(PoE) over a single Cat5 cable. It can be used for any 10/100/1000Mbps link PoE port with gigabit Uplink and supply industry-standard IEEE 802.3af/ at power. Advanced auto-sensing algorithm gives power to 802.3af/ at end devices, it also offer gigabit 2 x SFP Uplink(Optional) which can be the most economic solution for long distance data transmission.



In addition, the PoE switch automatically determines PoE requirements, speed, duplex. Easy to operation and reliable. It also provides a switch button to extend the Ethernet transmission distance of 8 x PoE Ethernet ports up to 250m which make the installation more flexible.



This PoE Switch is ideal for powering PoE devices such as IP cameras, WLAN access points, IP phones, office access control systems, and other PD devices and offers a line of high quality products that provide a total solution for Ethernet application in different environments.

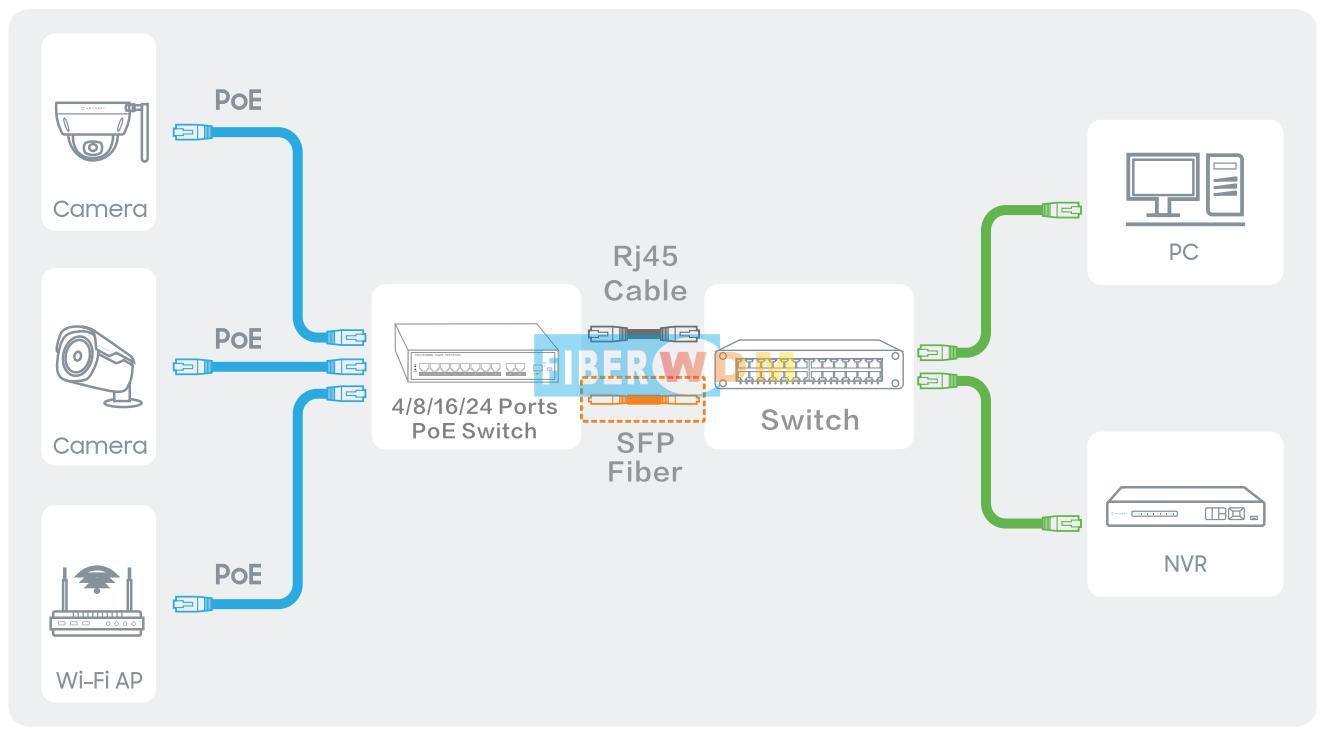

Typical Application


The typical application of the device is show as below




Product Specification



Hardware Specification

Model

8 x 10/100/1000M RJ45+ 2 x Gigabit SFP PoE Switch

Connector

8 x 10/100/1000Base-T RJ45

2 X 1000Base-X SFP

PoE Port

8 x 10/100/1000Mbps PSE Port

LED indicators

Power Indicator: PWR（green), Network Indicator: Link(green)

PoE Working Indicator: PoE(green)

Switch Architecture

Store and Forward

Backplane bandwidth

20Gbps

Packet forwarding Rate

14.88Mps

MAC address

8k

Power requirement

AC100-240V 50/60Hz

ESD Protection

6KV ESD

Dimension(W*D*H)

310*180*44.5mm

Weight

1.4kg

Power over Ethernet(PoE) Specification

Network standard

IEEE802.3i 10BASE-T; IEEE802.3u100BASE-TX

IEEE802.3ab/z 100BASE-Tx; IEEE802.3x Flow Control

PoE Standard

IEEE802.3af Power over Ethernet/PSE

IEEE802.3af Power over Ethernet Plus/PSE

PoE Supply Type

1/2(+), 3/6(-)End-span

PoE Power Output

Per Port 52V DC, 300mA. Max. 15.4 watts(IEEE802.3af)

Per Port 52V DC, 600mA. Max. 30 watts(IEEE802.3af)

PoE Power budget

120W

Environment

Environment specification

Operation Tem.: -20℃~55℃ ,

Storage Tem.:-40℃~75℃

Humidity: 5%~95%
