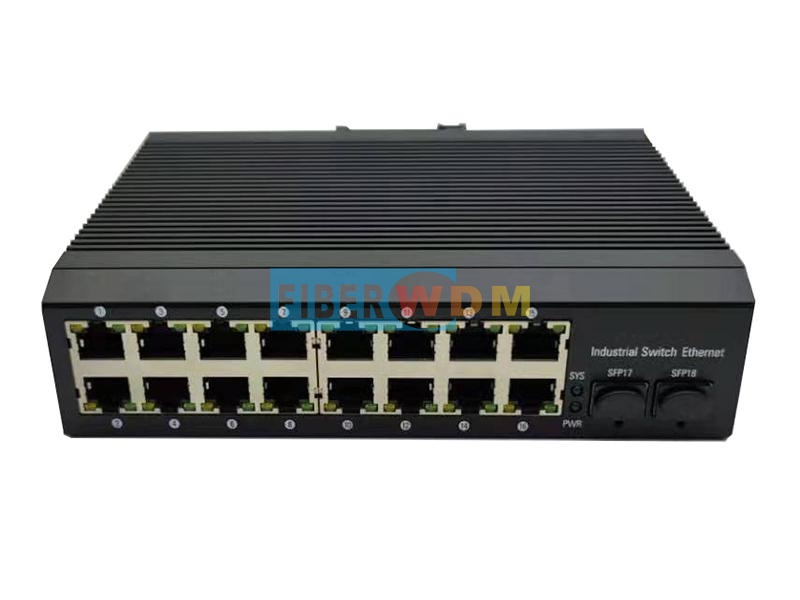

Managed Industrial Switch with 16 x Gigabit RJ45 and 2 x 1Ge SFP Uplinks

IEEE Technical Standard

IEEE 802.3 for10BaseT

IEEE 802.3u 100BaseT(X) and100BaseFX

IEEE 802.3z for1000BaseX

IEEE 802.3ab for1000BaseT(X)

IEEE 802.3xflow control

IEEE 802.1D spanning tree protocol

IEEE 802.1Wrapid Spanning Tree Protocol

IEEE 802.1Q VLAN mark

IEEE 802.1Pservice quality

IEEE 802.1W RSTP(ring)

IEEE 802.1SMSTP

IEEE 802.3ad Static load balancing configuration and LACP dynamic configuration

Protocol

IGMP Snooping v1, v2, v3，GMRP，GVRP，SNMPv1, v2c, v3，DHCP Snooping，BootP，TFTP/Xmodem，SNTP，RMON，HTTP，Telnet，SSH，Syslog,Option 81/82，LLDP

Flow Control

IEEE 802.3x flow control,back pressure flow control

Cyber Security

Support user hierarchical management and password protection

Support IEEE 802.1x certified/centralized，MAC address certified，AAA certified，RADIUS certified

Support HTTPS,SSH,ACL,portVLAN,PVLAN,TRUNK

Support Anti-gateway ARP spoofing, anti-ARP spoofing, port protection

Support MAC restriction, filtering, IP+MAC+port binding

SwitchProperties

Priority queue：4

VLAN maximum available quantity：4K

VLAN ID range：1 ~ 4094

IGMPgroup：256

MAC address quantity：8 K

delay：<5μs

Packet buffer size：4.1Mbits

Backplane bandwidth：56G

Forwarding rate：34.44Mpps

Interface

Electrical interface：16 10/100/1000 BaseTX,supportPOE

SFP interface：2 ports for1000Base-X SFP

Console port：RS-232

LED light indicator：PWR/SYS/ Link/ACT

Power

Input voltage：DC12V-48V

Power consumption：<15W

Over current protection

Reverse connection protection

Isolated dual power supply

MechanicalProperties

Shell：IP40 protection grade,aluminum alloy shell,fan less

Size：185*145*48mm

Weight：2000 g

Installation method: DIN-RAIL installation, wall-mounted installation

MBTF:400000 hours

workingEnvironment

Operating temperature：-40 ~85 °C

Storage temperature：-40 ~ 85°C

Relative humidity：5~95%

Standard

EMI

FCC Part 15. CISPR(EN55022) class A

EMS

EN61000-4-2(ESD)：±8kV contact discharge，±15kV air discharge

EN61000-4-3(RS)：10V/m（80～1000MHz）

EN61000-4-4(EFT)：power cable：±4kV；data cable：±2kV

EN61000-4-5(Surge)：power cable：CM±4kV/DM±2kV；data cable：±4kV

EN61000-4-6(Radio frequency conduction)：10V（150kHz～80MHz）

EN61000-4-8(Power frequency magnetic field)：100A/m；1000A/m ,1s to 3s

EN61000-4-9(Pulsed magnetic field)：1000A/m

EN61000-4-10(Damped oscillation)：CM 2.5kV，DM 1kV

EN61000-4-12/18(Shock wave)：CM 2.5kV，DM 1kV

EN61000-4-16(Common mode conduction)：30V continued；300V,1s

Standard

IEC6100-6-2IEC60068-2-6（Anti-vibration）

IEC60068-2-27（Impact resistance）

IEC60068-2-32（Free fall）

Standard

railway：EN50155.EN50121-4

electricity：IEC61850-3（Substation）

IEEE1613（Power substation）

traffic：NEMA TS-2

coal：GB/T3836.1/2/3/4

mechanical：IEC68-2-6/27/32

Warranty

5 years
