Dual Fiber 16CH C21-C36 DWDM MUX DEMUX With EXP Port

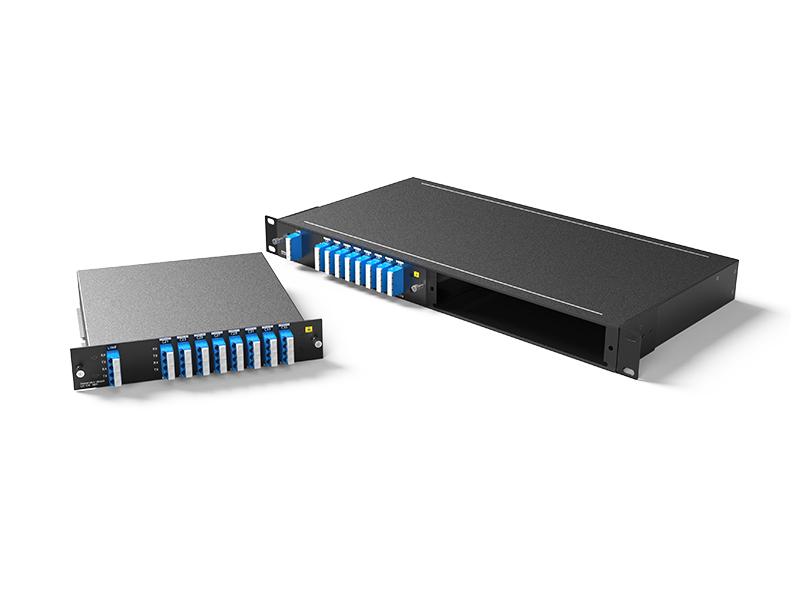

Dual Fiber 16CH C21-C36 DWDM MUX DEMUX With EXP Port, LC/UPC, LGX Box, and 2 Slots 1U Rack

The 16ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C21 to C26(1560.61nm~1548.52nm), (By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

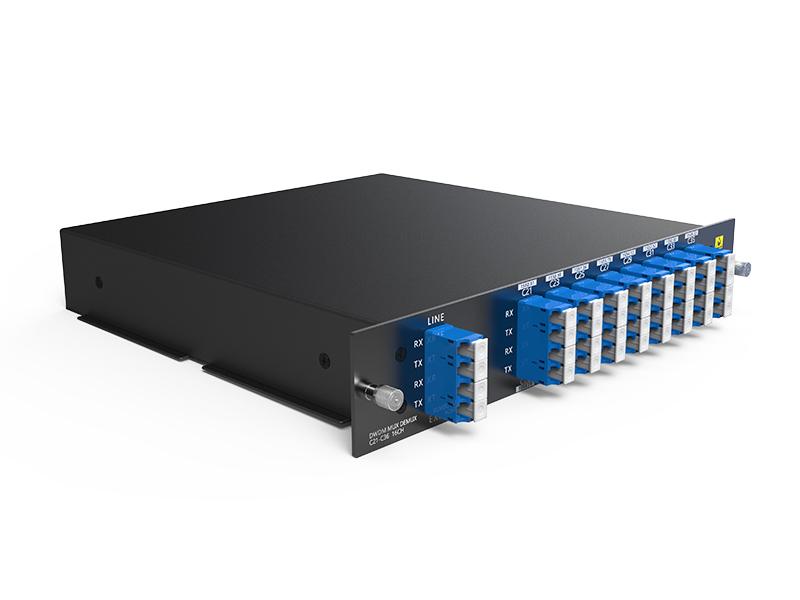

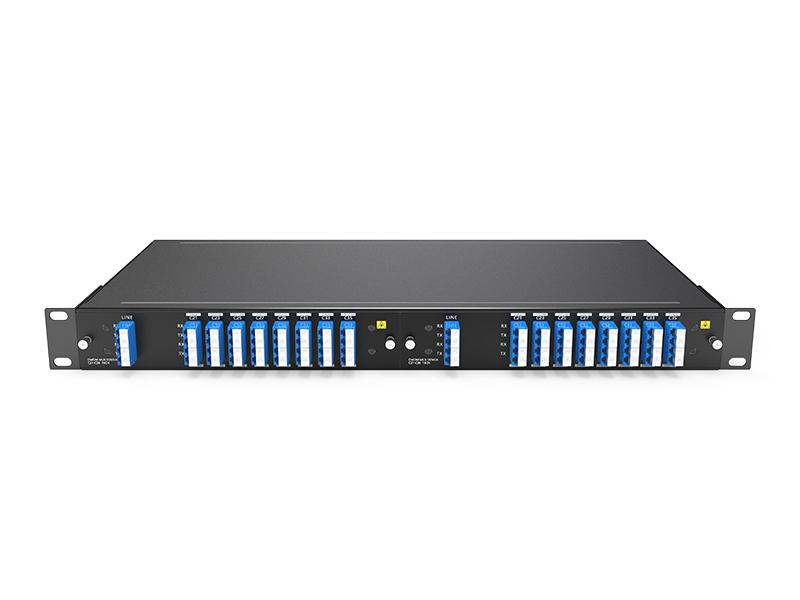

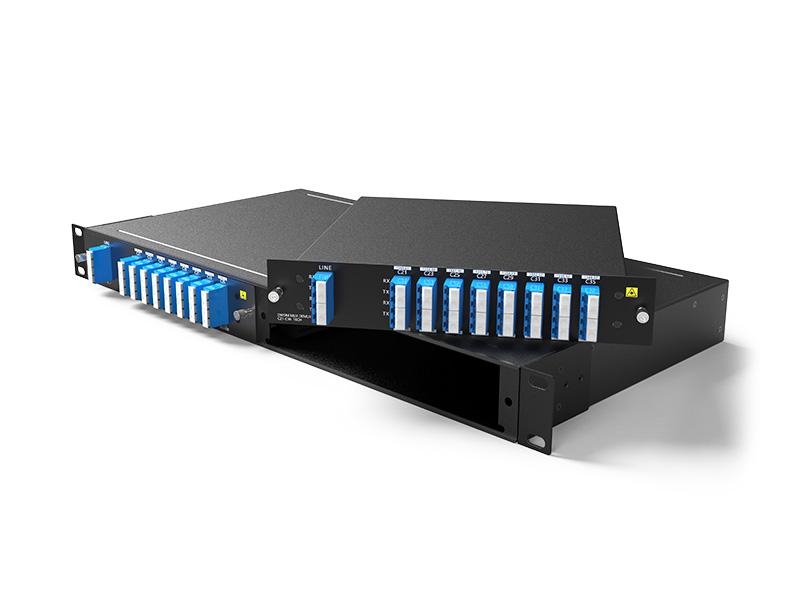

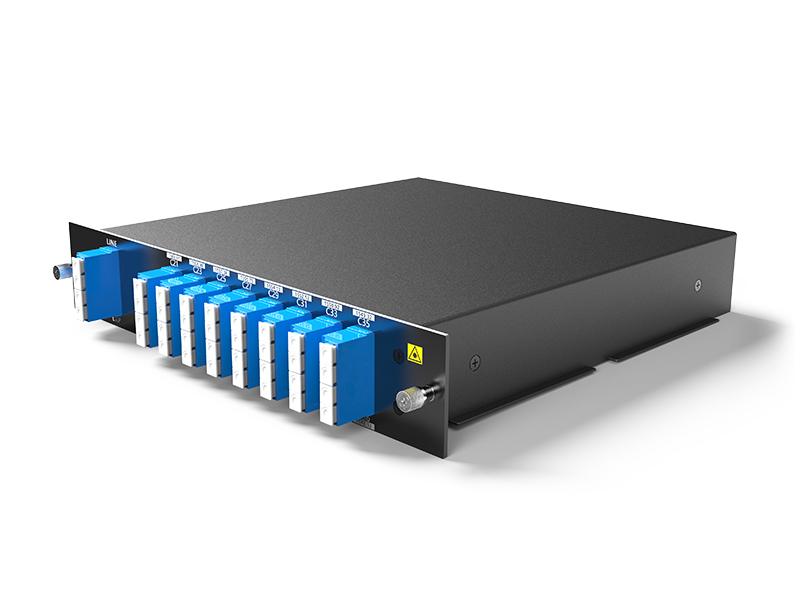

The 16ch DWDM is totally passive and LGX box module device, it can plug in the 2-slot 1 U rack; the product insertion loss is＜3.5dB. And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

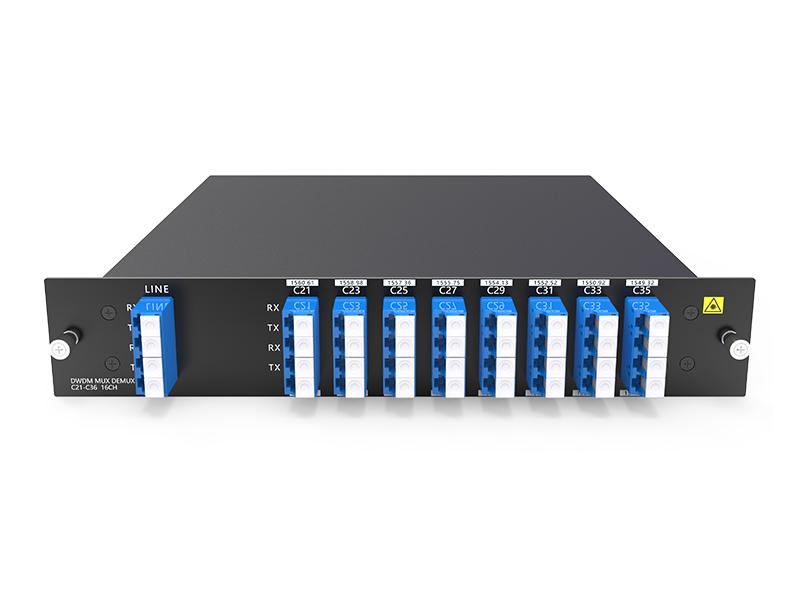

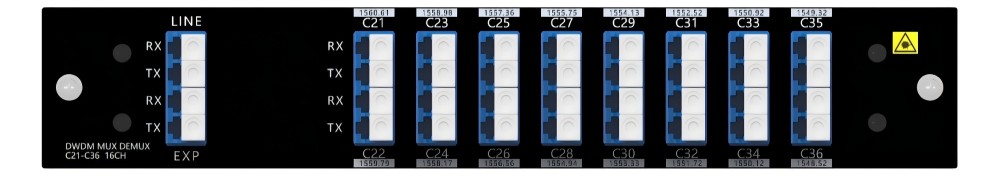

Product Panel

16CH DWDM MUX DEMUX Dual Fiber

Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

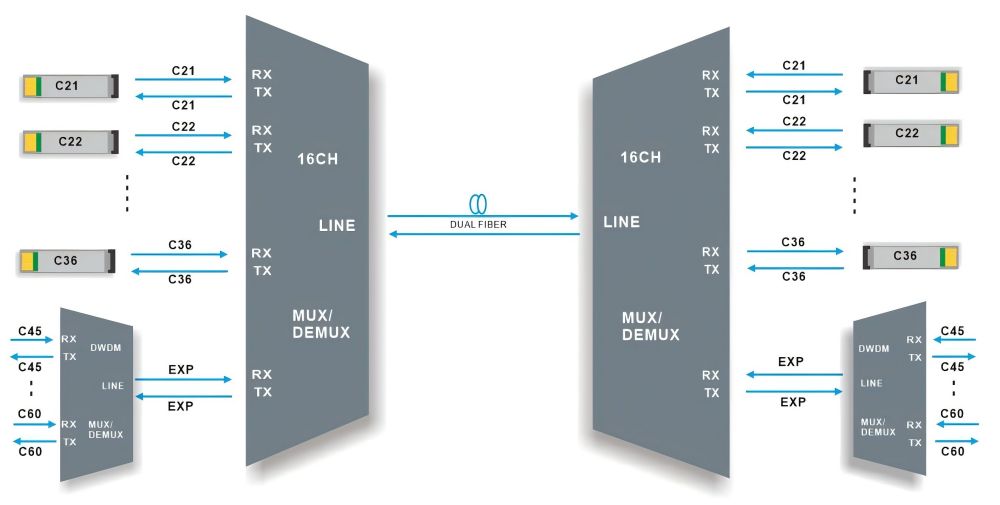

Line Link

16CH DWDM MUX DEMUX Dual fiber transmission

16Channels DWDM MUX DEMUX, supports 16 channels difference business in two optical fiber for point-to-point transmission.

It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Note: Specified with connectors.

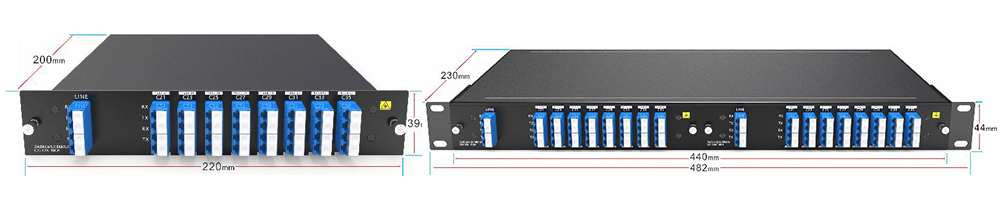

Package Information

Order Information

Note: We Support Customized Design, please contact us by email.
