Dual Fiber 8CH C37-C44 with 1310nm DWDM OADM, WEST TO EAST

  • IL<2.7dB , 100GHZ DWDM OADM MUX DEMUX
  • Multiplexing of 8 Channel DWDM and one channel 1310nm Drop and Add, over a Dark Fiber Network
  • Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
  • Passive devices, No Power No Cooling Required
  • Support Metro, Regional and Long Haul DWDM Networks
  • Product Detail

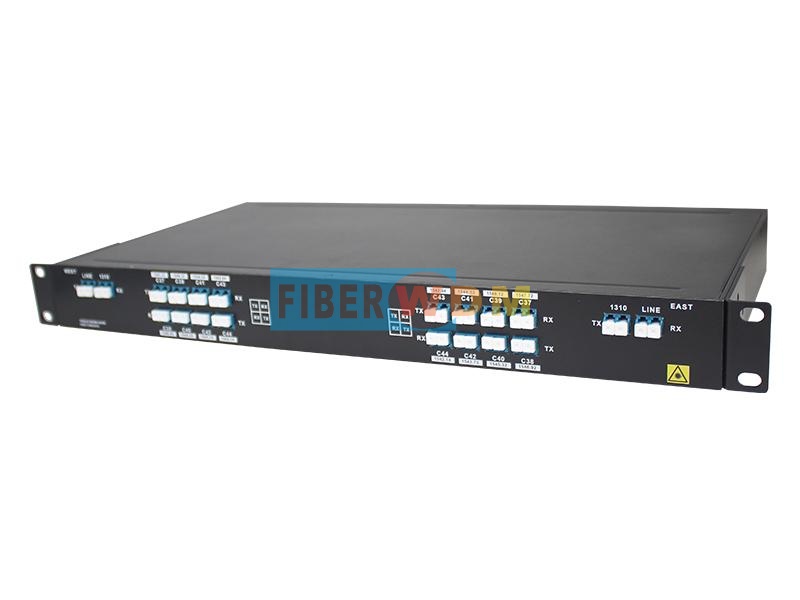

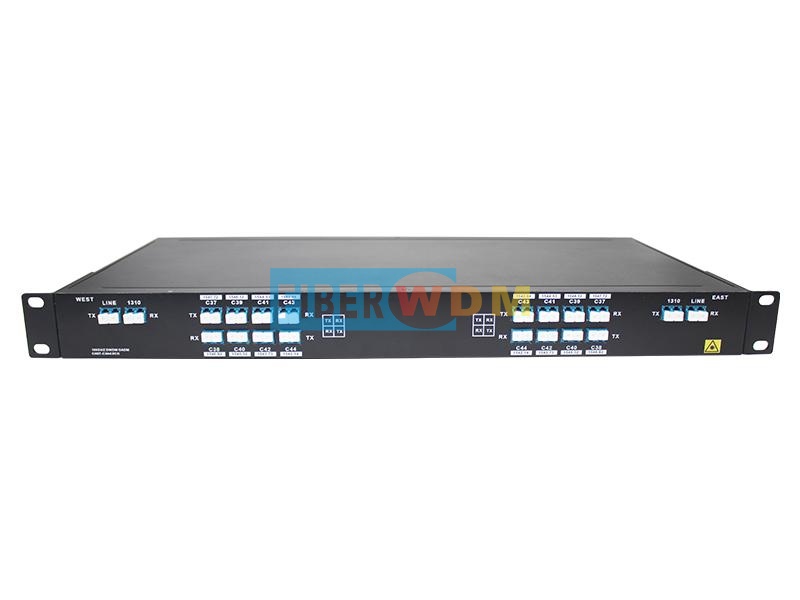

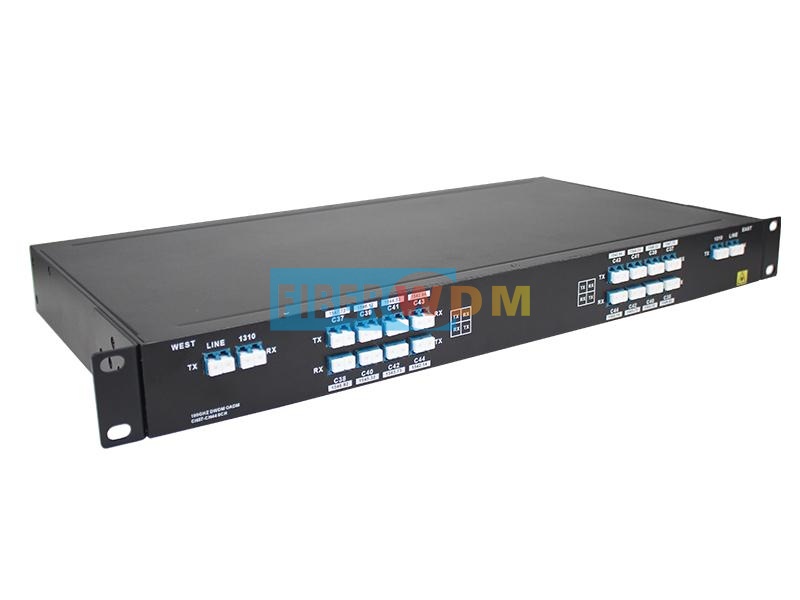

Dual Fiber 8CH C37-C44 with 1310nm Port DWDM OADM,WEST AND EAST, LC/UPC, 1U Rack



The Dual Fiber 8CH C37-C44 with 1310nm Port DWDM OADM is designed by FIBERWDM, drop and add wavelength are from C37 to C44(1547.72nm~1542.14nm) and 1310nm,(By the way, we can support customize other waves);in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.



The 8ch DWDM OADM port is totally passive DWDM device, and support drop 8 channels business and add 8 channels business in two fibers. The loss of The waves to west or east is<2.7dB, line loss of west to east( or east to west) is<5.4dB.

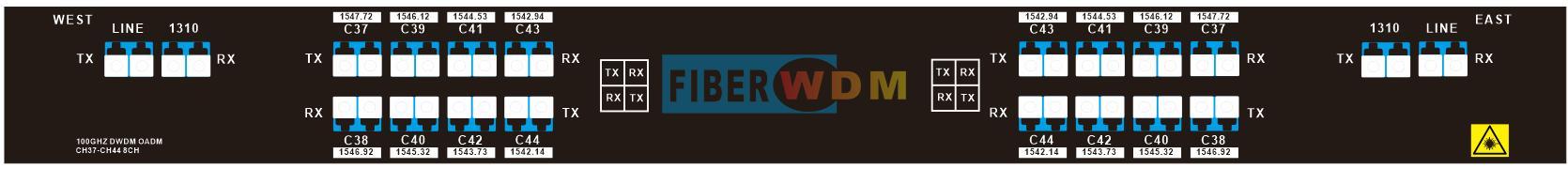

Product Panel


                       8CH DWDM OADM Dual Fiber

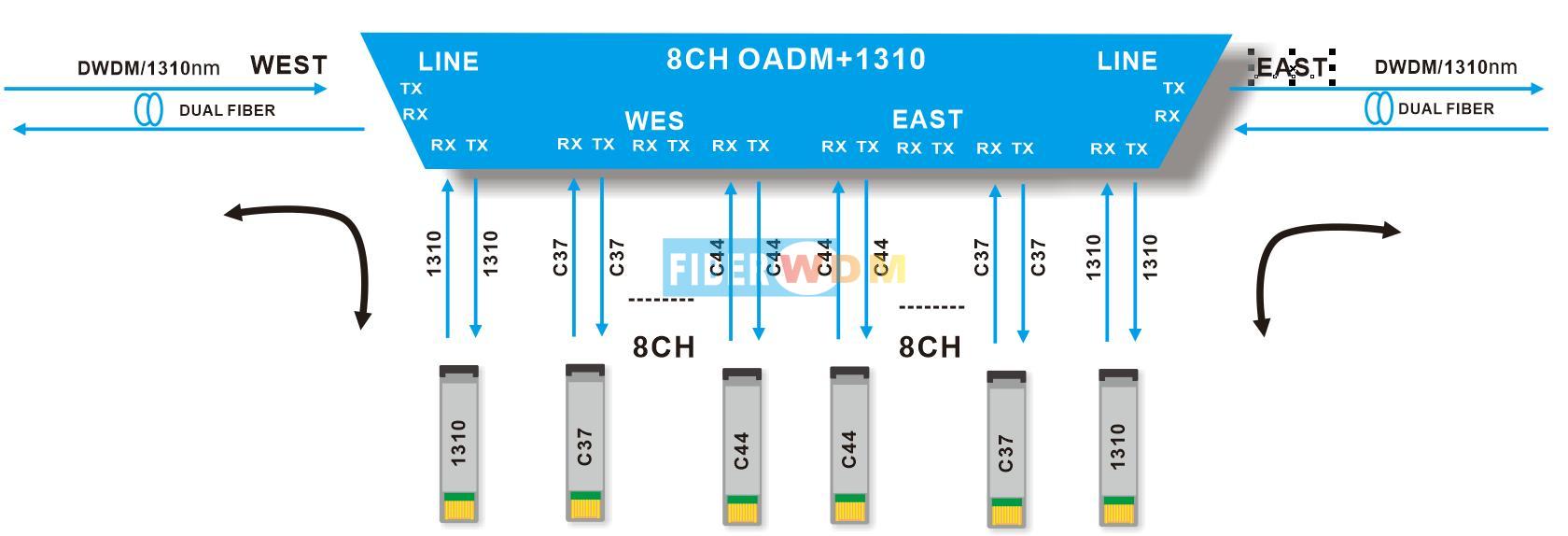

Line Link




8CH DWDM with 1310nm OADM Dual fiber transmission



Support drop and add 8channel DWDM and 1channel 1310nm business transmission in dual fiber.



 works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.





Product Specification



Wavelength

OADM C37-C44 with 1310nm

Channel Spacing

100GHz (0.8nm)

Channel Passband

±0.11nm

Technology

TFF (Thin Film Filter)

Insertion Loss

≤2.7dB( waves to west or east)

Link Loss

≤5.4dB ( west to east)

Return Loss

≥ 45dB

Directivity

≥ 45dB

Polarization Mode

Dispersion

≤ 0.1ps

Polarization Dependent Loss

≤ 0.3dB

Channel Isolation

Adjacent ≥30dB
Non-adjacent ≥45dB

Temperature

Operating -40 to 85°C

Storage -40 to 85°C

Net Weight

3.5KG

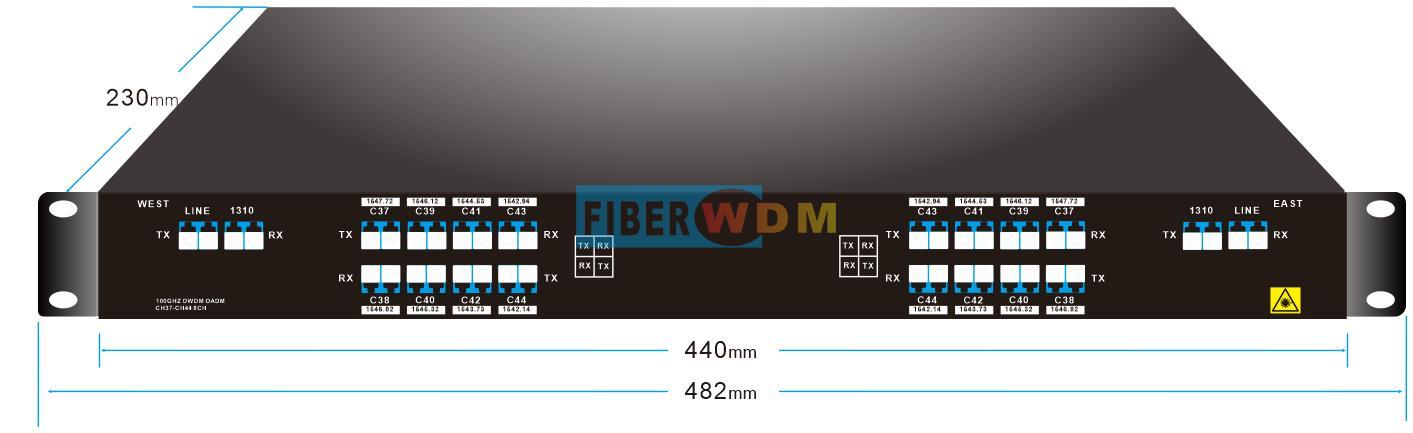

Dimensions (HxWxD)

44*440*230mm

Note: Specified with connectors.



Package Information





DWDM OADM 19” 1U Rack



Order Information



Product No.

Product description

DOA8-1U01-C3744-31

DWDM OADM Drop and Add 8CH (C37-C44) and 1310nm ,west to east , Dual fiber, LC/UPC , 1U Rack

Note:We Support Customized Design, please contact us by email.
