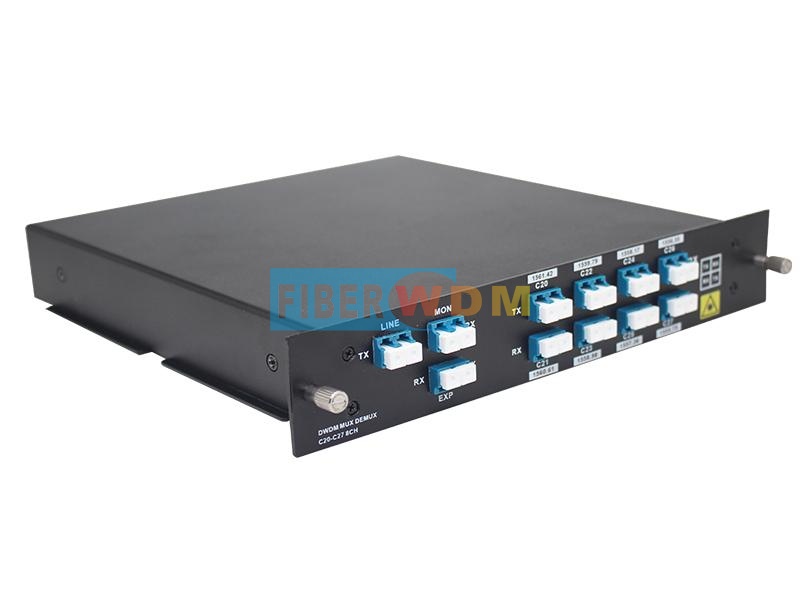

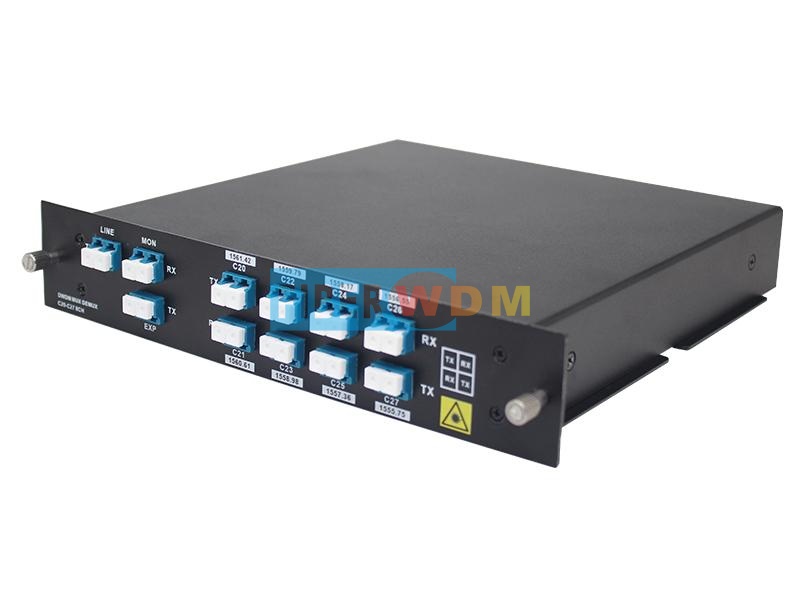

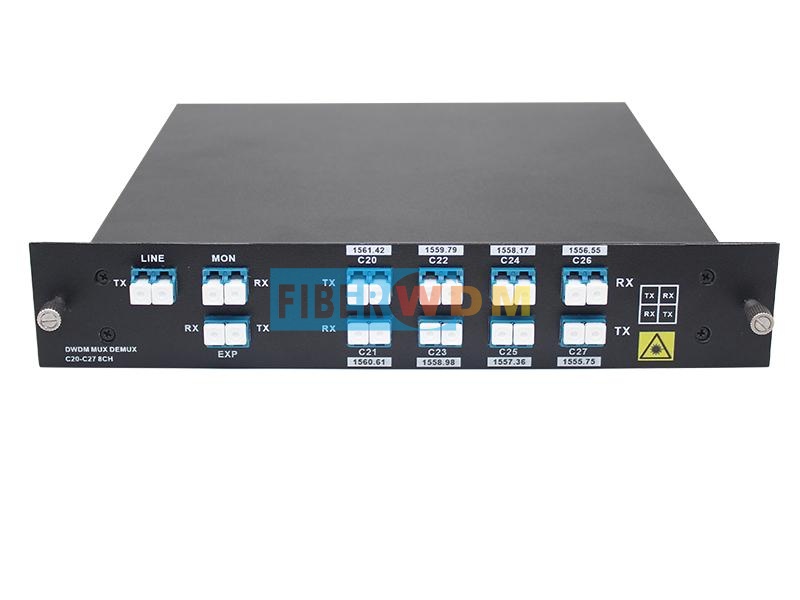

Dual Fiber 8CH C20-C27 DWDM MUX DEMUX With Monitor EXP Port LGX Box

Dual Fiber 8CH C20-C27 DWDM MUX DEMUX With Monitor EXP Port, LC/UPC,LGX Box, and 2 Slots 1U Rack

The 8ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength from C20 to C27(1561.42nm~1555.75nm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

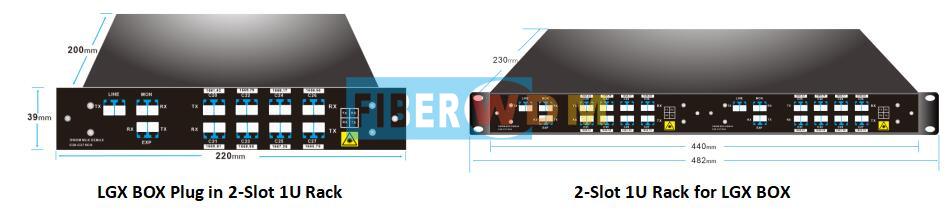

The 8ch DWDM is totally passiveand LGX box module device, it can plug in the 2-slot 1 U rack; the productinsertion loss is＜2.4dB.And it conjunct with The DWDM amplifiers and DCM device, the 8ch DWDM transfer system can support a long distance transmission.

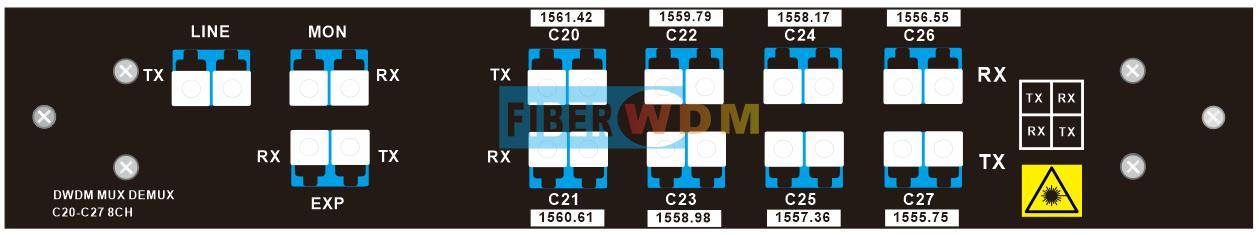

Product Panel

8CH DWDM MUX DEMUX Dual Fiber

• Mon port is for network link monitoring or power monitoring, easy troubleshooting without affecting traffic.
• Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

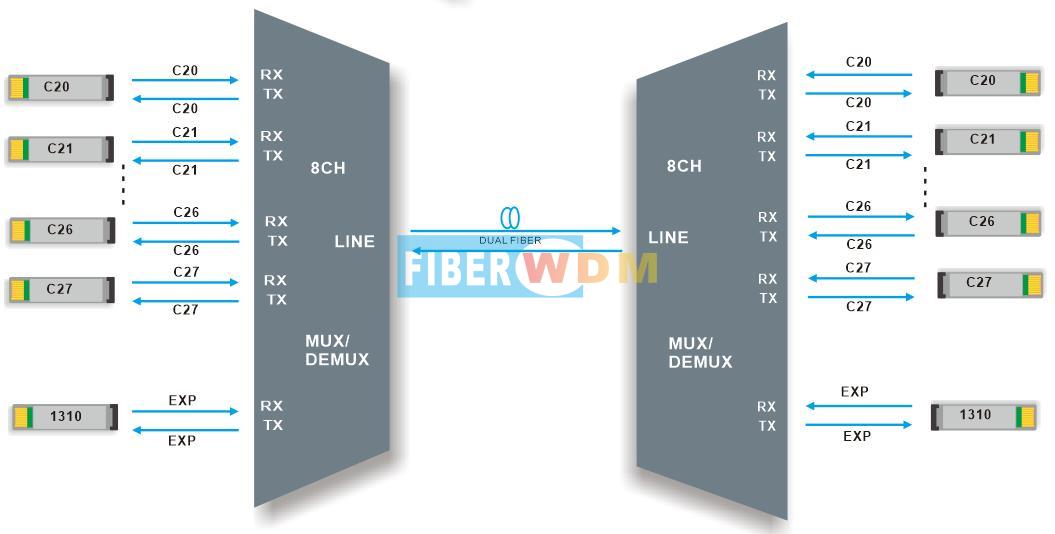

Line Link

8CH DWDM MUX DEMUX Dual fiber transmission

  8 Channels DWDM MUX DEMUX, supports8 channels difference business in two optical fiber for point-to-point transmission.

  It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Product Specification

Note: Specified with connectors.

Package Information

Order Information

Note:We Support Customized Design, please contact us by email.
