Optical Demultiplexer/Multiplexer (ODM)

Product Features



  • Supports smooth upgrade of CWDM system to 18-channel customization.
  • Supports smooth upgrade of DWDM system to 96-channel customization.
  • Completely passive, no power supply or adjustment required, transparent transmission.
  • Supports online capacity expansion and upgrade, simple maintenance, easy operation.
  • Supports CWDM and DWDM (100GHz/75GHz/50GHz) applications.
  • Supports various application scenarios such as single fiber unidirectional, single fiber bidirectional, and dual fiber bidirectional.
  • Low insertion loss, high channel isolation, high reliability and stability, compliant with GR-1221 standard.
Inquire now Download
  • Product Detail

Optical Demultiplexer/Multiplexer (ODM)



The ODM (Optical Demultiplexer/Multiplexer) board is a CWDM (Coarse Wavelength Division Multiplexing) / DWDM (Dense Wavelength Division Multiplexing) multiplexer launched by FIBERWDM. It can combine or separate the channels of CWDM or DWDM systems, greatly saving the fiber resources of customers, and the network configuration can be flexibly changed according to customer requirements.



For DWDM systems with a frequency spacing of 100GHz, it supports smooth upgrade to 48 wavelength channels. For DWDM systems with a frequency spacing of 75GHz, it supports smooth upgrade to 64 wavelength channels. For DWDM systems with a frequency spacing of 50GHz, it supports smooth upgrade to 96 wavelength channels. For CWDM systems, it supports smooth upgrade to 18 wavelength channels.



The use of the ODM device can improve the spectrum utilization of the fiber and save precious bandwidth resources.



Product Introduction

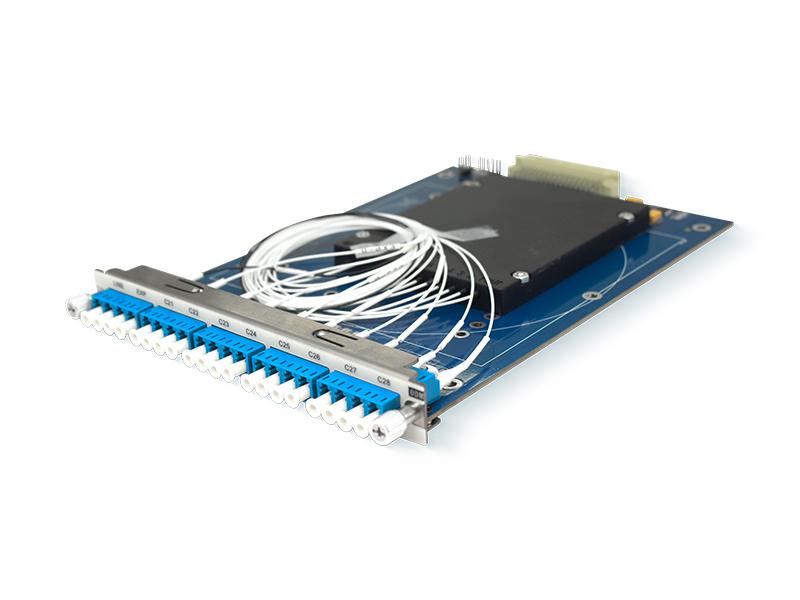

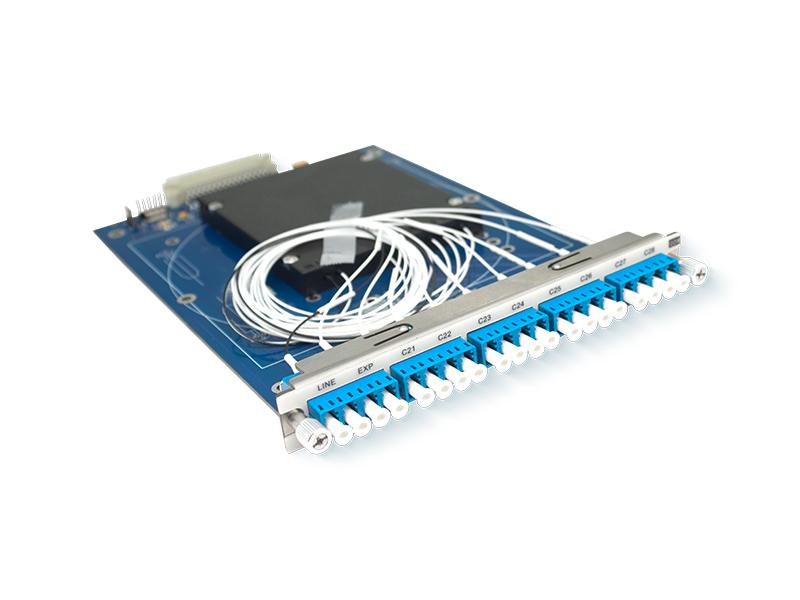

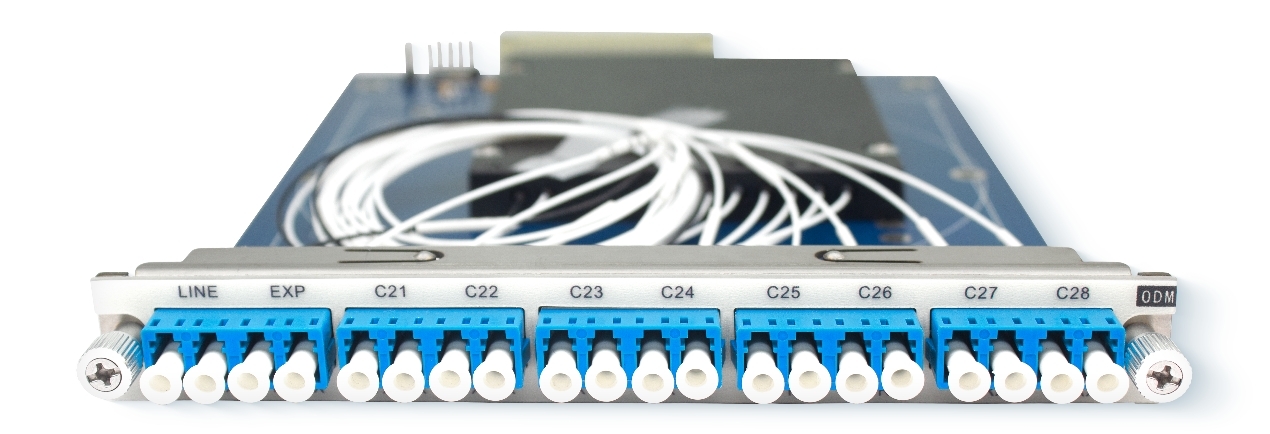

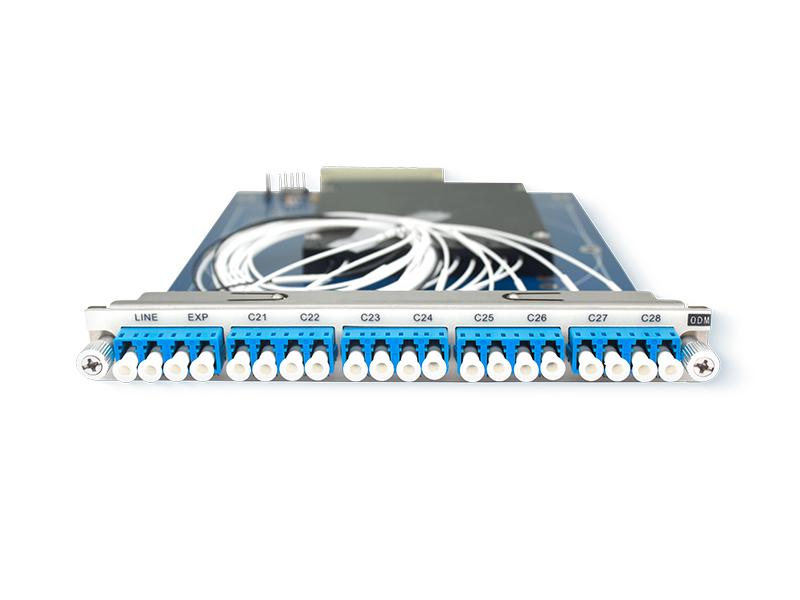

Fig. 1 ODM Optical Demultiplexer/Multiplexer Board





Product Specifications

System Parameters

Technical Specifications

Wavelength Range

CWDM：1271~1611nm

DWDM：C-Band（100GHZ/75GHZ/50GHZ）

Channel Spacing

CWDM：20nm

DWDM：0.8nm/0.6nm/0.4nm

Passband Width

CWDM：±6.5nm

DWDM：0.1nm

Passband Flatness

<0.5dB@flat-top

<0.5dB@gaussian

Channel Insertion Loss

4CH：<1.0dB、6CH：<2.0dB、8CH：<2.5dB

12CH：<2.8dB、16CH：<3.2dB、40CH：<6dB

48CH：<6dB、80CH：<6dB、96CH：<7dB

Adjacent Channel Isolation

>25dB

Non-Adjacent Channel Isolation

>30dB

Polarization Dependent Loss

<0.5dB

Polarization Mode Dispersion

<0.1ps

Return Loss

>45dB

Maximum Input Optical Power

>300mw

Dimensions

Board:156（W）× 20（H）× 225（D）（mm）

Chassis:440（W）× 44（H）× 230（D）（mm）

Environmental Requirements

Operating Temperature

-10℃ ~ 50℃

Storage Temperature

-40℃ ~ 80℃

Relative Humidity

5% ~ 95% non-condensing

Safety and EMC

Compliant with FCC, UL, CE, TUV, CSA standards





Order Information

Part No.

Specifications

FW6CM8-3145

CWDM MUX DEMUX 8CH (1310~1450nm)With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6CM8-4761

CWDM MUX DEMUX 8CH (1470~1610nm)With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6CM18-2761

CWDM MUX DEMUX 18CH (1470~1610nm), LC/UPC Dual fiber, used in FW6600 series take two slot

FW6DM8-C2128

DWDM MUX DEMUX 8CH (C21~C28) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6DM8-C2936

DWDM MUX DEMUX 8CH (C29~C36) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6DM8-C3744

DWDM MUX DEMUX 8CH (C37~C44) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6DM8-C4552

DWDM MUX DEMUX 8CH (C45~C52) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6DM8-C5360

DWDM MUX DEMUX 8CH (C53~C60) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take one slot

FW6DM16-C2136

DWDM MUX DEMUX 16CH ( C21-C36) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take two slot

FW6DM16-C4560

DWDM MUX DEMUX 16CH ( C45-C60) With EXP Port, LC/UPC Dual fiber, used in FW6600 series take two slot

FW6DM40-C2160

DWDM MUX 40CH ( C21-C60) With EXP Port, LC/UPC Single fiber, used in FW6600 series take two slot

FW6DD40-C2160

DWDM DEMUX 40CH ( C21-C60) With EXP Port, LC/UPC Single fiber, used in FW6600 series take two slot

Others

We Support Customized Design, please contact us by email.
