Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Up to 10km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 12W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU; Application 100GBASE-LR4

Features Supports single-rate 103.1Gb/s aggregate(100GE); Lane bit rate 25.78 Gb/s 100GbE; Up to 10km transmission on SMF; LAN WDM laser and PIN receiver; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic monitoring; CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 6W; Operating case temperature: -5 to +70 °C; Complies with IEEE802.3bm; Complies with EU Directive 2015/863/EU;   Application 100GBASE-LR4;

  Features Supports multi-rate (100GE and OTU4); from 103.1Gb/s to 111.8Gb/s aggregate; Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4; Up to 40km transmission on SMF; LANWDM laser and PIN receiver with SOA; High speed I/O electrical interface (CAUI-4); MDIO interface with integrated Digital Diagnostic CFP2 MSA package with duplex LC connector; Single +3.3V power supply; Maximum power consumption 14W; Operating case temperature: 0 to +70 °C; Complies with IEEE802.3ba and ITU-T G.959.1; Complies with EU Directive 2015/863/EU;   Application 100GBASE-ER4;

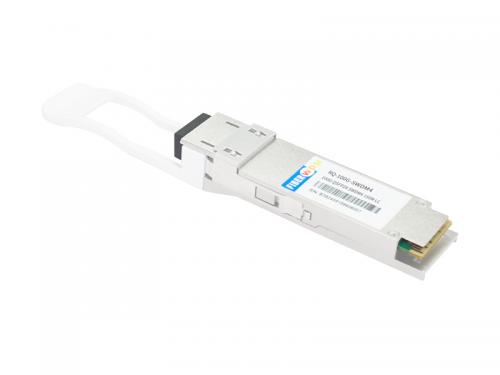

  Feature Compliant with QSFP28 MSA Compliant with SWDM MSA Compliant with IEEE802.3bm CAUI-4 Hot-pluggable QSFP28 form factor 4x25Gb/s 850mm VCSEL-based transmitter Supports 103.1Gbps aggregate bit rate Power dissipation<3.5W Maximum link length of 150m on OM5 multi mode Fiber Case temperature range of 0℃ to 70℃ Duplex LC receptacles CAUI-4 electrical interface RoHS compliant   Applications 100G Ethernet over Duplex MMF

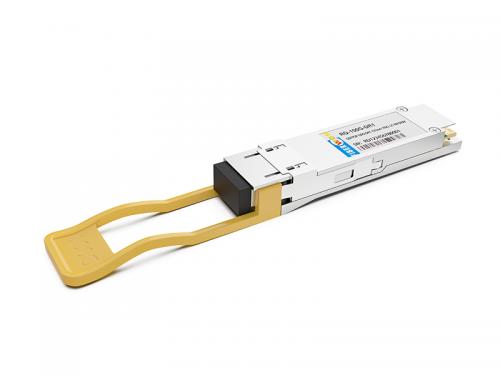

Features Up to 106.25Gbps data rate by PAM4 modulation 1x100G PAM4 EML laser Duplex LC receptacle optical interface Single +3.3V power supply DDM function implemented Hot-pluggable QSFP28 form factor Maximum link length of 500m on SMF fiber Low power dissipation:<3.5W International class 1 laser safety certified Operating temperature range: 0℃ ~ +70 ℃ Compliant with ROHS6.0   Applications 100GBASE Ethernet Links Switch & Router Connections Data Centers   Standards IEEE 802.3bm IEEE 802.3cd 100G Lambda MSA QSFP MSA SFF-8636
