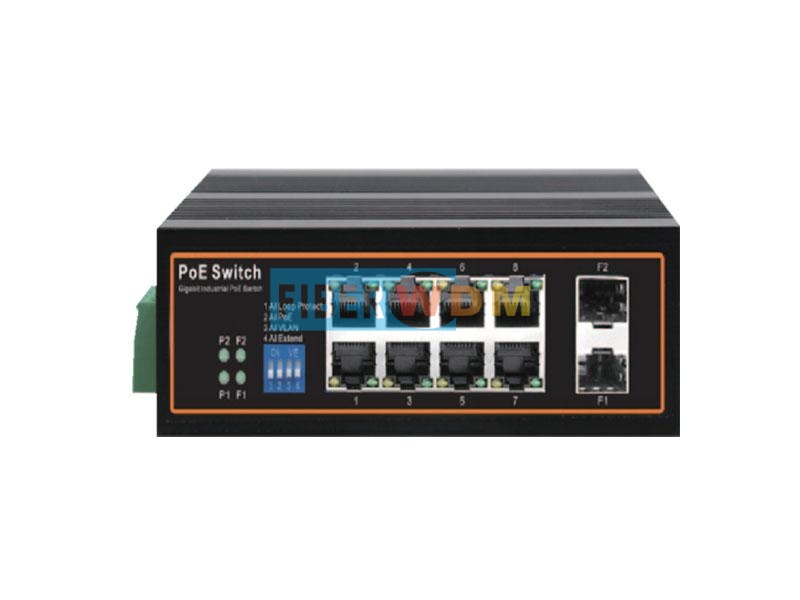

2-Optical 8-Electric POE Gigabit Industrial Switch FW308GPS-2F
2-Optical 8-Electric POE Gigabit Industrial Switch FW308GPS-2F

2-Optical 8-Electric POE Gigabit Industrial Switch FW308GPS-2F


8 * 10/100/1000Mbps RJ45 ports+2 * Gigabit SFP ports (uplink)


FW308GPS-2F is an industrial full gigabit management POE switch, which provides 8 gigabit POE ports, 2 gigabit optical ports, and EMC industrial grade 4 protection performance; Corrugated high-strength aluminum shell, IP40 grade, low power consumption design, anti-seismic guide rail installation, working temperature of - 40 ℃ - 75 ℃, can work in harsh environments.



Inquire now Download
  • Product Detail

10 Ports Gigabit 2-Optical 8-Electric POE Gigabit Industrial Switch

FW308GPS-2F



Product Features


8 * 10/100/1000Mbps RJ45 ports+2 * Gigabit SFP ports (uplink)


FW308GPS-2F is an industrial full gigabit management POE switch, which provides 8 gigabit POE ports, 2 gigabit optical ports, and EMC industrial grade 4 protection performance; Corrugated high-strength aluminum shell, IP40 grade, low power consumption design, anti-seismic guide rail installation, working temperature of - 40℃- 75℃, can work in harsh environments.


  • 6KV port lightning protection: the full port supports 6KV lightning protection, PSE short circuit protection, PoE overload, power over temperature protection, overvoltage protection, surge current protection and other protection features.


  • Switching characteristics: two gigabit SFP uplink optical ports are provided at the same time; Support IEEE 802.3x full dual and semi dual backpressure flow control.


  • PoE characteristics: comply with IEEE802.3af&at standards, and the maximum POE power of a single port is 30W.


  • Reliability protection: support dual DC power supply backup, built-in overvoltage protection, and power supply support anti reverse connection.




Product Details


Product Model


FW308GPS-2F


Network Interface


  • 8 10/100/1000M RJ45 ports
  • 2 Gigabit SFP ports


Performance Specifications


  • MAC address table: 8k
  • Backplane bandwidth: 20Gbps
  • Packet forwarding rate: 14.9Mpps
  • Forwarding mode: store and forward


Power Support


  • Maximum output power: 30W
  • Voltage input: 48-56V DC
  • Input mode: plug-in 5-core 5.08mm spacing terminal block


LED Indicator


  • Power indicator: P1, P2
  • Ethernet port indicator: Link&Act1-8,PoE1-8
  • Optical port indicator: Link&Act F1-F2


Environmental Specifications


  • Operating temperature: - 20-75℃
  • Storage humidity: - 40-85℃
  • Relative humidity: 5% - 95% (non condensing)


Network Protocol


  • IEEE802.3、IEEE802.3i、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3af/at


Management


  • 2L+


Antistatic


  • ±8kV(contact),±15kV (air)


Size（W*D*H）


  • 150*127*40mm






Application Collocation
